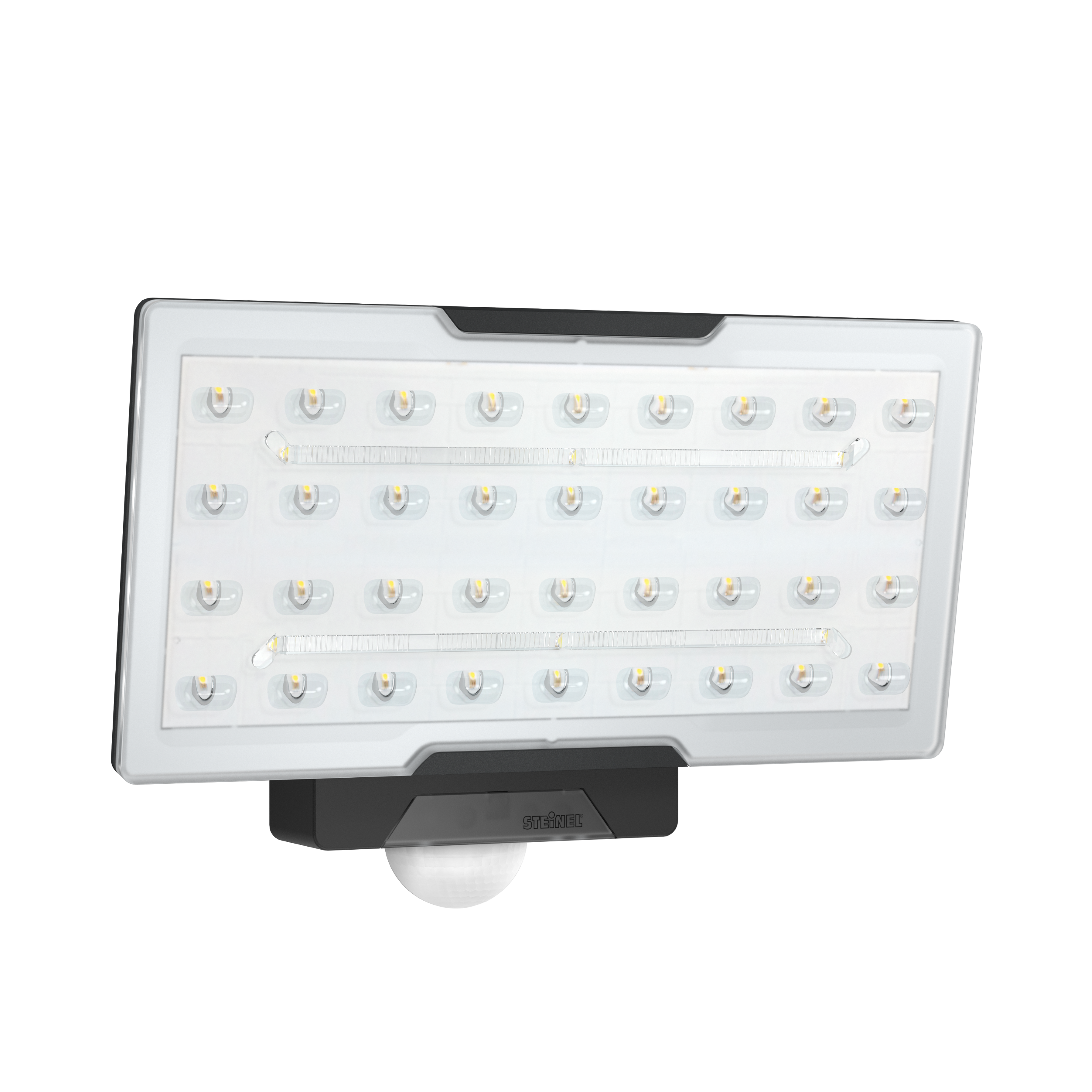

Nevalux XLED PRO Wide black

ELDAS® no. 924 700 261

EAN-No. 4007841 010096

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

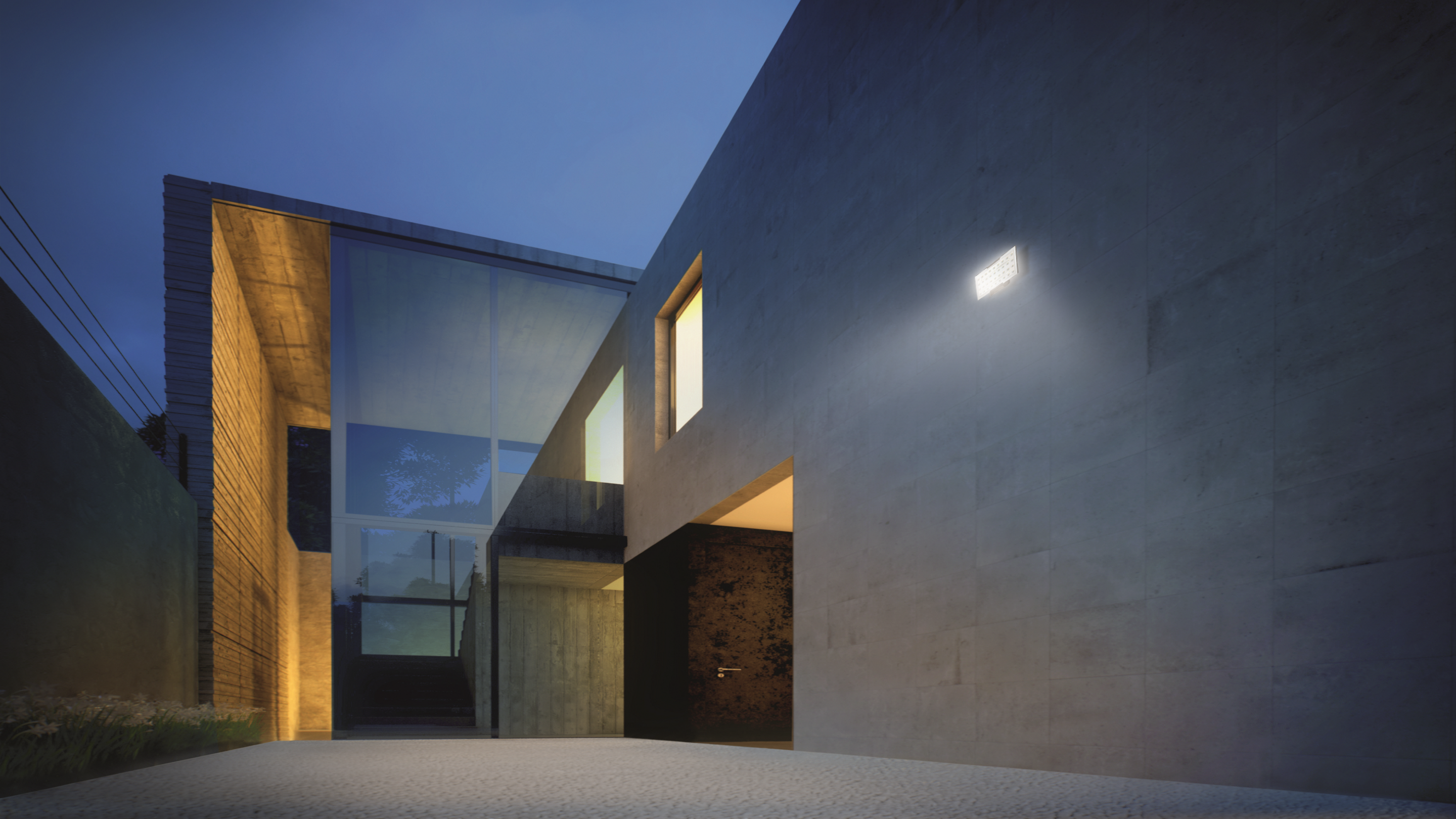

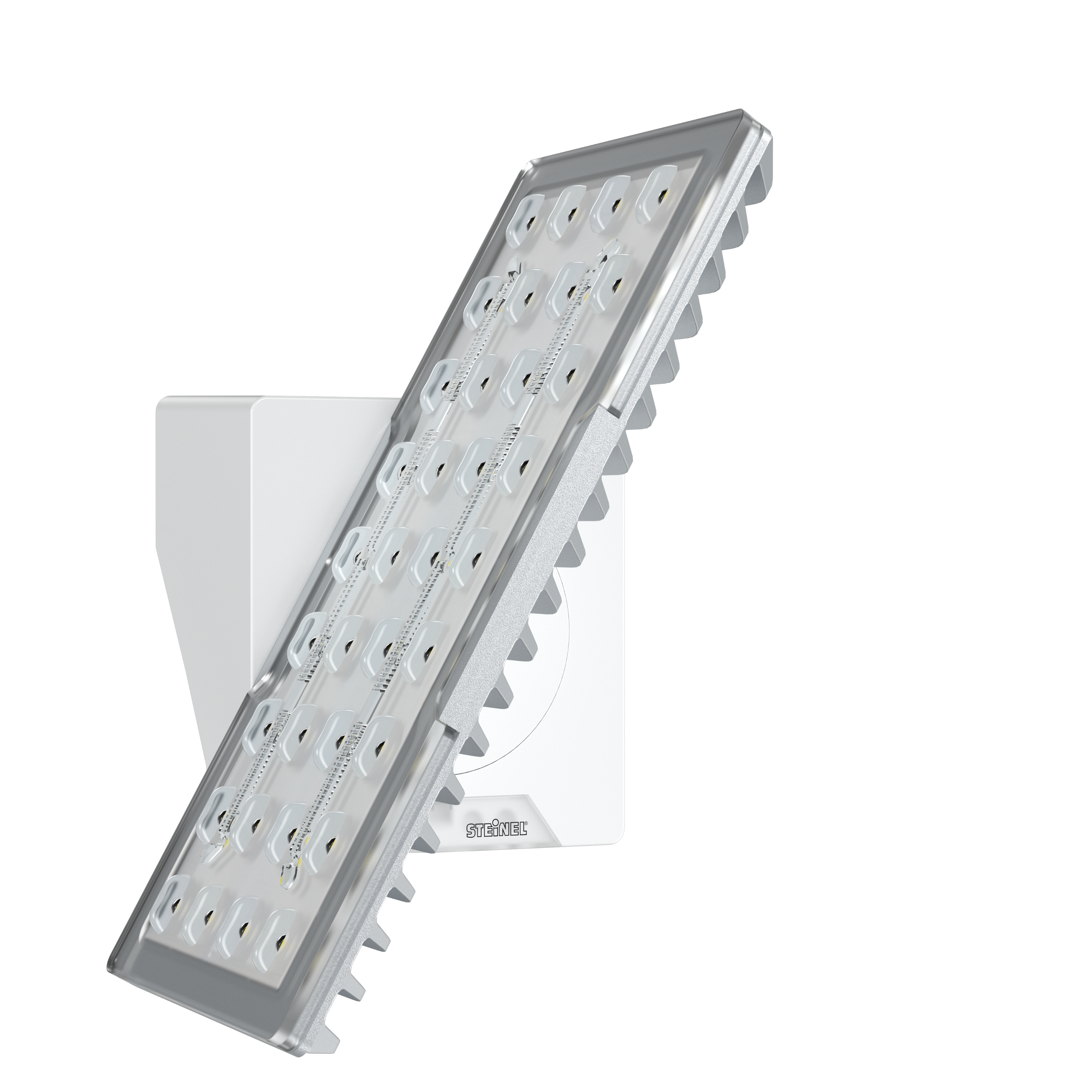

Lighting precision on a broad front. XLED PRO Wide sensor-switched floodlight with even light pattern thanks to the precision lens matrix. Fully tilting and turning flat-design light head. With a mounting height of up to 6 m, ideal for illuminating large rectangular areas. Powerful high-end LEDs giving 2400 lm of light at 24,8 W. Sensor with 240° coverage and 12 m reach. Linear basic light level. High-quality aluminium heat sink.

Including STEINEL LED system
Intelligent LED cooling system
Optional basic lighting level
UV resistant material
Interconnectable by cable
RC9 remote control optional
Smart Remote remote control optional

Dimensions

Dimensions L × W × H 126 x 265 x 188 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 24,8 W

Sensor technology

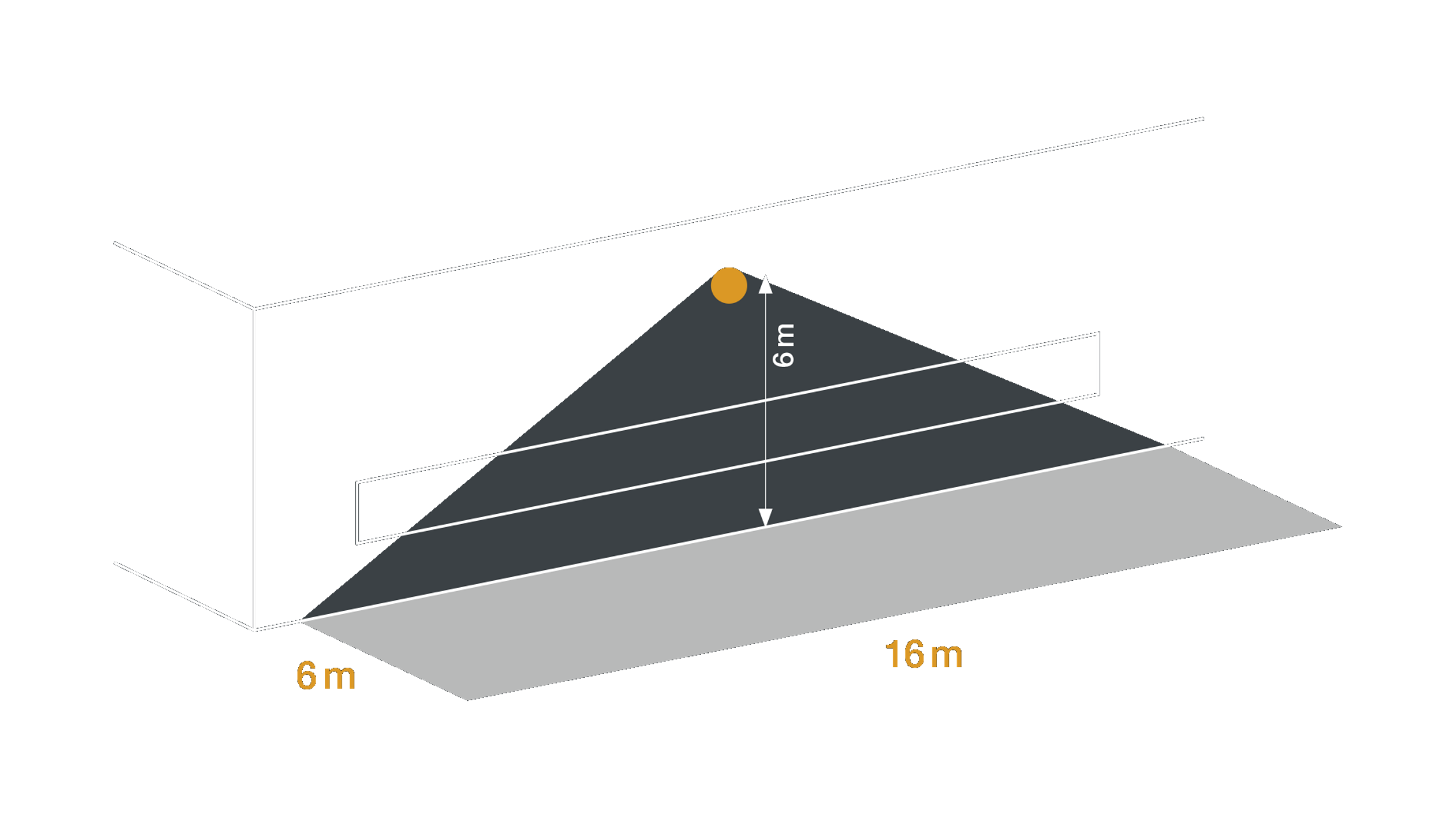

Max. mounting height 6,00 m

Sensor technology Passiv Infrarot

With motion detector Yes

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (19 m²)

Tangential range r = 12 m (302 m²)

Mounting height 1,80 – 6,00 m

Optimal mounting height 2 m

Connectivity

Networking Ja

Type of networking Sensor/Slave

Networking via Kabel

Networking quantity max. 10 Strahler

Lighting technology

Measured luminous flux 360° 2400 lm

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Ja, STEINEL LED-System

Illuminant LED nicht austauschbar

Base Ohne

LED cooling system Passive Thermo Control

Soft light start No

Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 50000 Std

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Ja

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Ja

Base light function time 10 Min. 30 Min. Ganze Nacht

Main light adjustable No

Settings via Fernbedienung Potis Smart Remote

Twilight setting teach Yes

Base light function in percent 3 %

Base light function percent from 3

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Kunststoff transparent

Cover material (scope of delivery) Aufkleber

Mounting location Wand

Application location Außenbereich

Mounting type Aufputz

Application room Außenbereich Hof & Einfahrt

Colour Schwarz

Scope of delivery & warranty

Manufacturer warranty 5 Jahre

Corner wall bracket included No

Certificates & EPREL

Certificates VDE

Technical drawing

Lichtverteilungskurve

Sensor detection range

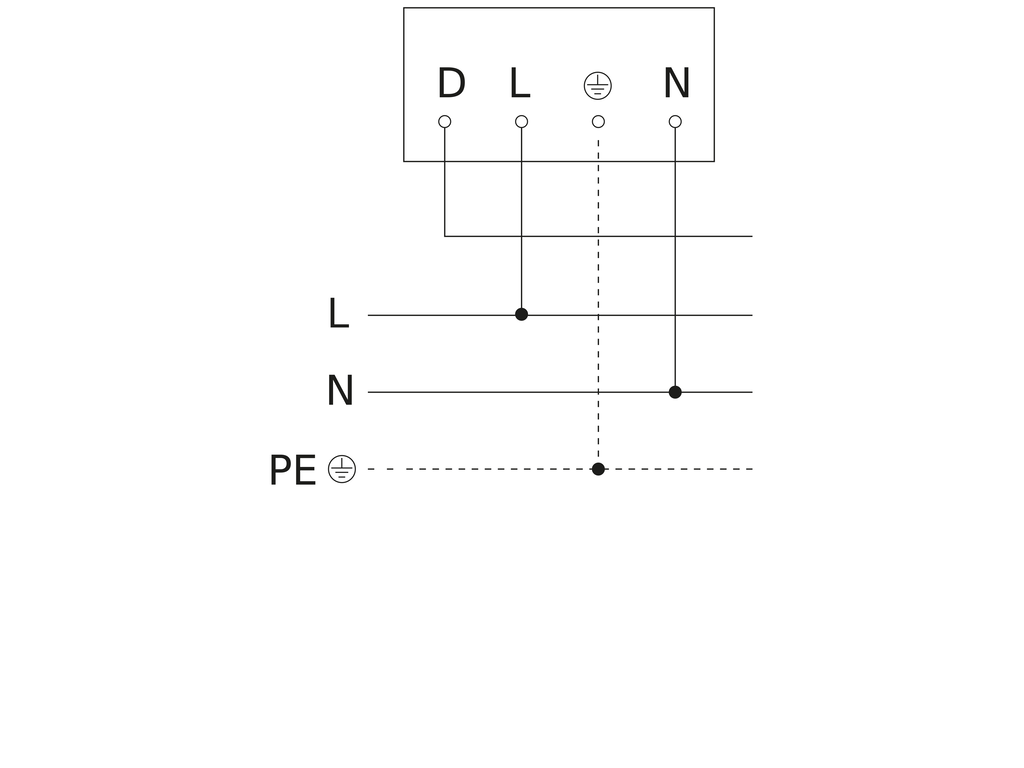

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)

Remote control Smart Remote

Item no. 009151

Remote control RC9

Item no. 4007841007638
