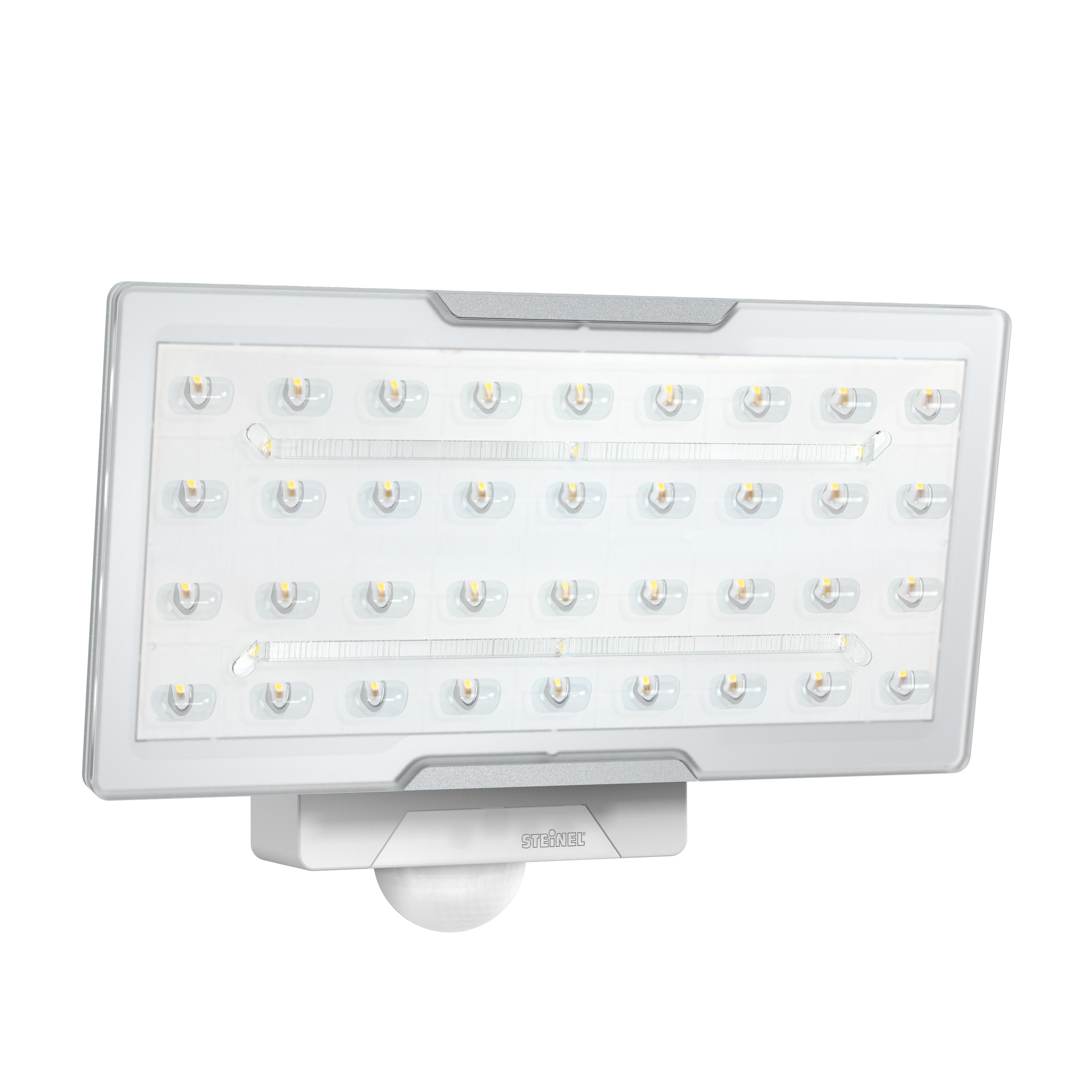

Nevalux XLED PRO Wide eNet - white

EAN-No. 4007841 010218

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Lighting precision on a broad front. XLED PRO Wide sensor-switched floodlight with even light pattern thanks to the precision lens matrix. Fully tilting and turning flat-design light head. With a mounting height of up to 6 m, ideal for illuminating large rectangular areas. Powerful high-end LEDs giving 2400 lm of light at 24.8 W. Sensor with 240° coverage and 12 m reach. Linear basic light level. High-quality aluminium heat sink. For integrating into the eNet system using eNet wireless standard.

Including STEINEL LED system
Intelligent LED cooling system
Optional basic lighting level
UV resistant material
Wireless interconnection
Remote control RC9 included
Smart Remote remote control optional

Identification

Variant eNet - white

Variants

Luminous flux 2400 lm

Dimensions

Dimensions L × W × H 126 x 265 x 188 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Power 24,8 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Tangential range r = 12 m (302 m²)

Connectivity

Networking Yes

Lighting technology

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

LED cooling system Passive Thermo Control

Luminous flux 2400 lm

Lifetime

LED lifetime max. °C 50000 h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range
