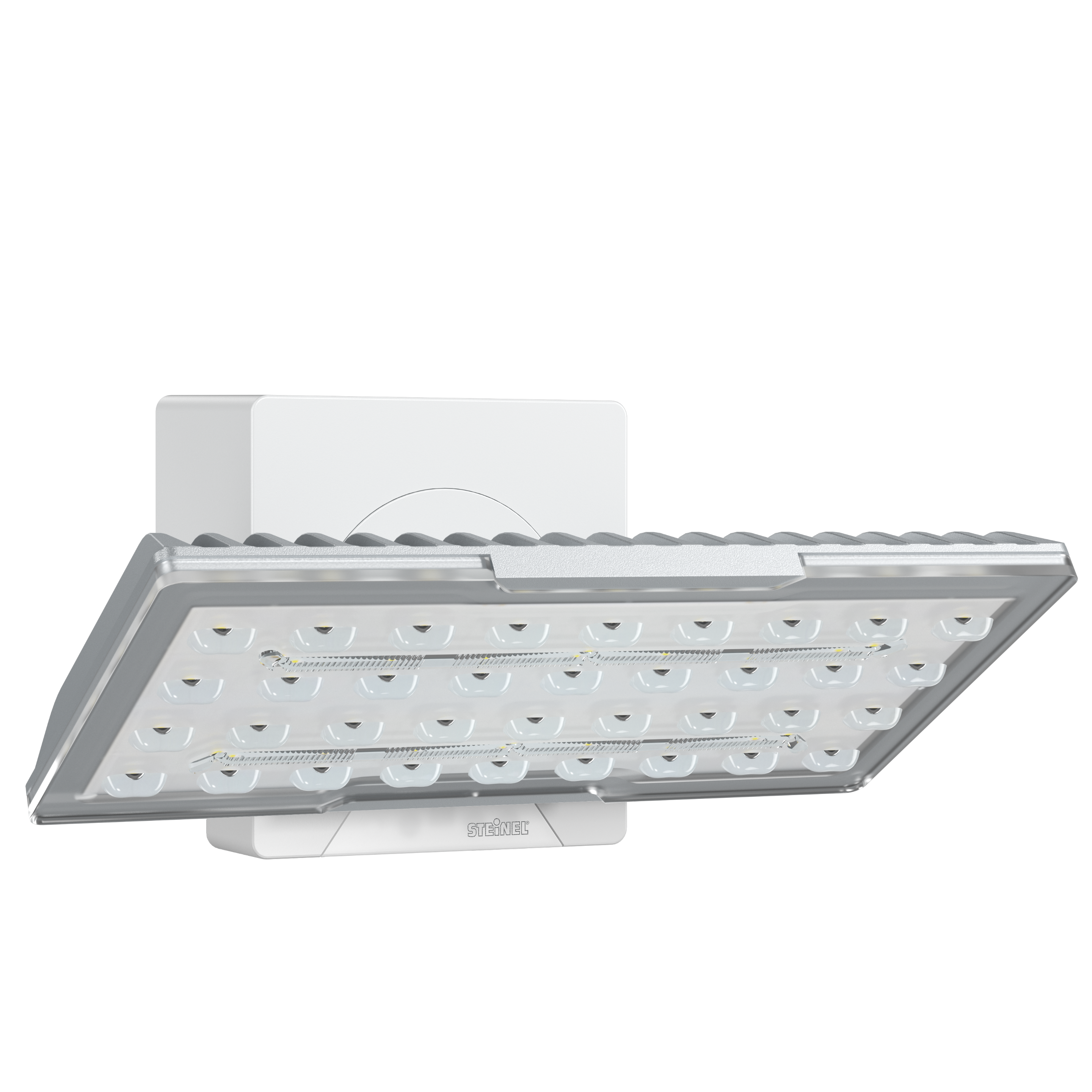

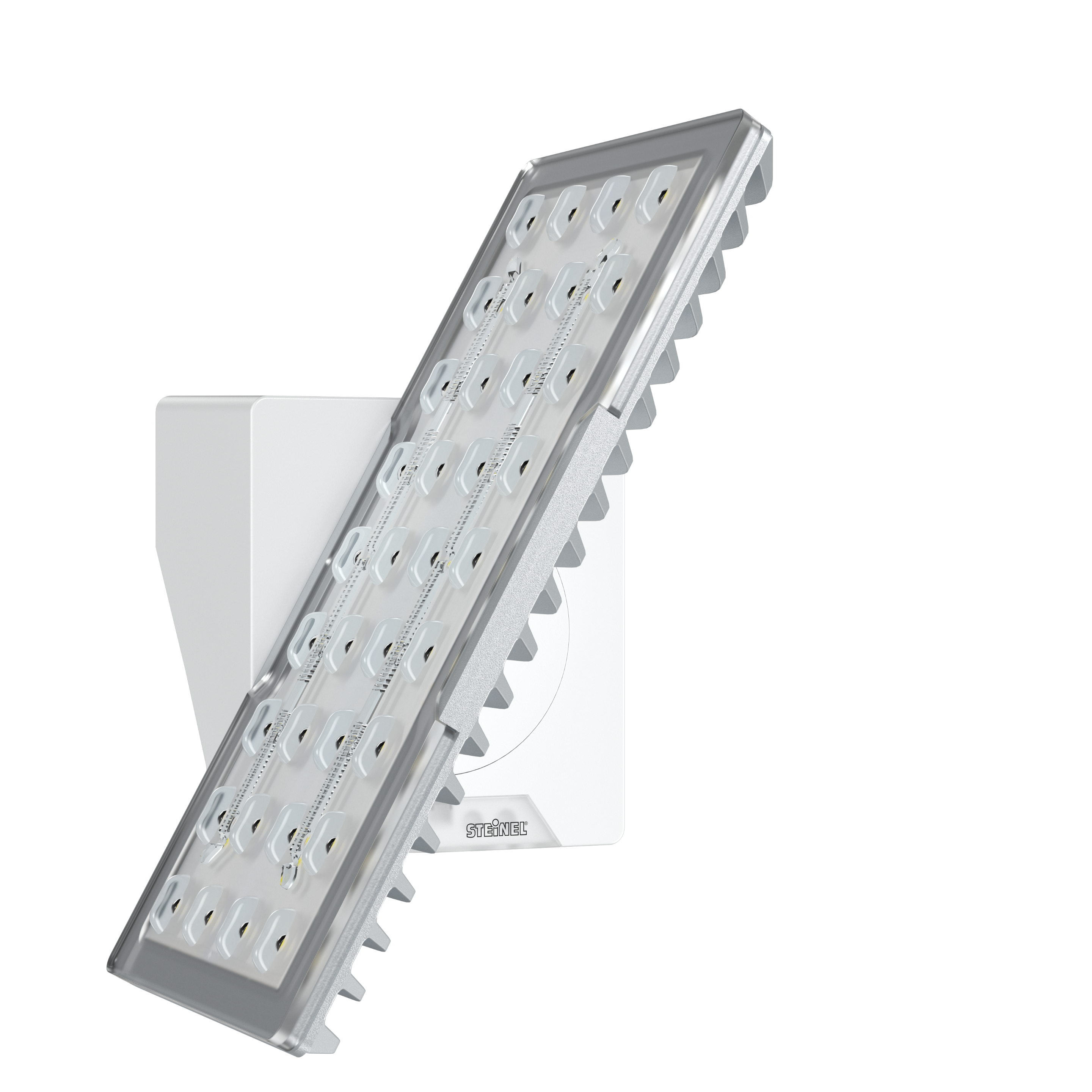

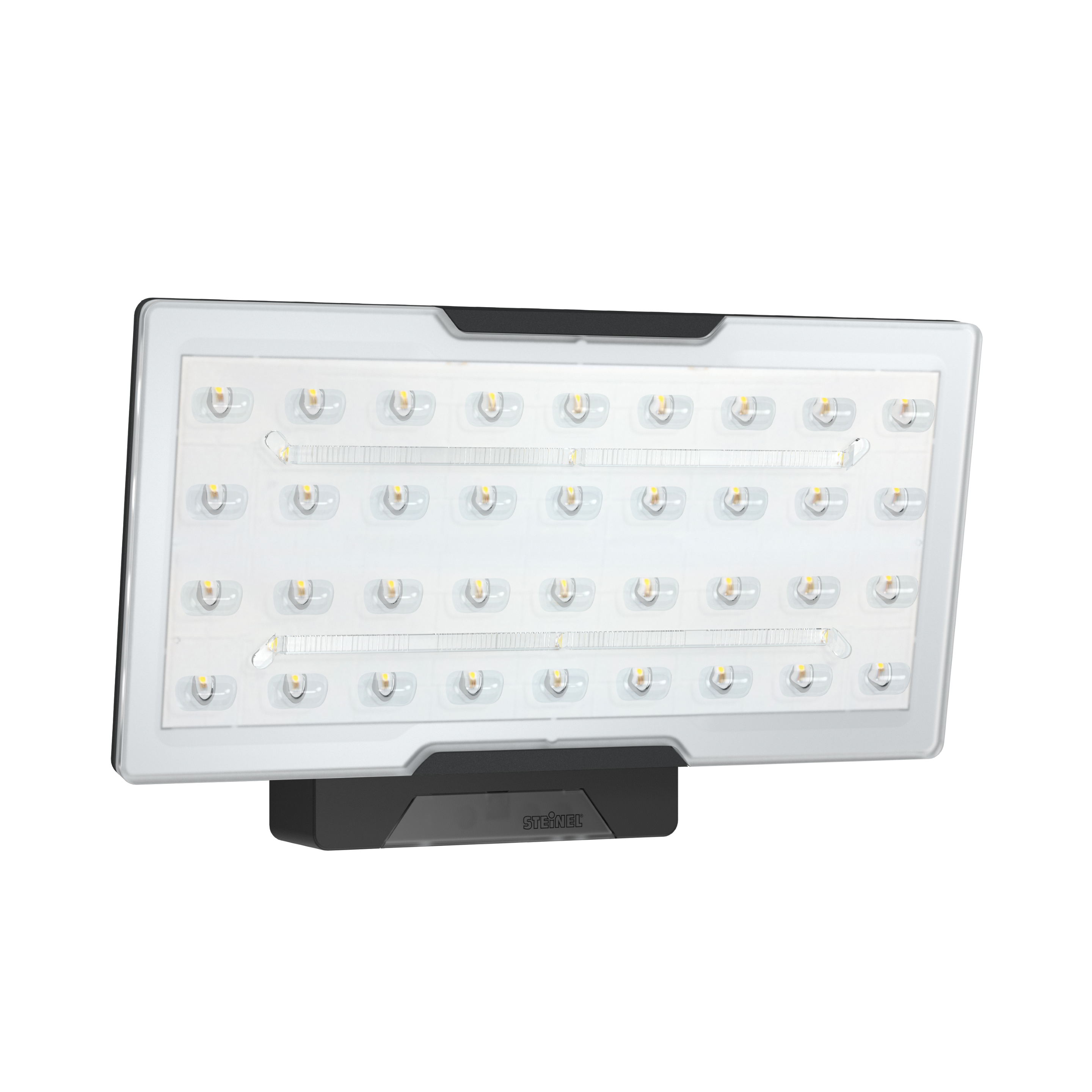

Nevalux XLED PRO Wide SL black
ELDAS® no. 924 700 271
EAN-No. 4007841 010256
This product is being replaced by a successor product.
Go to successor product · XLED PRO ONE without motion detector - anthracite (4007841069513)Powerful slave solution. The tilting and turning 2400 lm XLED PRO Wide SL slave version without sensor. Innovative STEINEL lens matrix illuminates large rectangular areas very evenly. 24,8 W output. Aluminium heat sink. Simple interconnection via cable.
- Including STEINEL LED system
- Intelligent LED cooling system
- Optional basic lighting level
- UV resistant material
- Interconnectable by cable
Identification
Variant
black
Variants
Luminous flux
2400 lm
Dimensions
Dimensions L × W × H
165 x 265 x 126 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Power
24,8 W
Sensor technology
Max. mounting height
6,00 m
With motion detector
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
LED cooling system
Passive Thermo Control
Continuous light
selectable, 4h
Luminous flux
2400 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
No
Twilight setting
2 – 1000 lx
Time setting
5 sec – 20 min
Base light function time
10 min, 30 min, all night
Housing & material
Impact resistance
IK00
Protection class (IP)
IP54
Protection class
I
Ambient temperature
-20 – 40 °C
Housing material
Aluminium
Cover material
Plastic, transparent
Scope of delivery & warranty
Manufacturer warranty
5 years
