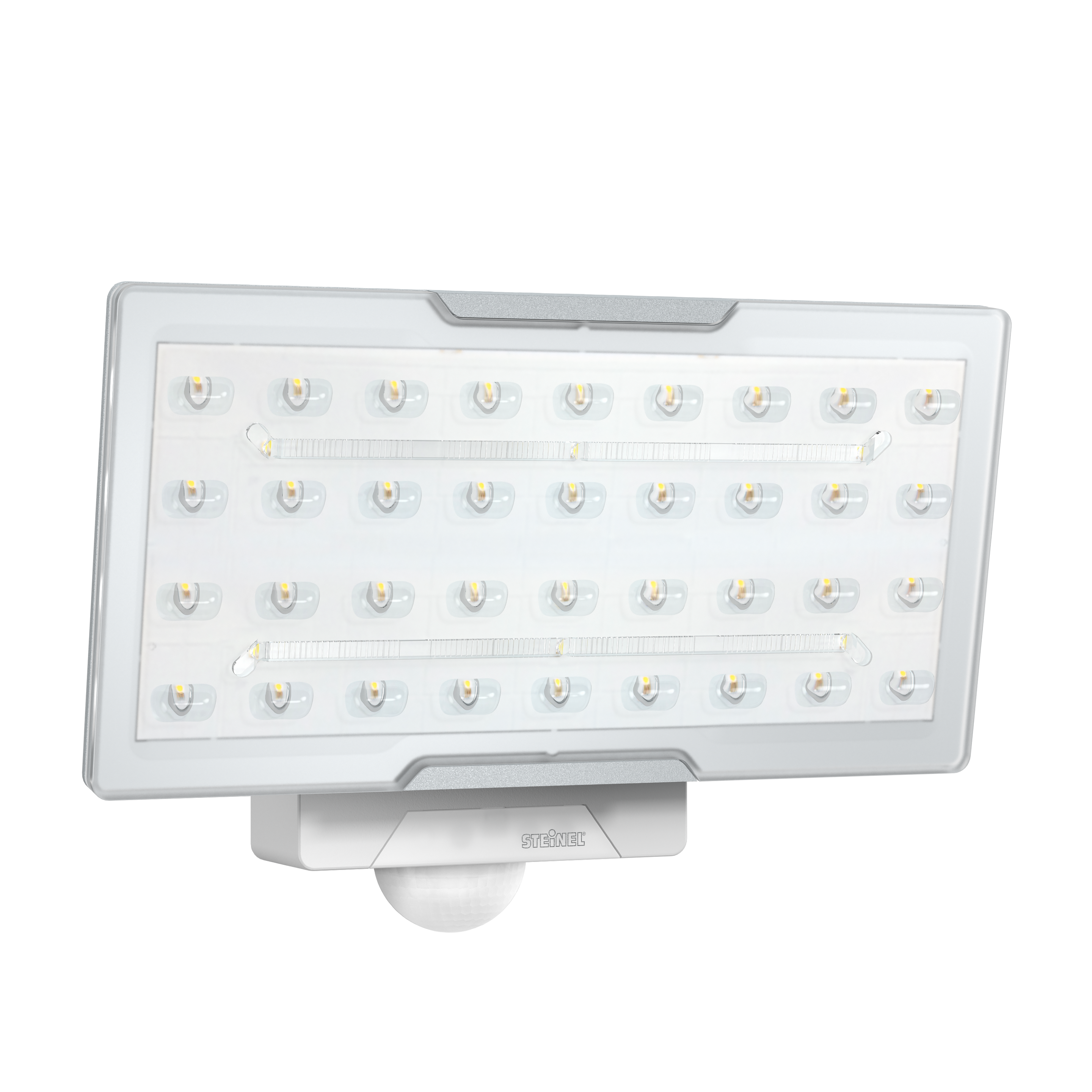

Nevalux XLED PRO Wide white

ELDAS® no. 924 700 260

EAN-No. 4007841 010072

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

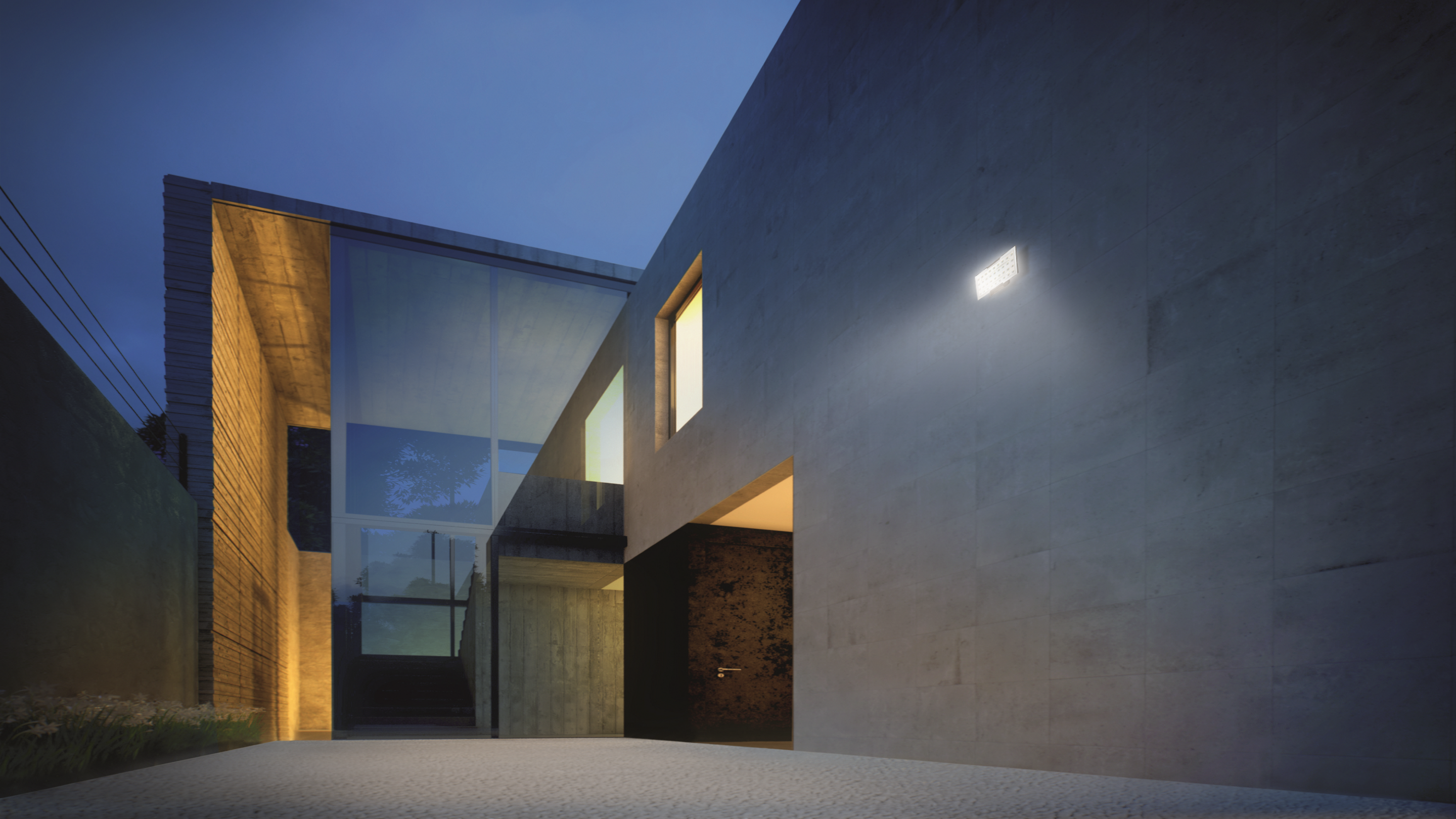

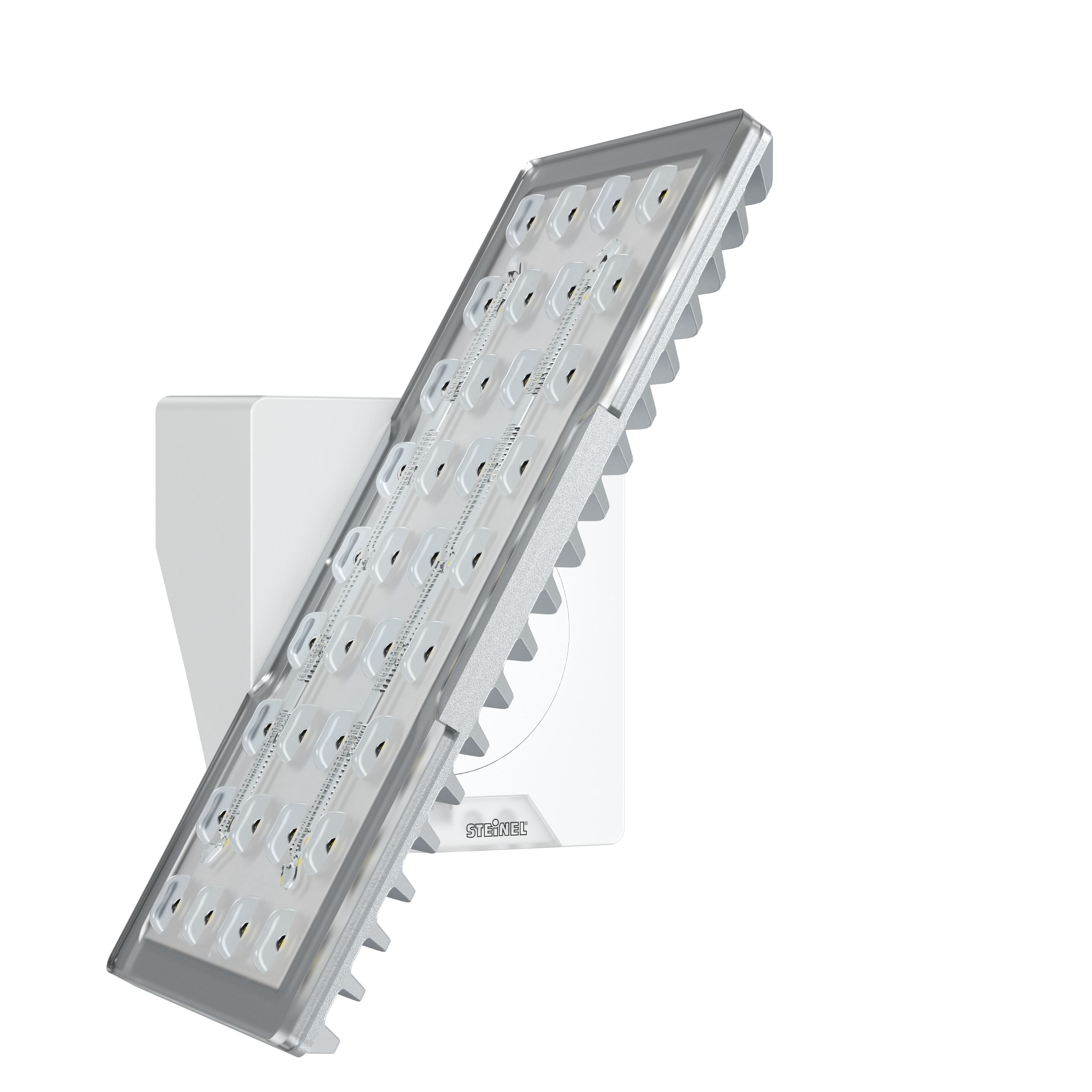

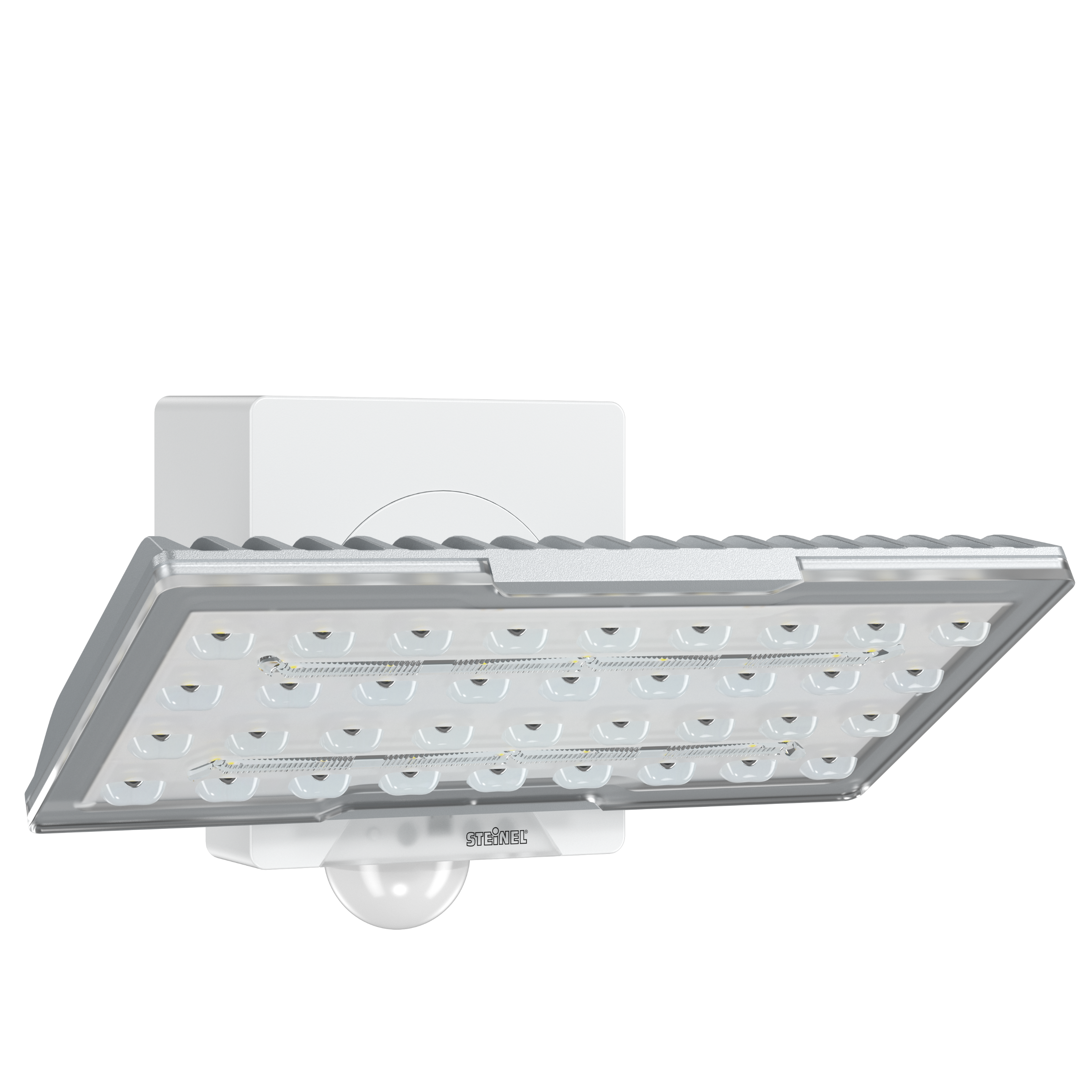

Lighting precision on a broad front. XLED PRO Wide sensor-switched floodlight with even light pattern thanks to the precision lens matrix. Fully tilting and turning flat-design light head. With a mounting height of up to 6 m, ideal for illuminating large rectangular areas. Powerful high-end LEDs giving 2400 lm of light at 24,8 W. Sensor with 240° coverage and 12 m reach. Linear basic light level. High-quality aluminium heat sink.

Including STEINEL LED system
Intelligent LED cooling system
Optional basic lighting level
UV resistant material
Interconnectable by cable
RC9 remote control optional
Smart Remote remote control optional

Dimensions

Dimensions L × W × H 126 x 265 x 188 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 24,8 W

Sensor technology

Max. mounting height 6,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (19 m²)

Tangential range r = 12 m (302 m²)

Mounting height 1,80 – 6,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Sensor/slave

Networking via Cable

Networking quantity maximum of 10 floodlights

Lighting technology

Measured luminous flux 360° 2400 lm

Colour temperature 4000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start No

Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 50000 h

Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10 min\n30 min\nall night

Main light adjustable No

Settings via Remote control\nPotentiometers\nSmart Remote

Twilight setting teach Yes

Base light function in percent 3 %

Base light function percent from 3 %

Housing & material

Impact resistance IK03

Protection class (IP) IP54

Protection class I

Ambient temperature -20 – 40 °C

Housing material Aluminium

Cover material Plastic, transparent

Cover material (scope of delivery) sticker

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room courtyard & driveway outdoors

Colour white

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates VDE

Technical drawing

Lichtverteilungskurve

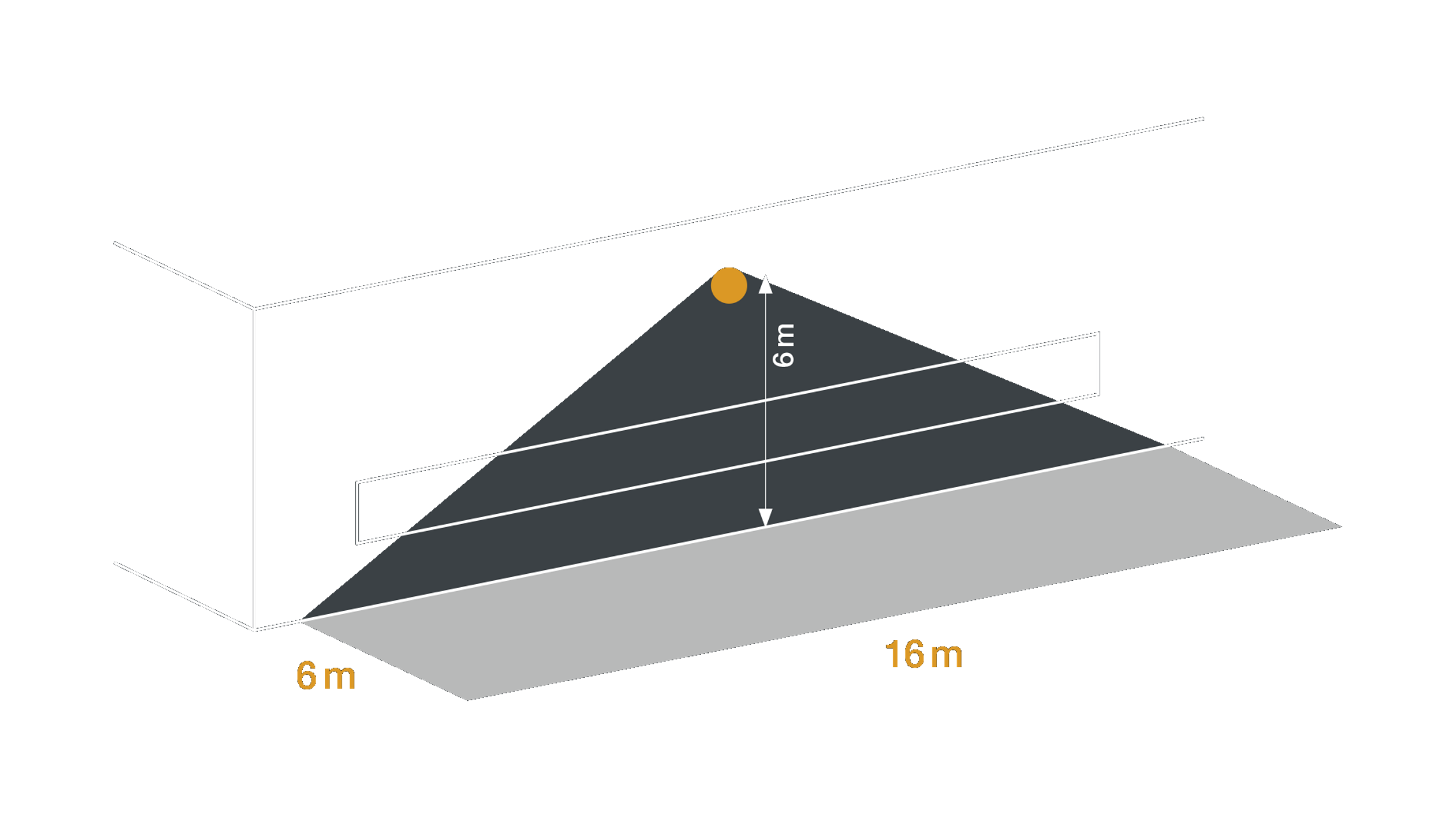

Sensor detection range

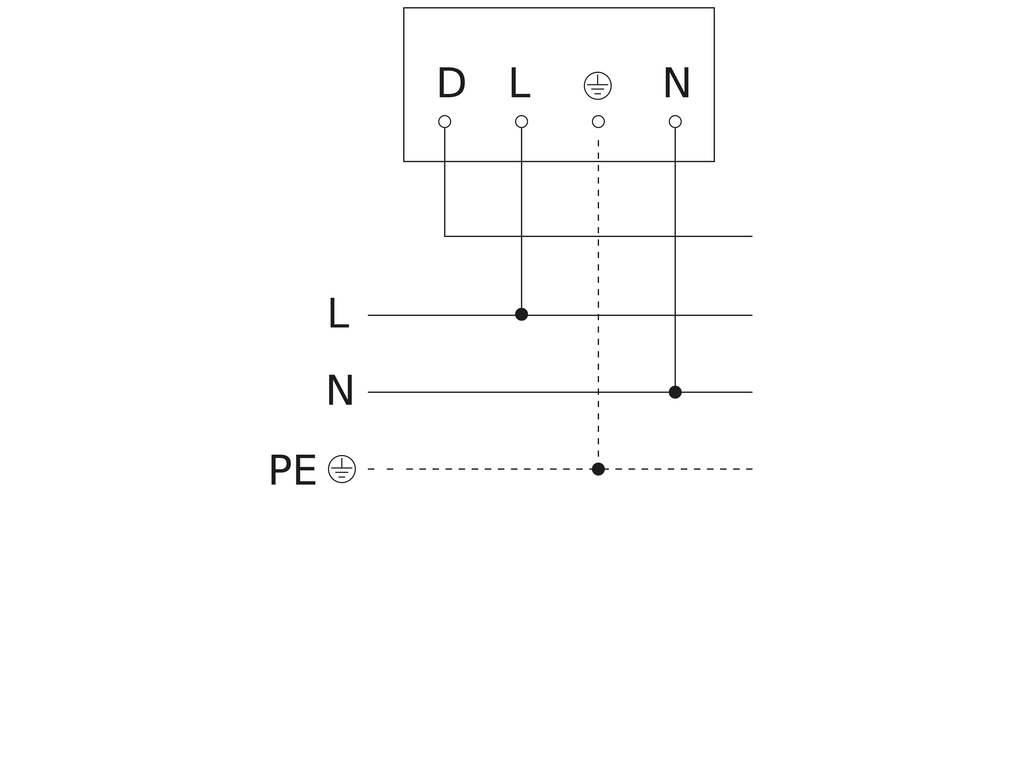

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave and master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)

Remote control Smart Remote

Item no. 009151

Remote control RC9

Item no. 4007841007638
