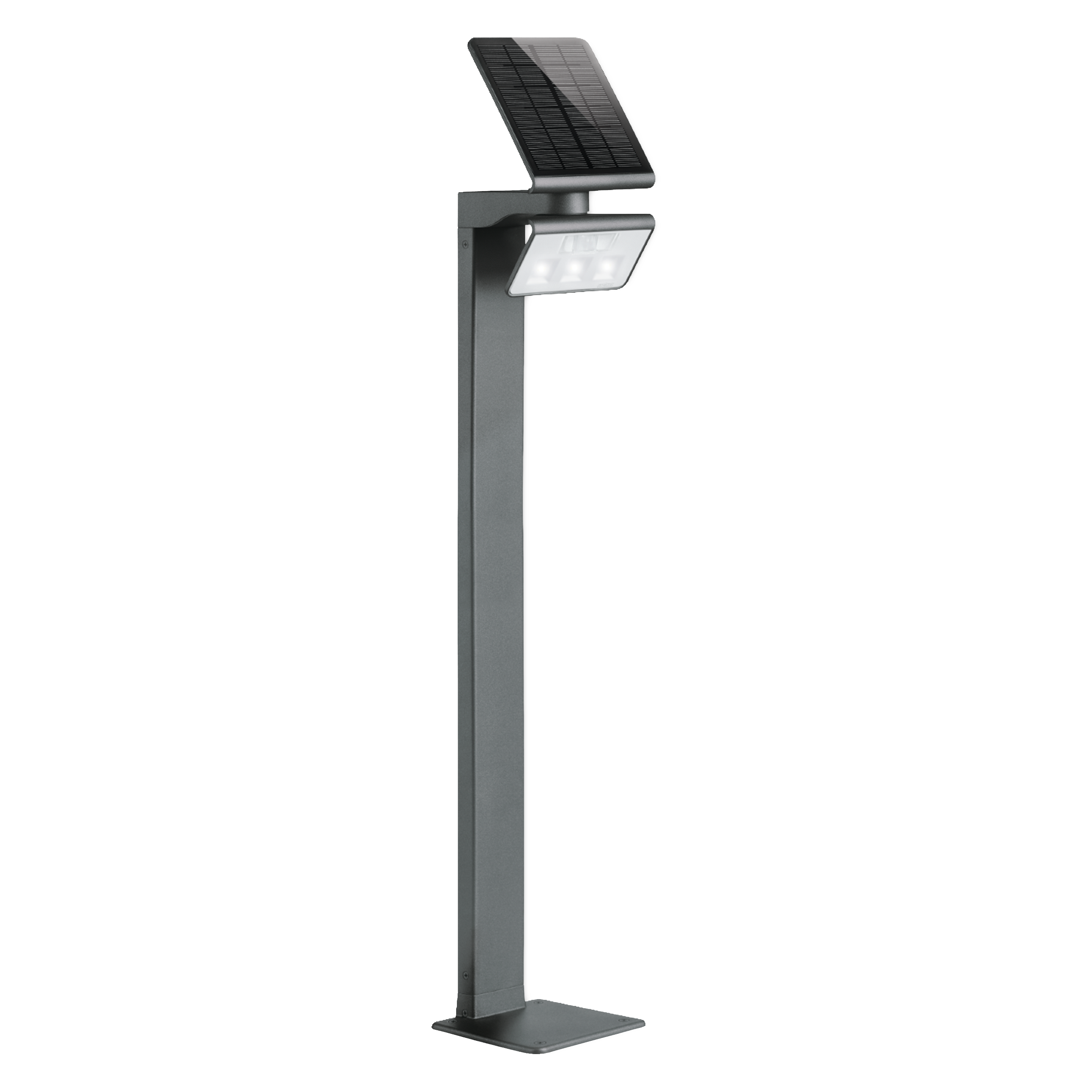

Nevalux XSolar GL-S Anthracite
ELDAS® no. 924 808 001
EAN-No. 4007841 009830
This product is being replaced by a successor product.
Go to successor product · XSolar GL-S Anthracite (085681)Efficient. Elegant. Versatile. Sensor-switched LED light XSolar GL-S, for pathways, gardens and patios, no power connection needed, 140° coverage angle, 4,000 kelvins, LED system with 150 lm, rechargeable lithium-iron-phosphate battery, on-demand lighting for up to 60 days, optional basic light level.
- High-quality monocrystalline solar panel
- Including 2500 mAh lithium iron-phosphate rechargeable battery
- Including STEINEL LED system
- Optional basic lighting level

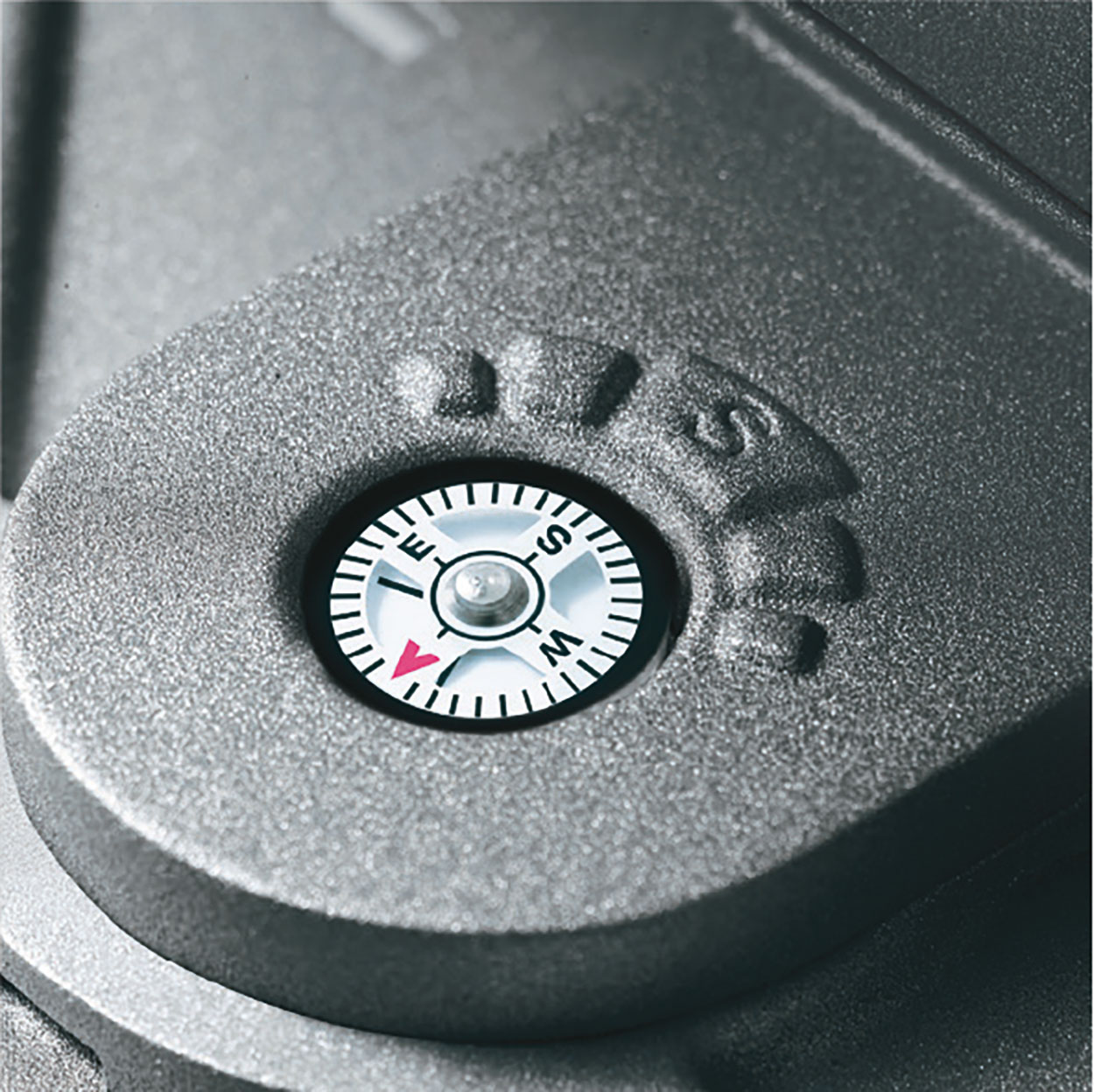

- Compass for setting the panel to face the optimum direction
Dimensions
Dimensions L × W × H
188 x 194 x 1178 mm
Electrical
Power
1,2 W
Supply voltage detail
Solar supply, no mains power required\nLithium-iron-phosphate rechargeable battery 2500 mAh
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 1.5 m (3 m²)
Tangential range
r = 5 m (31 m²)
Optimal mounting height
1 m
Lighting technology
Measured luminous flux 360°
150 lm
Colour temperature
4000 K
LED colour deviation
SDCM5
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
No
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 lx
Time setting
10 sec – 0,5 min
Base light function
Yes
Base light function time
all night
Functions
Motions sensor
Settings via
Potentiometers
Base light function in percent
3 %
Base light function percent from
3 %
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
III
Ambient temperature
-20 – 40 °C
Housing material
Aluminium
Cover material
Plastic, transparent
Mounting location
Stand
Application location
Outdoors
Application room
courtyard & driveway
garden
outdoors
terrace / balcony
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
