Nevalux XSolar L-S Anthracite

Nevalux XSolar L-S Anthracite

ELDAS® no. 924 708 001 · EAN-No. 4007841 009823

Technical data Illustrations Downloads
Nevalux

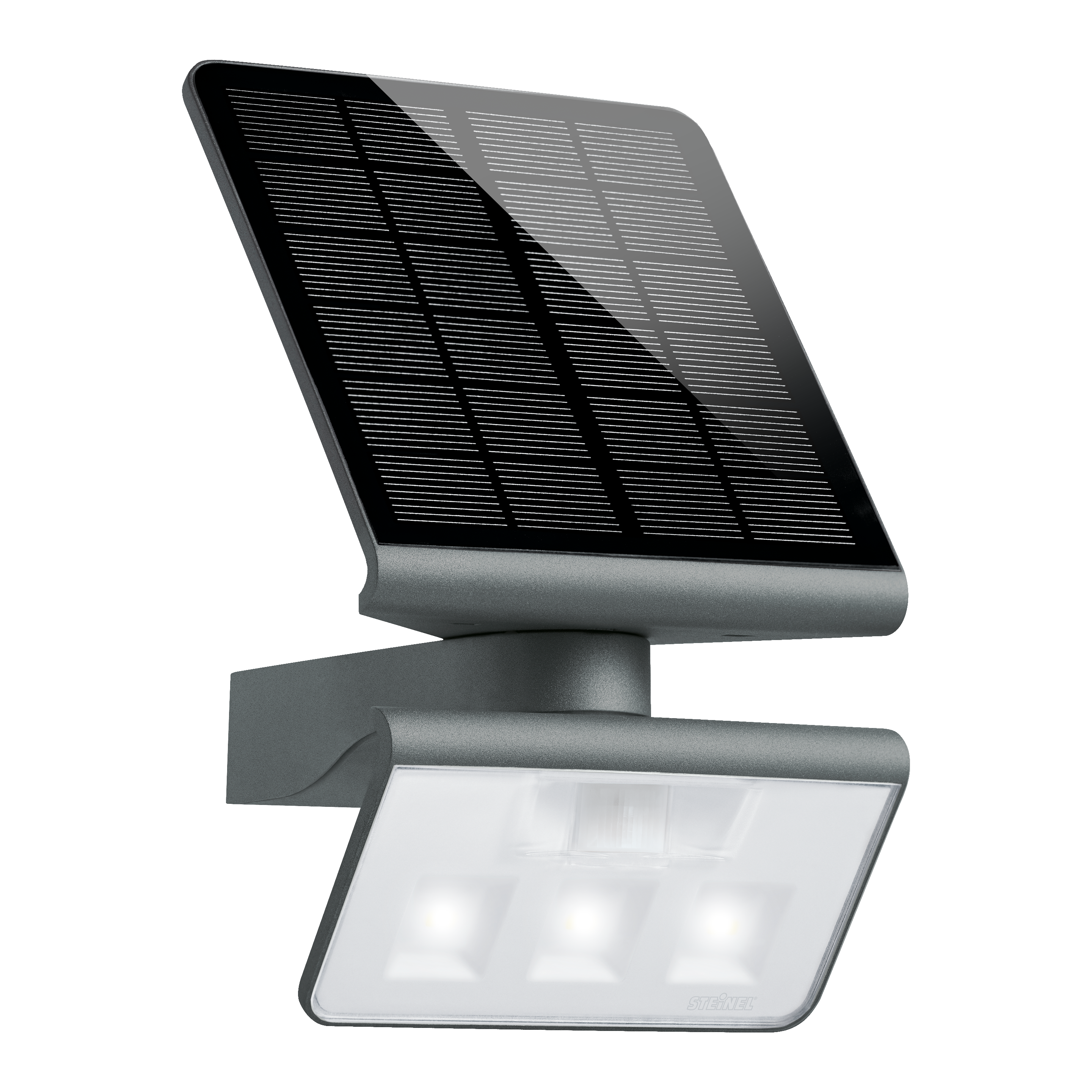

Nevalux XSolar L-S Anthracite

ELDAS® no. 924 708 001

EAN-No. 4007841 009823

This product is being replaced by a successor product.

Go to successor product · XSolar L-S Anthracite (085698)

No energy costs. No power connection. No compromising. Sensor-switched LED light XSolar L-S. Ideal for gardens, patios and external walls. No power connection needed, 140° coverage angle, 4,000 kelvins, LED system with 150 lm. Provides bright light 365 days of the year. High-performance IR sensor. Intelligent microprocessor. Temperature-resistant lithium-iron-phosphate rechargeable battery giving light availability for 60 days. Illuminates up to 30 sq.m.

  • High-quality monocrystalline solar panel
  • Including 2500 mAh lithium iron-phosphate rechargeable battery
  • Including STEINEL LED system
  • Optional basic lighting level
  • Compass for setting the panel to face the optimum direction
  • Included 6 m extension cable

Dimensions

Dimensions L × W × H 187 x 189 x 298 mm

Electrical

Power 1,2 W
Supply voltage detail Solar supply, no mains power required\nLithium-iron-phosphate rechargeable battery 2500 mAh

Sensor technology

Max. mounting height 2,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 140 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No
Radial range r = 2 m (5 m²)
Tangential range r = 8 m (78 m²)
Mounting height 1,80 – 2,00 m
Optimal mounting height 1,8 m

Lighting technology

Measured luminous flux 360° 150 lm
Colour temperature 4000 K
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 lx
Time setting 10 sec – 1 min
Base light function Yes
Base light function time all night
Functions Motions sensor
Settings via Potentiometers
Base light function in percent 3 %
Base light function percent from 3 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class III
Ambient temperature -20 – 40 °C
Housing material Plastic
Cover material Plastic, transparent
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room all round the building courtyard & driveway front door outdoors terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
Extension cable included 6 m

Technical drawing

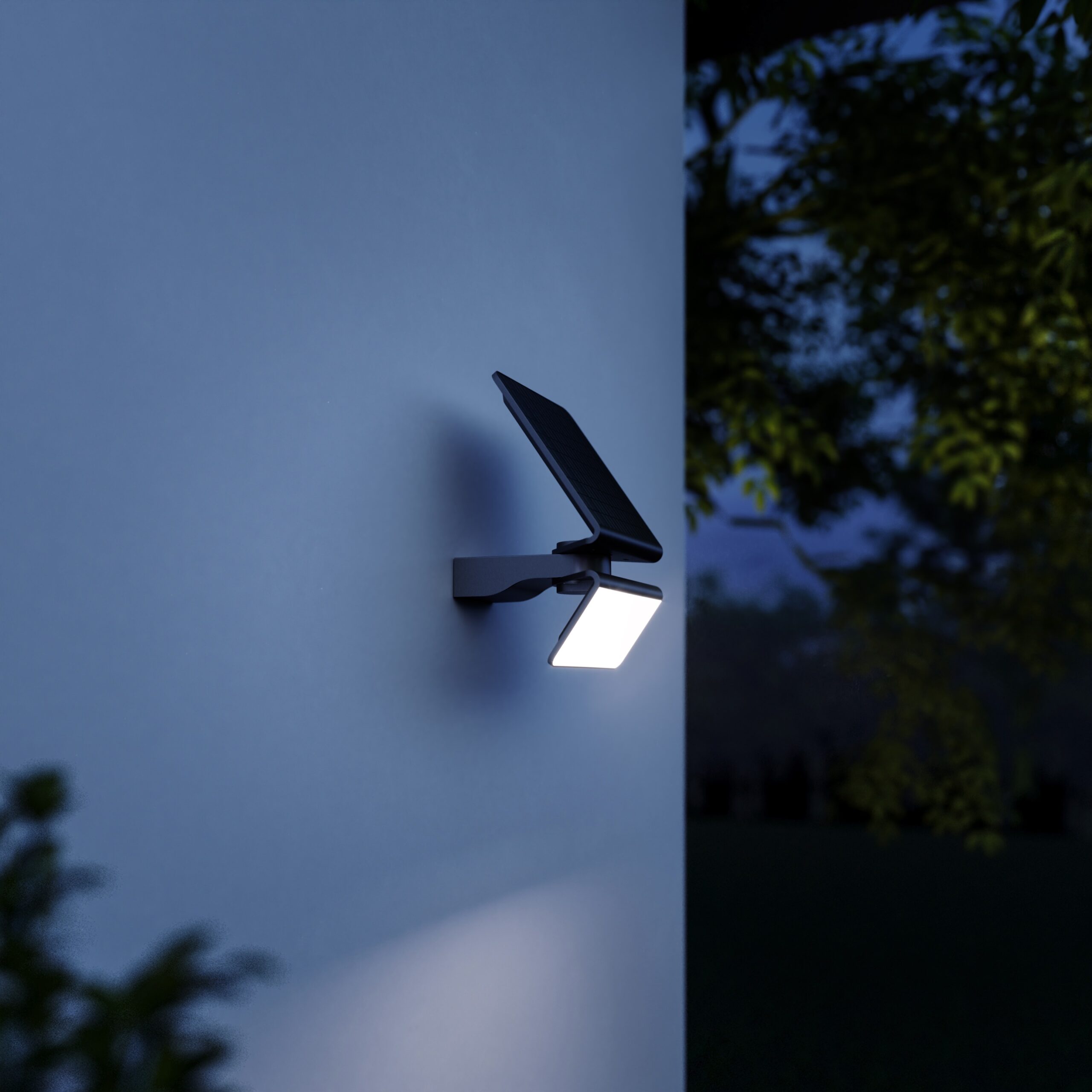

Sensor detection range
