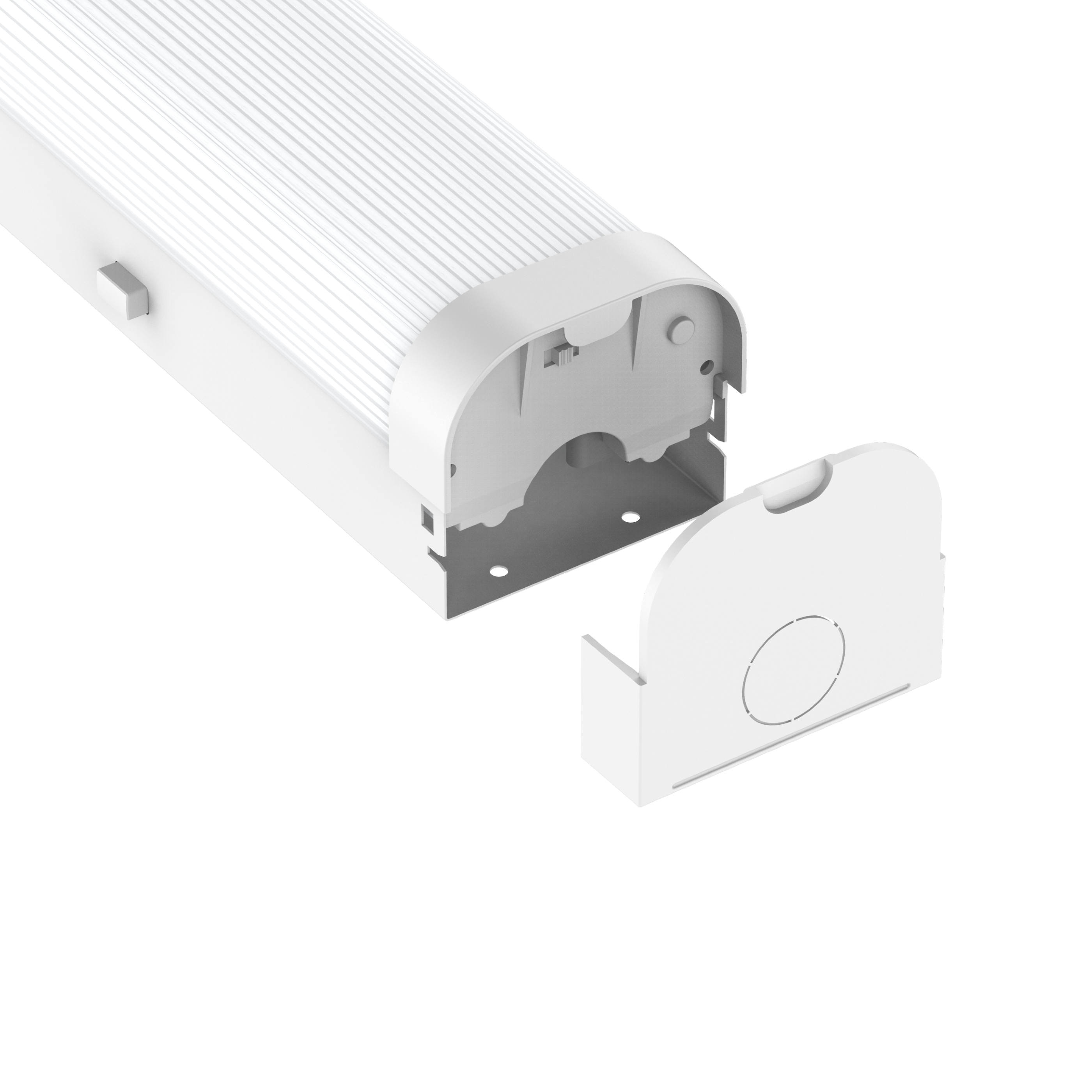

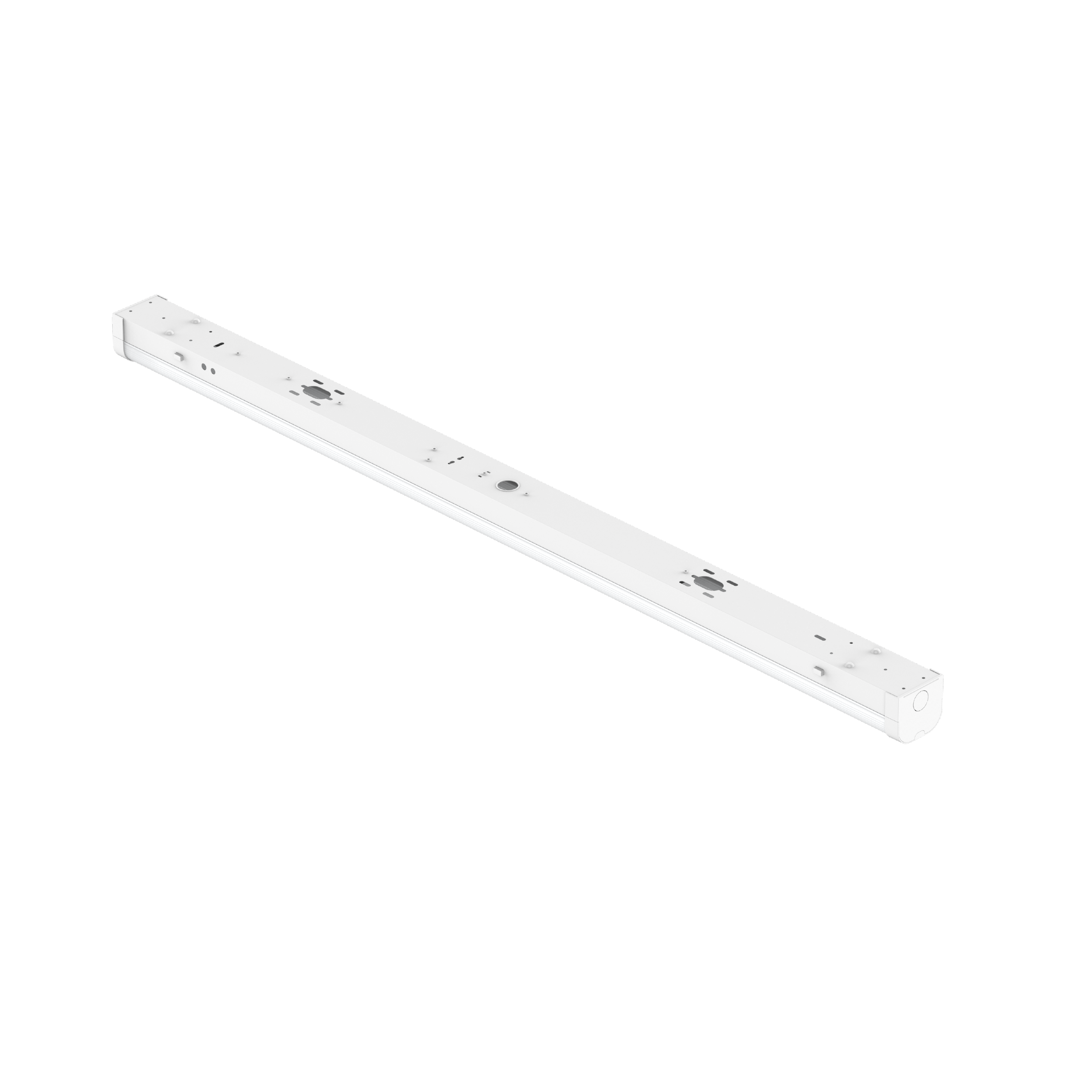

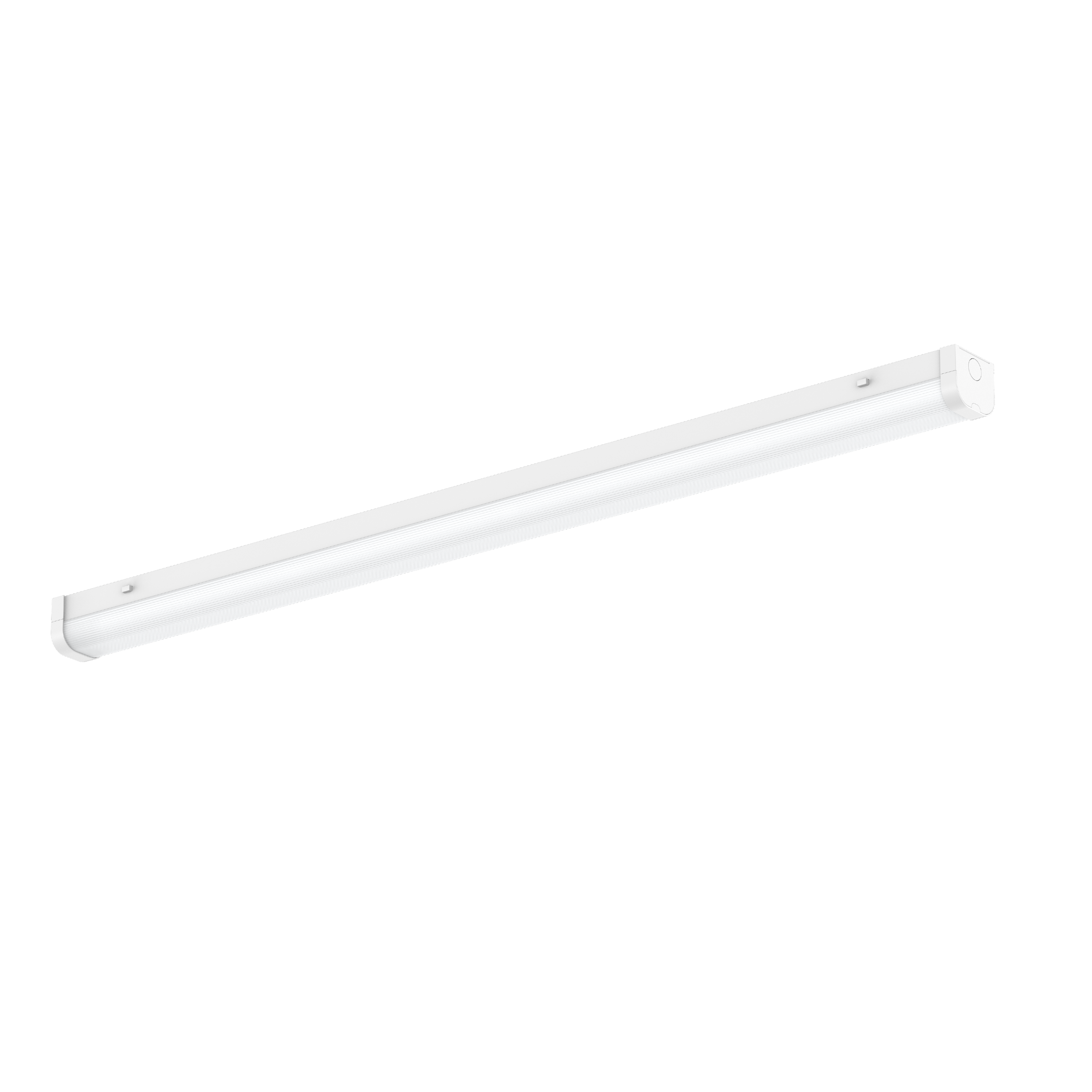

nevalux zola C1200 3CCT
Linear ceiling light in two lengths for warehouses, industry and cellars. Selectable light colour, robust and impact-resistant.
Product code 221406
This product is being replaced by a successor product.
Go to successor product · zola C1200 3CCT 20-40W (221565)Dimensions L × W × H
603 x 71 x 64 mm
1203 x 71 x 64 mm
Switch selection
The requested variant is not available. Please choose one of the following options.
Variants
Power
Low Output
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
40 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
3000 / 4000 / 5700 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
4600 lm
Beam angle
120°
Luminaire luminous efficacy
115 lm/W
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
No
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Impact resistance
IK08
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Steel
Cover material
Opal diffuser
Mounting type
Surface mounted (ceiling / wall)
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

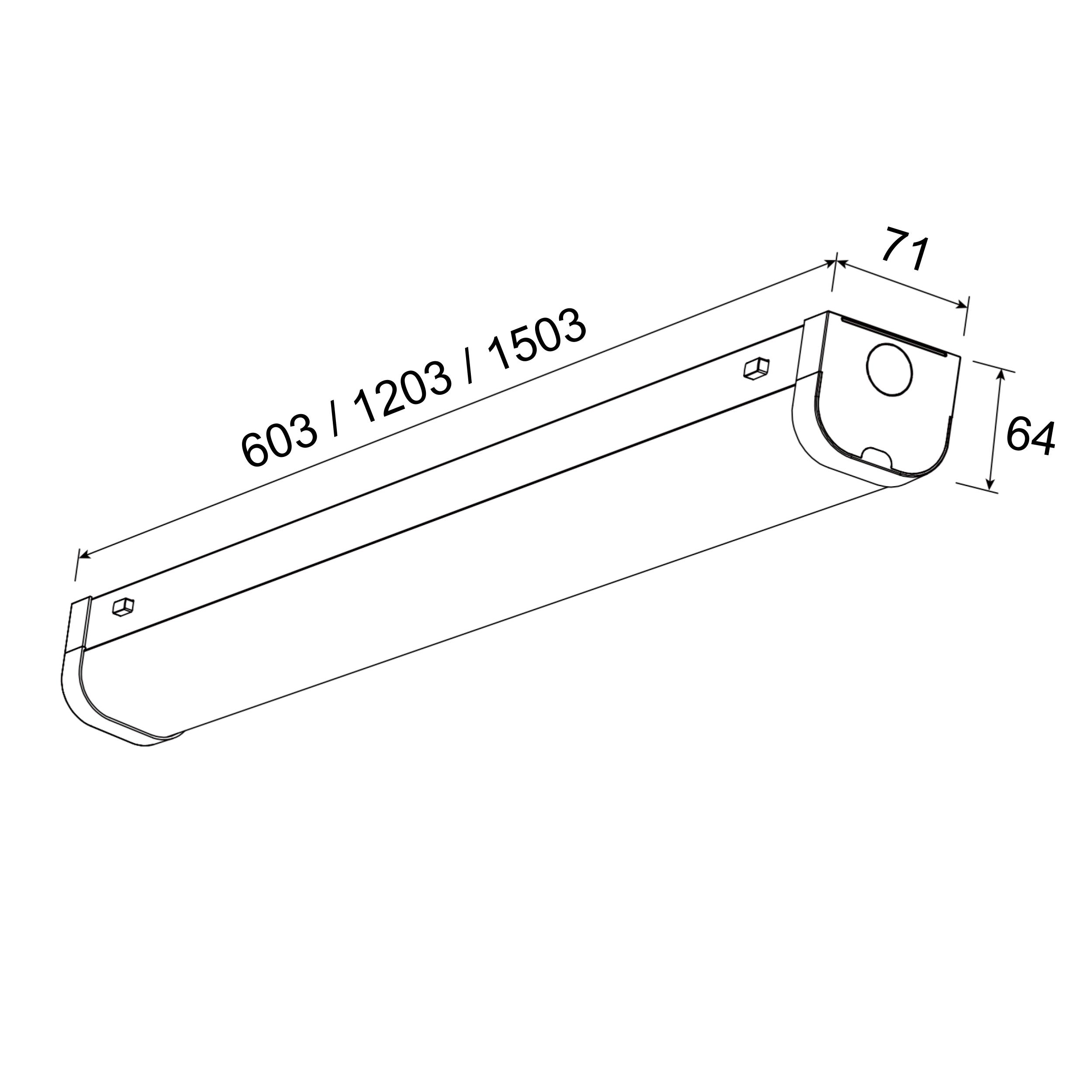

Technical drawing

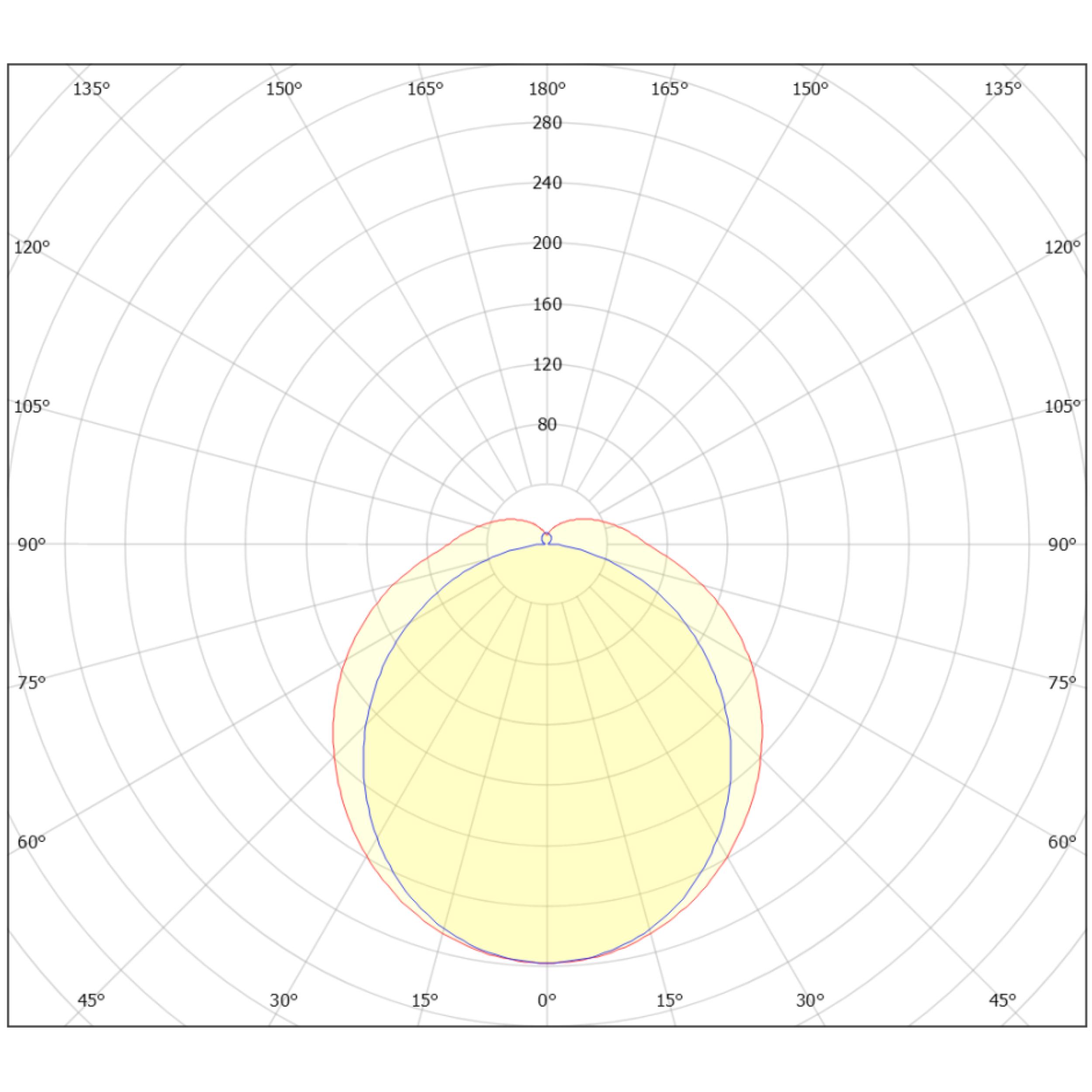

Lichtverteilungskurve
Sensor detection range

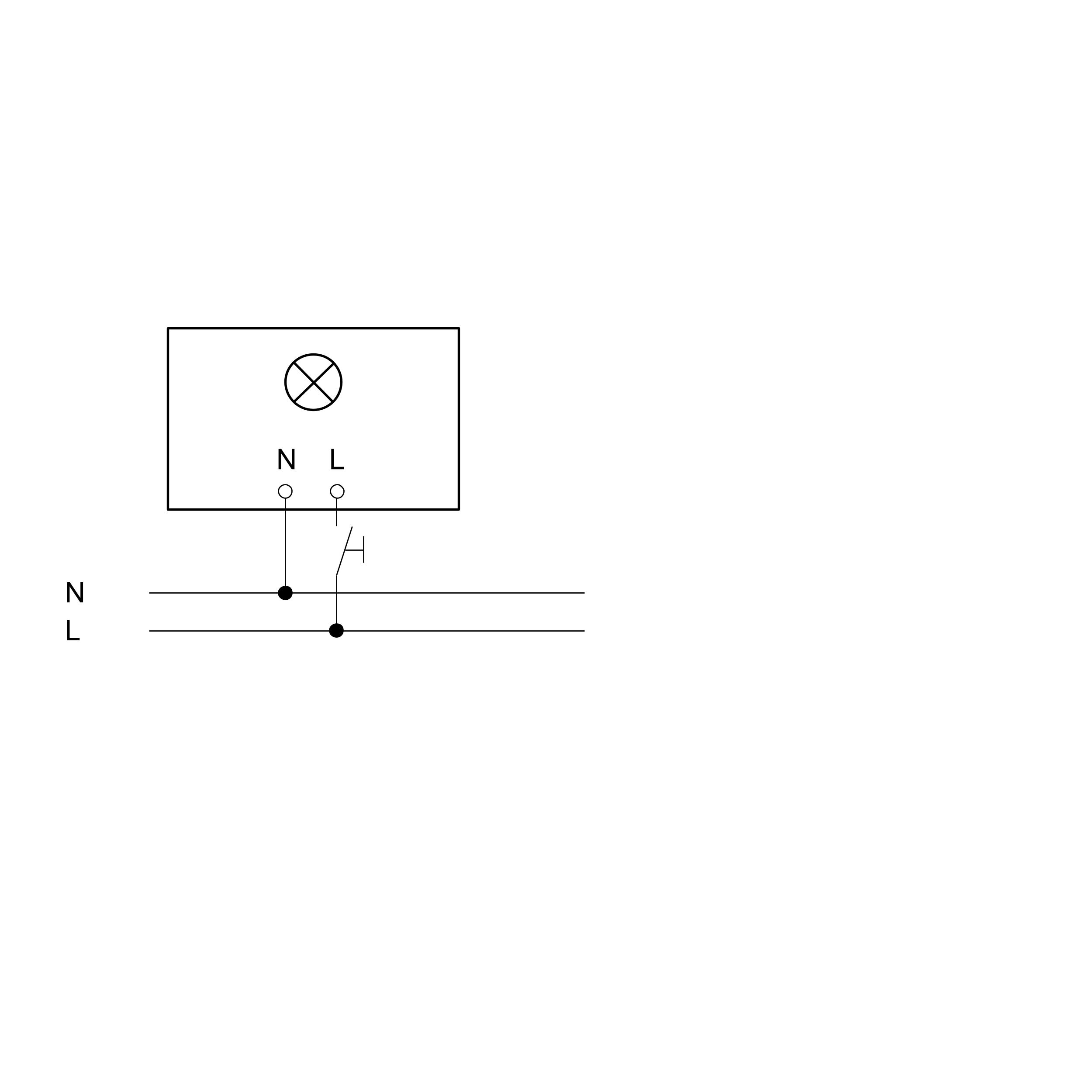

Wiring diagram 1
Wiring diagram
