- Wide range of use in garages, basements, adjoining rooms, etc.
- 3 light colors selectable (3000, 4000 or 5700 Kelvin)
- Quick and easy mounting with separate mounting base
- Rear and side cable entry possible
- Wide beam diffuser (120 °)
- Version "Low Output" suitable for emergency lighting installations thanks to DC detection
- Available as emergency light version on request
Variants
Luminous flux
1100 lm (Default) / 1430 lm / 1760 lm / 2200 lm
Dimensions
Dimensions L × W × H
603 x 71 x 64 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
10 W (Default) / 13 W / 16 W / 20 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
3000 / 4000 / 5700 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
1100 lm (Default) / 1430 lm / 1760 lm / 2200 lm
Beam angle
120°
Luminaire luminous efficacy
110 lm/W
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
No
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Impact resistance
IK08
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Steel
Cover material
Diffusor opal
Mounting type
Ceiling / wall surface-mounted
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

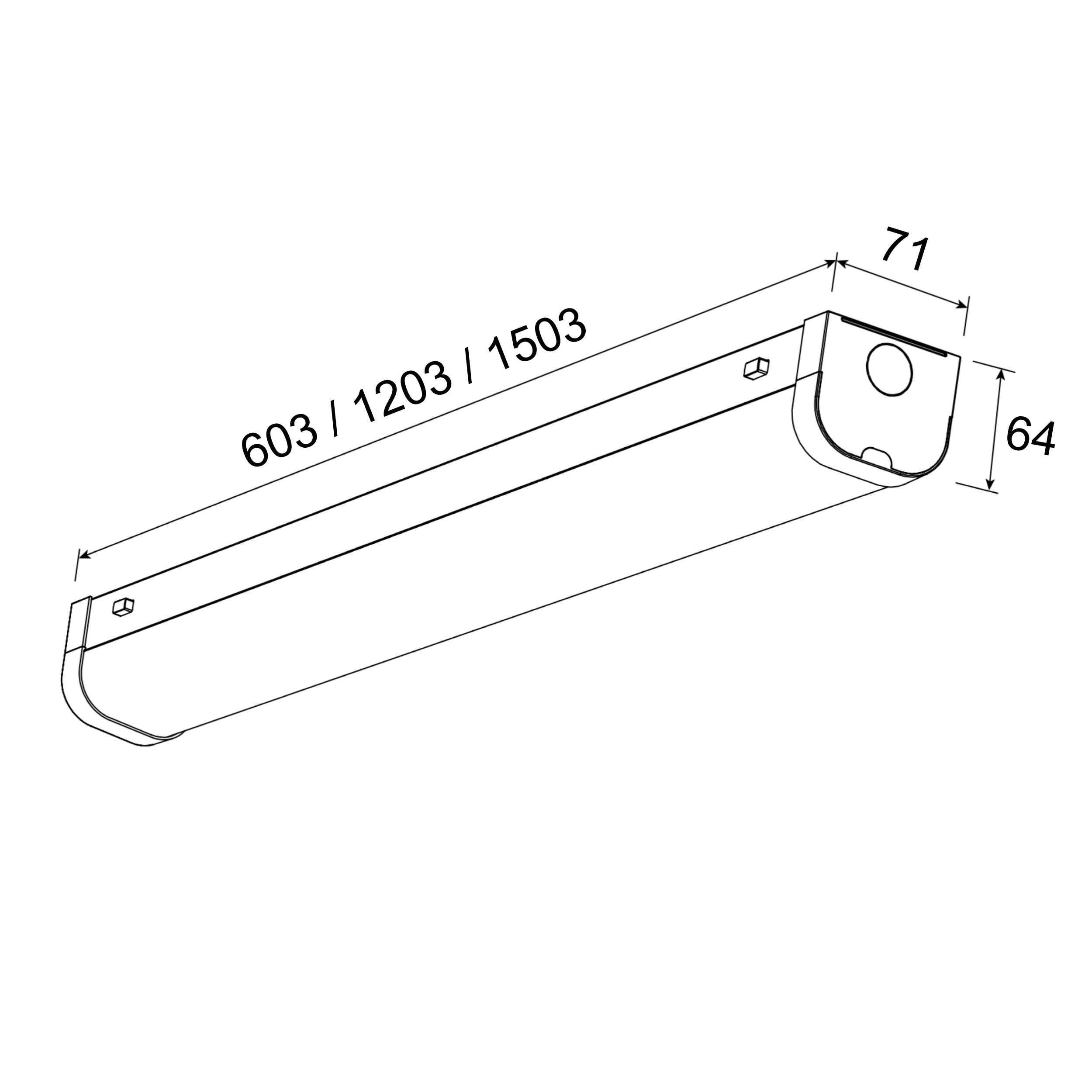

Technical drawing

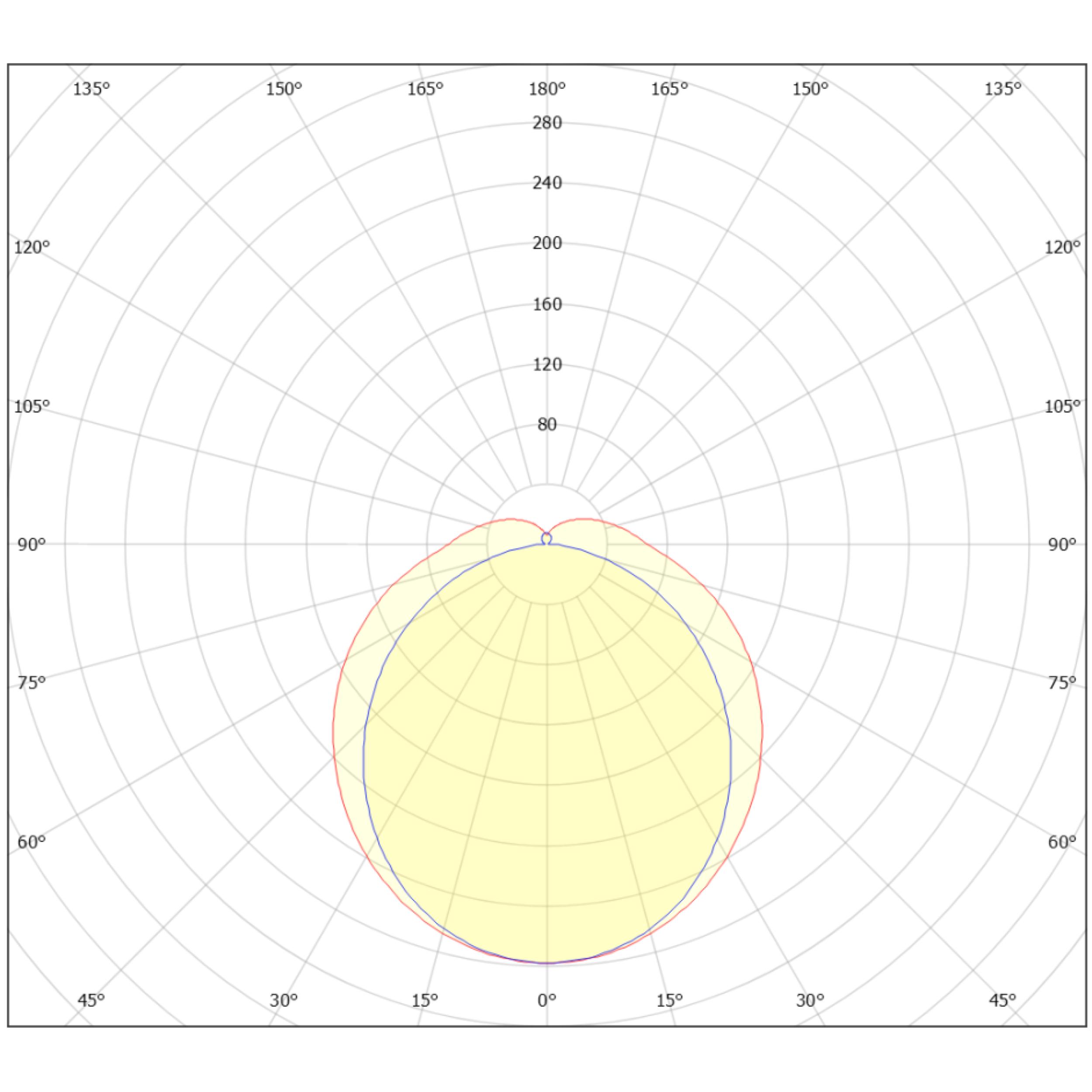

Lichtverteilungskurve
Sensor detection range

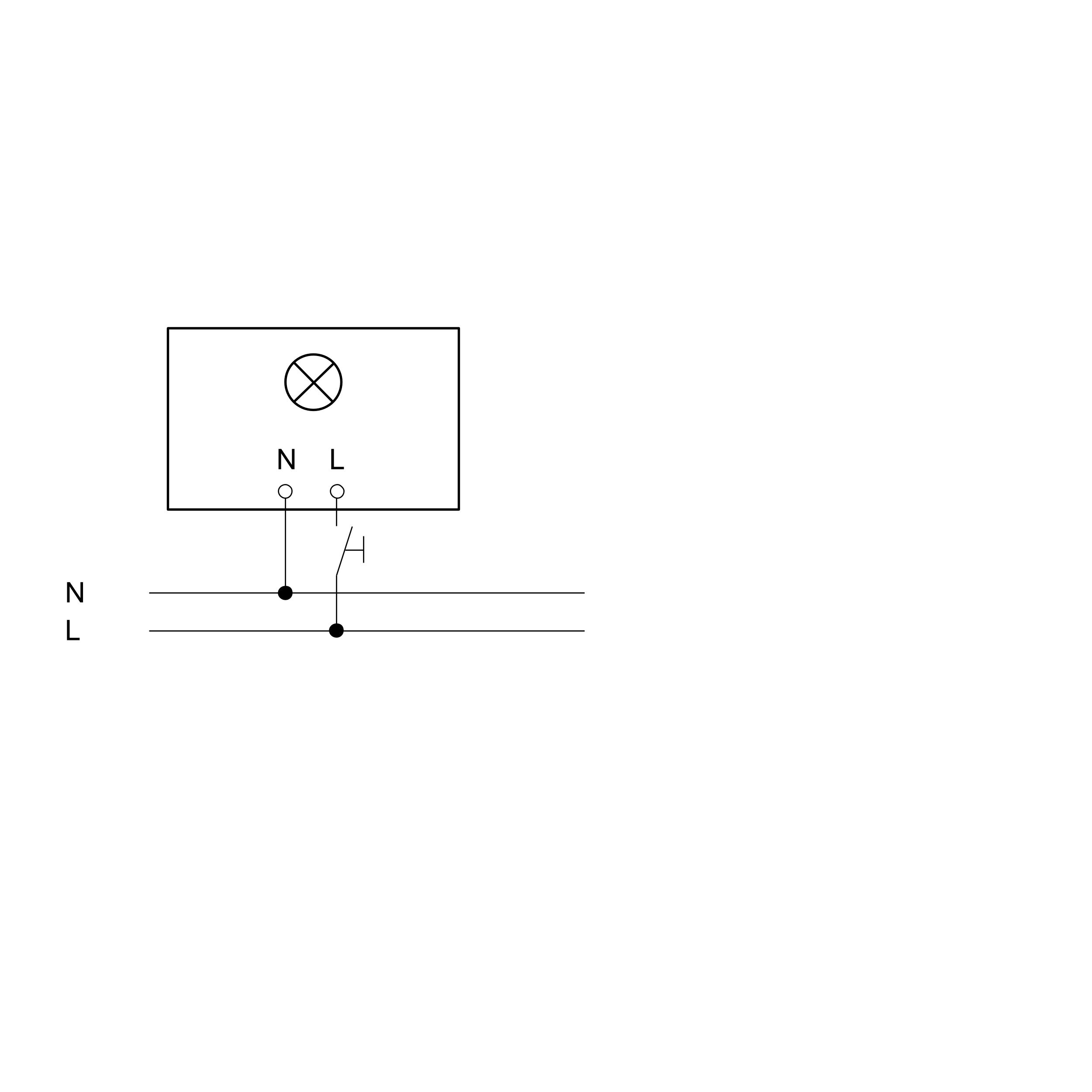

Wiring diagram 1
Wiring diagram
