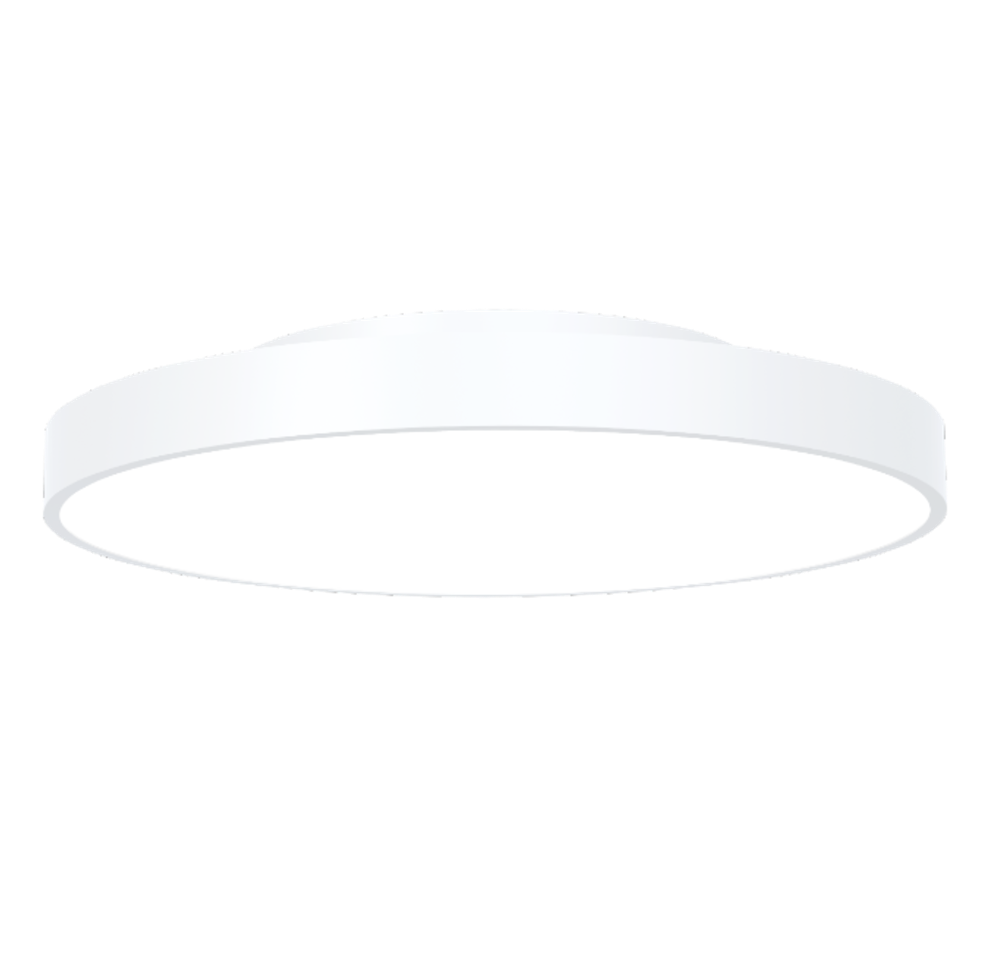

nevalux zwena connect LS C900 3K
Product code 221549
This product is being replaced by a successor product.
Go to successor product · zwena connect HF P900 3K (222060)Dimensions Ø × H
Colour temperature
3000 K
4000 K
Control technology
Dali-Leuchte
Smartlink Connect
With motion detector
No
Yes
Mounting type
Pendant mounting
Surface mounted (ceiling / wall)
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for illumination of offices, schools, traffic zones, etc.
- Optionally as an intelligent Connect version with or without motion sensor, or as a conventional DALI luminaire
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- High quality finish
- Direct and indirect light distribution
Variants
Version
900mm
Luminous flux
9000 lm (Down 5600, Up 3400)
Dimensions
Dimensions Ø × H
900 x 82 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
80 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
2100 mA
Sensor technology
With light sensor
Yes
Connectivity
With radio network control
Yes
Wireless networking via
BT SIG Mesh
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
9000 lm (Down 5600, Up 3400)
Beam angle
Down 95°, Up 100°
Luminaire luminous efficacy
113 lm/W
Glare value
UGR < 18
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
With program-controlled lighting control
Yes
Constant light output control
Yes
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

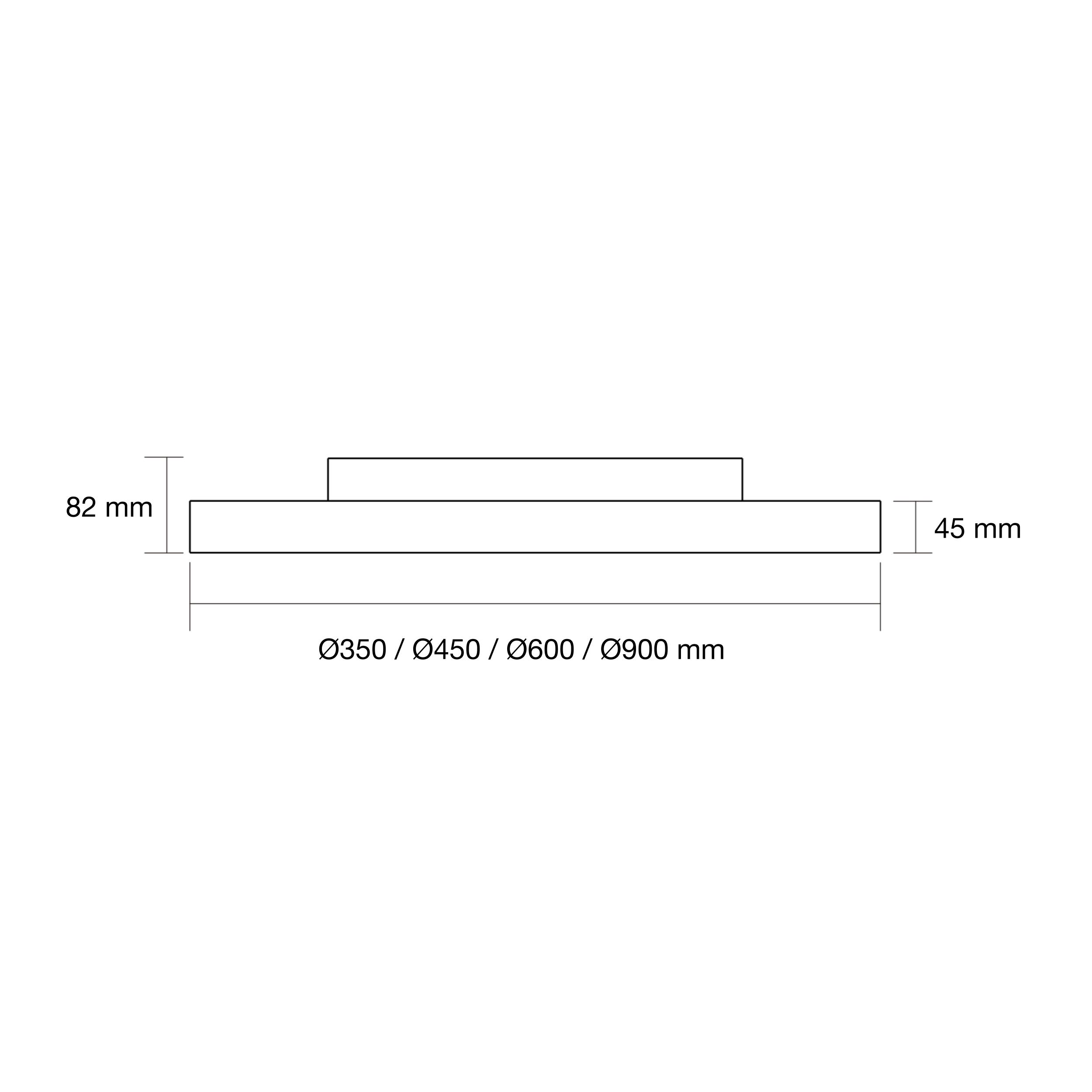

Technical drawing

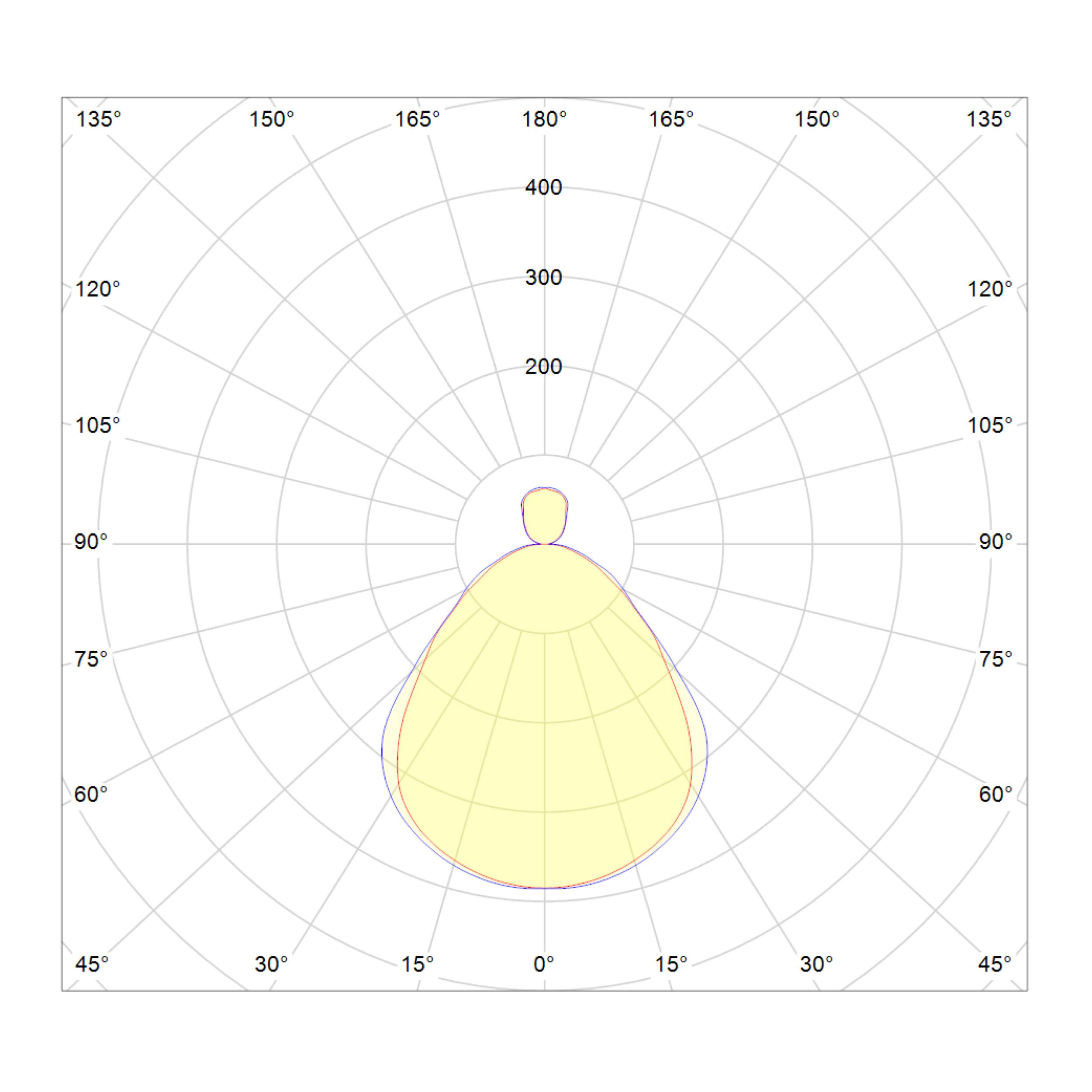

Lichtverteilungskurve

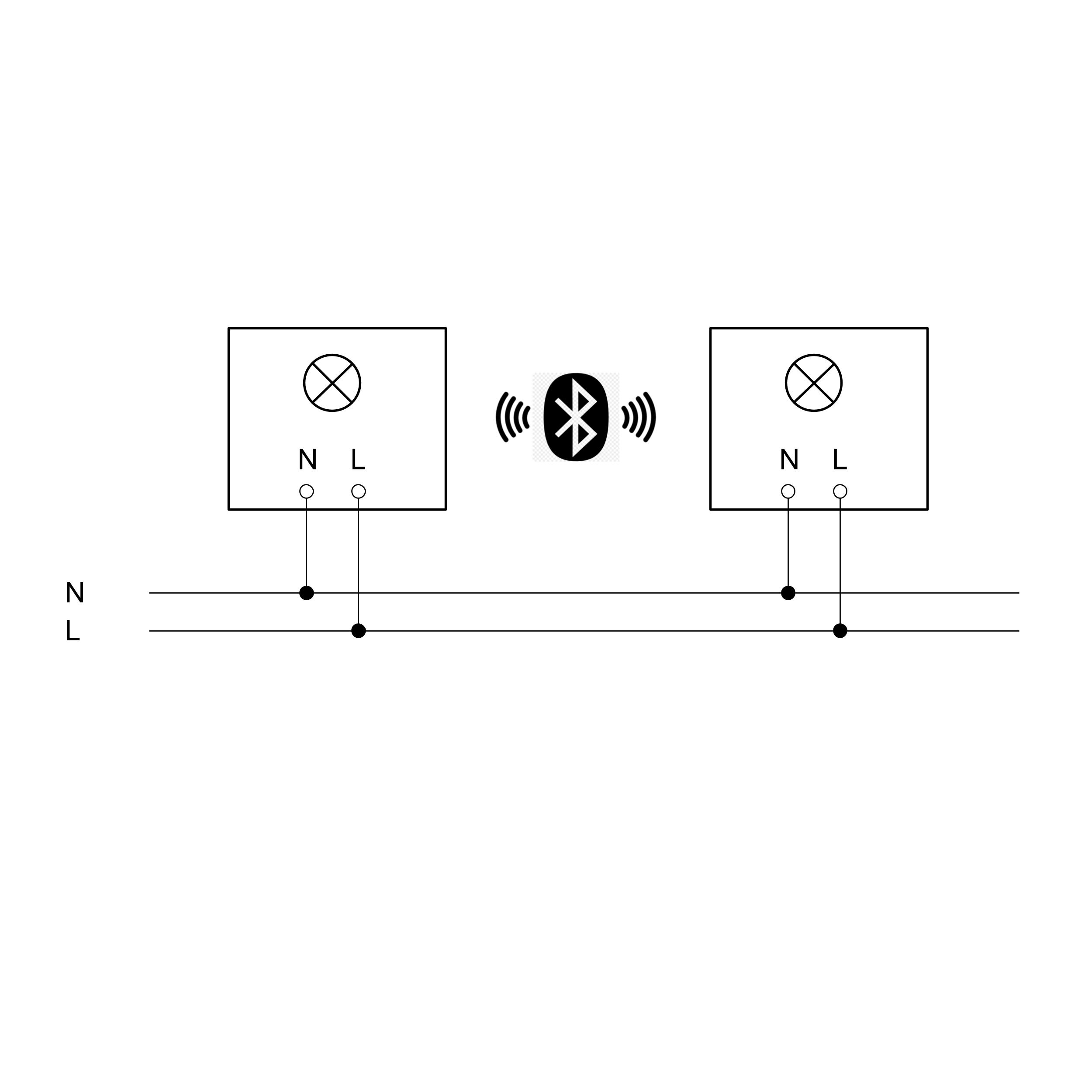

Wiring diagram 1
Wiring diagram networking radio

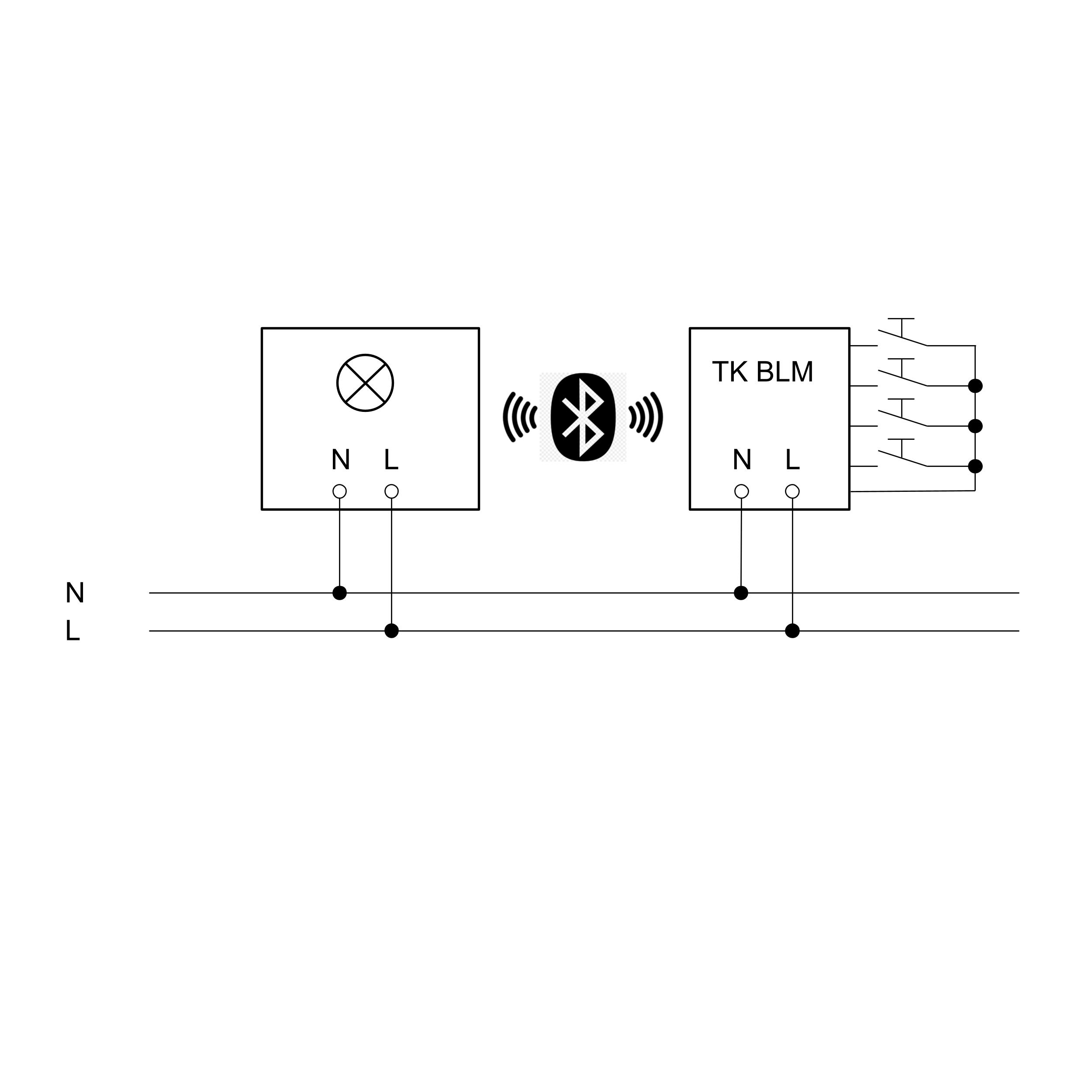

Wiring diagram 2
Wiring diagram pushbutton coupler
