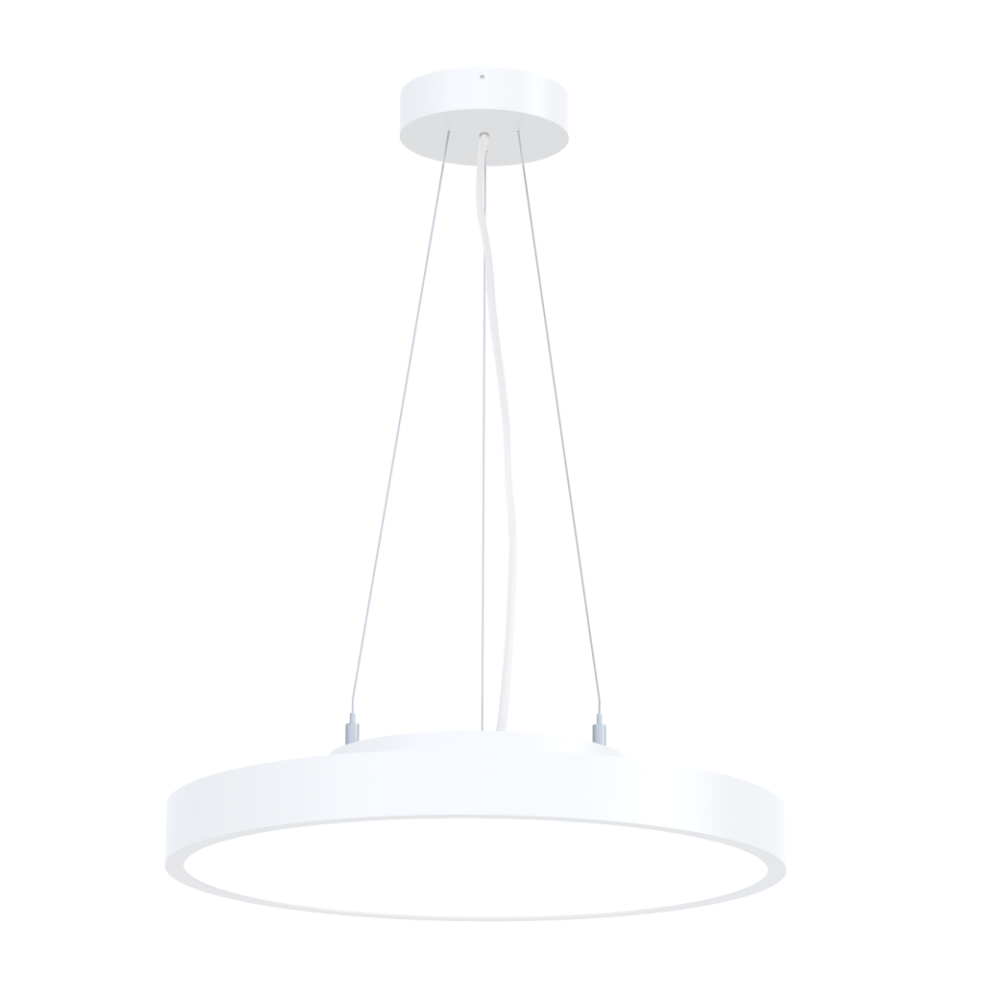

nevalux zwena DALI P900 4K
Product code 220584
Price: Please log in to see prices
Dimensions Ø × H
Colour temperature
3000 K
4000 K
Control technology
Dali-Leuchte
Smartlink Connect
With motion detector
No
Mounting type
Pendant mounting
Surface mounted (ceiling / wall)
Switch selection
The requested variant is not available. Please choose one of the following options.
- For universal use for illumination of offices, schools, traffic zones, etc.
- Optionally as an intelligent Connect version with or without motion sensor, or as a conventional DALI luminaire
- Connect version with IoT lighting control for next generation lighting projects (swarm function, grouping, cleaning light etc.)
- High quality finish
- Direct and indirect light distribution
Variants
Version
900mm
Luminous flux
9000 lm (Down 5600, Up 3400)
Dimensions
Dimensions Ø × H
900 x 82 mm
Suspension length
1500 mm
Electrical
Mains connection
230 V / 50 – 60 Hz
Power
80 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
2100 mA
Sensor technology
With light sensor
No
Connectivity
Networking via
DALI 2
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80 - 89
Illuminant
LED
Luminous flux
9000 lm (Down 5600, Up 3400)
Beam angle
Down 95°, Up 100°
Luminaire luminous efficacy
113 lm/W
Glare value
UGR < 18
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Direct/indirect ratio separately controllable
No
Housing & material
Protection class (IP)
IP20
Protection class
I
Ambient temperature
-20...+45 °C
Housing material
Aluminium
Cover material
Microprismatic acrylic glass
Colour
White
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
E

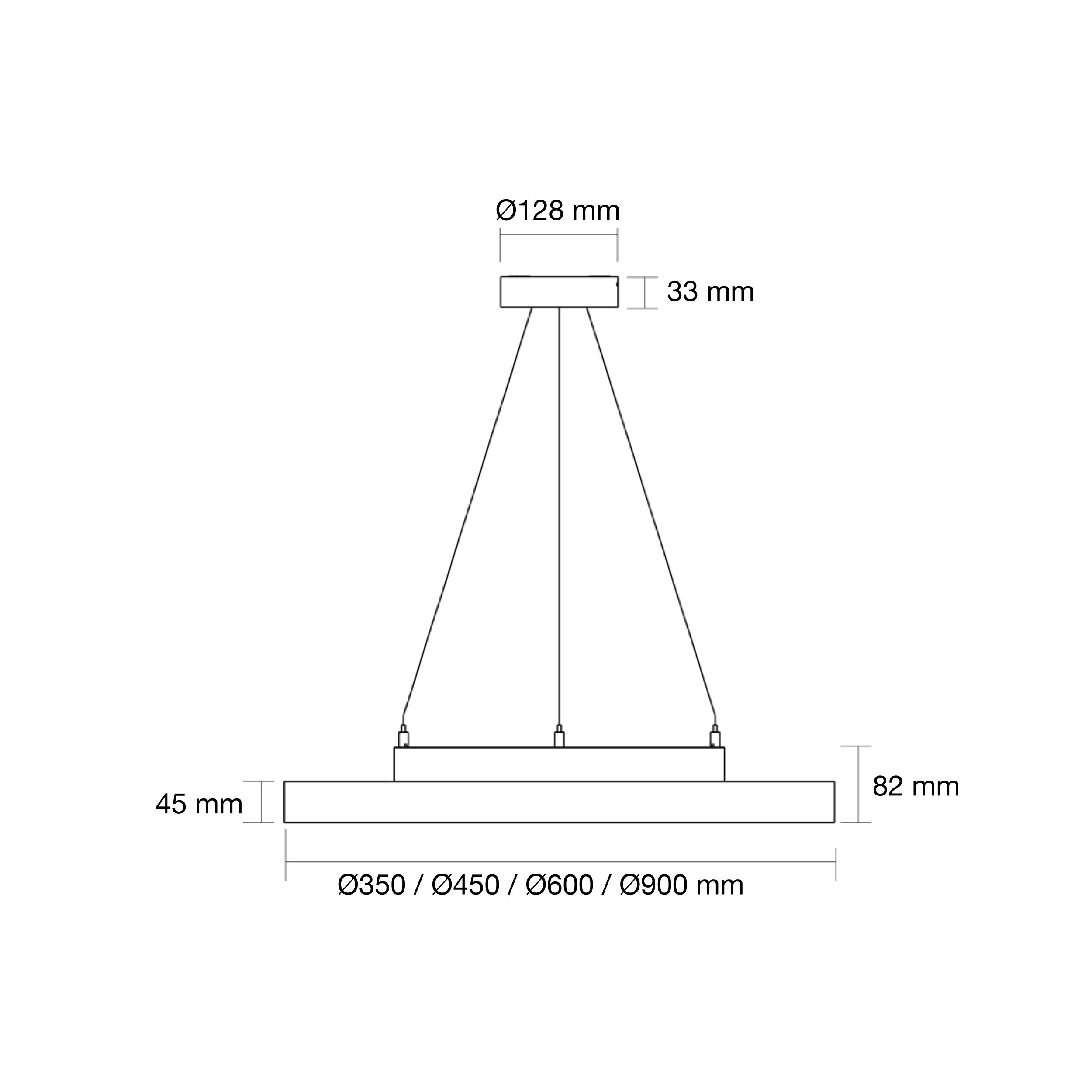

Technical drawing

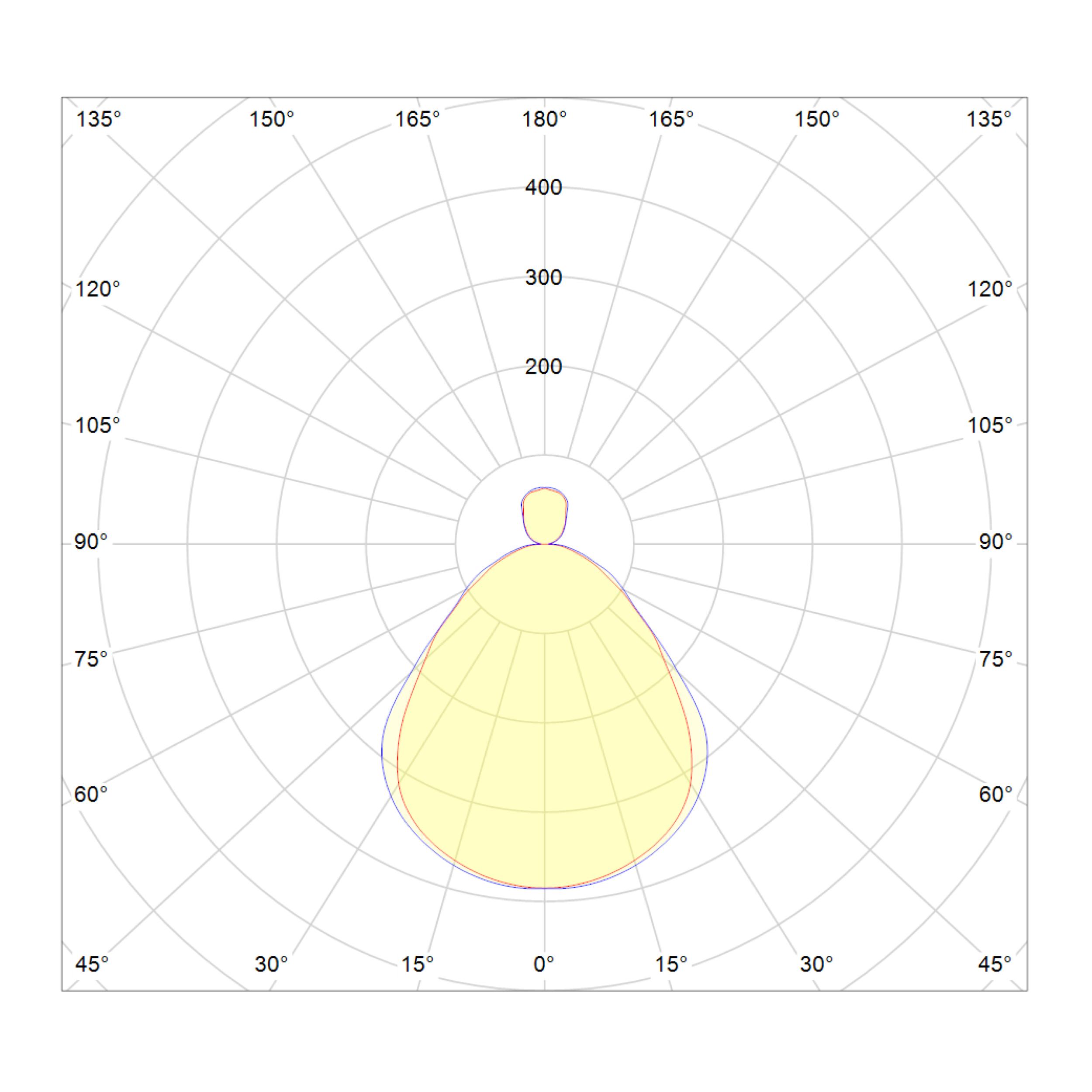

Lichtverteilungskurve
Wiring diagram 1
Wiring diagram
