Connects two KNX data lines / segments / areas and ensures the electrical isolation between these lines / segments / areas To be operated by addressing as area coupler, line coupler or segment coupler Mounting on top-hat rail according to DIN EN 60715 in distribution box

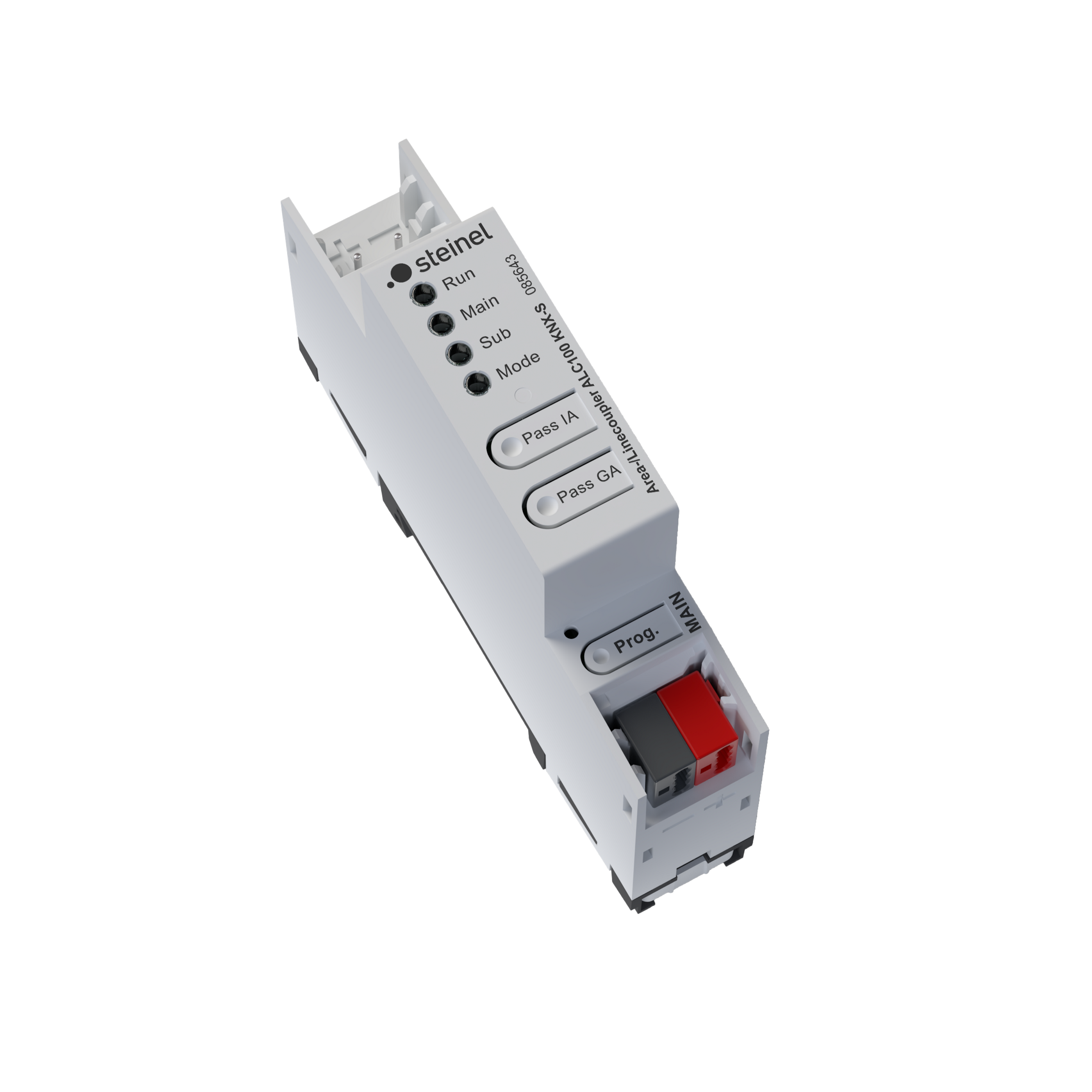

- Area/line coupler
- Connects two KNX data lines / segments / areas
- Ensures electrical isolation between the lines / segments / areas
- To be operated by addressing as area coupler, line coupler or segment coupler
- Mounting on top-hat rail according to DIN EN 60715 in distribution box
- Mounting width 18mm (1 rail unit)
- 5-year product guarantee, KNX Data Secure
Dimensions
Dimensions L × W × H
90 x 18 x 58 mm
Electrical
Mains connection
21 – 32 V
Supply voltage detail
KNX bus
Connectivity
With bus coupler
Yes
Housing & material
Protection class (IP)
IP20
Protection class
III
Ambient temperature
from -5 up to 45 °C
Mounting type
DRA
Colour
grey
Scope of delivery & warranty
Manufacturer warranty
5 years
