Steinel DL Vario Quattro S white

Outdoor ceiling light for entrances and passages. Four sensors, each range adjustable.

ELDAS® no. 941 300 129

EAN-No. 4007841 035440

Price: Please log in to see prices

Colour temperature

3000 K

Networking via

Cable without

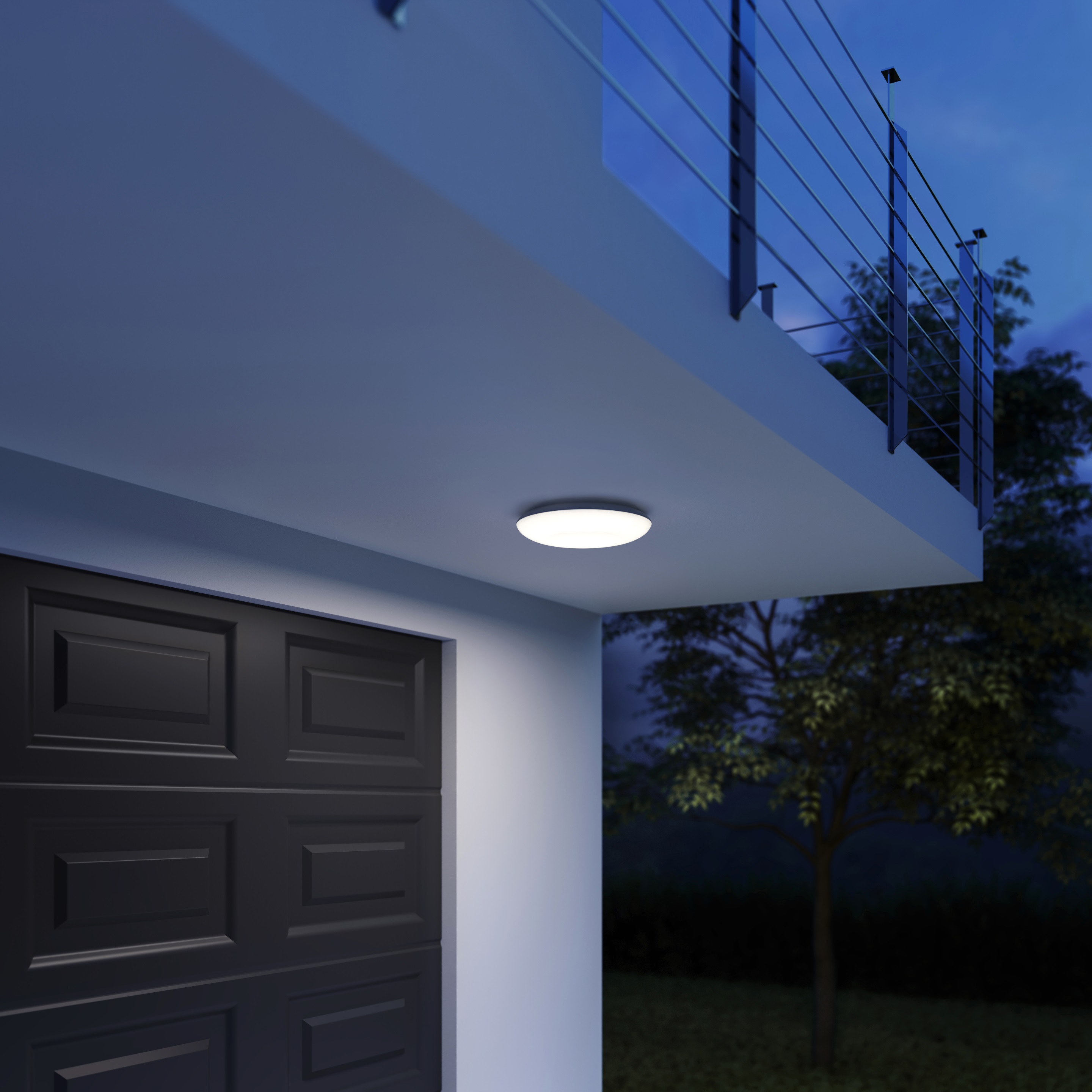

The LED ceiling light with precise detection. The four infrared sensors can be mechanically adjusted in each direction from 2-8 m to suit any need. 360° all-round detection is ideally suited for optimum adjustment to the local situation, e.g. carports and porches. The light diffuser also acts as the sensor lens - a patented world first. The ceiling light provides 1000 lm of illumination at an output of 10 W and can be mounted at heights of up to 6 m, including a convenient night light function (10%) at twilight.

  • Outdoor ceiling light with four integrated motion detectors
  • Mounting height up to 6m, particularly impact-resistant material

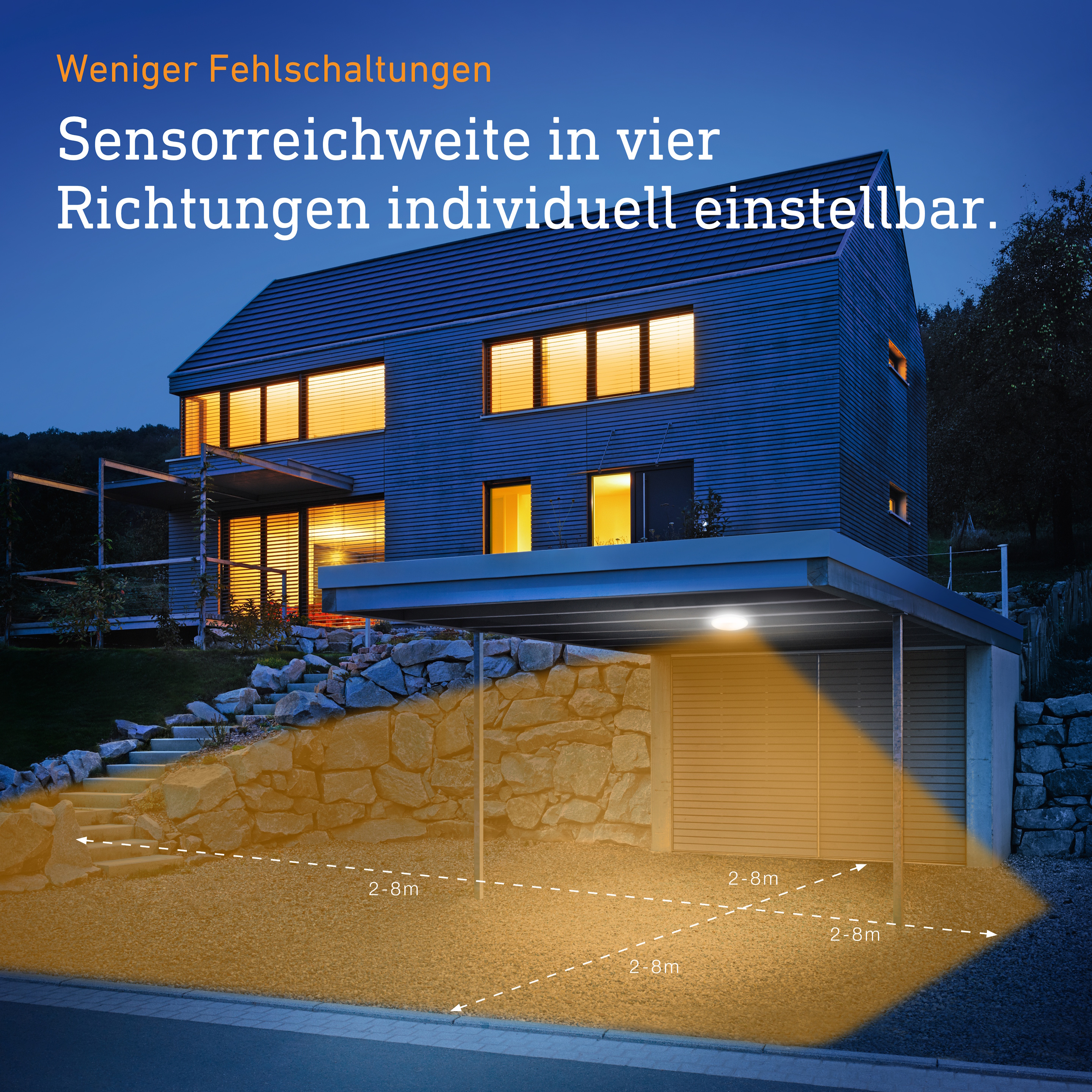

  • Automatic light thanks to four 90° infrared sensors, each individually adjustable from 2-8m
  • Functions: adjustable basic light, 4 hours continuous light
  • Warm white light (3000 K) and long-life 9,8 W LEDs with 1000 lm
  • Incl. mounting accessories - plastic-free packaging

Dimensions

Dimensions Ø × H 310 x 69 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 9,8 W

Sensor technology

Max. mounting height 6,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability Yes
Range detail Reach adjustable from 2 - 8 m in 4 directions (90° in each)
Radial range 4 x 4 m (16 m²)
Tangential range 16 x 16 m (256 m²)
Mounting height 2,0 – 6,0 m
Optimal mounting height 2,8 m

Connectivity

Networking No
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 1000 lm
Efficiency 102 lm/W
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80 - 89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 5 s – 30 min
Base light function Yes
Base light function time 10/30 min, all night
Main light adjustable No
Settings via Potentiometers
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK07
Protection class (IP) IP54
Protection class II
Ambient temperature -20...+35 °C
Housing material Plastic
Cover material Structured plastic
Mounting location ceiling
Application location Outdoors
Mounting type Surface mounting
Material Plastic
Application room Indoors, corridor / aisle, courtyard & driveway, front door, function room / ancillary room, outdoors, stairwell
Colour White

Scope of delivery & warranty

Manufacturer warranty 3 years

Certificates & EPREL

Certificates DEKRA EMC
EPREL category Surrounded product with integrated light source

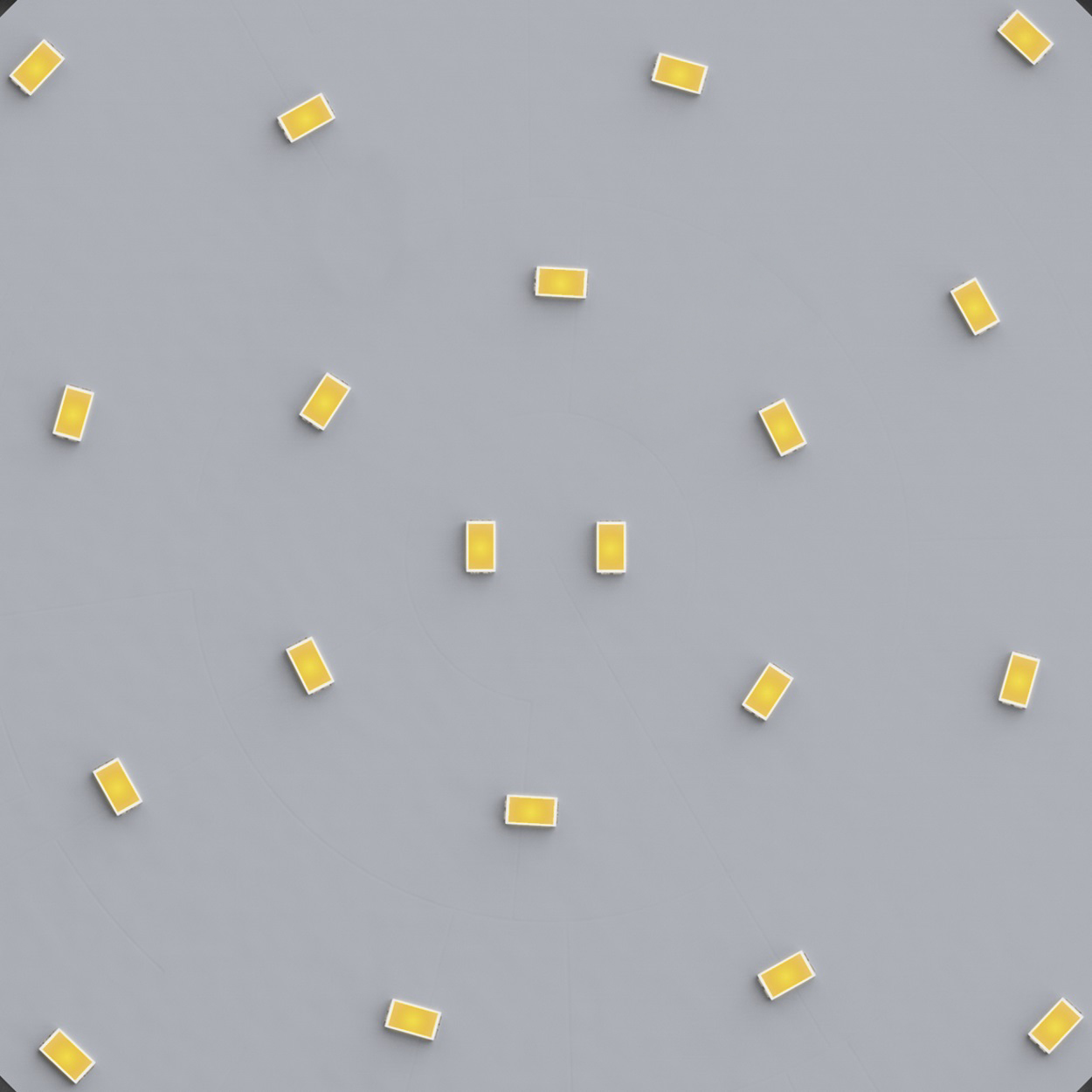

Including STEINEL LED system

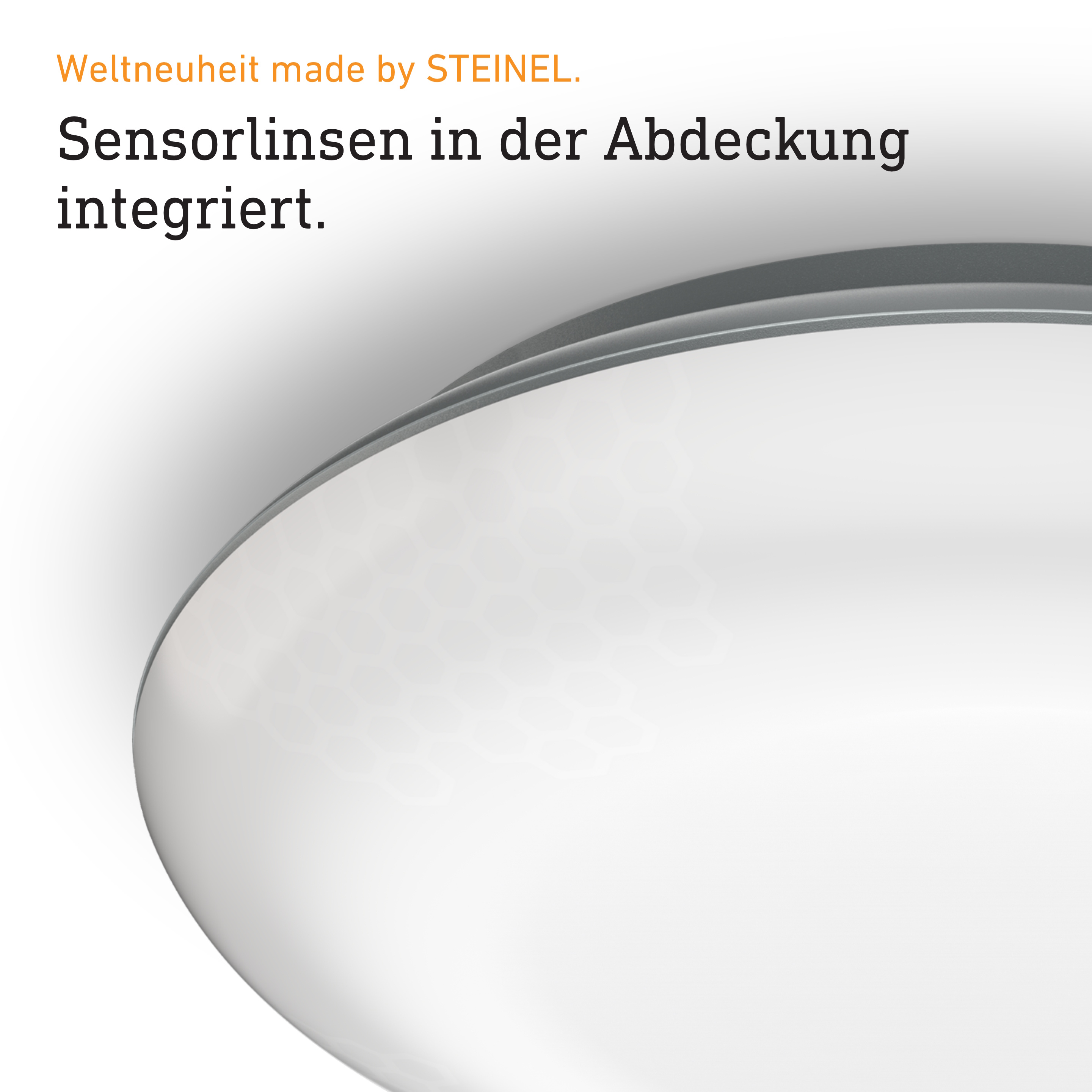

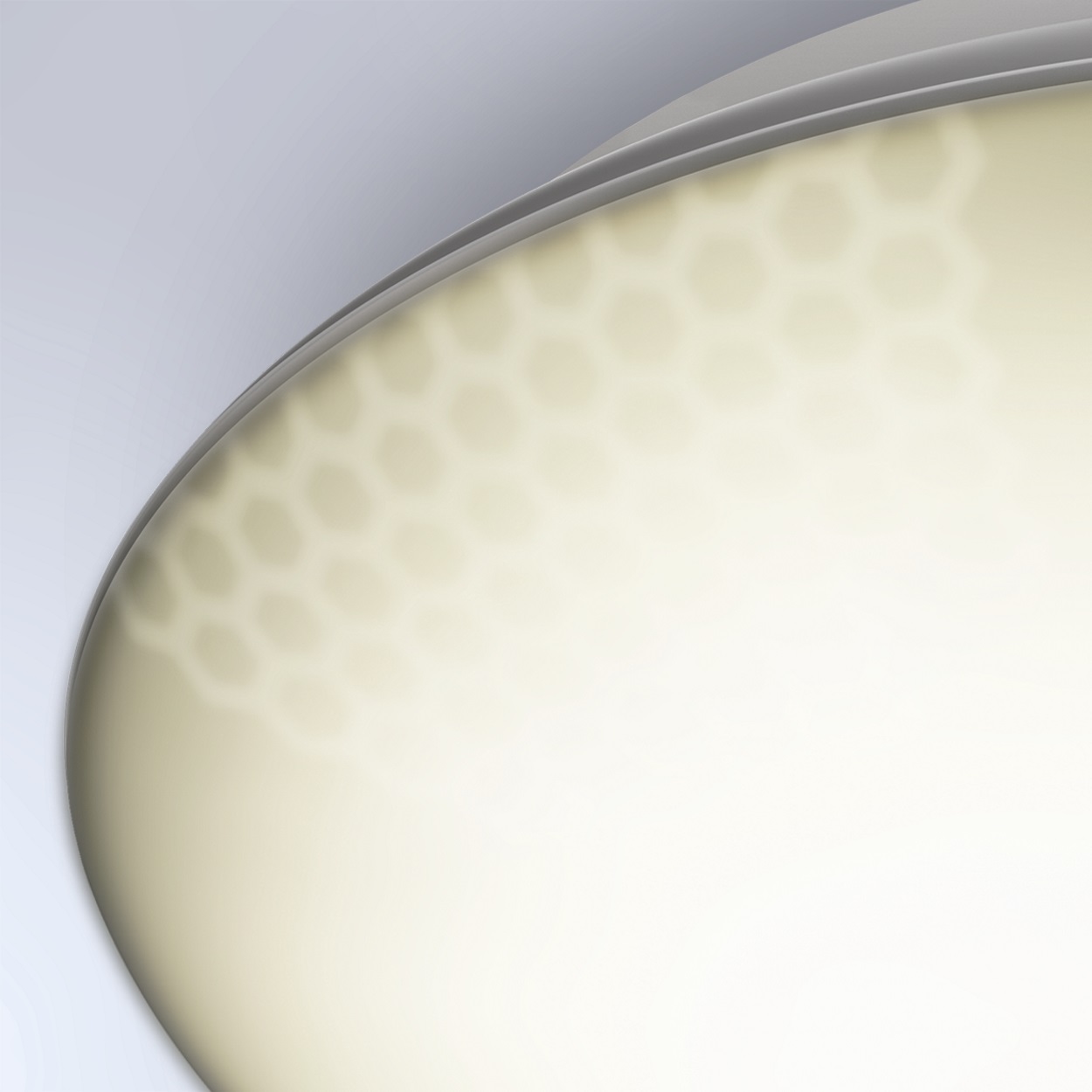

Integrated sensor lenses

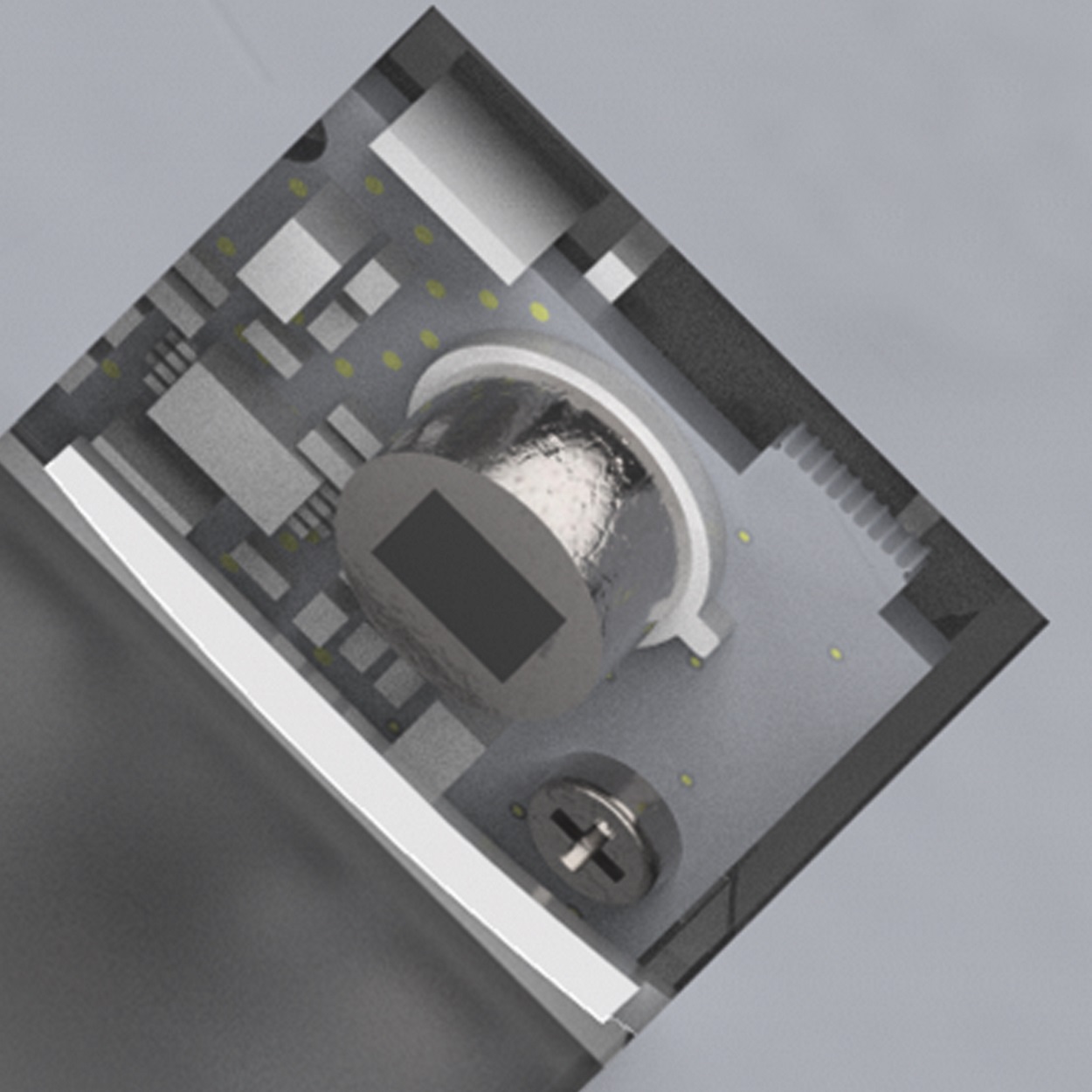

4 infrared sensors adjustable in every direction

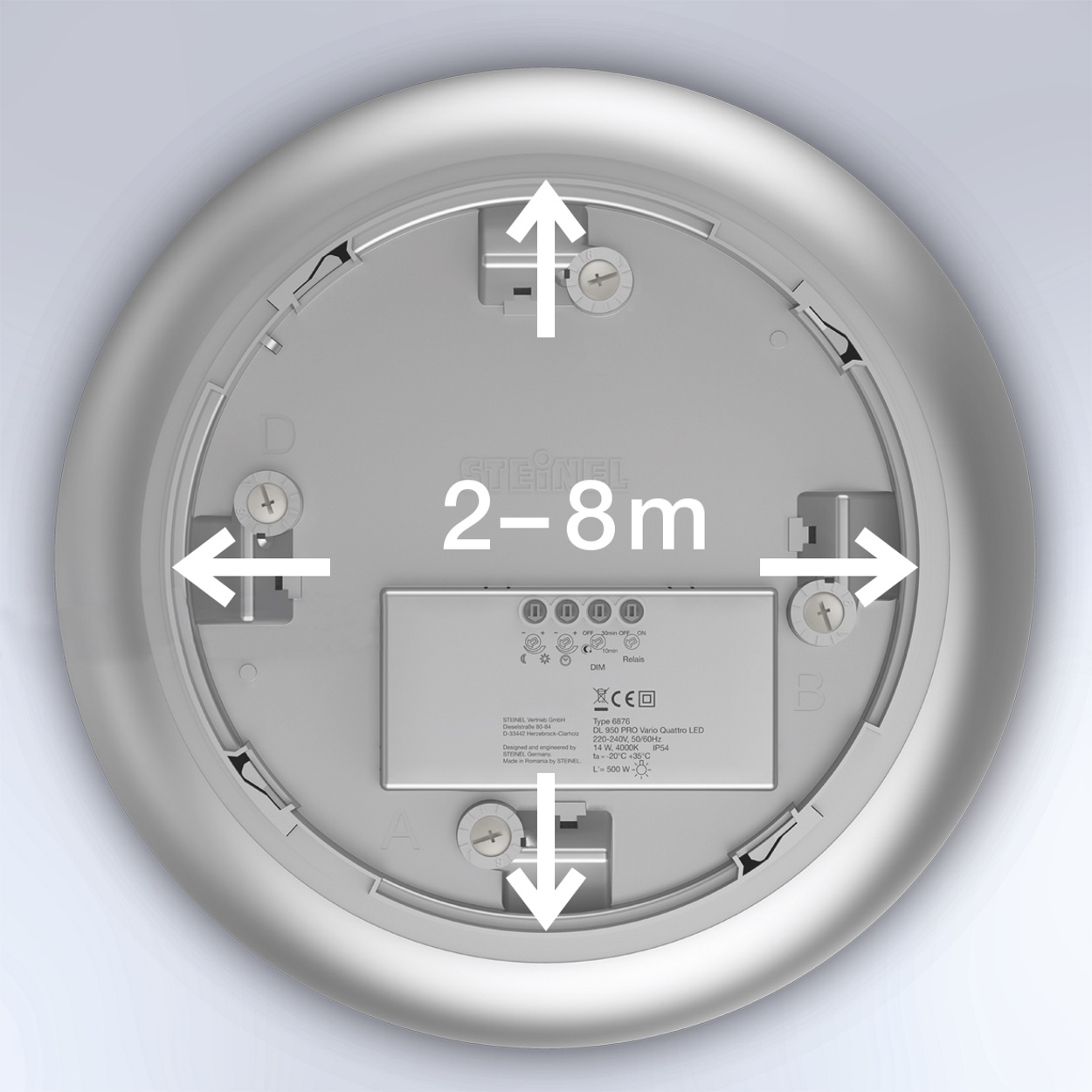

Reach adjusts in 4directions

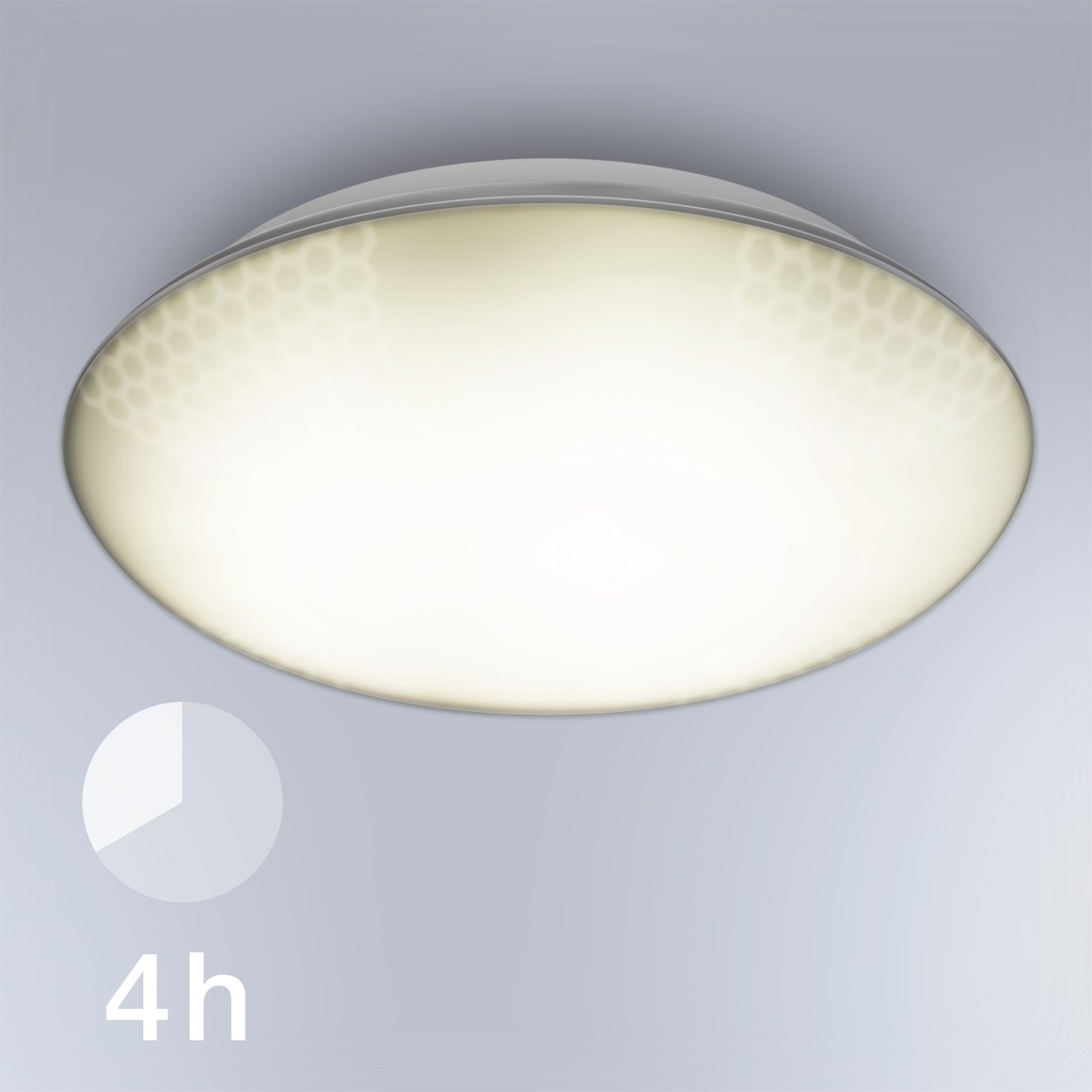

4-hour manual override (optional)

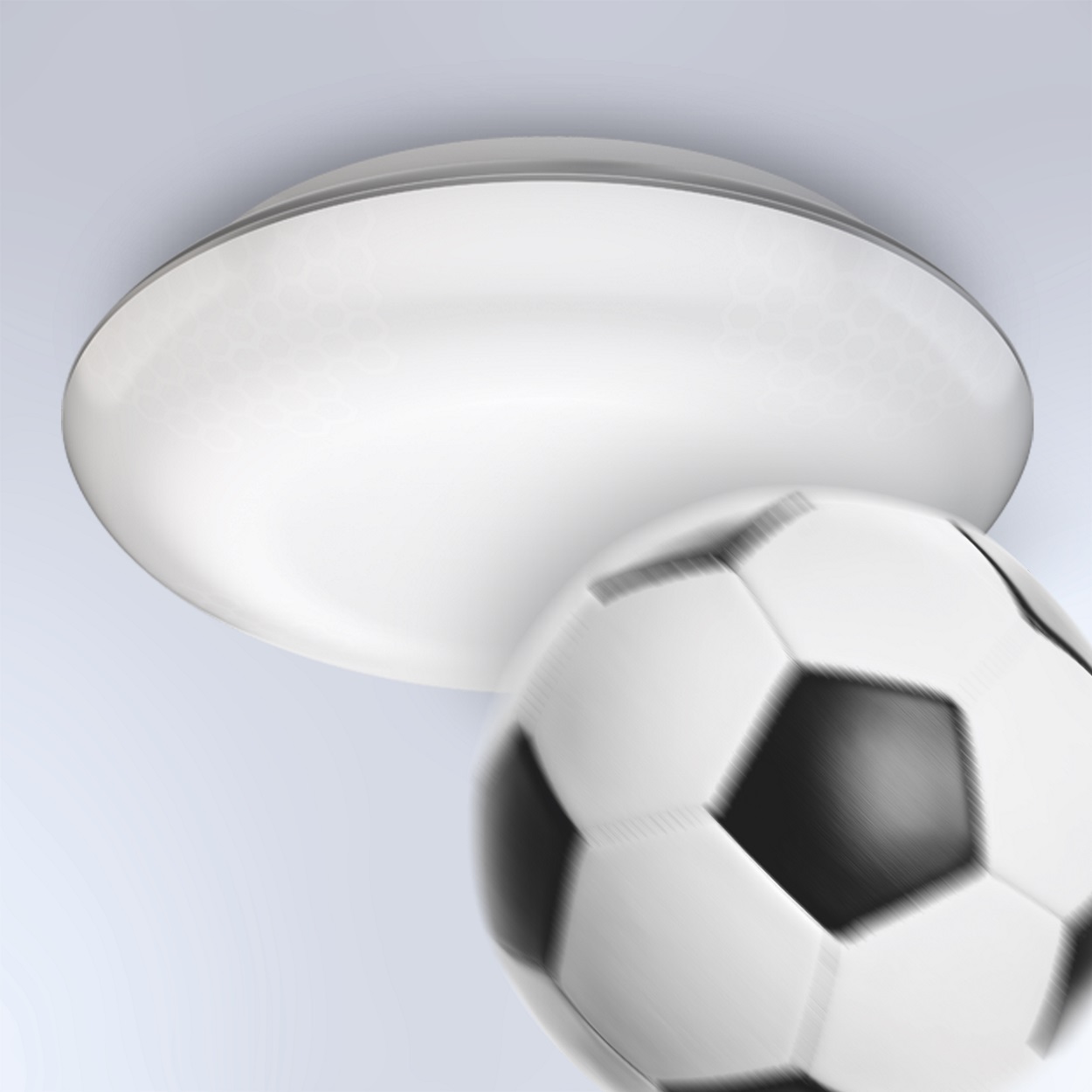

Impact-resistant material rated to IK07

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
