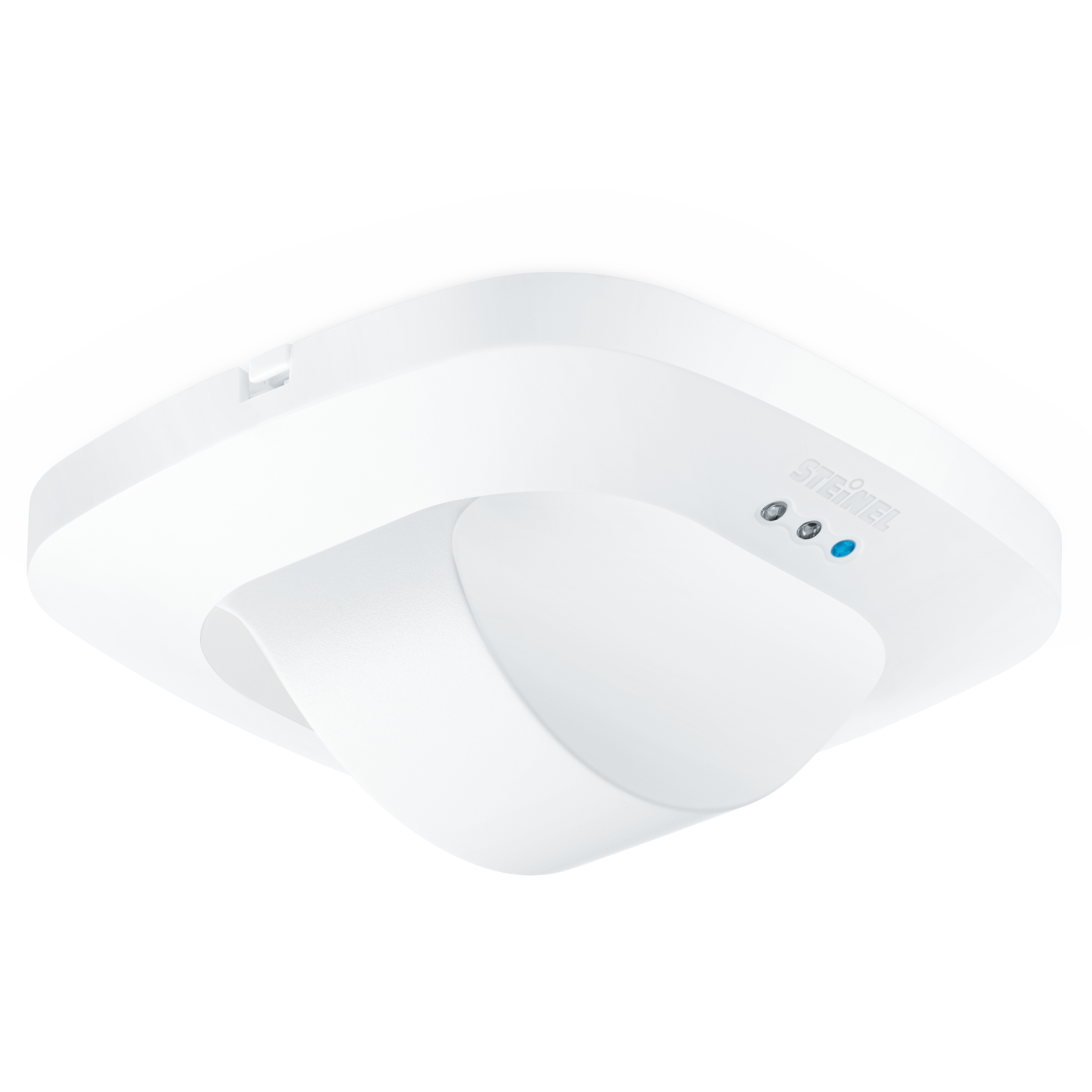

Steinel Dual HF DALI-2 APC - in-ceiling installation

Presence detector for long corridors. Two HF sensors cover 20 m in walking direction.

ELDAS® no. 535 934 608

EAN-No. 4007841 079499

Price: Please log in to see prices

Mounting type

Concealed mounting Recessed ceiling

Variant

230V, 1 channel DALI-2 Application Controller KNX

The Dual HF corridor sensor works with high-frequency technology that's particularly advanced. The system is fitted with 2 sensors, with each covering one corridor direction. Both of them together cover a good 20 metres in walking direction - for complete and reliable detection without blind spots. Tangential reach is deliberately limited to corridor width so as to avoid detecting movements behind closed doors, for instance.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 112 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 2x12 electronic ballasts

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °, Corridor

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range 20 x 3 m (60 m²)

Tangential range 20 x 3 m (60 m²)

Mounting height 2,5 – 3,5 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

With bus coupler Yes

Networking via DALI 2

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 min

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

Functions Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 60 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature -25...+55 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, corridor / aisle

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Optional remote controls

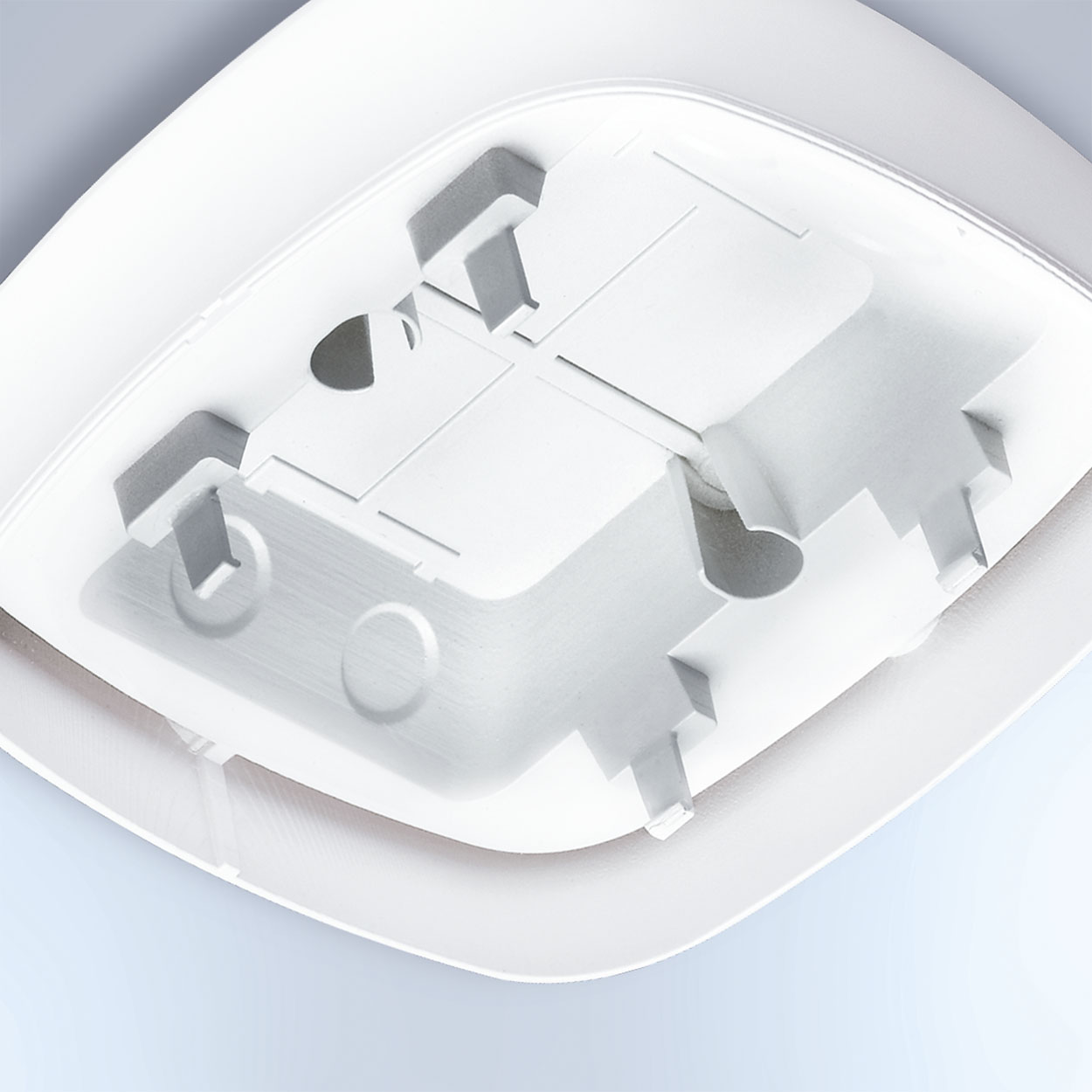

Optional surface-mounting adapter

Optional guard cage

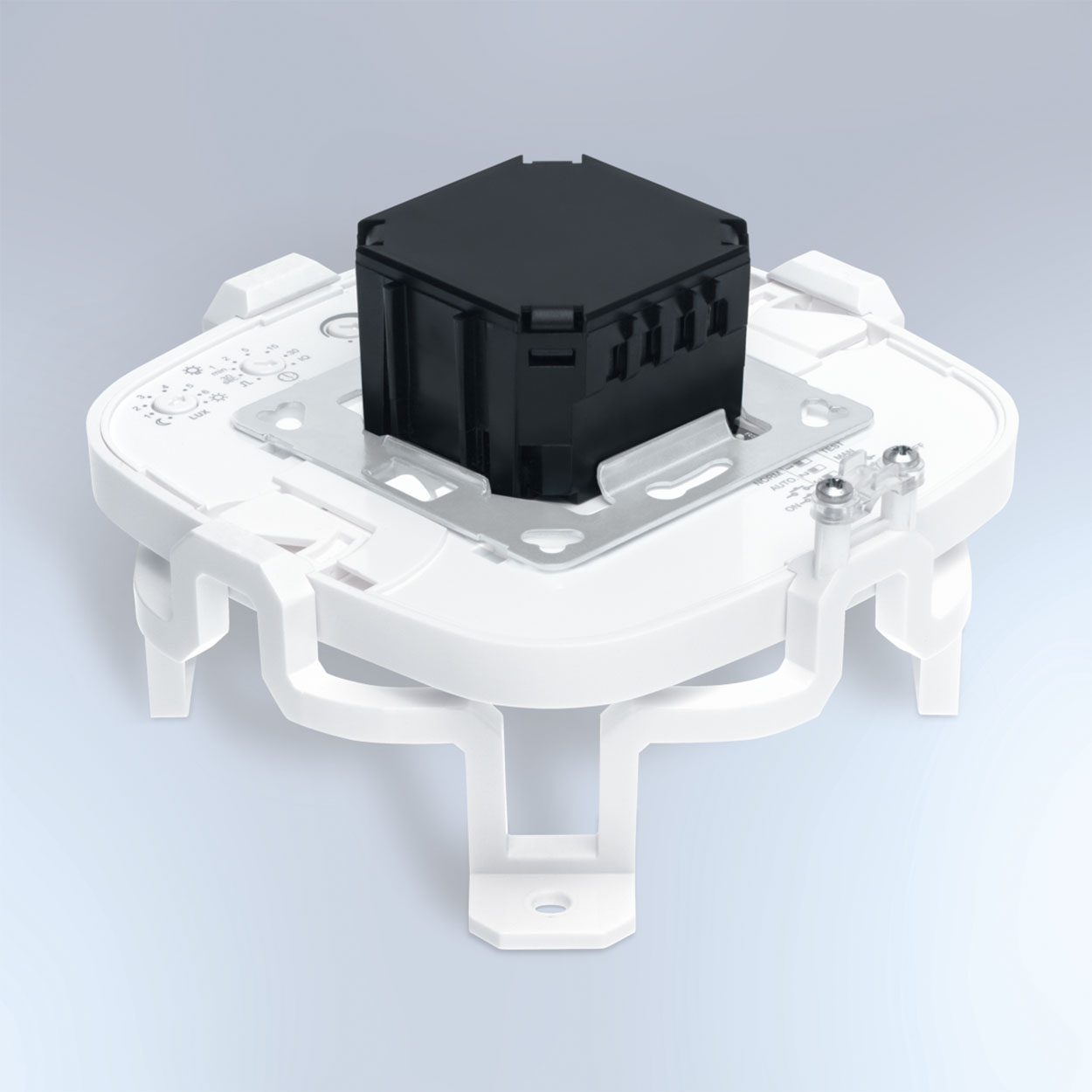

HF ceiling adapter for installation in suspended ceilings

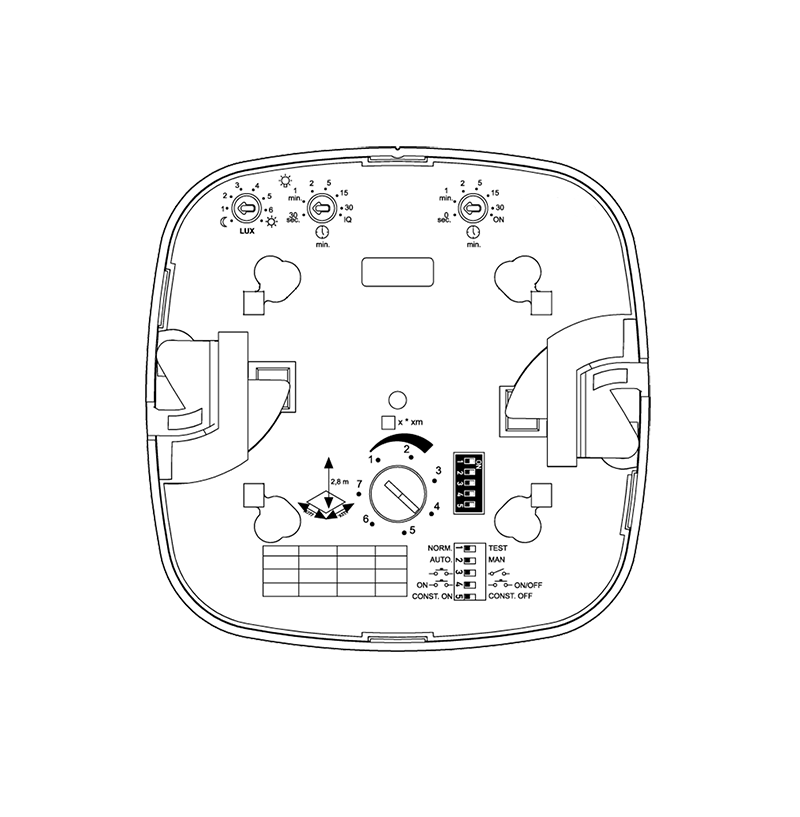

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
