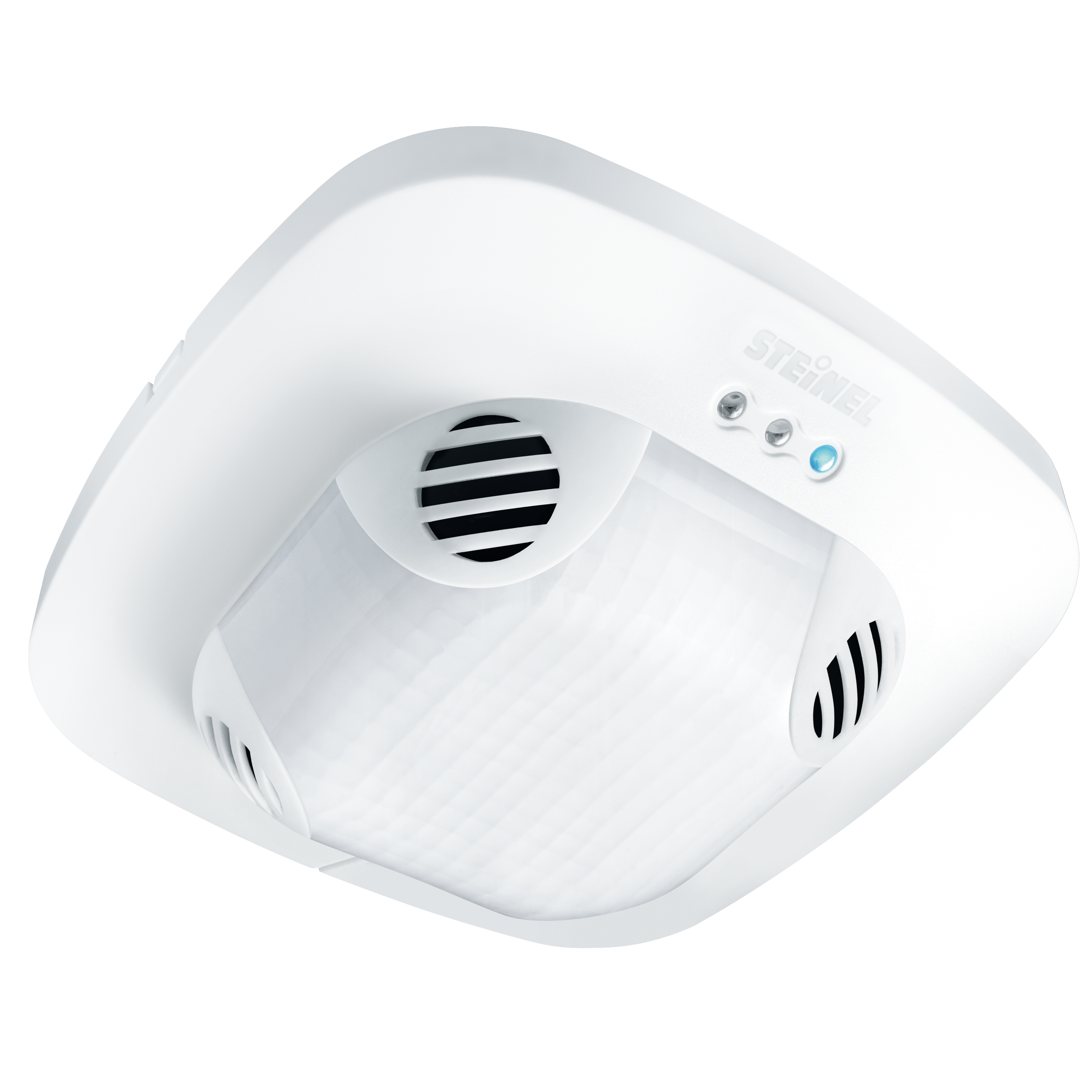

Steinel DualTech COM1 - in-ceiling installation

ELDAS® no. 535 930 510

EAN-No. 4007841 079574

Offices, conference rooms and classrooms come with their own particular spatial situations that don't exactly make it easy to provide efficient lighting control. That's why we have developed an innovative 360° detector with a 28 sq.m. presence detection zone that uses the best qualities of two leading technologies. This way, the DualTech can also detect movements without visual contact with the sensor. PIR technology provides additional detection capabilities. And maximum reliability.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 103 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Sensor technology

Max. mounting height 3,50 m

Sensor technology Ultrasonic

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²)

Tangential range Ultrasonic: Ø 10 m (79 m²)

Switching zones 520 switching zones

Mounting height 2,5 – 3,5 m

Presence range Ultrasonic: Ø 6 m (28 m²)

Sensor technology 2 passive infrared

Radial range 2 passive infrared: Ø 4 m (13 m²)

Tangential range 2 passive infrared: Ø 8 m (50 m²)

Presence range 2 passive infrared: Ø 4 m (13 m²)

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Networking quantity max. 10 sensors

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -25...+55 °C

Mounting location ceiling

Application location Indoors

Mounting type Recessed ceiling

Material Plastic

Application room Indoors, classroom, conference room / meeting room, duty room, one-person office, open-plan office, recreation room

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Optional remote controls

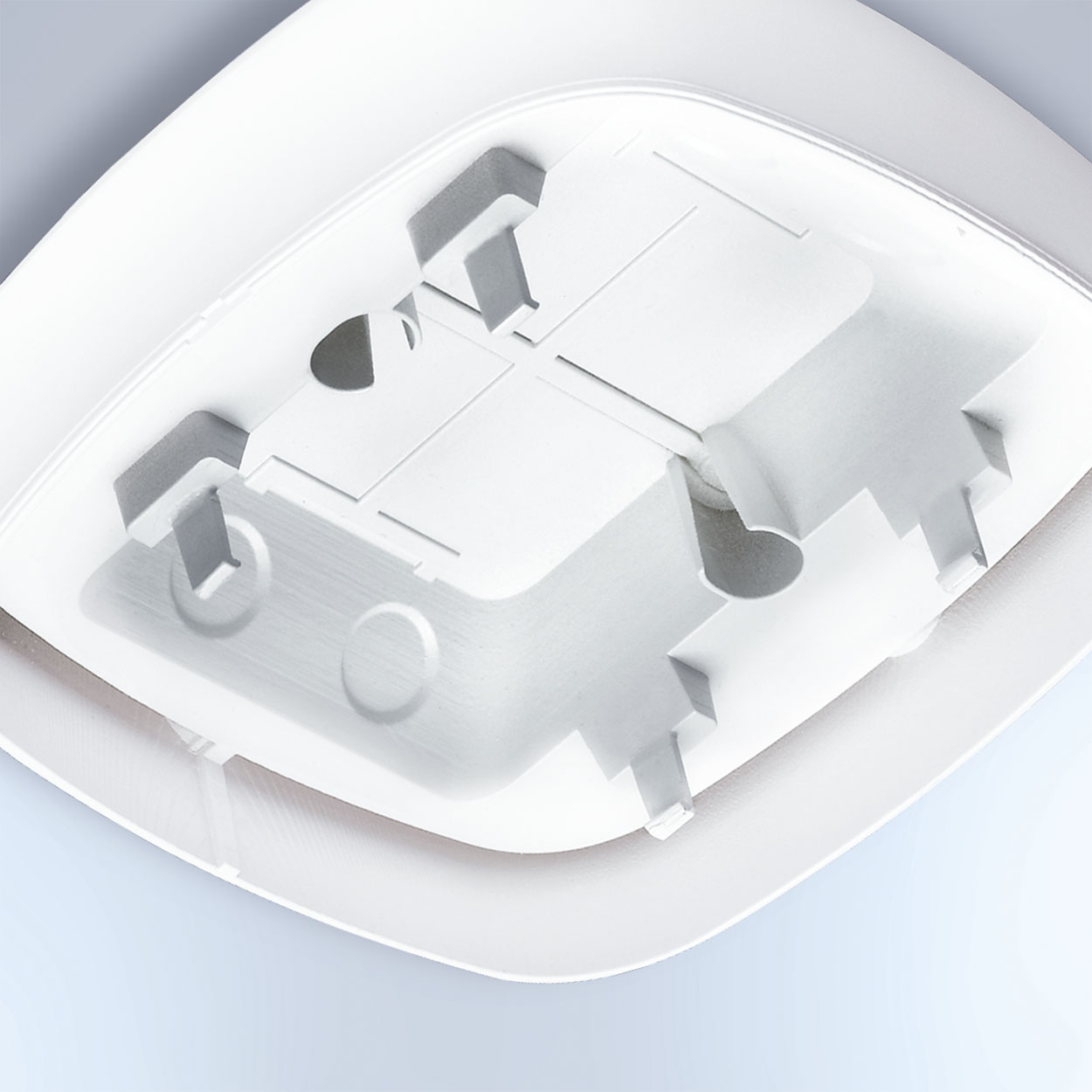

Optional surface-mounting adapter

Optional guard cage

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity Product brochure

Remote control Smart Remote

Item no. 009151

Service remote control RC8

Item no. 559410
