Identification
Version

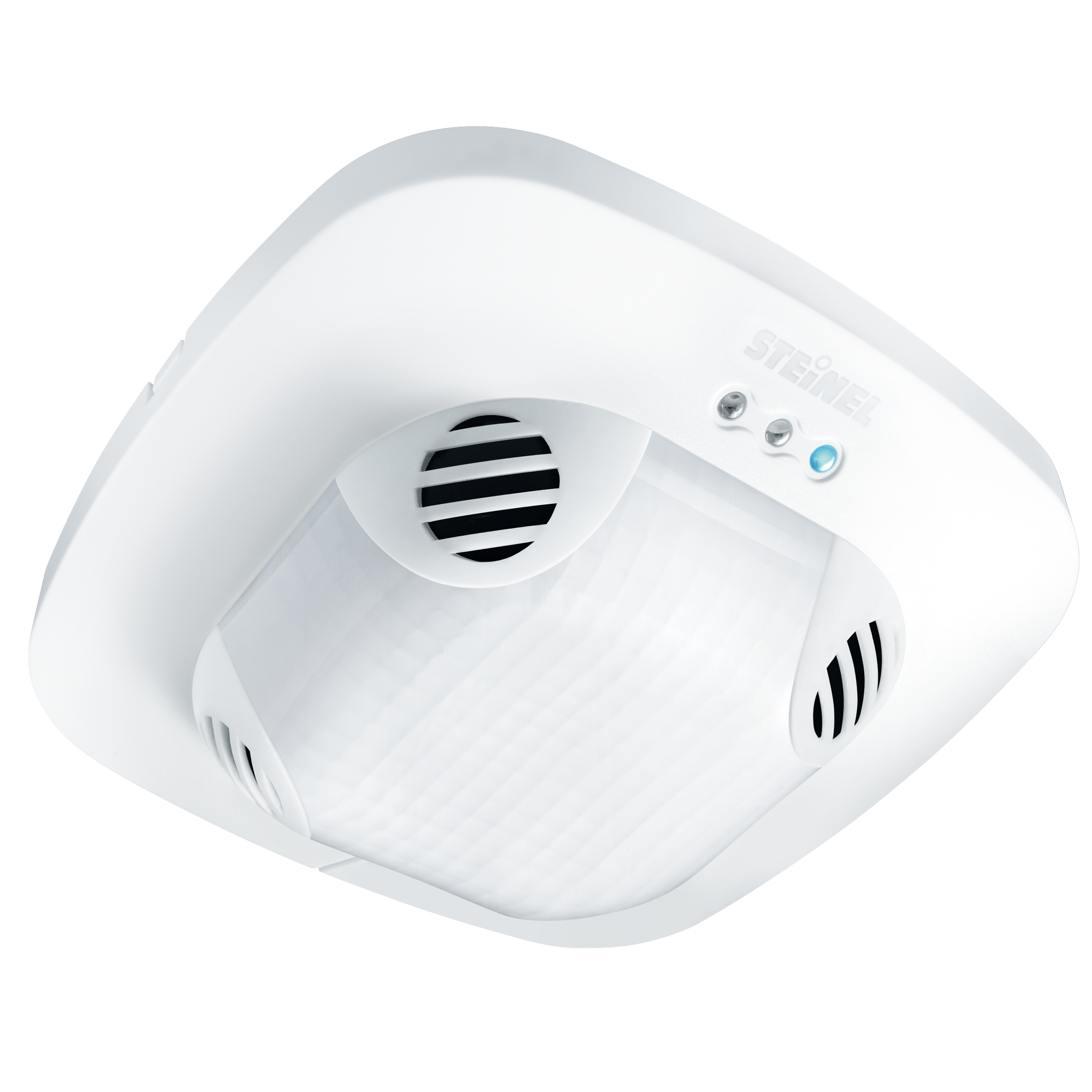

Presence detector
Dimensions
Dimensions L × W × H
65 x 120 x 120 mm
Electrical
Mains connection
30 V
Own consumption
0,7 W
Supply voltage detail
KNX bus
Sensor technology
Max. mounting height
3,50 m
Sensor technology
Ultrasonic
With motion detector
Yes
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²)
Tangential range
Ultrasonic: Ultraschall: Ø 10 m (Ultraschall: 79 m²)
Mounting height
2,50 – 3,5 m
Presence range
Ultrasonic: Ultraschall: Ø 6 m (Ultraschall: 28 m²)
Sensor technology 2
passive infrared
US technology
40 kHz
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/master
Master/slave
Networking via
KNX bus
KNX functions
Photo-cell controller
Basic light level function
Light level
HVAC output
Constant-lighting control
Light output 4x
Presence output
Day / night function
Logic gate
With bus coupler
Yes
Lighting technology
Soft light start
Yes
Continuous light
selectable
Constant light regulation
Yes
Settings
Twilight switch
Yes
Twilight setting
10 – 1000 lx
Time setting
10 s – 1092 Min.
Base light function
Yes
Base light function time
1-255 min
Main light adjustable
0 - 100 %
Settings via
ETS software
Remote control
Bus
Smart Remote
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
from -25 up to 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Application room
Indoors
classroom
conference room / meeting room
duty room
one-person office
open-plan office
recreation room
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
