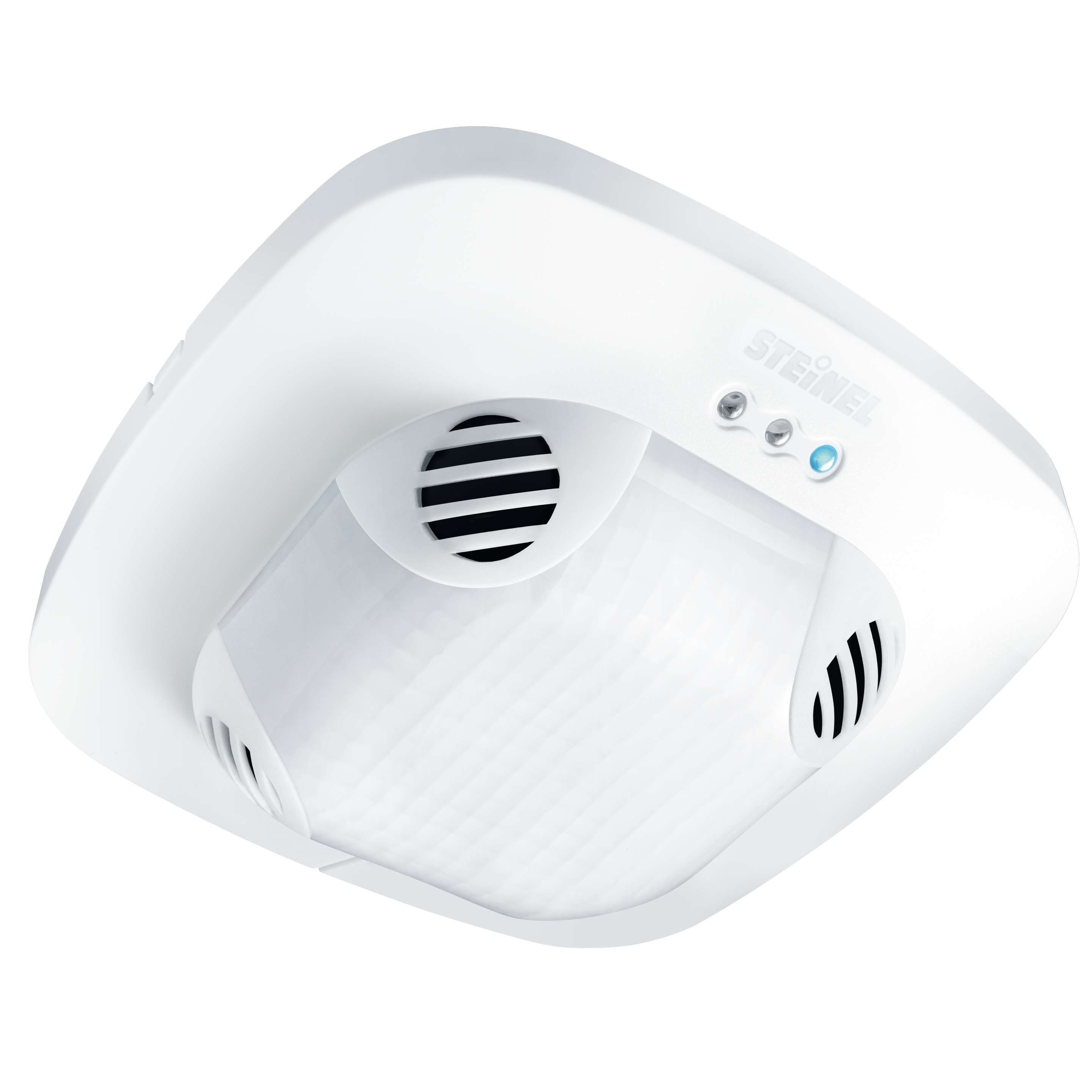

Steinel DualTech KNX - in-ceiling installation

ELDAS® no. 535 934 208

EAN-No. 4007841 079581

Offices, conference rooms and classrooms come with their own particular spatial situations that don't exactly make it easy to provide efficient lighting control. That's why we have developed an innovative 360° detector with a 28 m². presence detection zone that uses the best qualities of two leading technologies. This way, the DualTech KNX can also detect movements without visual contact with the sensor. PIR technology provides additional detection capabilities. And maximum reliability.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 103 x 120 x 120 mm

Electrical

Mains connection 30 V

Own consumption 0,7 W

Sensor technology

Max. mounting height 3,50 m

Sensor technology Ultrasonic

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 10 m (79 m²)

Tangential range Ø 10 m (79 m²)

Mounting height 2,50 – 3,5 m

Presence range Ø 6 m (28 m²)

US technology 40 kHz

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 0 s – 1092 Min.

Base light function Yes

Base light function time 1-255 min

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors classroom conference room / meeting room duty room one-person office open-plan office recreation room

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Optional remote controls

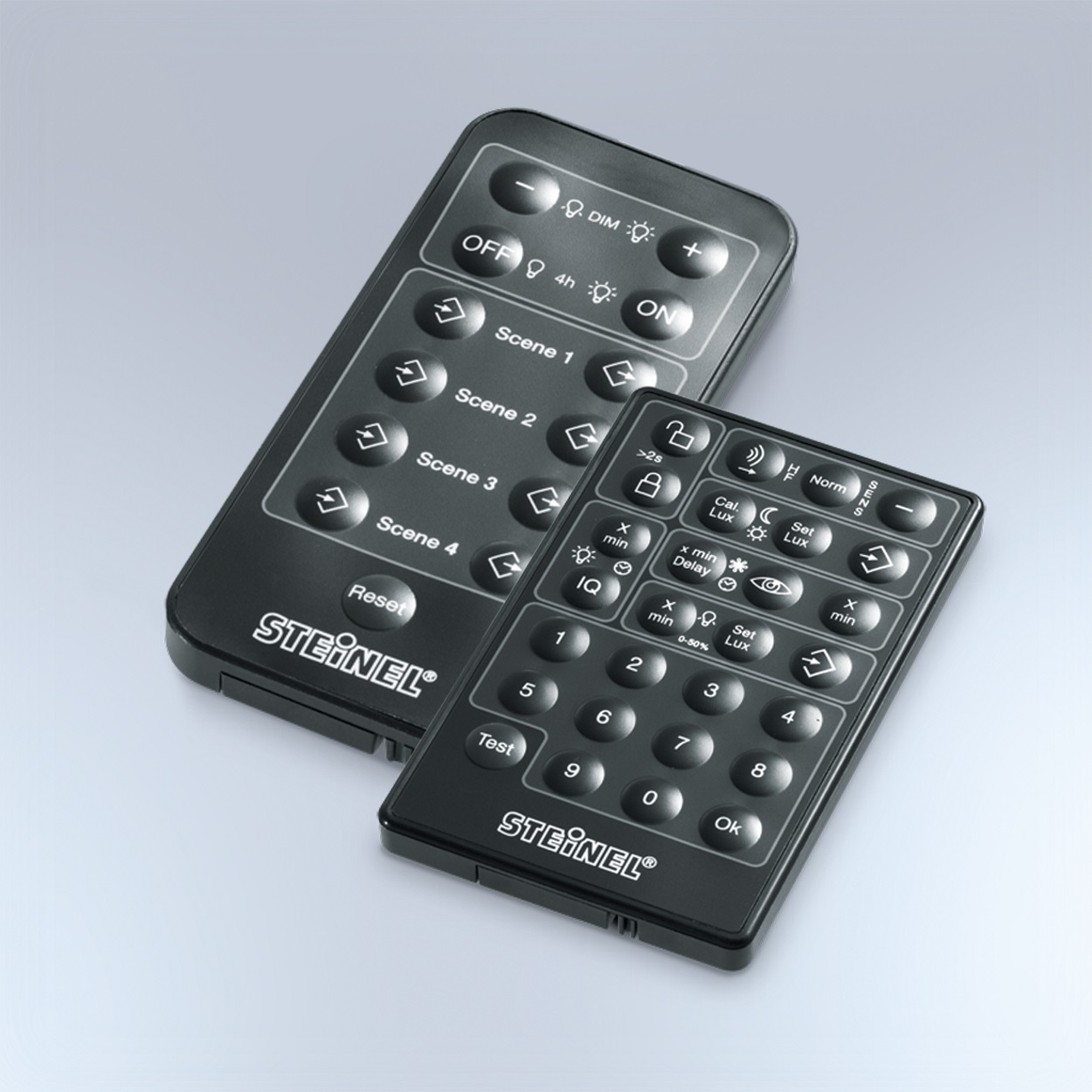

Smart Remote remote control optional

Optional guard cage

Technical drawing

Sensor detection areas

Data sheet User manual Declaration of conformity Product brochure

Control PRO guard cage

Item no. 003036

Remote control Smart Remote

Item no. 009151

Service remote control RC6 KNX

Item no. 4007841593018

User remote control RC7 KNX

Item no. 592912
