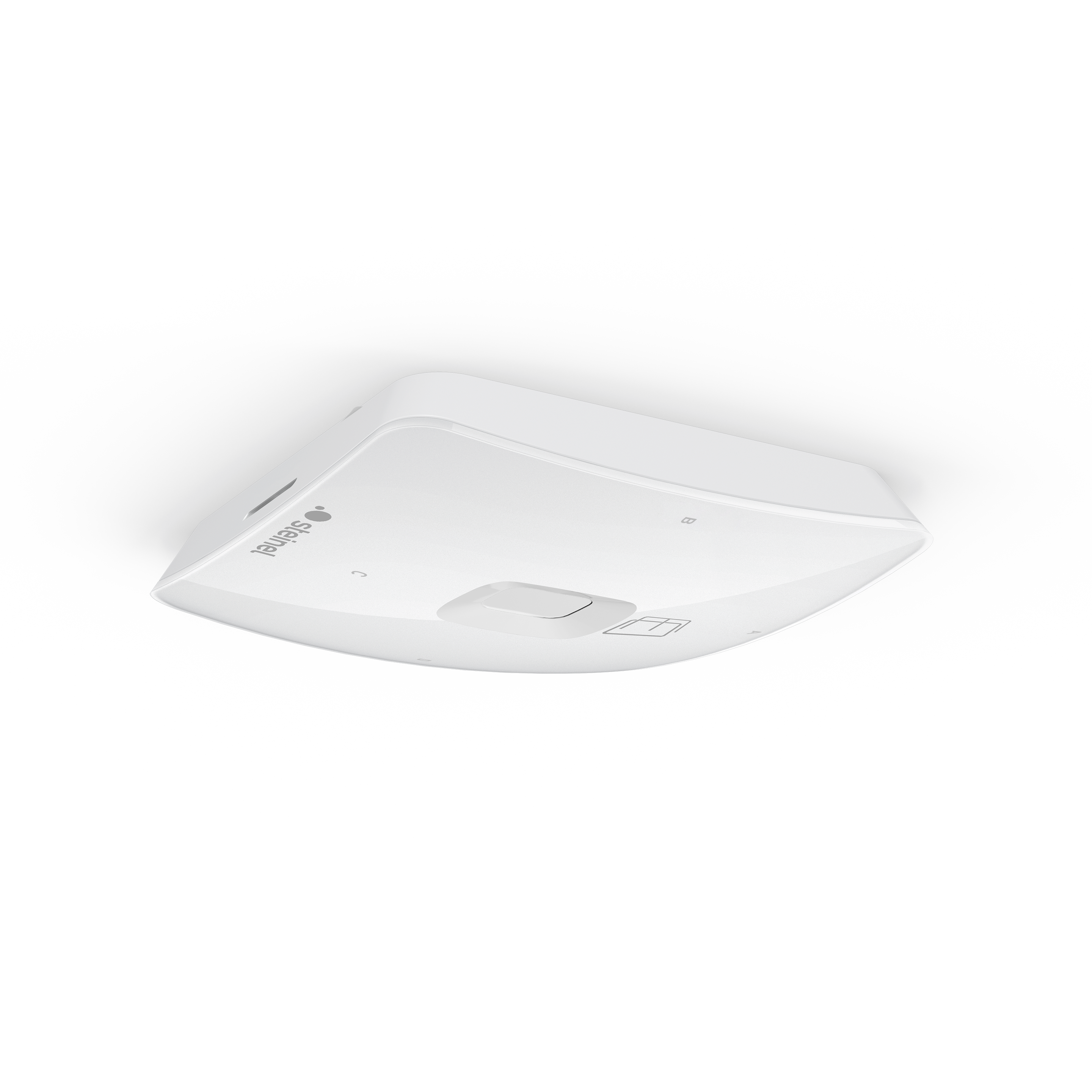

Our new Smart Space Sensor detects, localises and counts all the people in the room from the ceiling. Privacy is always guaranteed. This is because the innovative passive infrared matrix sensor does not have a camera and therefore cannot identify people. Keyword: privacy by design. How does it work? Via a heat matrix. All existing temperatures are precisely recorded in a precisely adjustable room area of up to 40 m² (at 3 m mounting height). The data obtained is analysed using intelligent software based on the latest AI algorithms. This allows human heat radiation to be precisely identified and localised.
- Smart Space Sensor detects, locates and counts people completely anonymously
- Ideal for optimising room and building utilisation
- Infrared matrix presence detector with 360° detection
- Detection matrix for 35 m² with 420 fields and 10 detection zones
- Integration via IP interface (REST API, MQTT, BacNet)
- Setup and networking via Bluetooth Mesh and free STEINEL Connect app
- Detects movement, presence, EO people counting and localisation, brightness, temperature and humidity
- The data supplier for Capstone and all other common building management systems
Identification
Version
Presence detector
Dimensions
Dimensions L × W × H
52 x 103 x 103 mm
Dimensions Ø × H
60 x 52 mm
Electrical
Own consumption
1,2 W
Supply voltage detail
Passive PoE SELV, standard PoE (IEEE 802.3 af)
Sensor technology
Max. mounting height
3,50 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Mounting height
2,5 – 3,5 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Networking via
Bluetooth Mesh
LAN
Lighting technology
Constant light regulation
No
Settings
Twilight switch
No
Settings via
Bluetooth Mesh
Web-Interface
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP20
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
