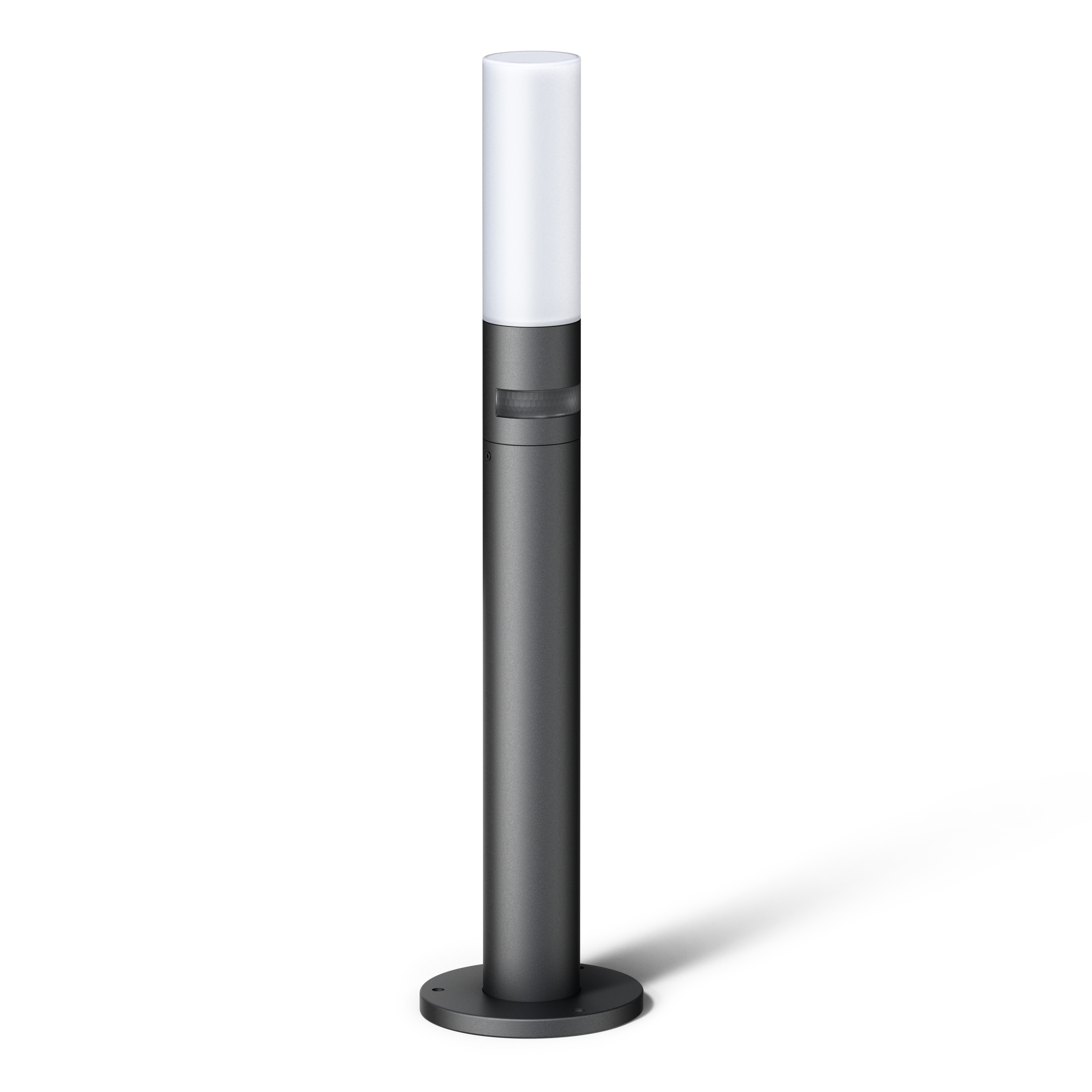

Steinel GL 65 S with motion detector

Steinel GL 65 S with motion detector

ELDAS® no. 941 790 109 · EAN-No. 4007841 069476

Steinel

Steinel GL 65 S with motion detector

ELDAS® no. 941 790 109

EAN-No. 4007841 069476

Price: Please log in to see prices

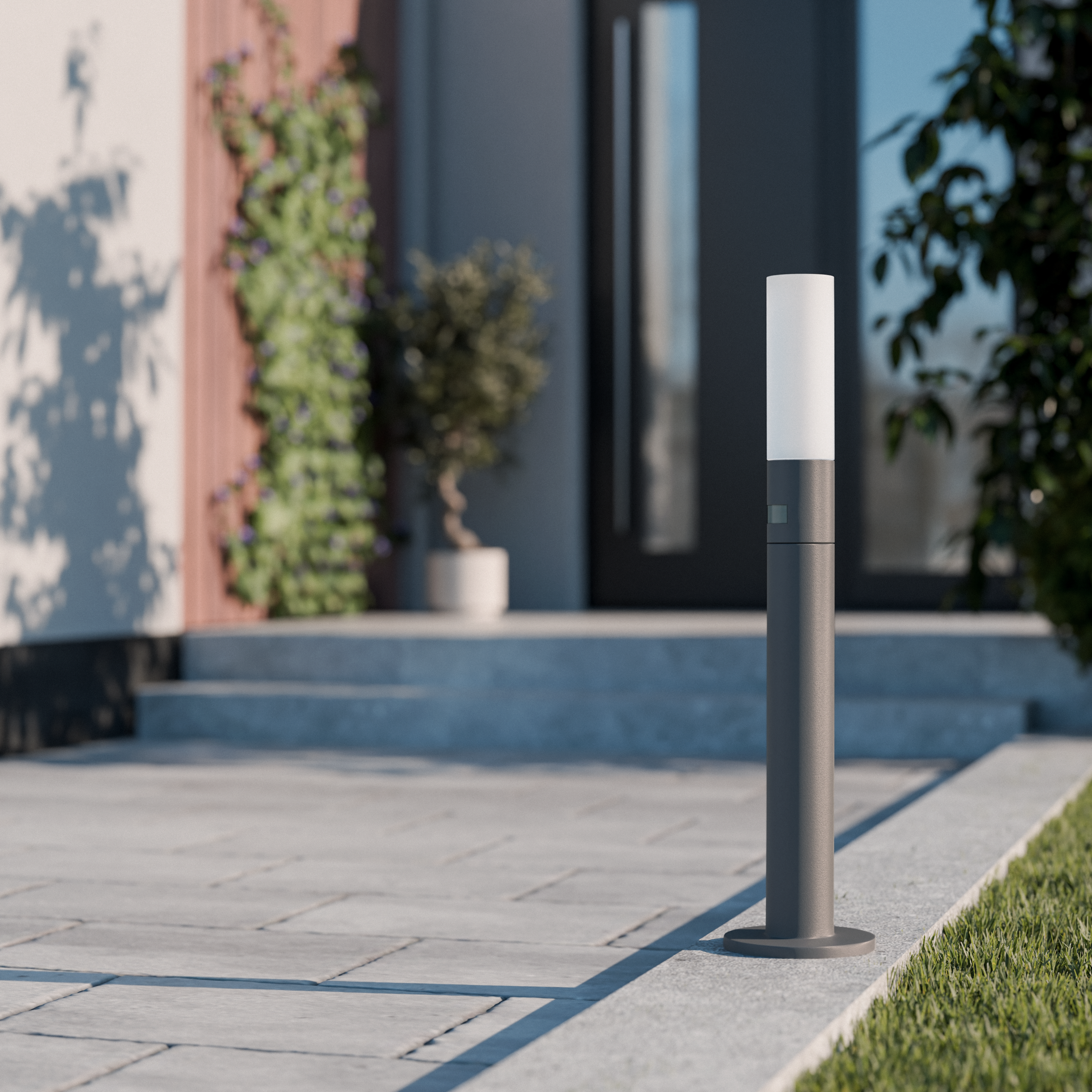

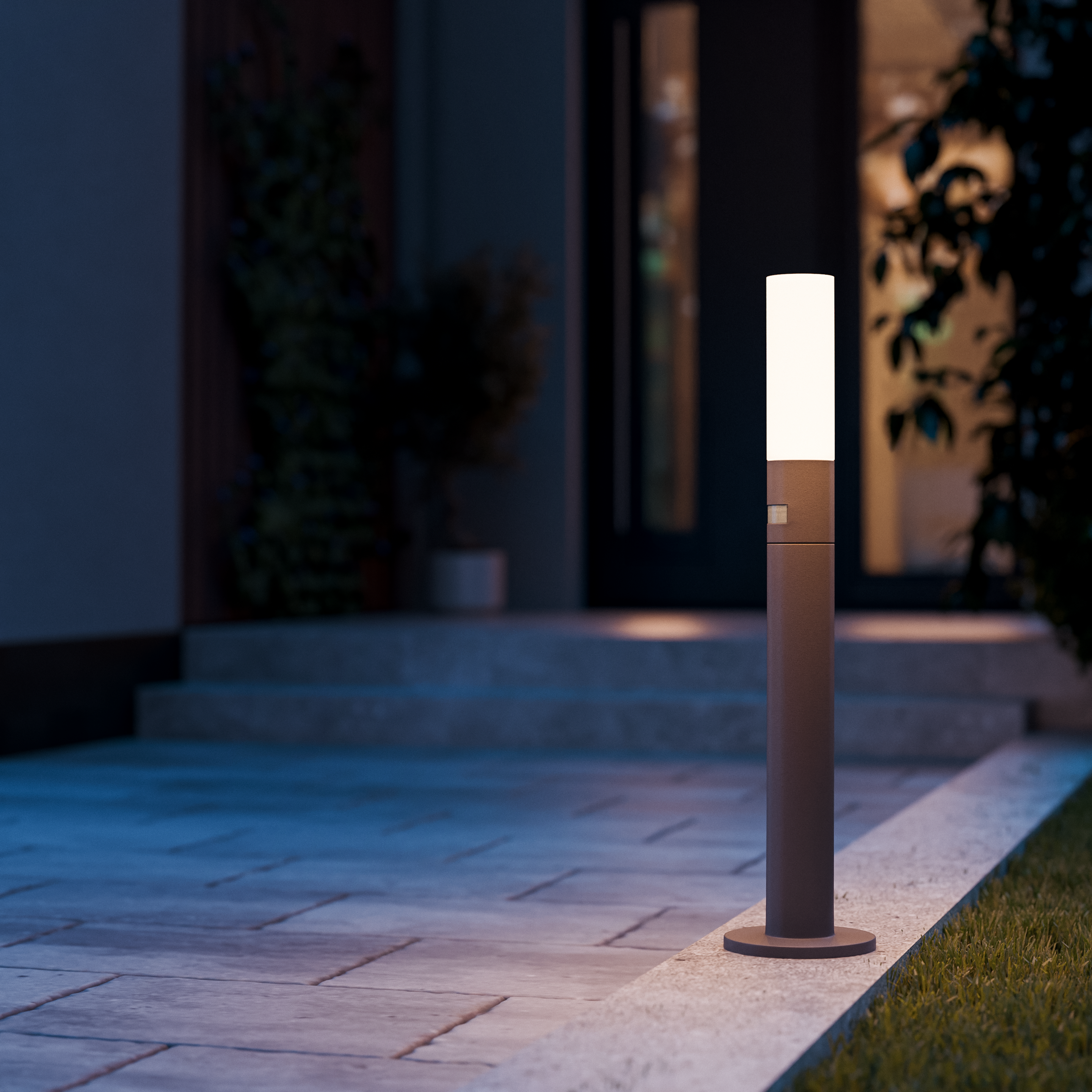

The 77 cm high floor and path luminaire GL 65 S impresses with its impressively straightforward design. The attractive LED luminaire with 180° infrared sensor and 8 m detection radius presents itself with an anthracite-colored base made of high-quality aluminum and an opal glass body for uniform light distribution. It can be used both as an attractive stand-alone solution and in visual interplay with other products in STEINEL's L 600 family. Combined with the L 605 Wall Light and the L 620 CAM, it creates a thoroughly harmonious overall appearance around your home - from the path to the façade to the front entrance. The luminaire is equipped with a practical Nightmatic function and, if desired, provides reliable continuous lighting from dusk to dawn. Thanks to the replaceable glass body, the GL 65 S also cuts a rock-solid figure in terms of sustainability. The generous connection space also guarantees convenient installation. The overrun time is adjustable - from 5 seconds to 15 minutes. In addition, the GL 65 S offers a basic light function and soft light start. In addition, the luminaire is pleasantly economical with 575 lm at only 8.7 W. The modern floor and path luminaire is also available without sensor.

  • Floor and path luminaire with motion detector made of high-quality aluminium
  • Glass body made of high-quality opal glass ensures uniform and soft light distribution

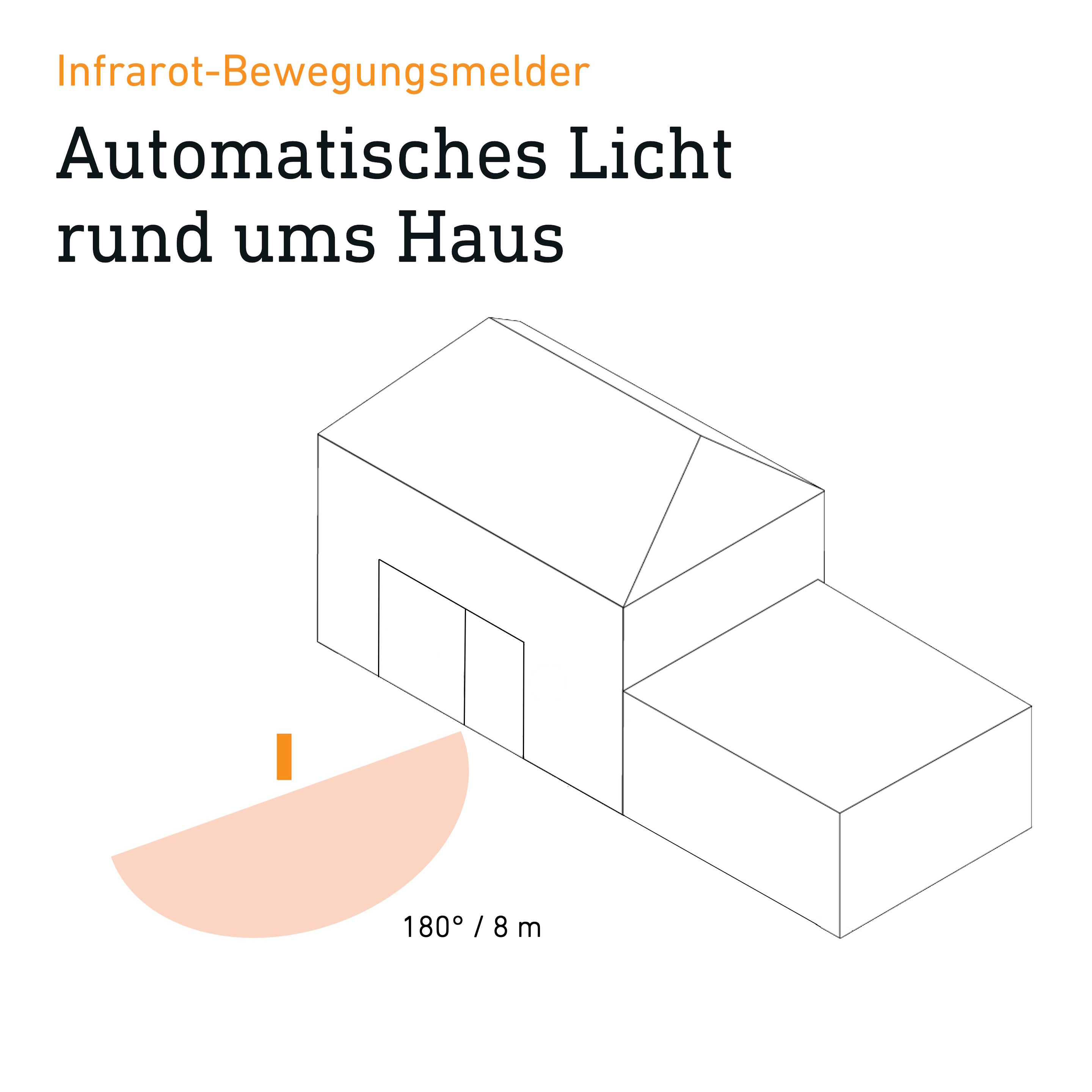

  • Automatic light thanks to 180° infrared sensor with up to 8 m detection of movement
  • Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light, 4 intelligent programmes
  • Warm white light (3000 K) and long-life 8,7 W LEDs with 575 lm
  • Incl. mounting accessories - plastic-free packaging

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,7 W

Sensor technology

Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Sneak-under protection No
Electronic scalability No
Mechanical scalability Yes
Radial range r = 6 m (57 m²)
Tangential range r = 8 m (101 m²)

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 575 lm
Efficiency 66 lm/W
Colour temperature 3000 K
Colour rendering index = 80
With illuminant Yes, LED lamp
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 36000 h
Average rated power supply lifetime at 25 °C > 36000 h

Settings

Twilight switch Yes
Twilight setting 10 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Yes
Main light adjustable No
Functions Motions sensor Potentiometer
Settings via Potentiometers
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10 %

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Glass opal
Mounting location Stand mounted
Application location Outdoors
Mounting type Other
Material Aluminium
Application room all round the building courtyard & driveway front door garden outdoors
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

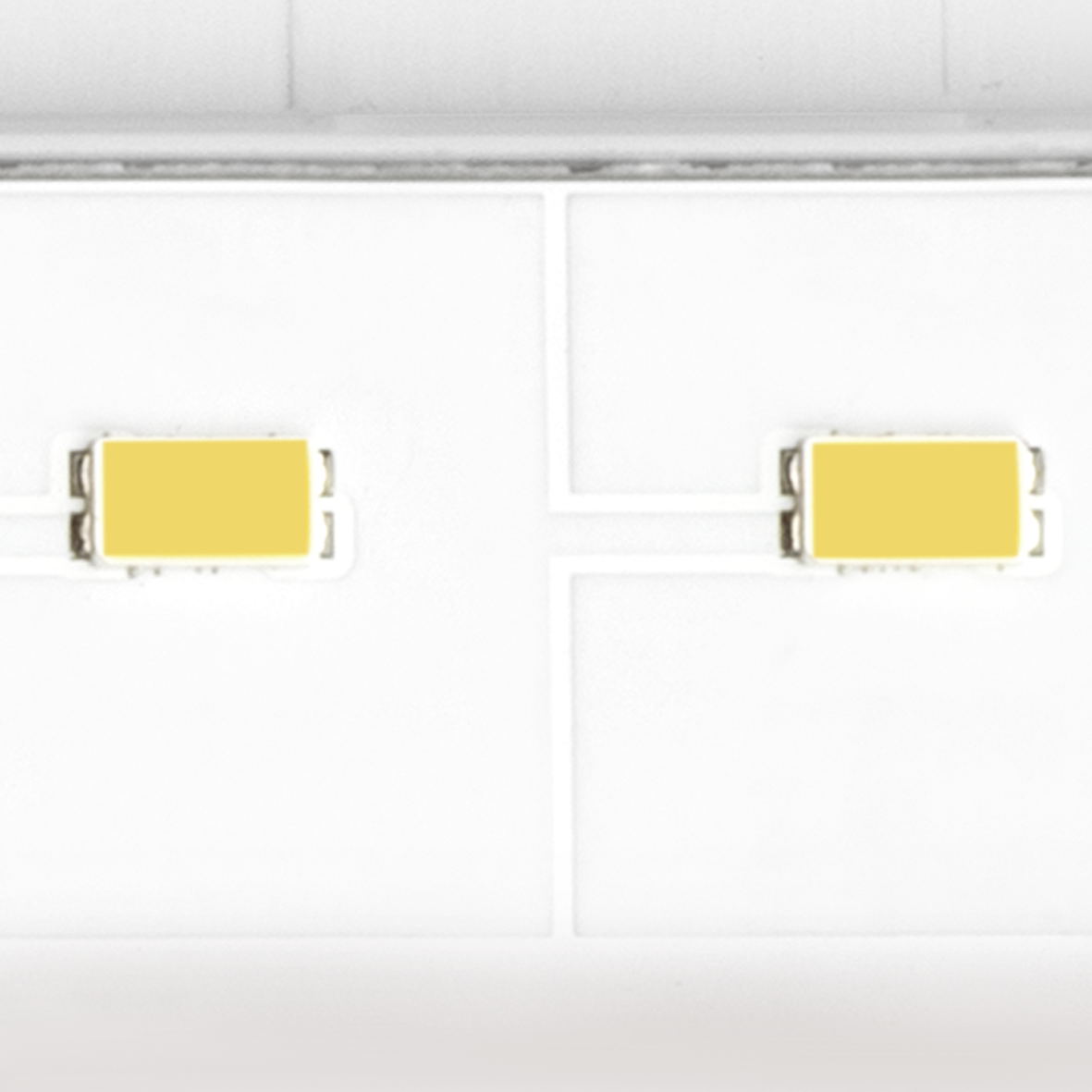

Including STEINEL LED system

Intelligent soft light start

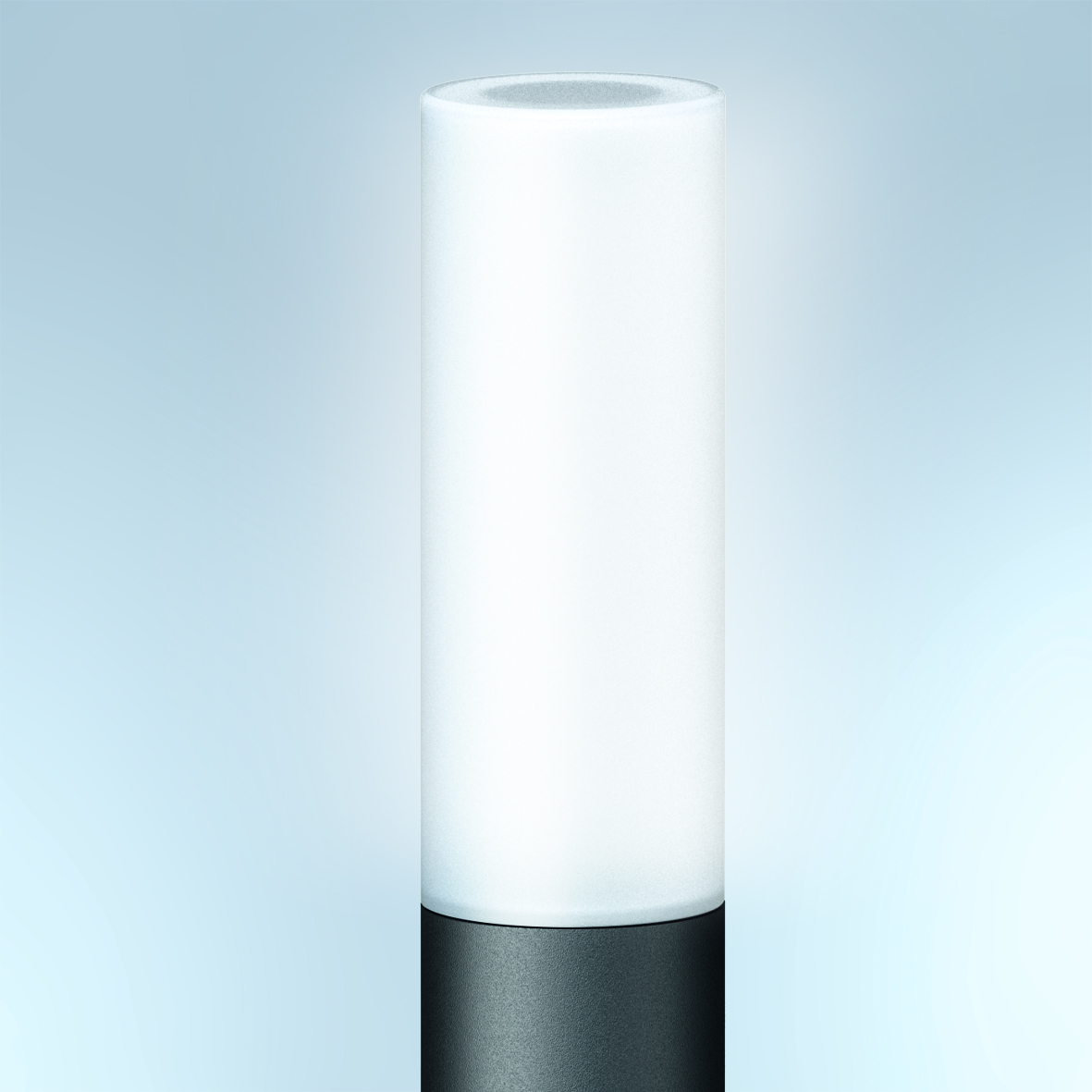

Optional basic lighting level 10 %

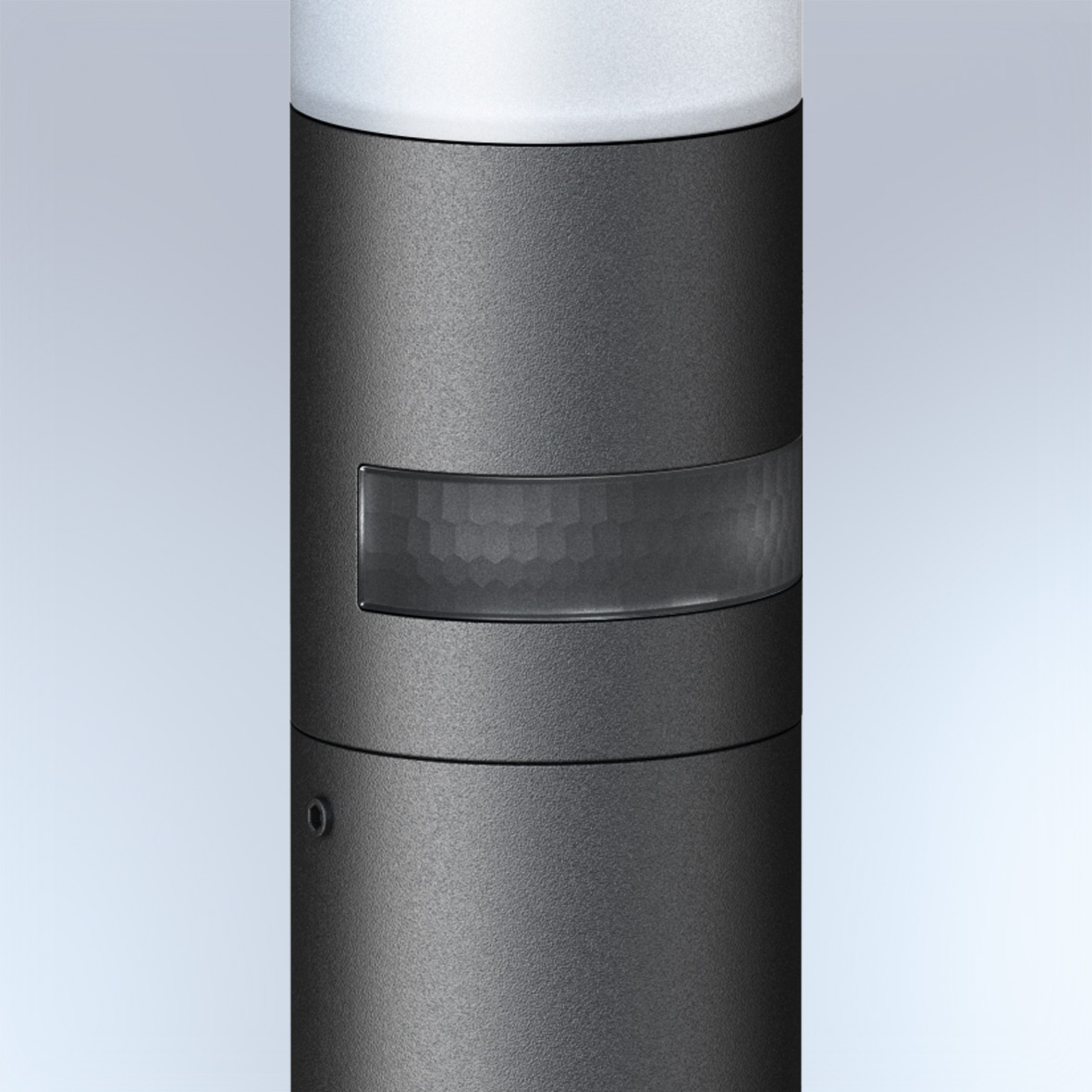

High-precision sensor

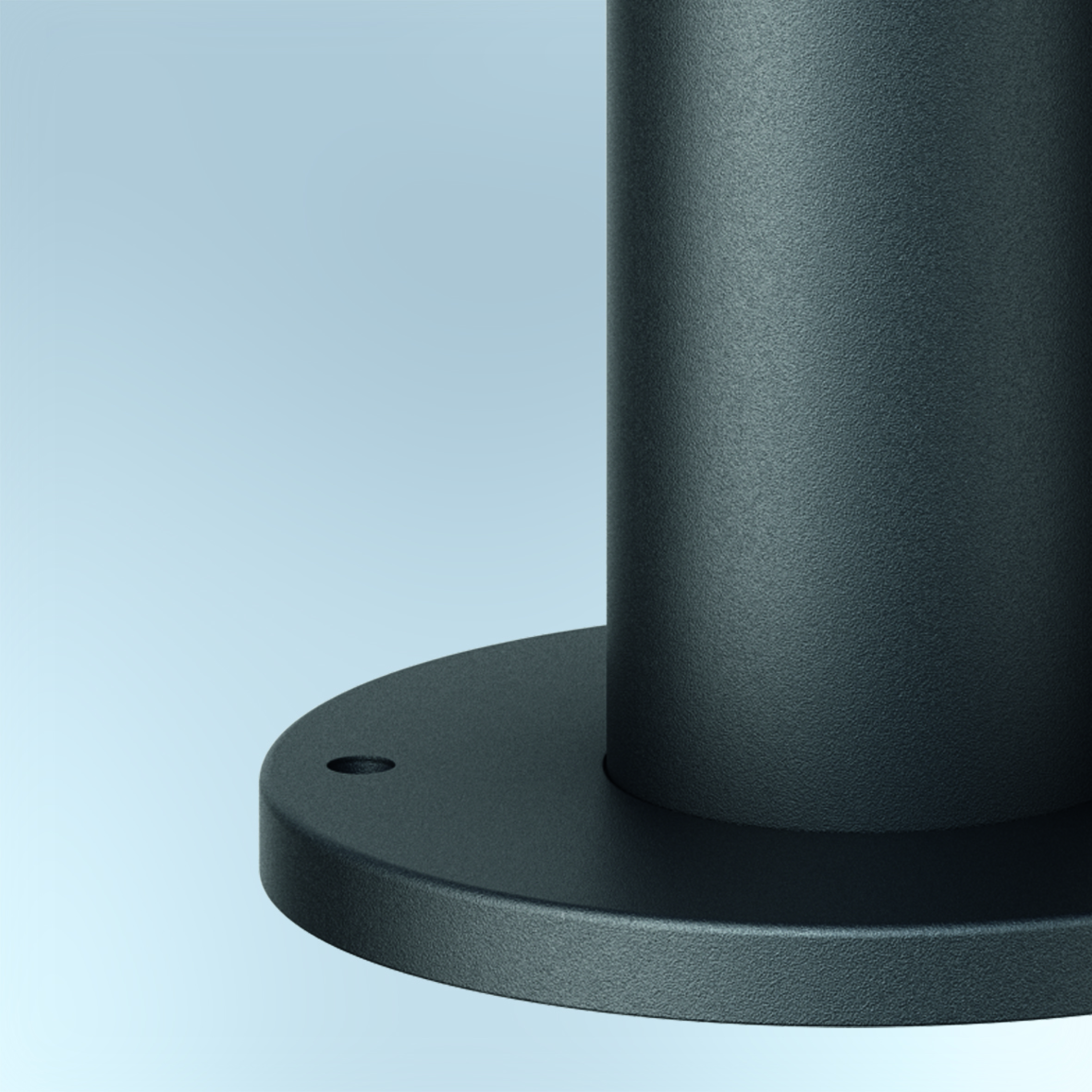

High-quality aluminium

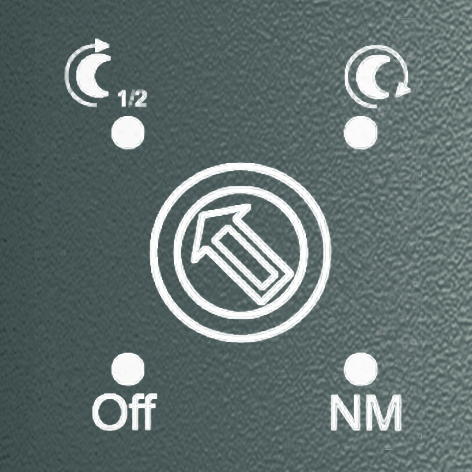

Sensor with 4 intelligent programmes

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Circuit diagram
