Steinel GL 65 without motion detector

Steinel GL 65 without motion detector

ELDAS® no. 941 790 119 · EAN-No. 4007841 069469

Steinel

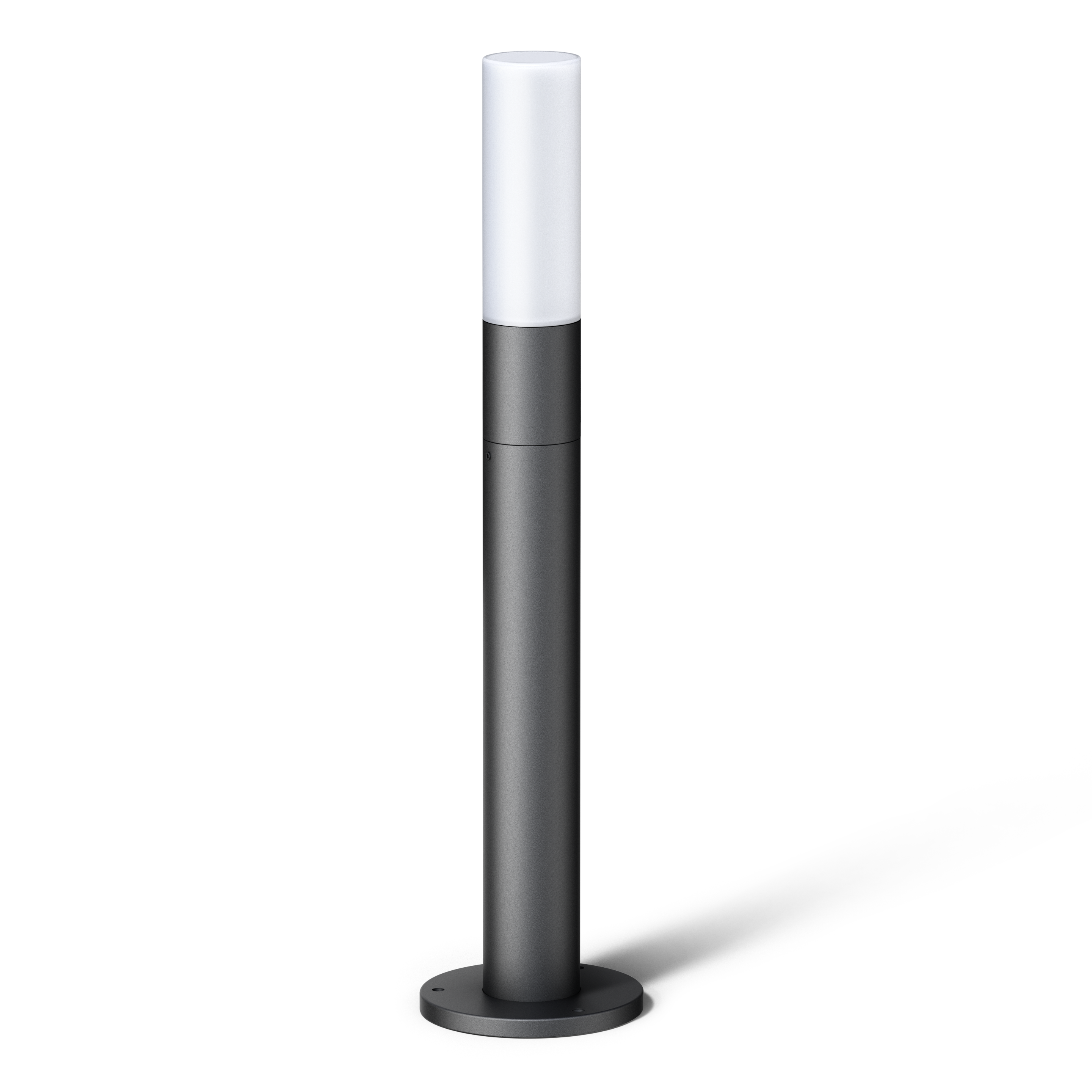

Steinel GL 65 without motion detector

ELDAS® no. 941 790 119

EAN-No. 4007841 069469

Price: Please log in to see prices

The 77 cm high floor and path luminaire GL 65 impresses with its impressively straightforward design. The attractive LED luminaire presents itself with an anthracite-colored base made of high-quality aluminum and an opal glass body for uniform light distribution. It can be used both as an attractive stand-alone solution and in visual interplay with other products in STEINEL's L 600 family. Combined with the wall light L 605 and the L 620 CAM SC, it creates a thoroughly harmonious overall appearance around your home - from the path to the façade to the front entrance. The luminaire provides reliable continuous lighting from dusk to dawn. Thanks to the replaceable glass body, the GL 65 also cuts a rock-solid figure in terms of sustainability. The generous connection space also guarantees convenient installation. In addition, the luminaire is pleasantly economical with 575 lm at only 8.7 W. The modern floor and path luminaire is also available with sensor.

  • Floor and path luminaire without motion detector made of high-quality aluminium
  • Glass body made of high-quality opal glass ensures uniform and soft light distribution
  • Warm white light (3000 K) and long-life 8,5 W LEDs with 575 lm
  • Incl. mounting accessories - plastic-free packaging

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,5 W

Sensor technology

With motion detector No

Connectivity

Networking No

Lighting technology

Measured luminous flux 360° 575 lm
Efficiency 68 lm/W
Colour temperature 3000 K
Colour rendering index = 80
With illuminant Yes, LED lamp
Illuminant LED cannot be replaced
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime L70B50 25°C > 36000 h

Settings

With remote control No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature from -20 up to 40 °C
Housing material Aluminium
Cover material Glass opal
Mounting location Stand mounted
Application location Outdoors
Mounting type Other
Material Aluminium
Application room all round the building courtyard & driveway front door garden outdoors
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

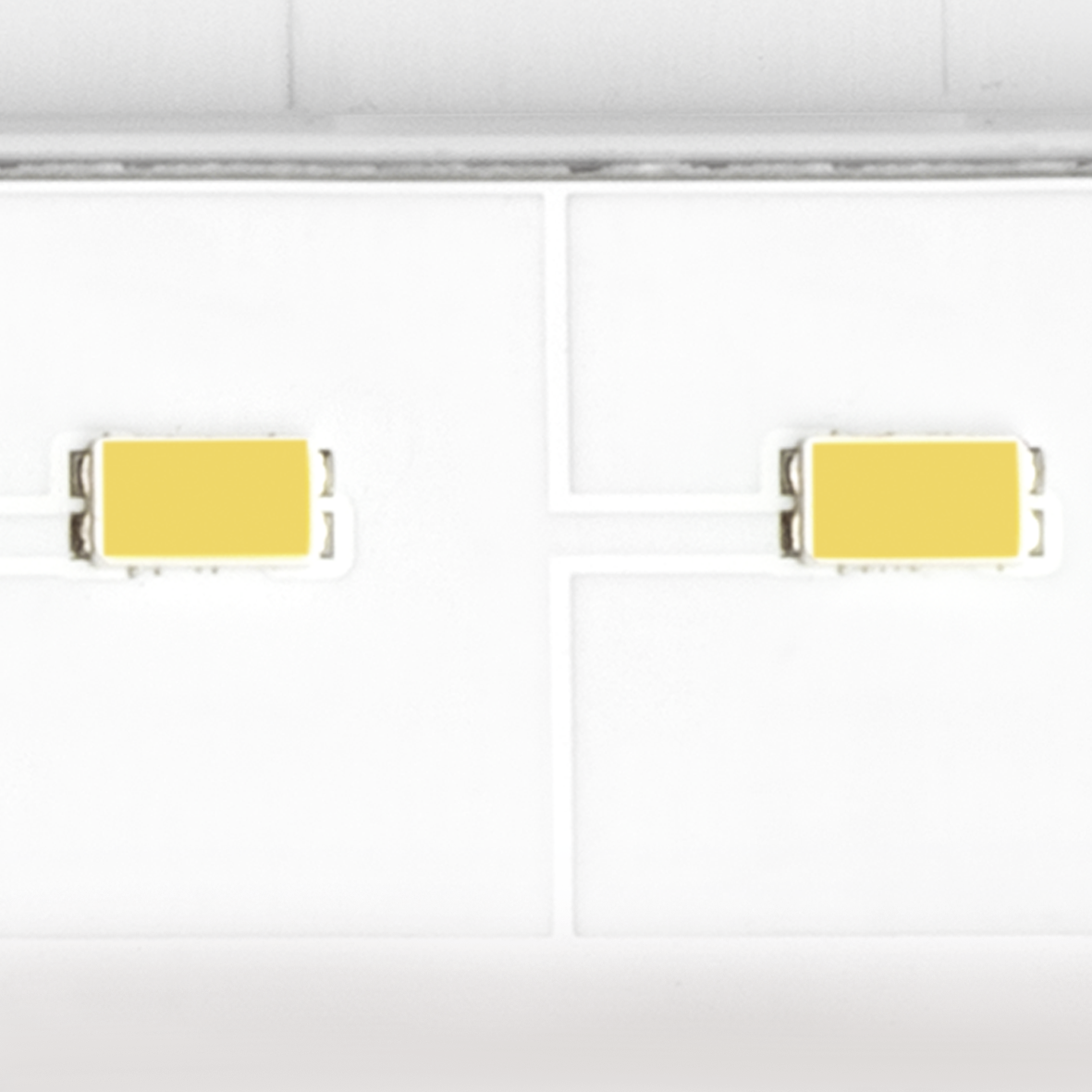

Including STEINEL LED system

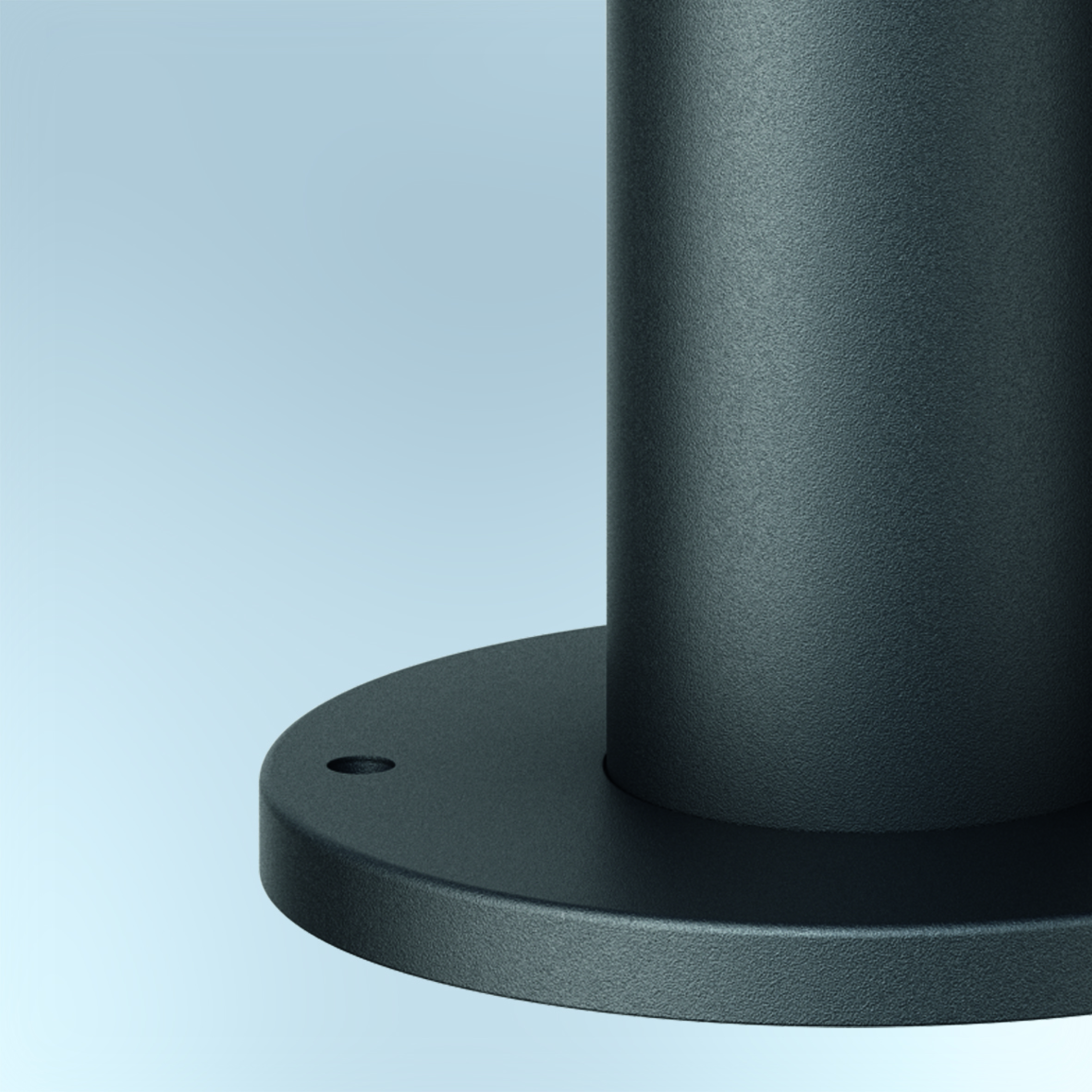

High-quality aluminium

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Wiring diagram 2

Circuit diagram
