Steinel Hallway BT IPD - surface

Steinel Hallway BT IPD - surface

ELDAS® no. 535 903 115 · EAN-No. 4007841 086275

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel Bluetooth Mesh

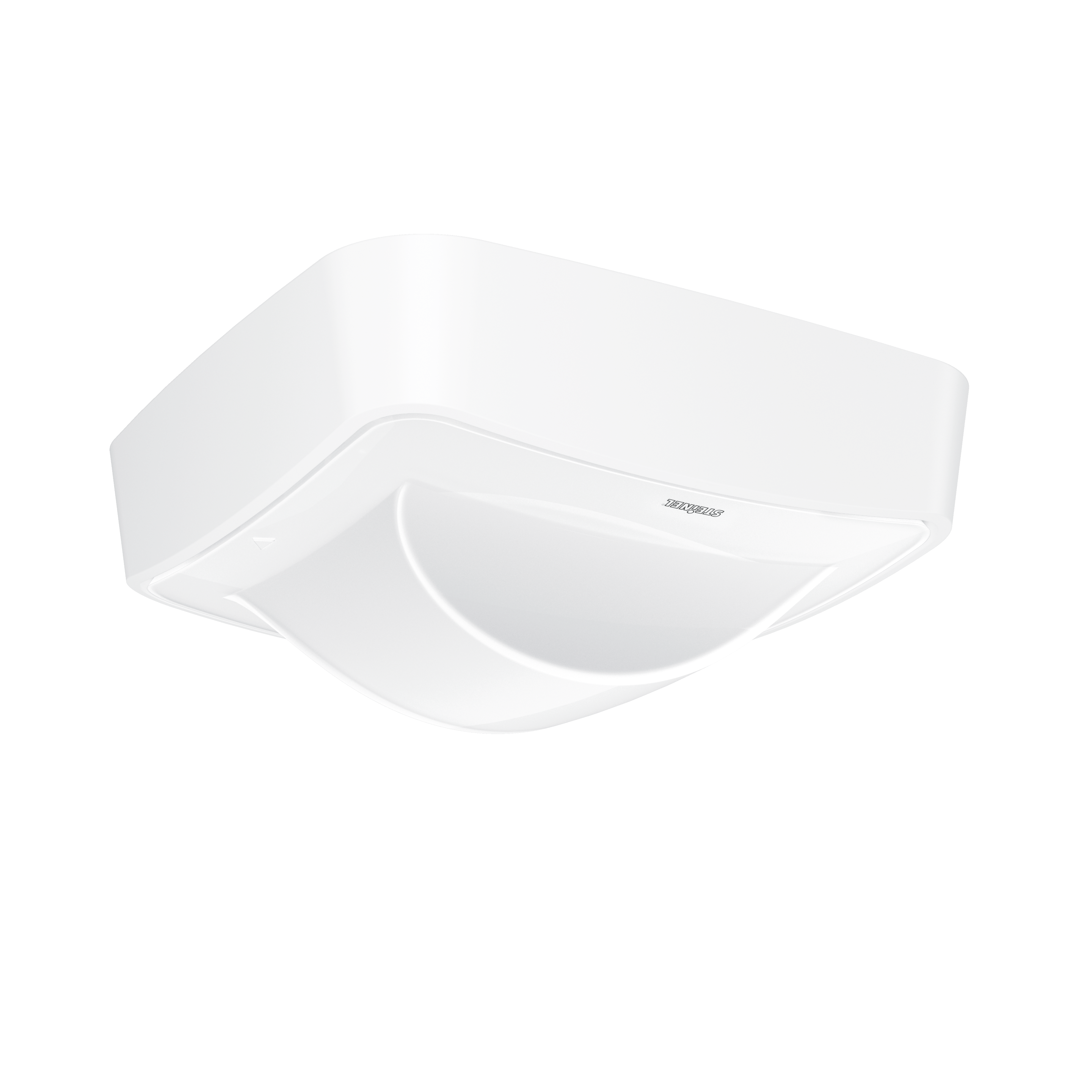

Steinel Hallway BT IPD - surface

Presence detector for long corridors. Splash-proof, range adjustable in each direction.

ELDAS® no. 535 903 115

EAN-No. 4007841 086275

Price: Please log in to see prices

Colour

White

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Input Device IP (REST API, MQTT, BacNet) KNX

Mounting type

Concealed mounting Surface mounting

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

  • Perfect radial detection with a range of up to 25 m, ideal for long corridors and hallways
  • Customisable range that can be set individually in both direc
  • Control PRO II design for a modern and functional look that enables versatile applications
  • Bluetooth technology for simple connection and control via Bluetooth
  • Multiple interfaces, compatible with COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD
  • External light measurement required for black sensors that can be integrated via Bluetooth or KNX

Identification

Version Presence detector

Variants

Version Bluetooth Input Device
Colour White
Mounting type Surface mounted

Dimensions

Dimensions L × W × H 62 x 123 x 123 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °, Corridor
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via Bluetooth Mesh

Lighting technology

Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Base light function No
Main light adjustable Yes
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP54
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, corridor / aisle
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

UV-resistant plastic

Technical drawing

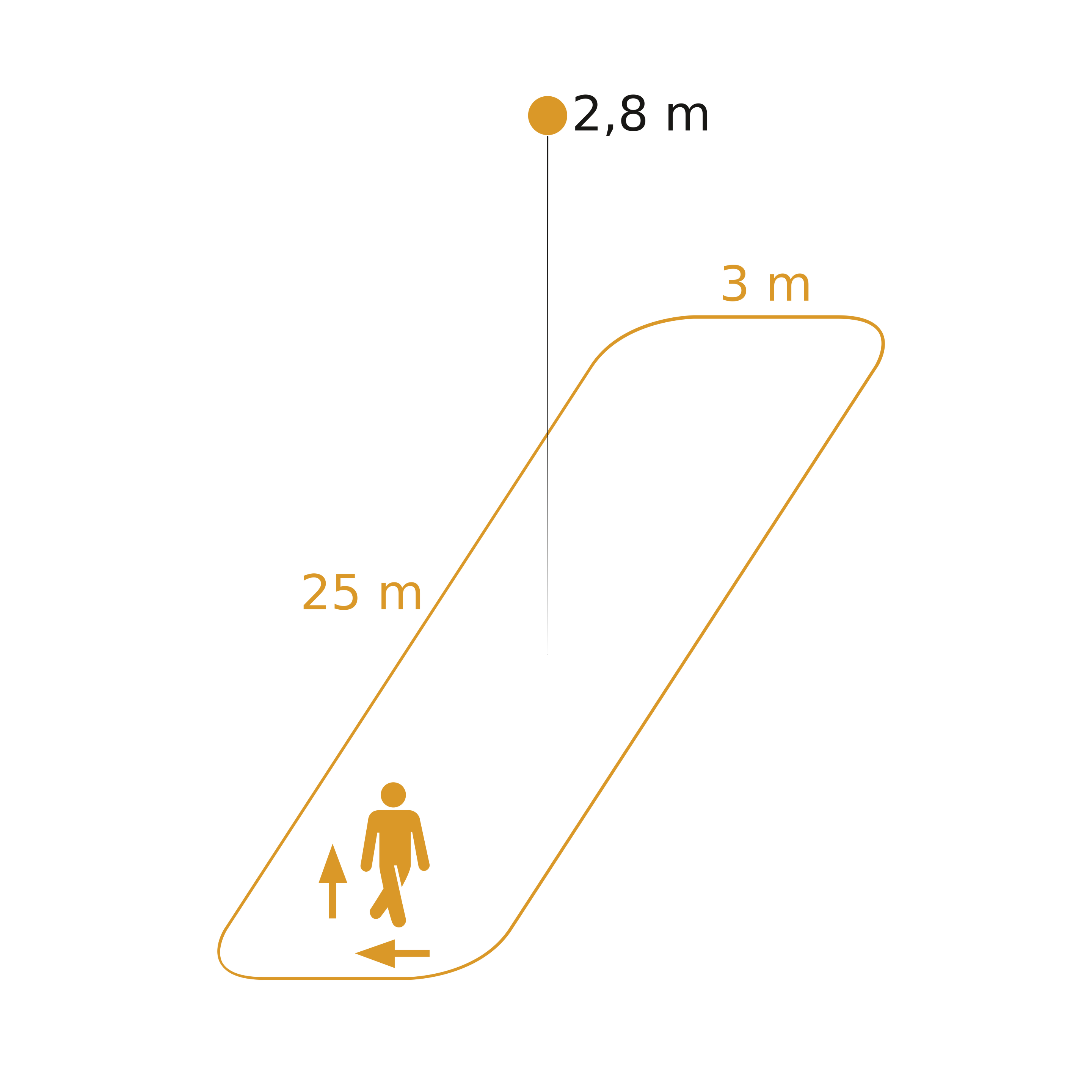

Sensor detection range

Wiring diagram 1

Circuit diagram
