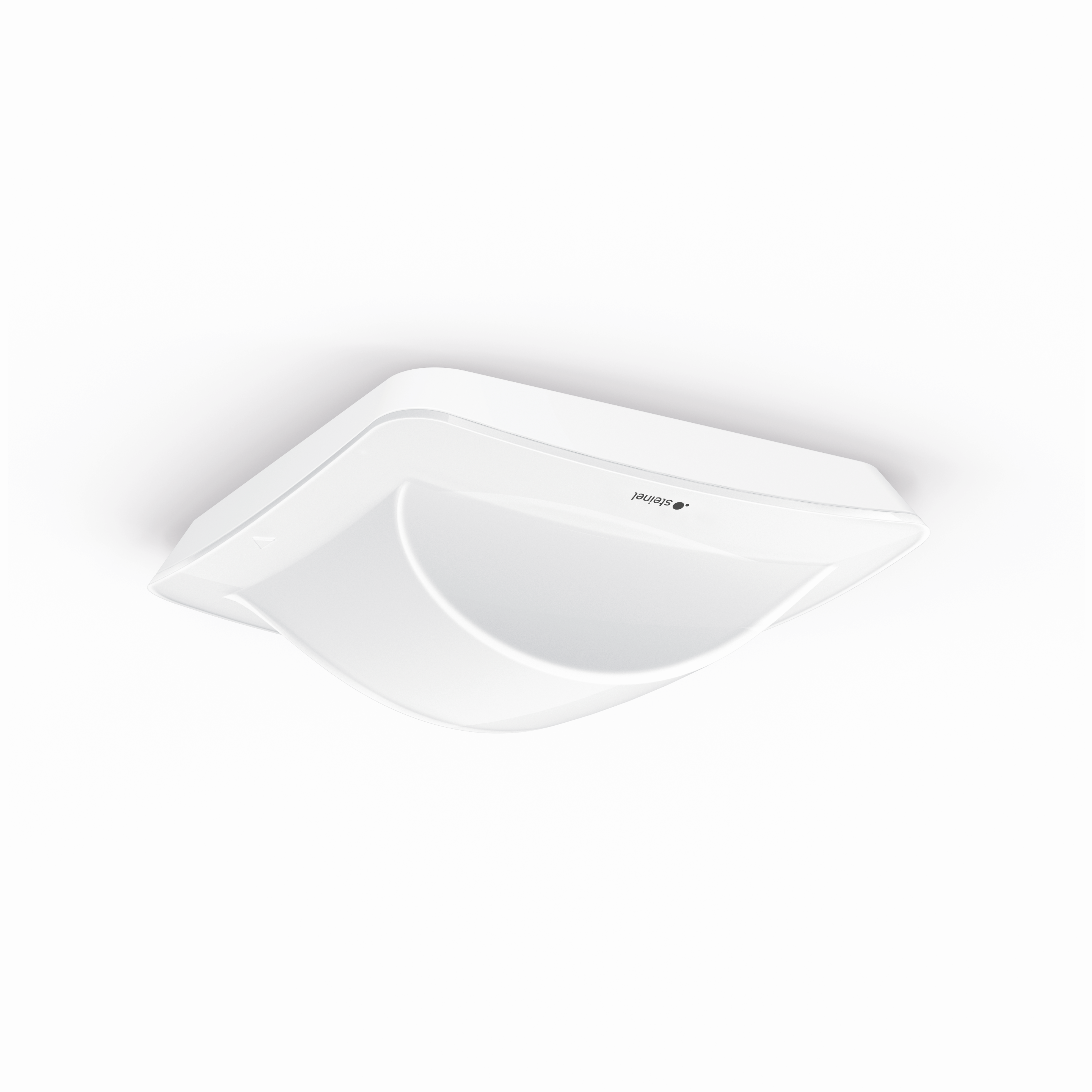

Steinel Hallway KNX - in-ceiling installation

Presence detector for long corridors. Splash-proof, range adjustable in each direction.

ELDAS® no. 535 903 134

EAN-No. 4007841 086510

Price: Please log in to see prices

Colour

White

Variant

230V, 1 channel KNX

Mounting type

Concealed mounting Recessed ceiling Surface mounting

Designed to match the Control PRO II family, the Hallway presence detector leaves a visibly lasting impression in modern buildings. Providing a detection zone of 25 x 3 m, it guarantees a fast switching response. Ideal for use in long hallways and corridors. Bluetooth takes the effort out of setting them up, putting them into operation and interconnecting them.

  • Perfect radial detection with a range of up to 25 m, ideal for long corridors and hallways
  • Customisable range that can be set individually in both direc
  • Control PRO II design for a modern and functional look that enables versatile applications
  • Bluetooth technology for simple connection and control via Bluetooth
  • Multiple interfaces, compatible with COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD
  • External light measurement required for black sensors that can be integrated via Bluetooth or KNX

Identification

Version Presence detector

Variants

Version KNX
Colour White
Mounting type Recessed ceiling

Dimensions

Dimensions L × W × H 105 x 103 x 103 mm

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °, Corridor
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range 25 x 3 m (75 m²)
Tangential range 25 x 3 m (75 m²)
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
With bus coupler Yes
Control technology Steinel Connect
Wireless networking via BT SIG Mesh
Networking via KNX

Lighting technology

Continuous light selectable

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 0 s – 1092 min
Base light function Yes
Main light adjustable Yes
Settings via App, Smartphone, Tablet, Bluetooth
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature -25...+50 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, corridor / aisle
Colour White
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

UV-resistant plastic

Technical drawing

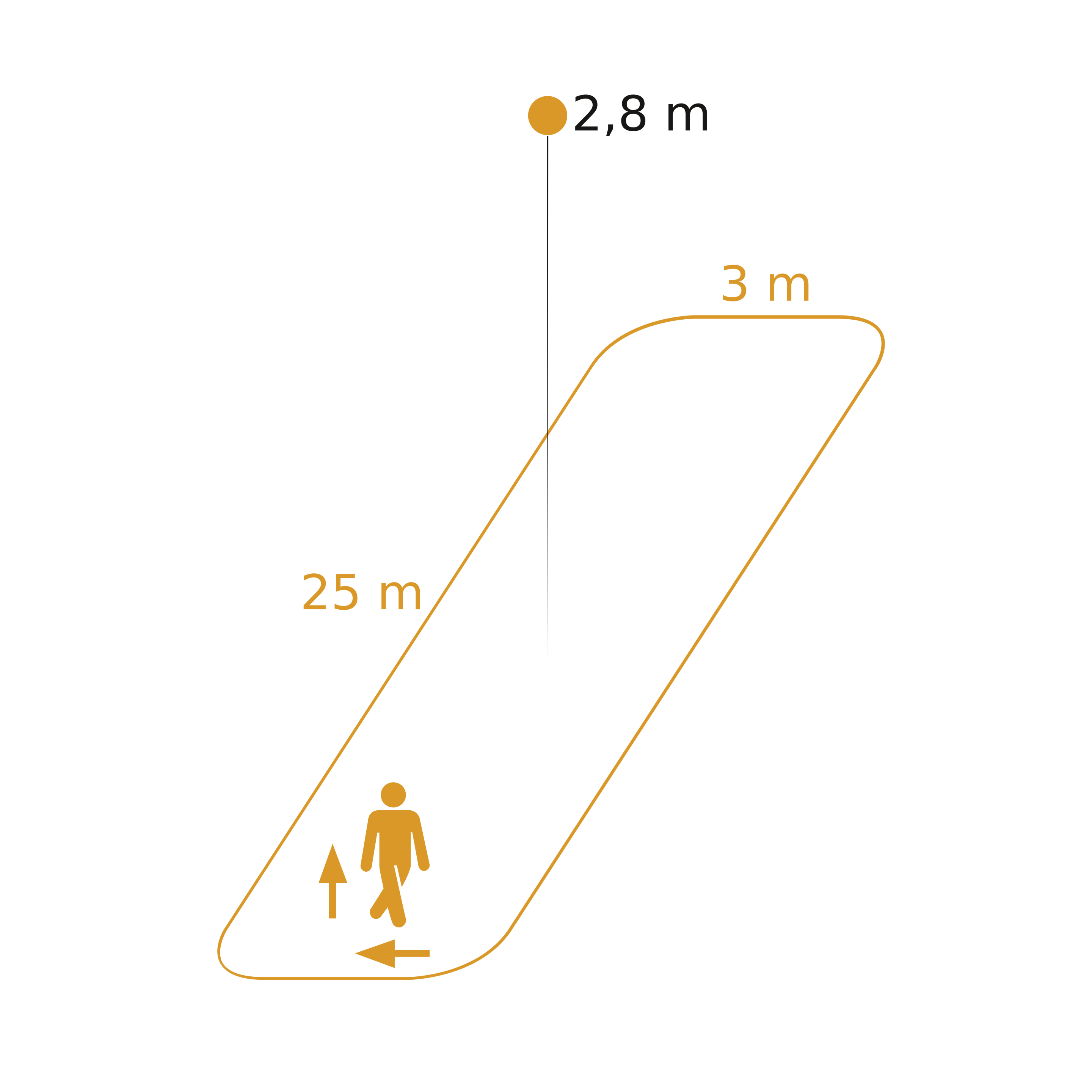

Sensor detection range
