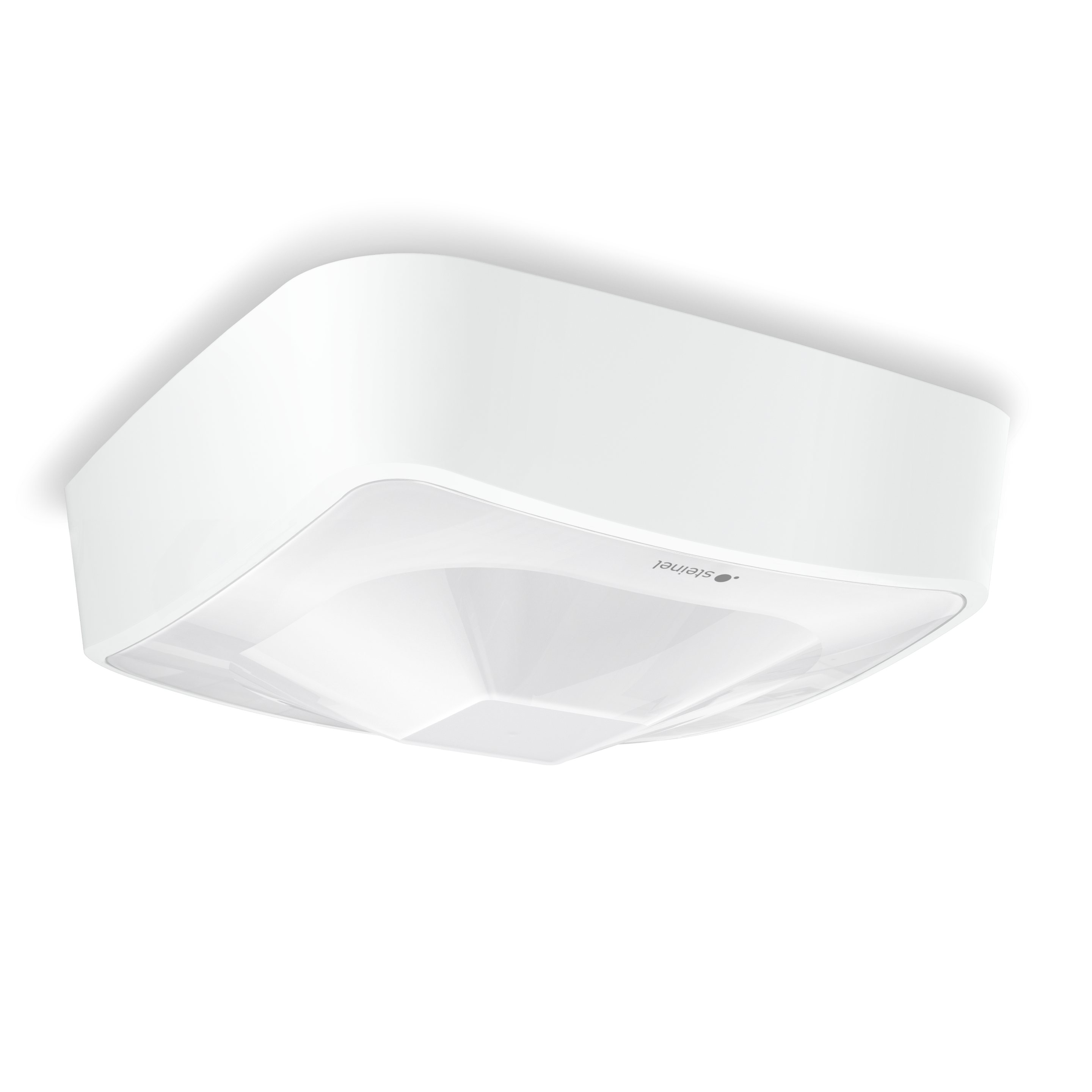

Steinel HF 360-2 COM1 - Surface wiring

HF presence detector for kitchenettes, WCs and stairwells. Up to 12 m, Bluetooth set-up.

ELDAS® no. 535 937 108

EAN-No. 4007841 064440

Mounting type

Concealed mounting Recessed ceiling Surface mounting

Variant

230V, 1 channel 230V, 2 channels Bluetooth Input-Device DALI-2 Application Controller DALI-2 Input Device IP (REST API, MQTT, BacNet) KNX

Evolving from the HF 360, the HF 360-2 is the first product from our new Control PRO 2 range that not only switches light ON and OFF but delivers digital data too. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

Identification

Version Presence detector

Variants

Version 230V COM1

Mounting type Surface mounted

Dimensions

Dimensions L × W × H 57 x 123 x 123 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Switching output 1 low-voltage halogen lamps 1000 VA

Own consumption 0,5 W

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Switching output 1 potential-free No

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,5 – 4,0 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

Networking via Bluetooth

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 60 min

Base light function No

Main light adjustable No

Functions Semi-/fully automatic, Master/slave override, Neighbouring group function, Normal / test mode, Presence function, Group parameterisation, Lighting scenario, Manual ON / ON-OFF

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -25...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, function room / ancillary room, kitchenette, stairwell

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

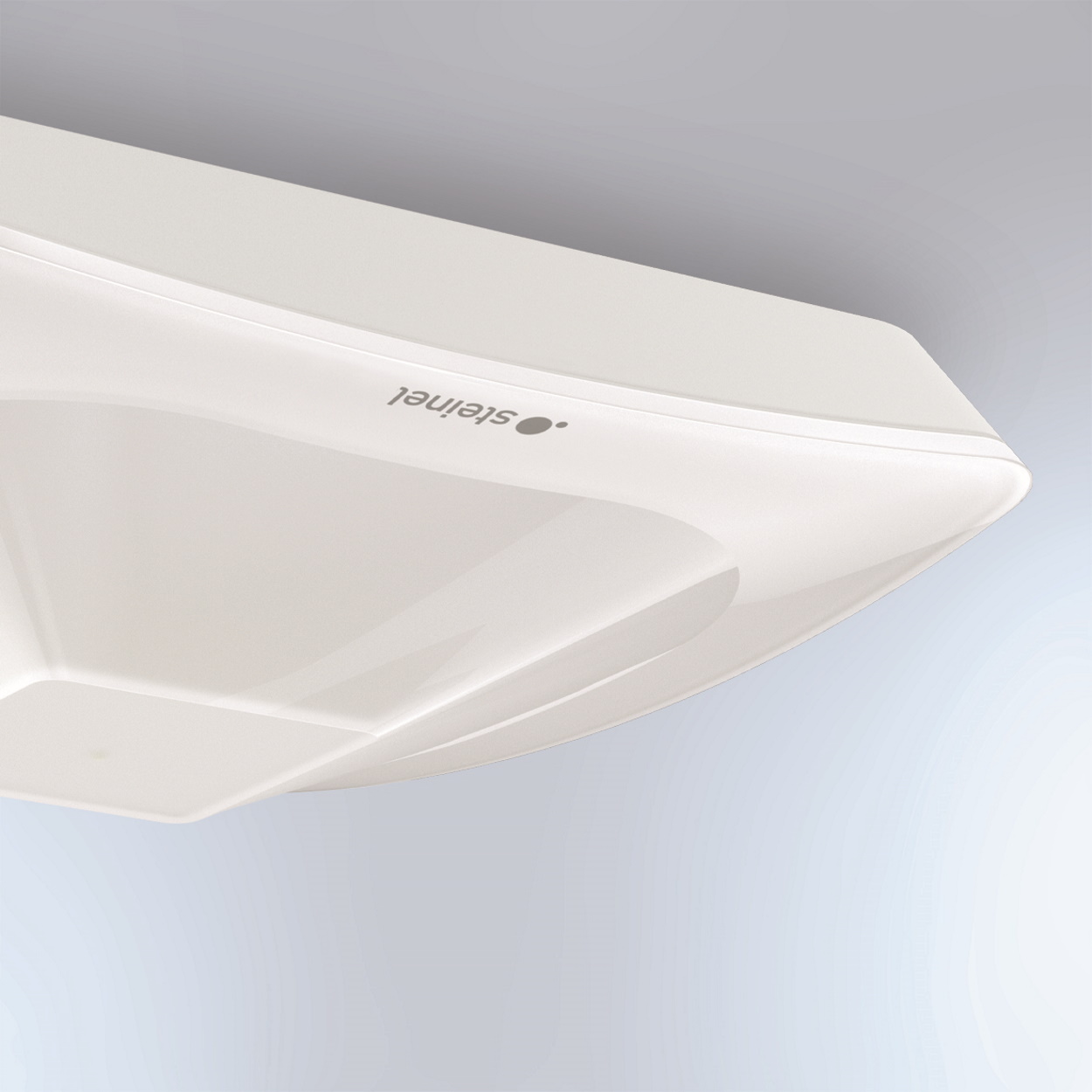

UV-resistant plastic

Technical drawing

Sensor detection areas

Wiring diagram 1

Master circuit diagram

Data sheet User manual Declaration of conformity
