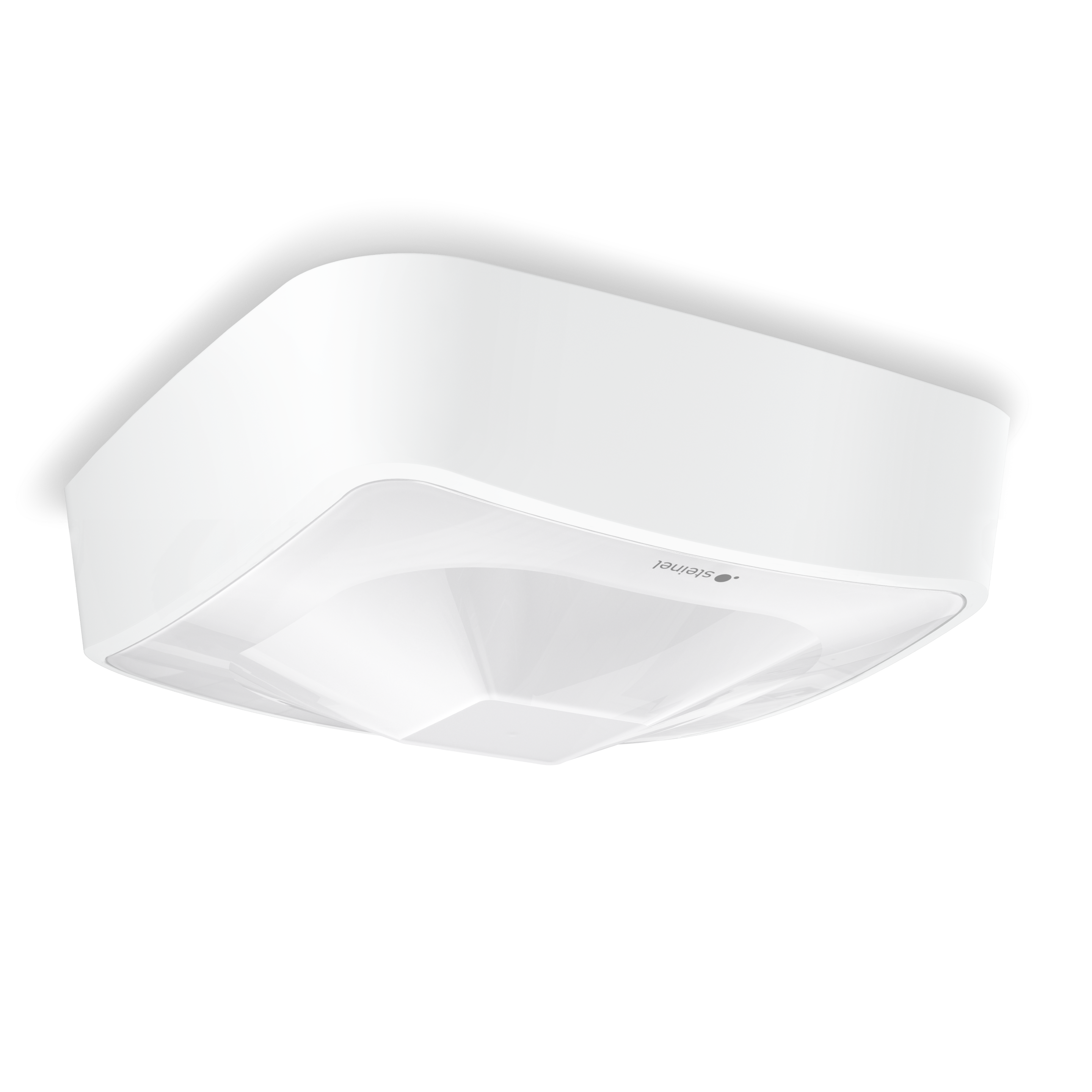

Steinel HF 360-2 IP - surface

Steinel HF 360-2 IP - surface

ELDAS® no. 535 903 144 · EAN-No. 4007841 086640

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel Bluetooth Mesh

Steinel HF 360-2 IP - surface

ELDAS® no. 535 903 144

EAN-No. 4007841 086640

Price: Please log in to see prices

Version

230V COM1 KNX IP (REST API, MQTT, BacNet) 230V COM2 DALI-2 Input Device Bluetooth Input Device

Colour

White Black

Mounting type

Flush-mounted Surface-mounted Ceiling recessed

As a further development of the HF 360, the HF 360-2 also supplies digital data in addition to light switching. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

  • Perfect radial detection with a range of up to 25 m, ideal for long corridors and hallways
  • Customisable range that can be set individually in both directions
  • Control PRO II design for a modern and functional look that enables versatile applications
  • Bluetooth technology for simple connection and control via Bluetooth
  • Multiple interfaces, compatible with COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD
  • External light measurement required for black sensors that can be integrated via Bluetooth or KNX

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 57 x 123 x 123 mm

Electrical

Mains connection 18 – 55 V
Supply voltage detail Passive PoE SELV, standard PoE (IEEE 802.3 af)

Sensor technology

Max. mounting height 4,00 m
Sensor technology High frequency
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection also through glass, wood and stud walls
Detection angle 360 °
Opening angle 160 °
Sneak-under protection Yes
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range Ø 12 m (113 m²)
Tangential range Ø 12 m (113 m²)
Mounting height 2,5 – 4 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Networking via Bluetooth Mesh
With bus coupler Yes

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Base light function No
Main light adjustable No
Settings via Bluetooth Bus
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature from -25 up to 50 °C
Mounting location ceiling
Application location Indoors
Mounting type Surface wiring
Material Plastic
Application room Indoors WC / washroom function room / ancillary room kitchenette stairwell
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

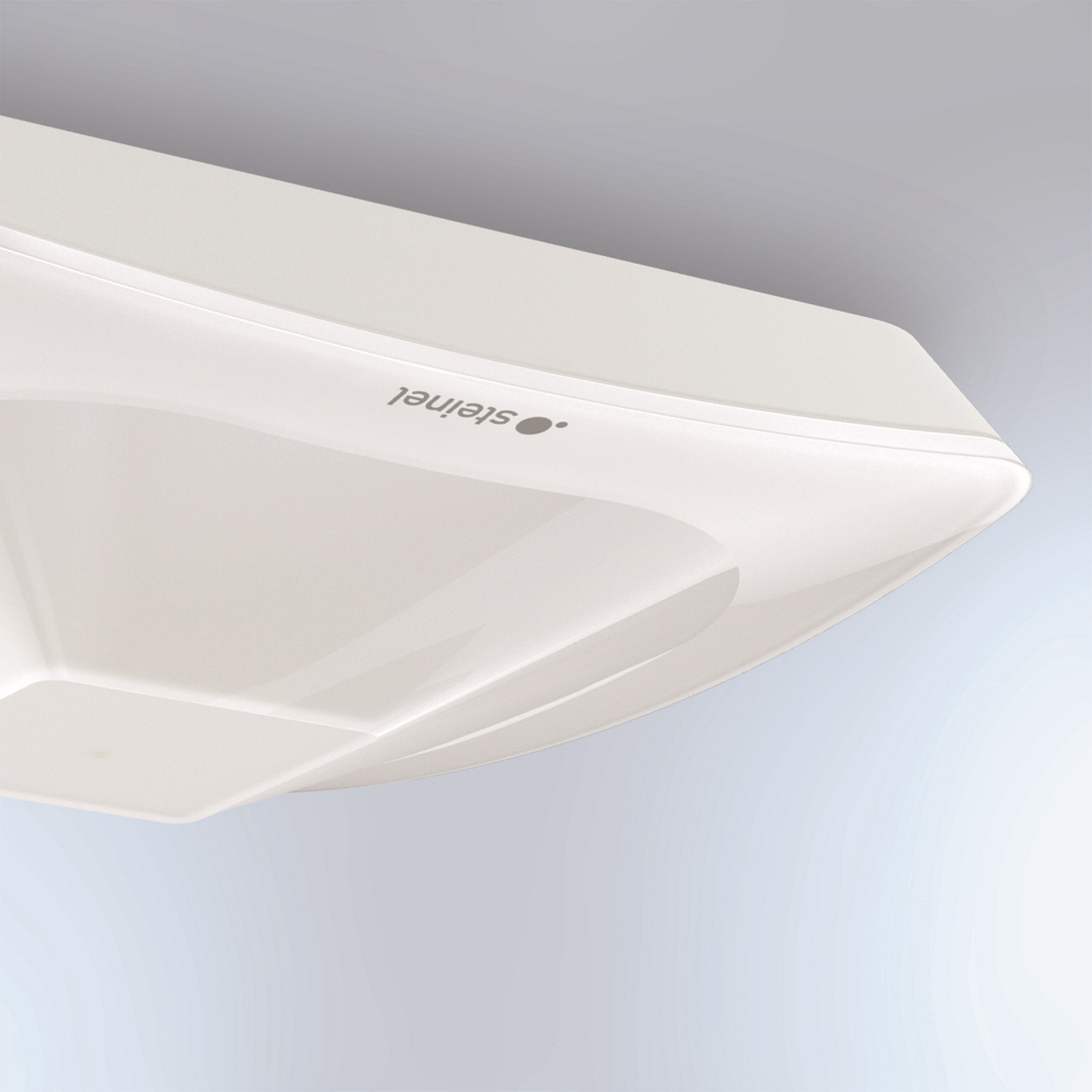

UV-resistant plastic

Technical drawing

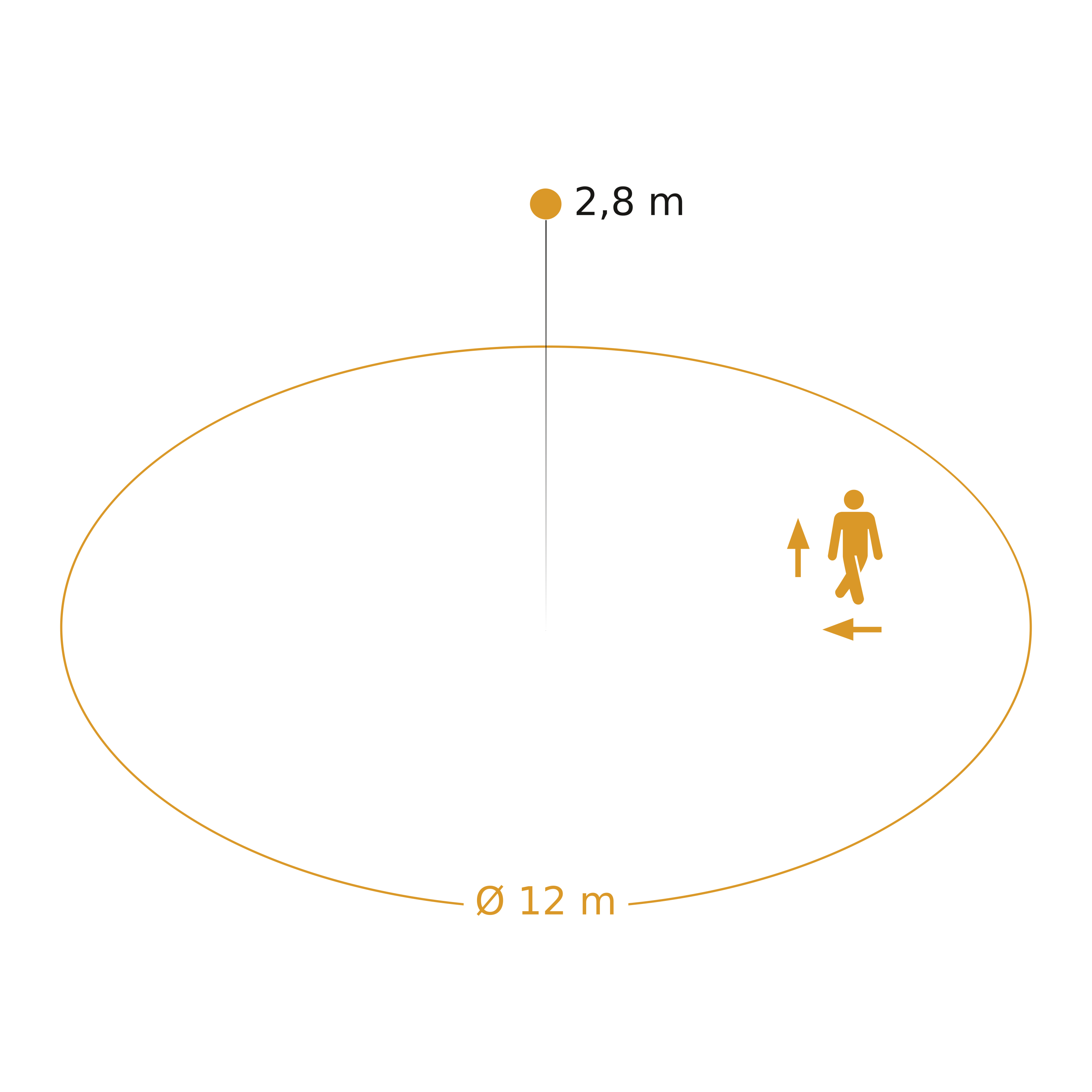

Sensor detection range

Wiring diagram 1

Circuit diagram
