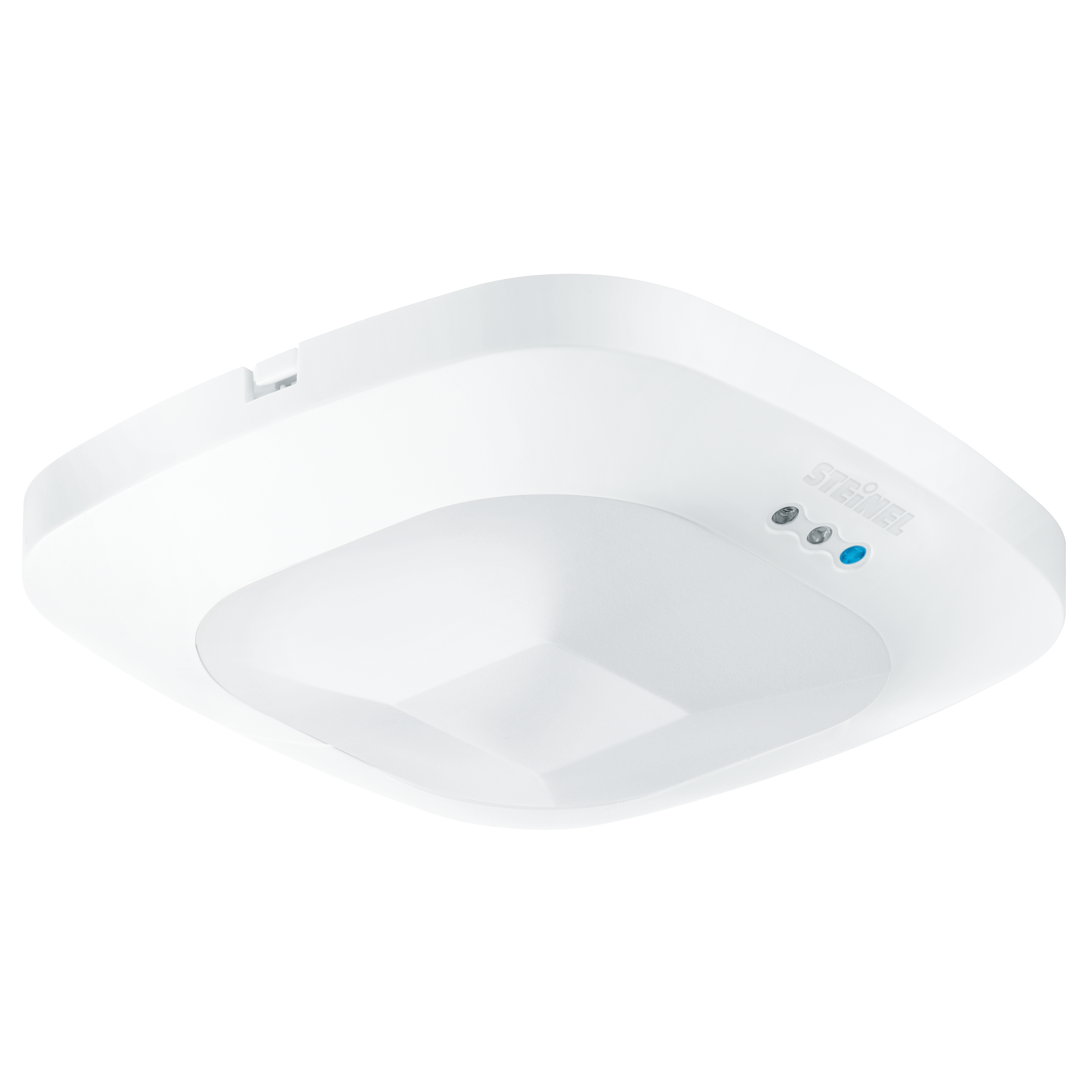

Steinel HF 360 DALI-2 APC - in-ceiling installation

Slim HF presence detector for WCs, kitchenettes and stairwells. Barely visible on the ceiling.

ELDAS® no. 535 934 408

EAN-No. 4007841 079529

Price: Please log in to see prices

Mounting type

Concealed mounting Recessed ceiling

Variant

230V, 1 channel DALI-2 Application Controller KNX

Colour

White

STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 112 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 2x12 electronic ballasts

Sensor technology

Max. mounting height 3,50 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,5 – 3,5 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

With bus coupler Yes

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 min

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

Functions Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 60 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature -25...+55 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, function room / ancillary room, kitchenette, stairwell

Colour White

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Optional remote control

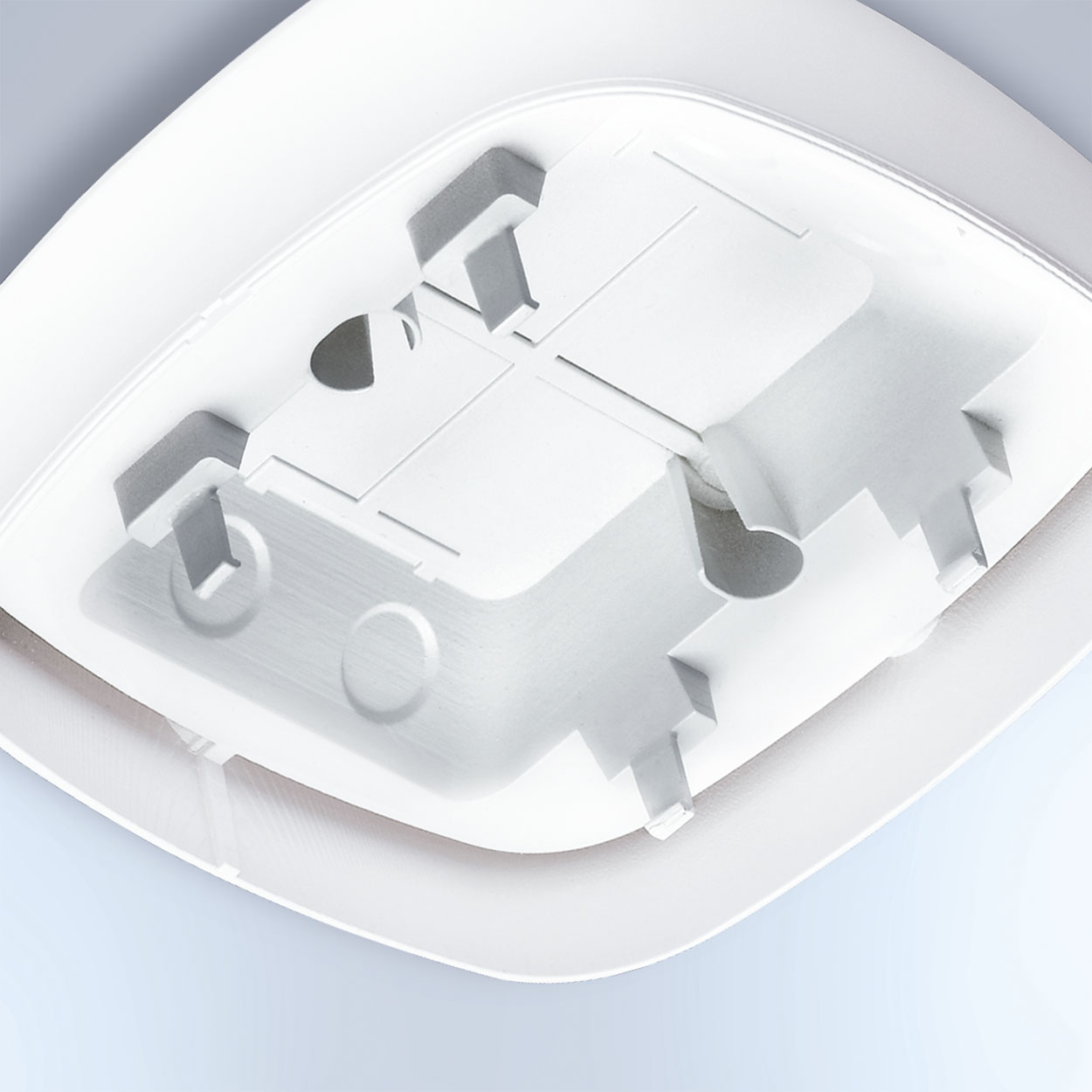

Optional surface-mounting adapter

Optional guard cage

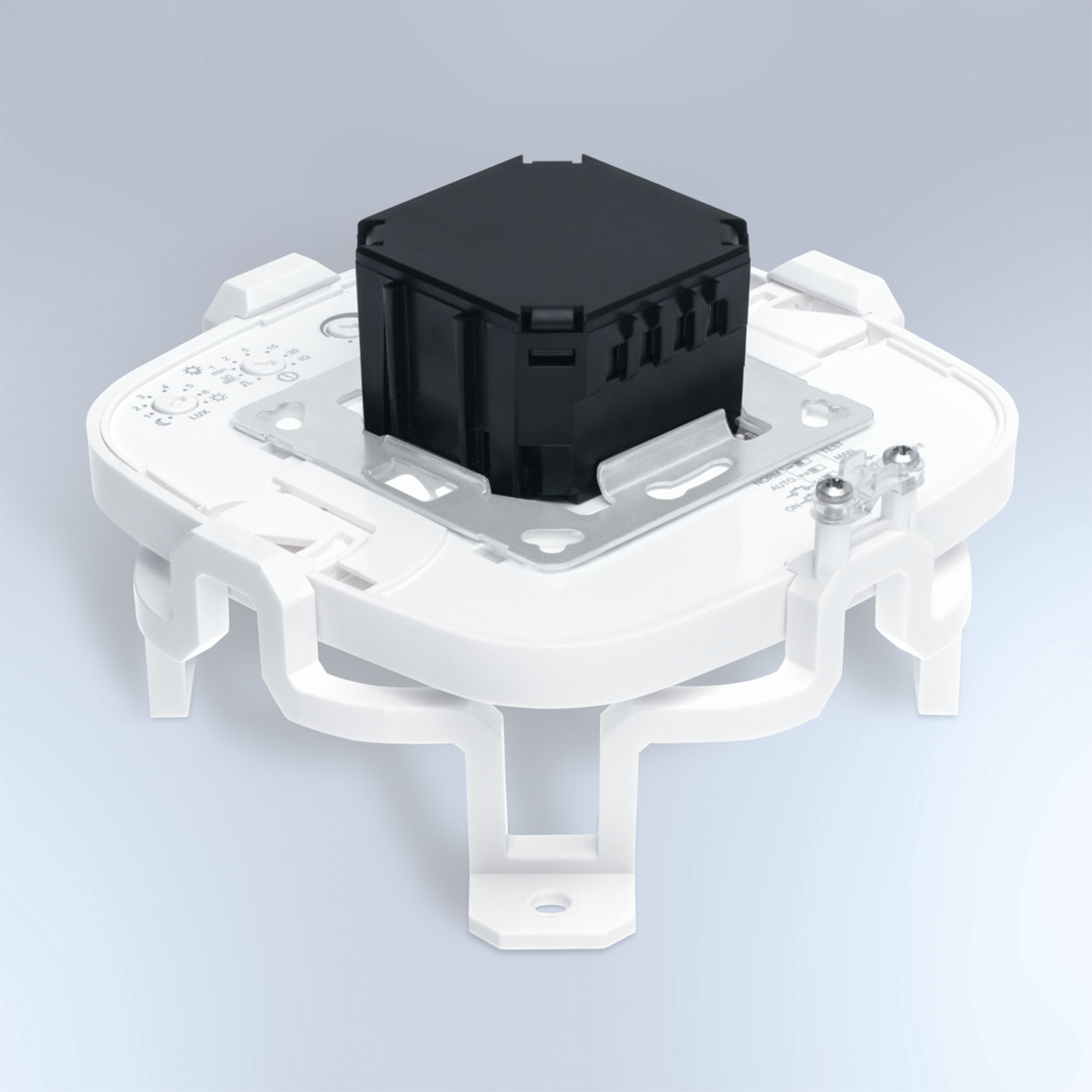

HF ceiling adapter for installation in suspended ceilings

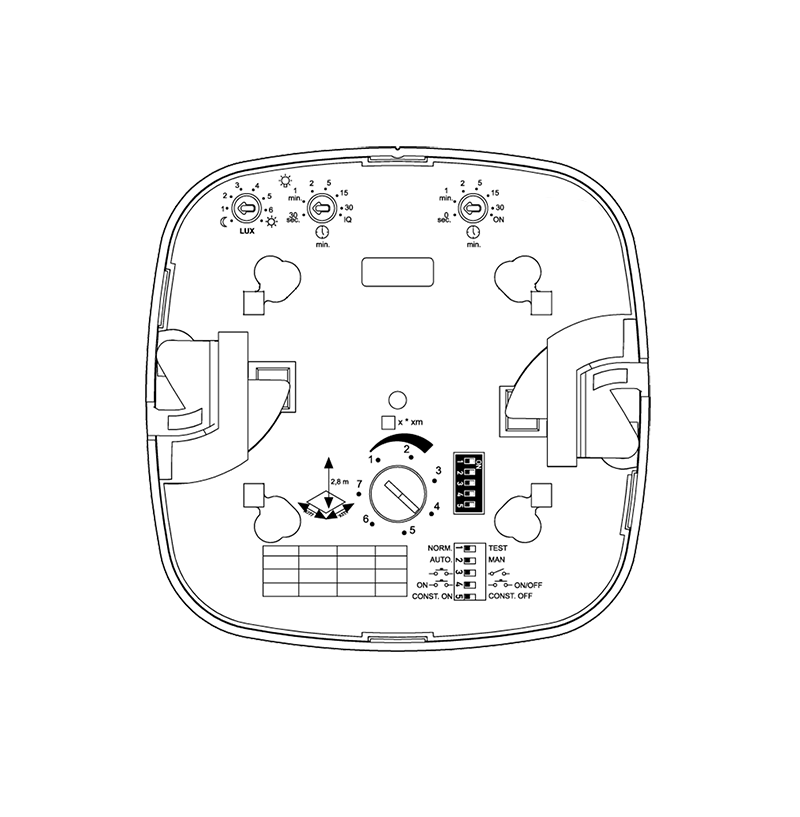

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram

Data sheet User manual Declaration of conformity Product brochure

User remote control RC5

Item no. 592806

Remote control Smart Remote

Item no. 009151

Control PRO guard cage

Item no. 003036

Service remote control RC8

Item no. 559410
