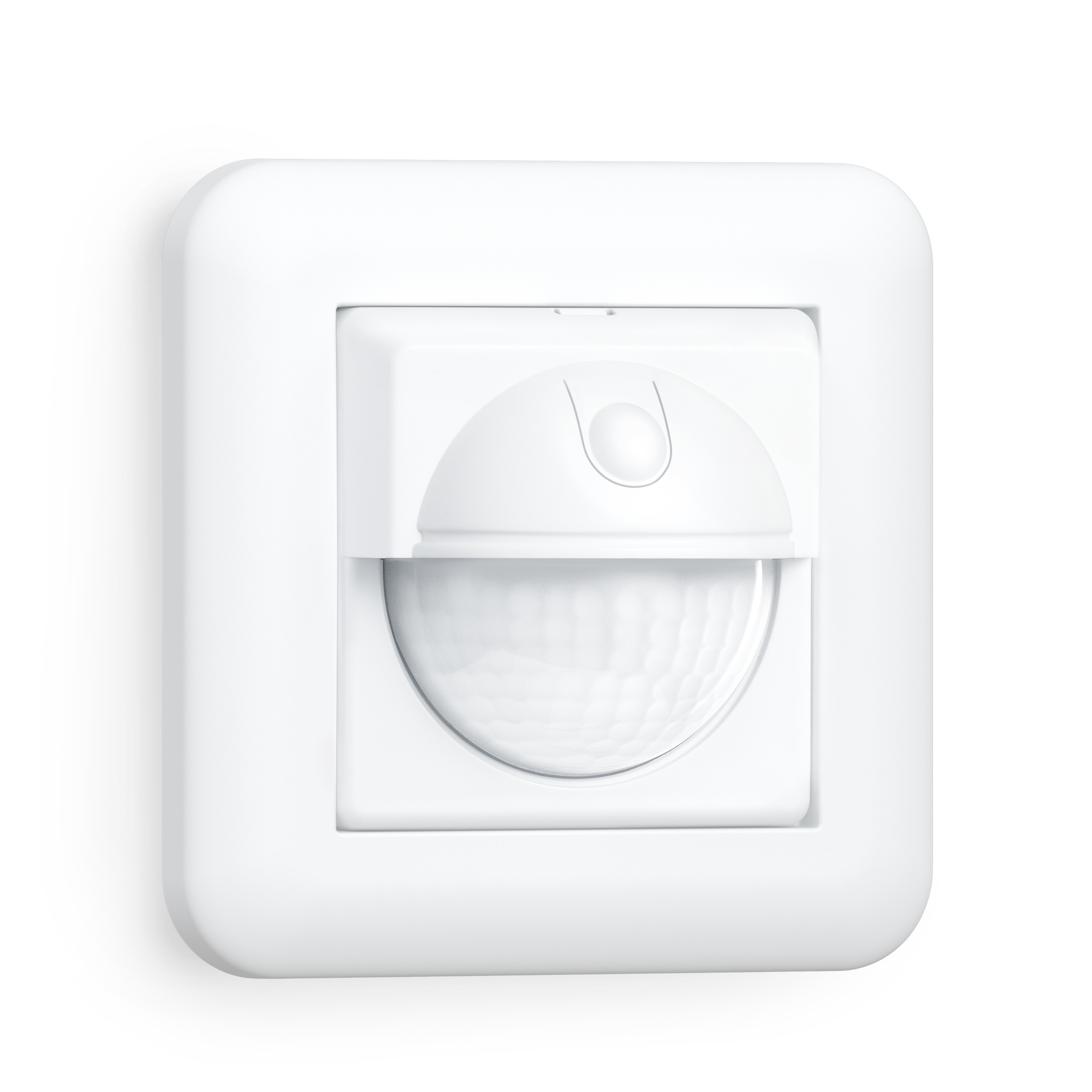

Steinel IR 2180 UP ECO

ELDAS® no. 535 944 060

EAN-No. 4007841 065003

It is great when things simply work without great effort. As is the case with the IR 2180 UP ECO, which can be used to automate light in corridors, stairwells or WCs in next to no time. Simply exchange with the existing flush-mounted switch. Works every time - whether as a 2-wire or 3-wire installation. Switches all lamp types. The built-in 180° infrared sensor impresses with a reach of up to 8 m. And thanks to the integrated button, manual switching is possible at any time.

Identification

Version Motion detectors

Variants

Colour White

Dimensions

Dimensions L × W × H 57 x 81 x 81 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Fluorescent lamps ECG 150 W

Fluorescent lamps uncompensated 150 VA

Fluorescent lamps series-compensated 150 VA

Switching output 1 low-voltage halogen lamps 200 VA

LED lamps < 2 W 40 W

LED lamps > 2 W < 8 W 100 W

LED lamps > 8 W 160 W

Capacitive load in µF 132 µF

Sensor technology

Max. mounting height 2,20 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (6 m²)

Tangential range r = 8 m (101 m²)

Switching zones 96 switching zones

Mounting height 1,10 – 2,2 m

Optimal mounting height 1,1 m

Connectivity

Networking No

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 30 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Housing material Plastic

Cover material Plastic, structured

Mounting location wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom corridor / aisle function room / ancillary room kitchenette stairwell

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates VDE

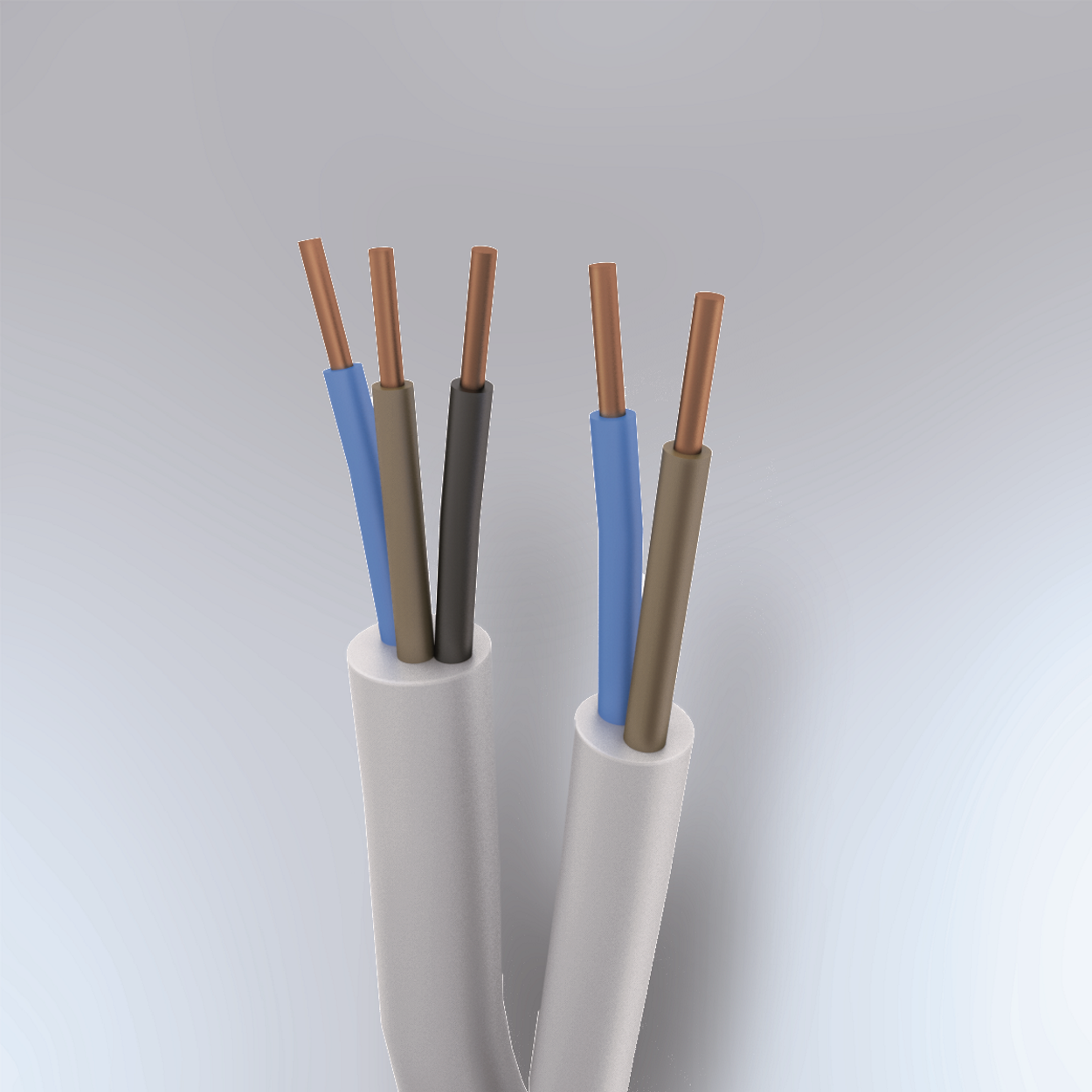

2 or 3-wire installation

Technical drawing

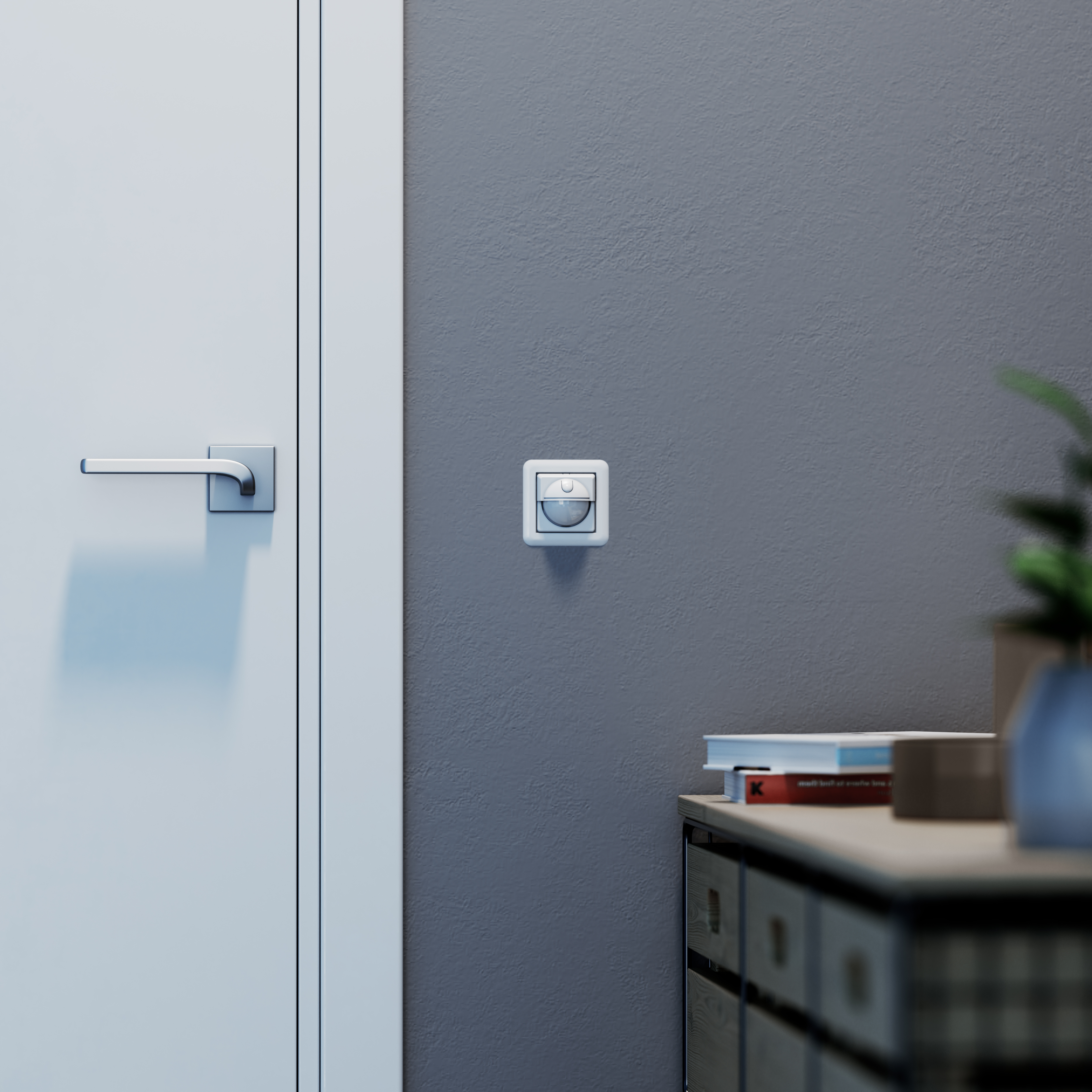

Sensor detection range

Wiring diagram 1

2-wire circuit diagram

Wiring diagram 2

3-wire circuit diagram
