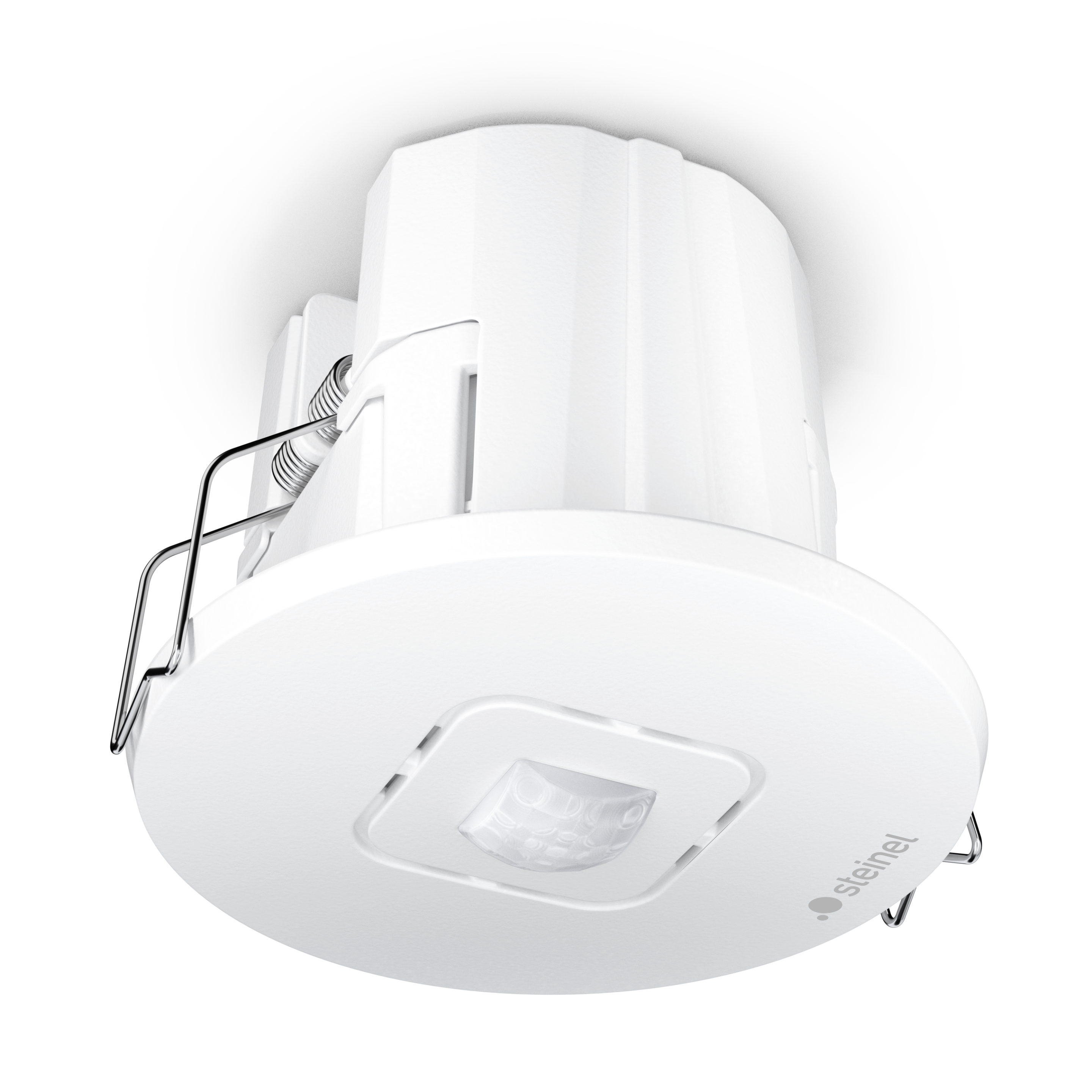

Steinel IR Micro Office 6m DALI-2 APC - in-ceiling installation

Presence detector for single offices. Controls up to 20 DALI lights directly, constant light.

ELDAS® no. 535 900 023

EAN-No. 4007841 067144

Mounting type

Concealed mounting Recessed ceiling Surface mounting

Demanded by architects and planners, made by STEINEL. The micro-precision lens measures just 15 x 15 mm. The 360° infrared presence detector covers 36 m². As a DALI-2 single master application controller, it controls up to 20 DALI devices in broadcast mode. It therefore offers optimum light management for individual room solutions, including constant light control. Settings and networking are easily realised via Bluetooth Mesh. This is our sensor in the DALI APC for simple light management in small individual offices. We have focussed on the standard functions and offer a product without frills. The IR Micro Office DALI APC is the perfect introduction to DALI lighting management.

Perfectly suited for small rooms such as individual offices
Light management, e.g. constant light control, light scenes, semi-/full automatic control
Broadcast control of up to 20 dimmable DALI luminaires
Cover caps for detection limitation simply snap into place included
Commissioning and setting via STEINEL Connect app

Identification

Version Presence detector

Variants

Mounting type Recessed ceiling

Dimensions

Dimensions Ø × H 85 x 69 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 1x20 electronic ballasts

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability Yes

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Switching zones 168 switching zones

Mounting height 2,0 – 5,0 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Number of DALI participants 20

With bus coupler No

Control technology Steinel Connect

Wireless networking via BT SIG Mesh

Networking via DALI 2

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 60 min

Base light function Yes

Base light function time 10s-60 min, all night, Brightness-controlled, OFF

Main light adjustable 0 - 100 %

Functions Semi-/fully automatic, Lighting scenario, Manual ON / ON-OFF, Normal / test mode, Neighbouring group function, TouchDIM function, Motions sensor, Constant-lighting control, Light sensor, Adjustable fade time when switching on and off, Constant-lighting control ON-OFF, Presence function, Presence detector logic

Settings via App, Smartphone, Tablet, Bluetooth

With remote control No

Twilight setting teach Yes

Base light function in percent 0 – 100 %

Base light function percent from 0 %

Housing & material

Protection class (IP) IP20

Ambient temperature -25...+55 °C

Housing material Plastic

Cover material without cover

Cover material (scope of delivery) Cover clips

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, conference room / meeting room, duty room, function room / ancillary room, kitchenette, one-person office, recreation room

Colour White

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

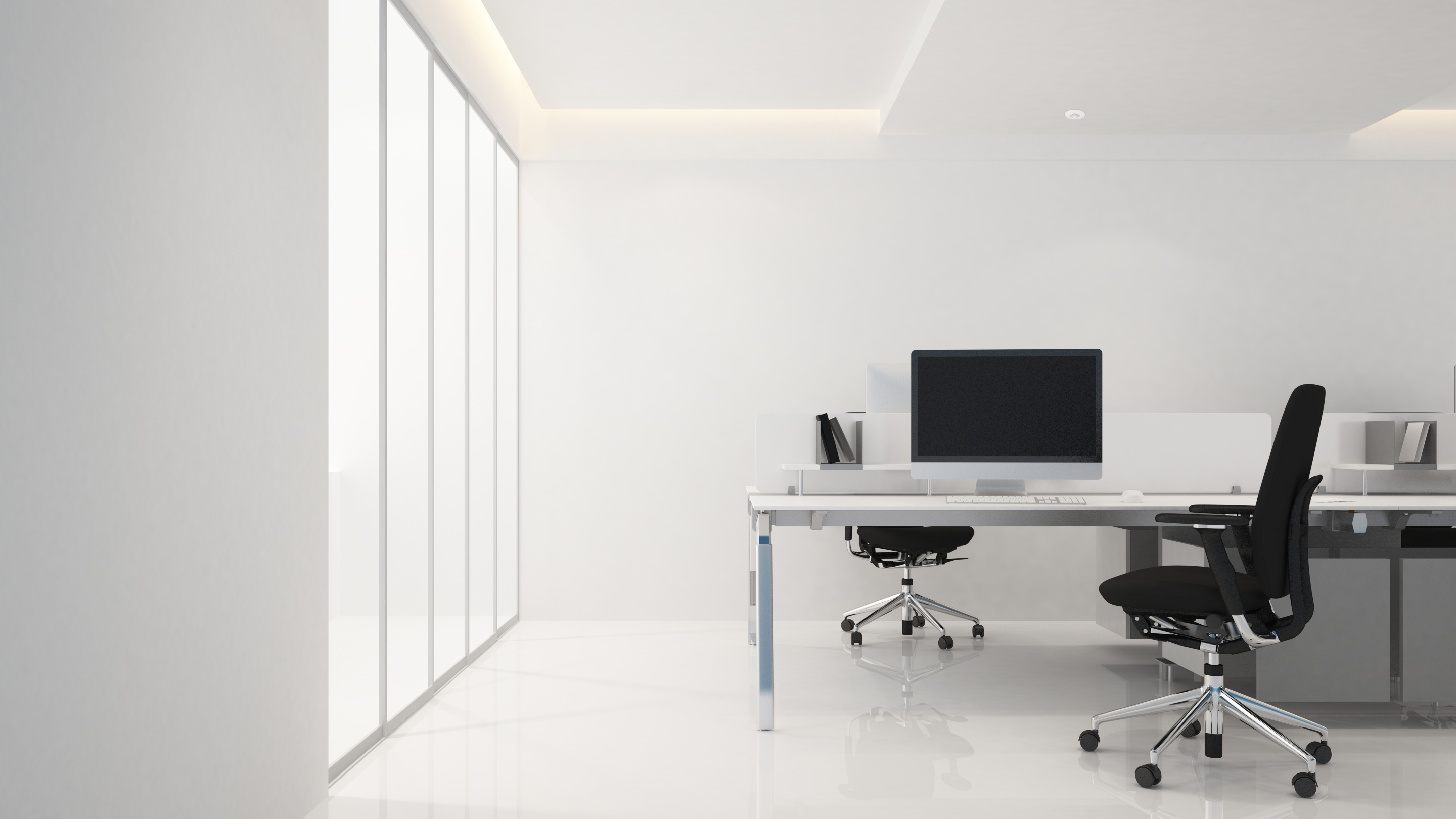

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity Product brochure
