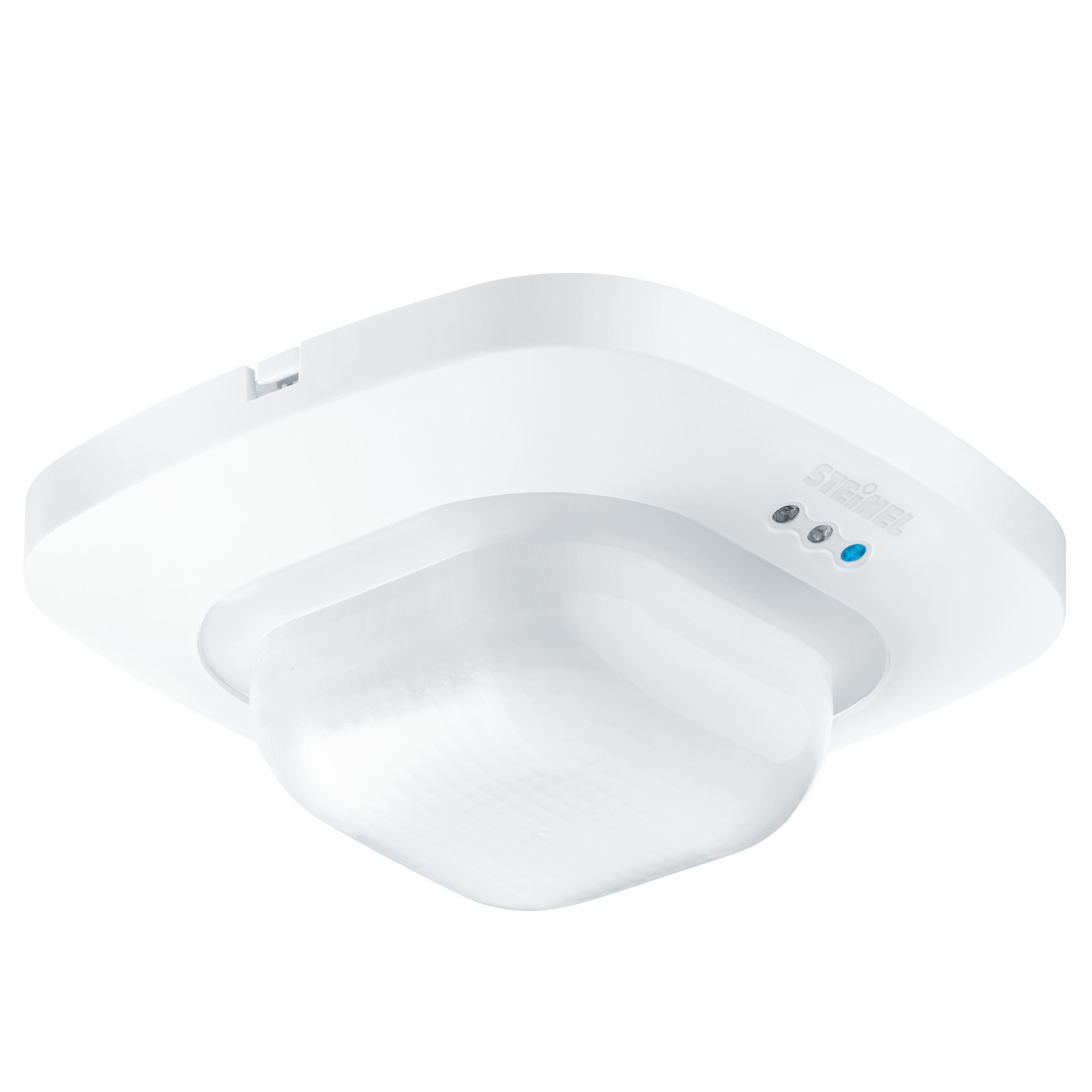

Steinel IR Quattro 8m DALI-2 APC - in-ceiling installation

ELDAS® no. 535 936 708

EAN-No. 4007841 079352

Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 113 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 2x12 electronic ballasts

Sensor technology

Max. mounting height 8,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 100 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 5 x 5 m (25 m²)

Tangential range 7 x 7 m (49 m²)

Detection planes 13

Switching zones 1760 switching zones

Mounting height 2,5 – 8,0 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

With bus coupler Yes

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 min

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

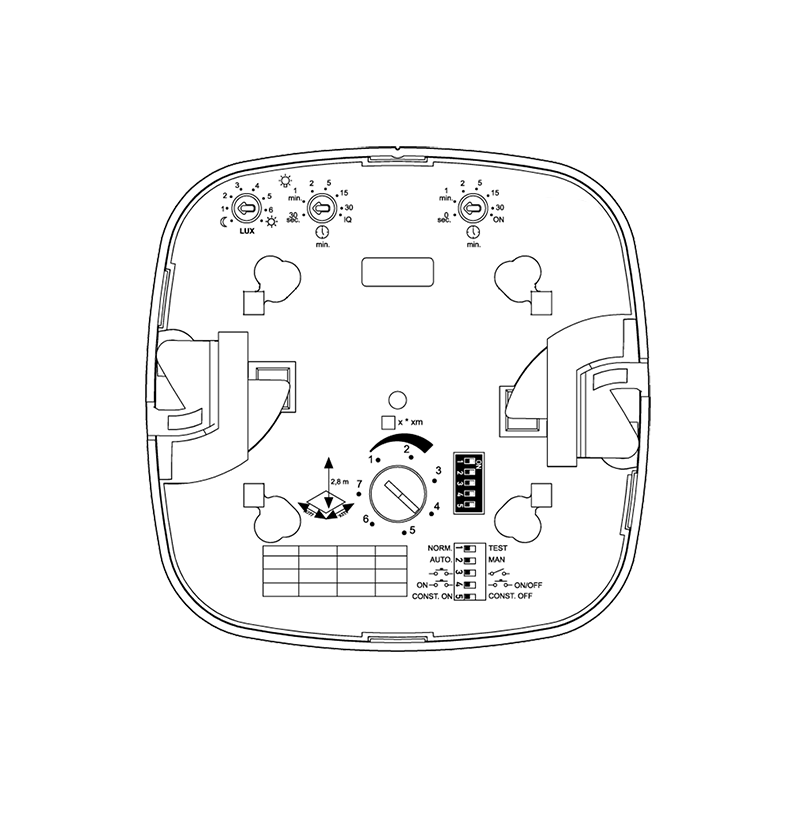

Functions Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via Remote control, DIP switches, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 60 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature 0...+40 °C

Mounting location ceiling

Application location Indoors

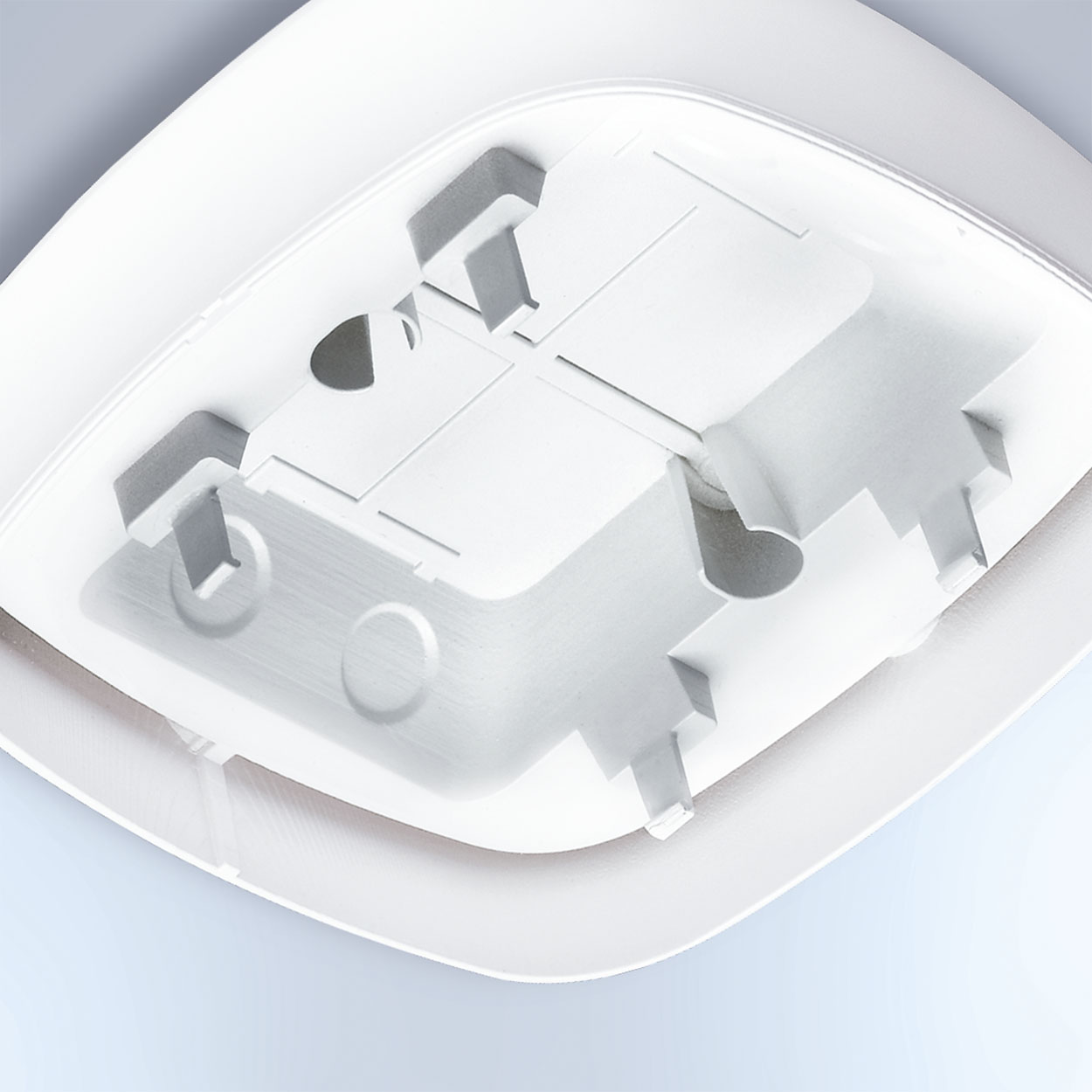

Mounting type Recessed ceiling

Material Plastic

Application room Indoors, changing room, conference room / meeting room, duty room, function room / ancillary room, kitchenette, one-person office, recreation room

Colour White

RAL colour 9010
