Steinel IR Quattro HD-2 24m KNX - in-ceiling installation black

Presence detector for open-plan offices, lecture halls and stores. Very large, precise coverage.

EAN-No. 4007841 094553

Coming soon

This product has been announced and is not yet available.

Mounting type

Variant

230V, 1 channel KNX

Colour

Black White

Packaging unit

1 piece

The IR Quattro HD-2 infrared presence detector provides 360° detection and can be digitally set, adjusted and interconnected via Bluetooth without the need for cables. The four built-in pyro sensors can be selected and deselected individually. Not only available in a concealed and surface-mounted version for COM1, COM2, DALI-2 IPD, KNX V3.5, IP and BT IPD interfaces, the latest-generation presence detector also comes in a ceiling-mounted version for COM1 and KNX V3.5 interfaces. Besides presence function and light level, this presence detector can also measure temperature and humidity on the basis of IP, KNX and DALI-2 IPD. It is suitable for mounting at heights of 2.50 m to 10 m and provides 5,200 switching zones. Maximum radial reach is 81 m2 (9 x 9 m), maximum tangential reach 576 m2 (24 x 24 m).

  • Passive infrared presence detector with square 360° detection
  • 5.200 switching zones for the finest detection
  • Offers the largest detection range in our IR range
  • 4 pyro sensors individually de-/activatable
  • Sensitivity digitally adjustable
  • Measures presence and brightness
  • Temperature and humidity measurement with IP, KNX and DALI-2 IPD
  • Setting and networking via Bluetooth
  • Ideal for open-plan offices and classrooms

Identification

Version Presence detector

Variants

Packaging unit 1 piece

Dimensions

Dimensions L × W × H 106 x 103 x 103 mm

Electrical

Mains connection 21 – 30 V
Supply voltage detail KNX bus

Sensor technology

Max. mounting height 10,00 m
Sensor technology passive infrared
Detection angle 360 °
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability Yes
Radial range 9 x 9 m (81 m²)
Tangential range 24 x 24 m (576 m²)
Mounting height 2,5 – 10,0 m
Presence range 9 x 9 m (81 m²)
Optimal mounting height 2,8 m

Connectivity

Networking Yes
KNX functions Comfort Photo-cell controller Individual pyro evaluation Basic light level function Light level HVAC output Constant-lighting control Light output 4x Humidity output Presence output Day / night function Dewpoint Temperature output Logic gate
With bus coupler Yes
Networking via KNX bus, Bluetooth Mesh

Lighting technology

Continuous light selectable
Constant light regulation Yes

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 10 s – 1092 min
Base light function Yes
Main light adjustable Yes
Settings via Bus, ETS software, App, Potentiometers, Bluetooth Mesh
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP20
Ambient temperature 0...+40 °C
Mounting location ceiling
Application location Indoors
Material Plastic
Application room Indoors, changing room, classroom, conference room / meeting room, dining hall / staff restaurant, duty room, high-bay warehouse, lecture hall, multi-storey / underground car park, open-plan office, production facilities, reception / lobby, recreation room, sports hall
Colour Black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

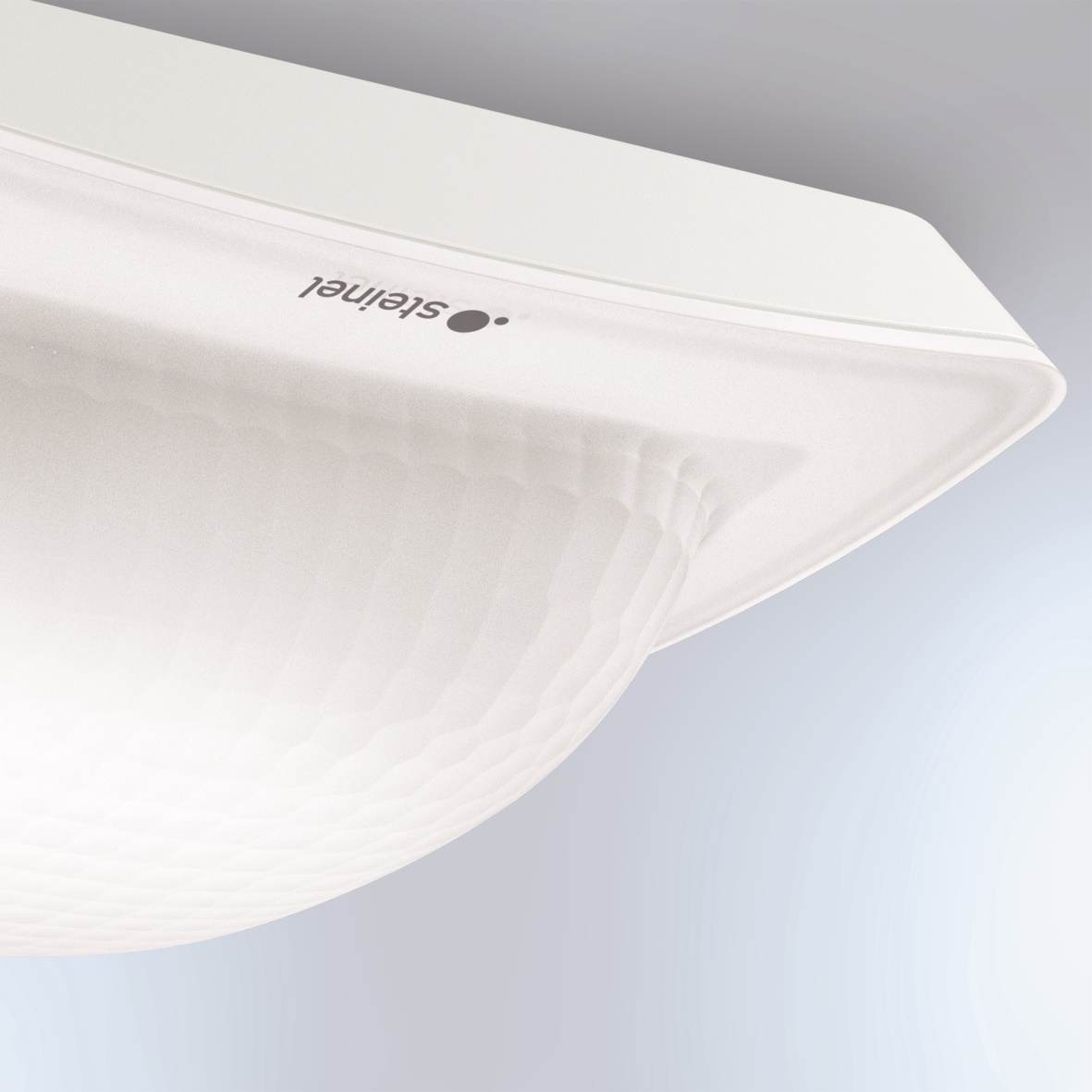

UV-resistant plastic
