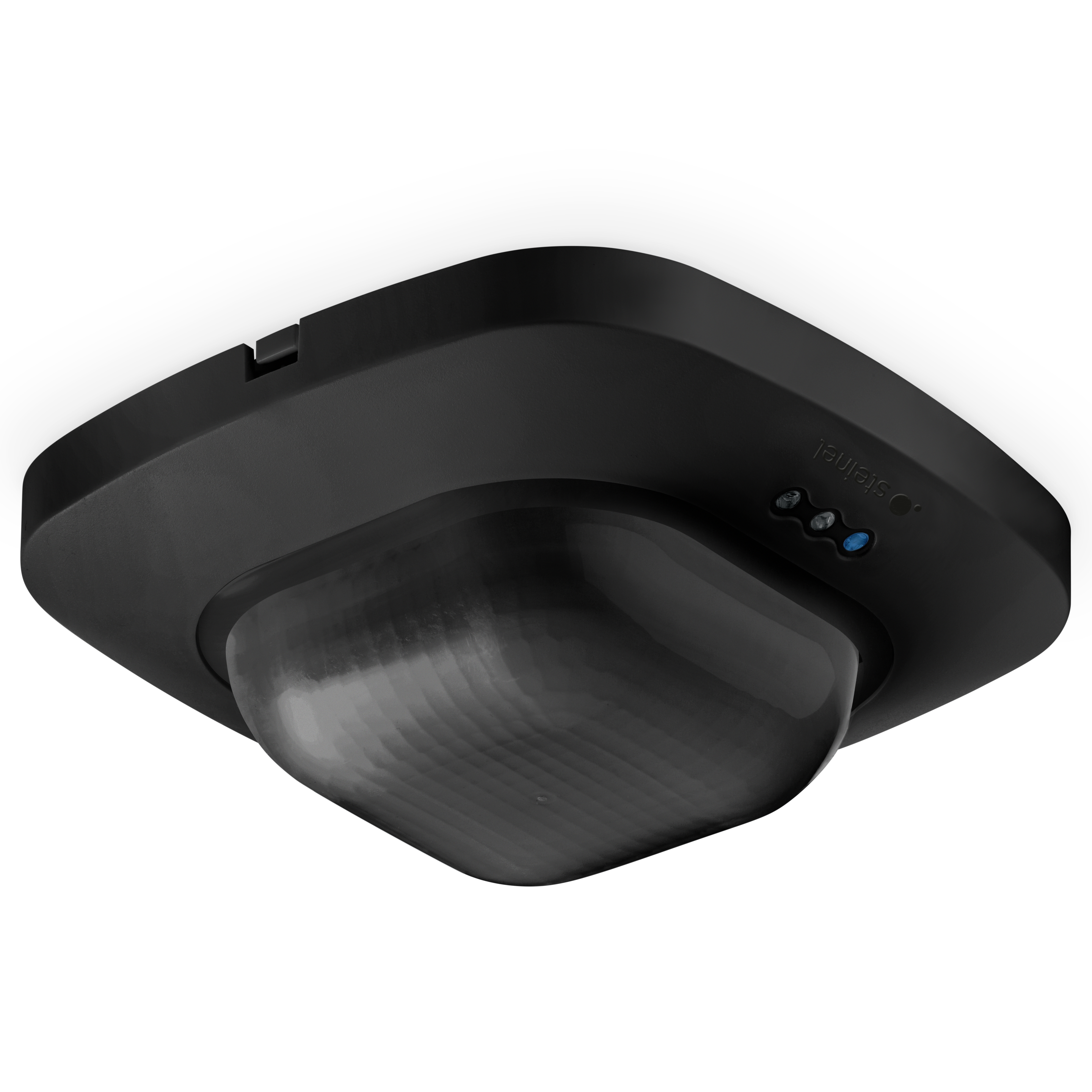

Steinel IR Quattro HD 24m COM1 - concealed black

ELDAS® no. 535 918 128

EAN-No. 4007841 068608

Price: Please log in to see prices

Version

DALI-2 Application Controller KNX DALI-2 Input Device 230V 1 channel 230V 2 channels

Colour

White Black

Mounting type

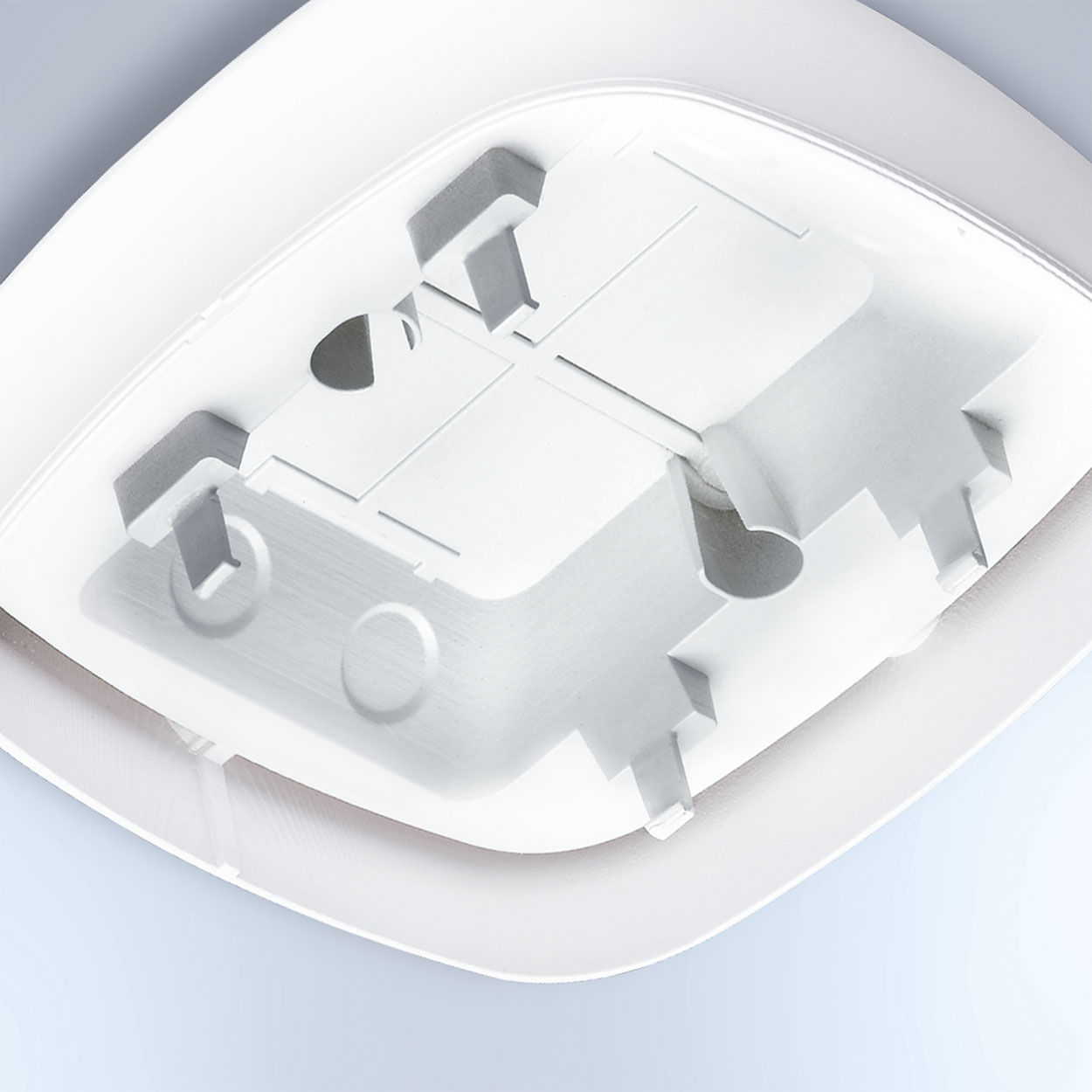

Flush-mounted Surface-mounted

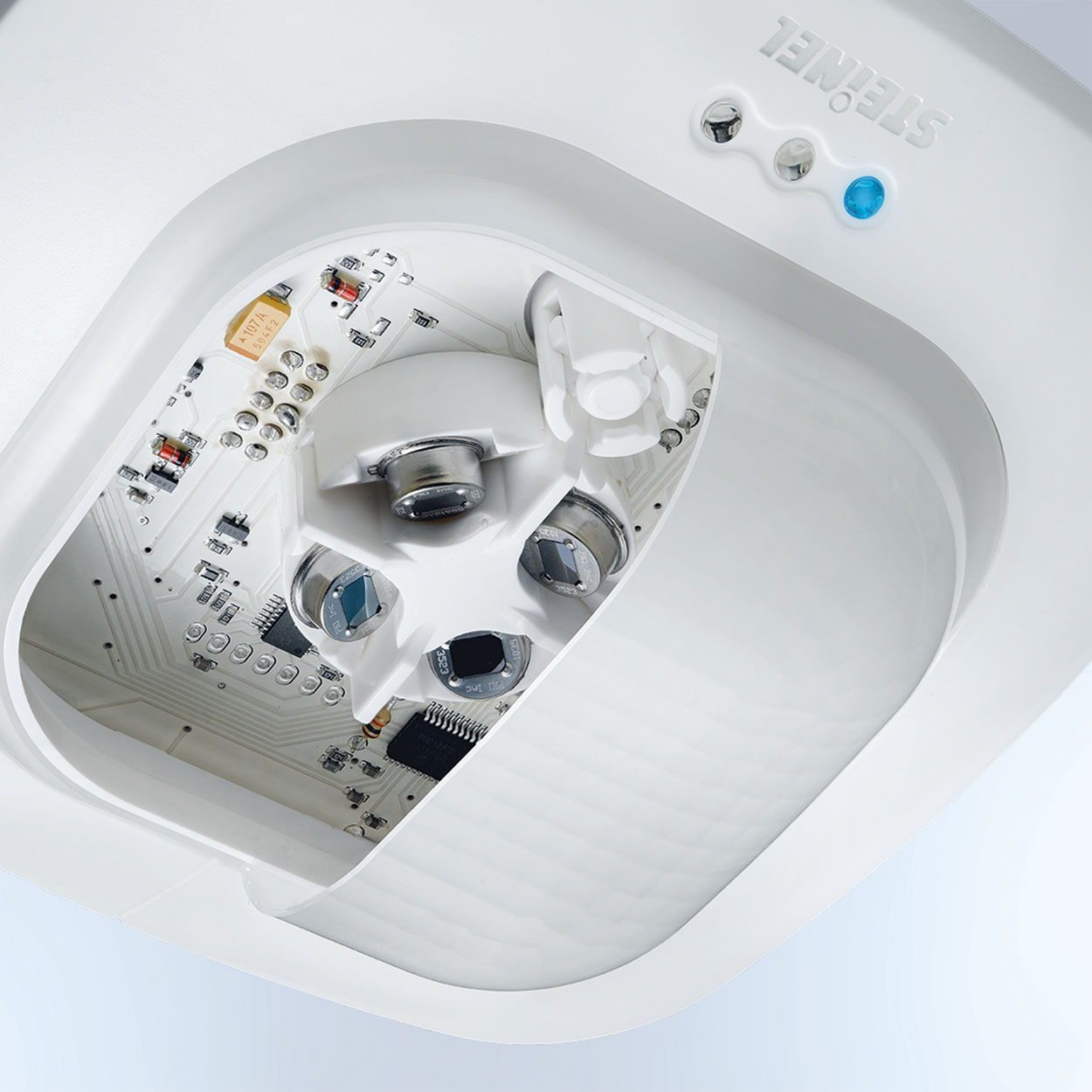

HD isn't just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 70 x 120 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Detection planes 13

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Networking quantity max. 10 sensors

Lighting technology

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 30 s – 30 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Semi-/fully automatic Pushbutton / switch mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control DIP switches Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room changing room classroom conference room / meeting room duty room high-bay warehouse lecture hall multi-storey / underground car park open-plan office production facilities reception / lobby recreation room sports hall

Colour black

RAL colour 9005
