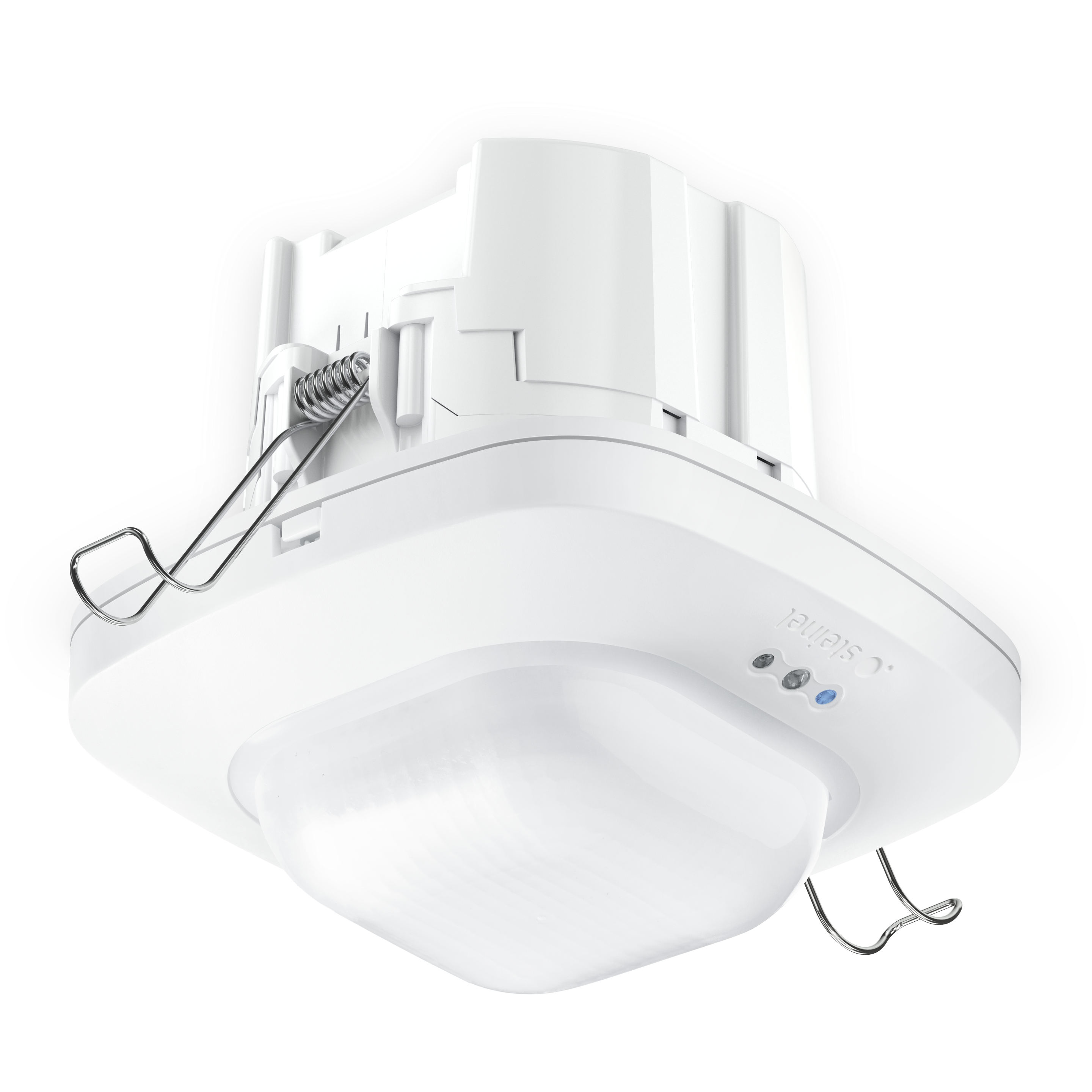

Steinel IR Quattro HD 24m DALI duo In-ceiling installation

EAN-No. 4007841 088828

For 15 years now, the name ‘IR Quattro HD’ has stood for excellent performance in infrared detection with mechanical range adjustment. The new IR Quattro HD DALI duo continues this tradition confidently and convincingly. Classrooms, conference rooms and larger offices are the primary areas of application for the new IR Quattro HD DALI duo. The pleasantly compact infrared presence detector, equipped with two light channels, contains a fully-fledged, intelligent light management system. The ideal prerequisites for creating customised light and a good learning and working atmosphere. Even including switchable lighting - thanks to the integrated relay. In short: a worthy new addition to the ‘IR Quattro HD’ family, which is ideal for constant light control in classrooms. Incidentally, top marks are also awarded for commissioning, which is carried out via the practical Smart Remote app and is extremely simple.

The entry-level solution for intelligent lighting control
Ideal for classrooms, conference rooms and large offices
Infrared presence detector with 64 sqm presence detection, mounting height max. 10 m
DALI-APC for controlling up to 64 luminaires
2 light channels, 3 push-button inputs and 4800 switching zones
Additional, potential-free relay
Constant light control, teach function, optional main and ambient light
Simple commissioning via Smart Remote app

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 120 x 120 x 119 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Own consumption 0,5 W

Control output DALI Broadcast 64 electronic ballasts / Addressable

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 5 s – 60 Min.

Base light function Yes

Base light function time 1-60 min, all night

Main light adjustable 50 - 100 %

Functions Semi-/fully automatic Constant-lighting control ON-OFF Master/slave override Normal / test mode TouchDIM function

Settings via Remote control Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 60 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature from 0 up to 40 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors changing room classroom conference room / meeting room duty room high-bay warehouse lecture hall multi-storey / underground car park open-plan office production facilities reception / lobby recreation room sports hall

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates VDE DALI-2

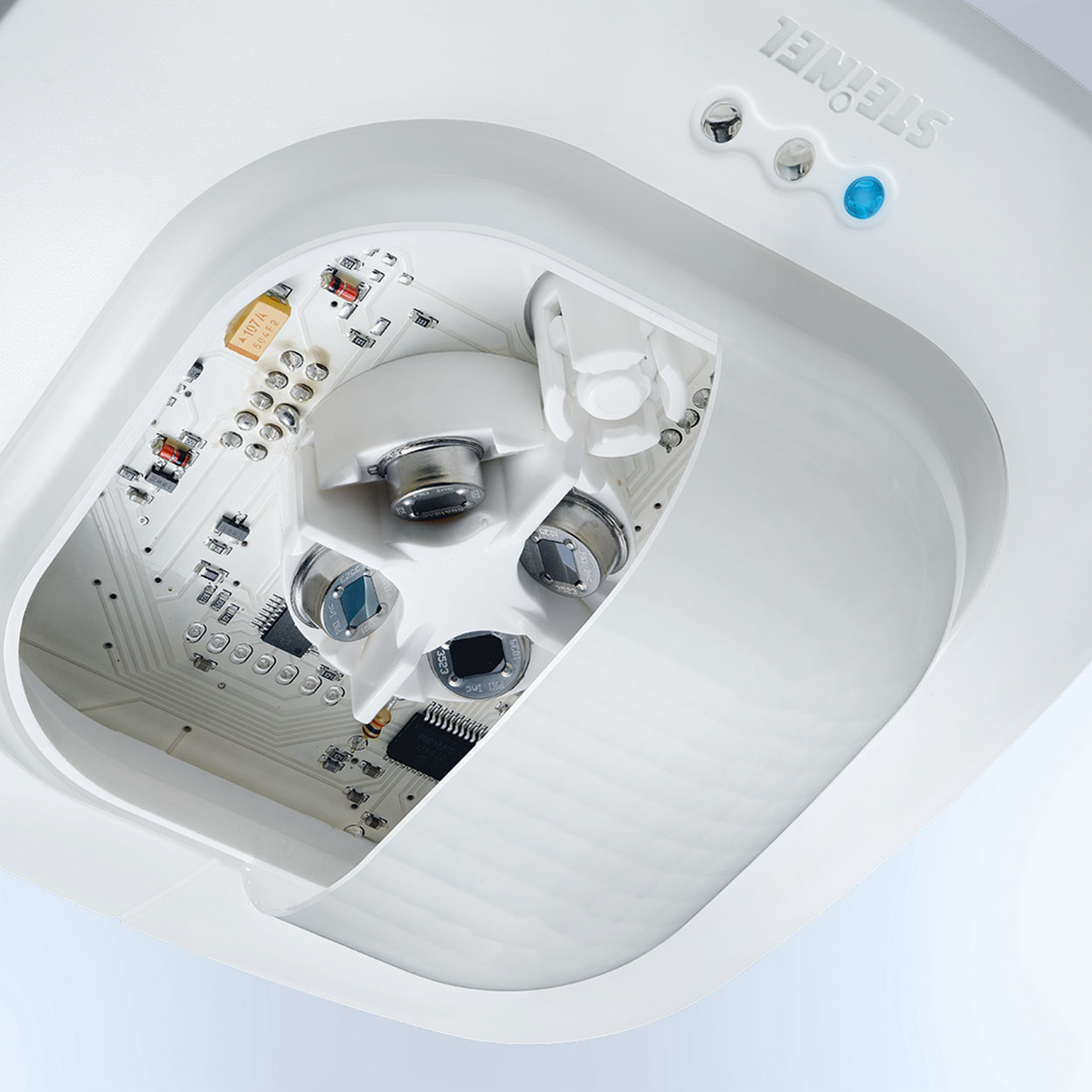

4 pyros with DSP (Digital Signal Processing)

Smart Remote remote control optional

Technical drawing

Sensor detection range
