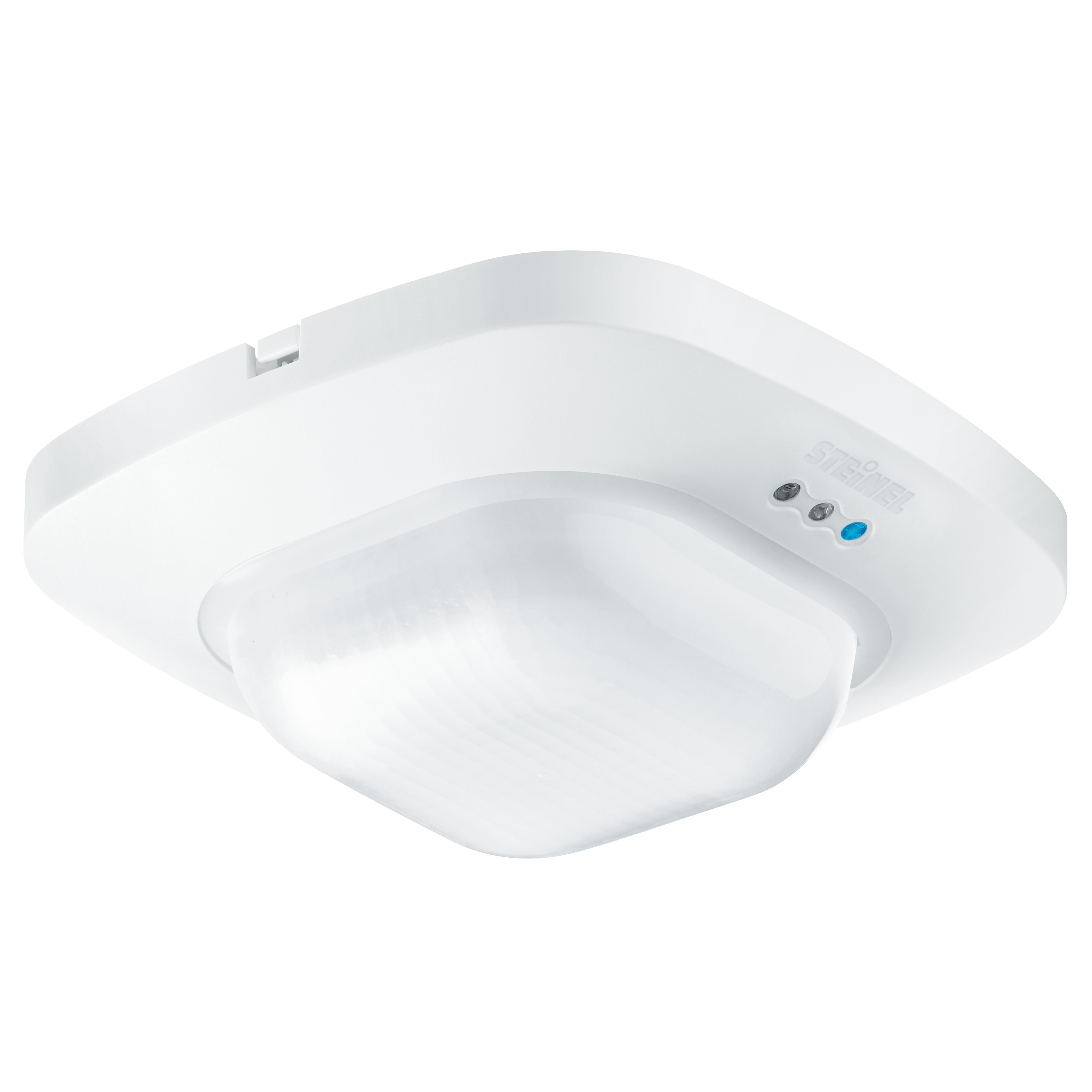

Steinel IR Quattro HD 24m KNX - concealed white

Presence detector for large offices, classrooms and halls. Picks up even quiet desk work.

ELDAS® no. 535 935 818

EAN-No. 4007841 058470

Price: Please log in to see prices

Mounting type

Concealed mounting

Colour

Black White

Variant

230V, 1 channel 230V, 2 channels DALI-2 Application Controller DALI-2 Input Device KNX

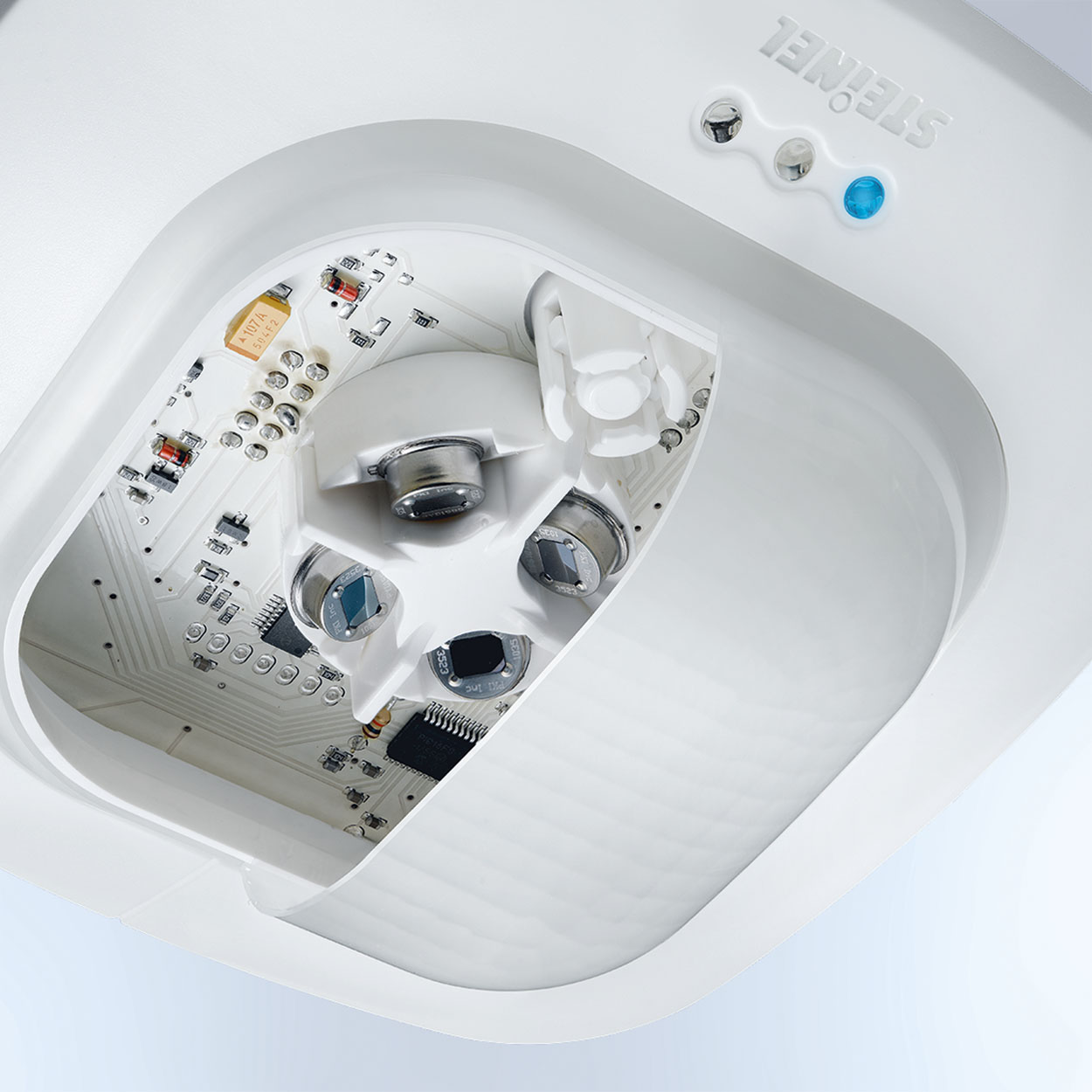

When it's a matter of intelligent building automation, presence detectors with extremely good detection performance are a must. IR Quattro HD KNX leaves absolutely no questions unanswered: 4,800 switching zones in the square detection footprint of 64 m² – which is mechanically scalable without any loss of quality whatsoever – more or less completely rule out inadvertent triggering or blind spots. This is the ultimate in high-resolution quality and a dream come true for architects, properly owners and users alike.

Identification

Version Presence detector

Variants

Version KNX

Colour White

Mounting type Flush-mounted

Dimensions

Dimensions L × W × H 69 x 120 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 10,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

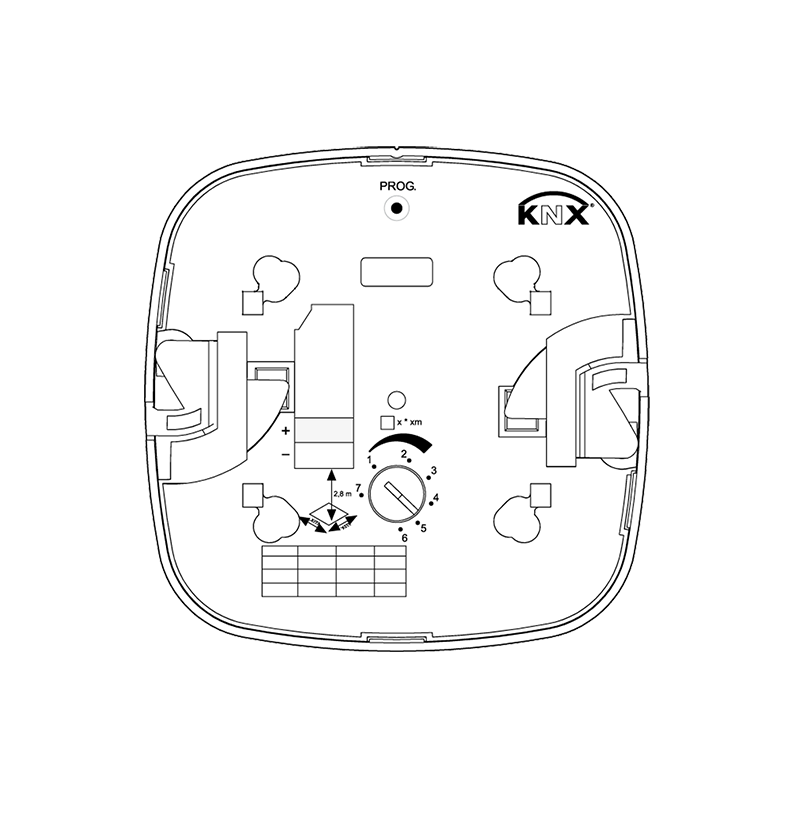

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Detection planes 13

Switching zones 4800 switching zones

Mounting height 2,5 – 10,0 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave, Master/Master

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Networking via KNX

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 10 s – 1092 min

Base light function Yes

Base light function time Permanently ON, 1-255 min, all night

Main light adjustable 0 - 100 %

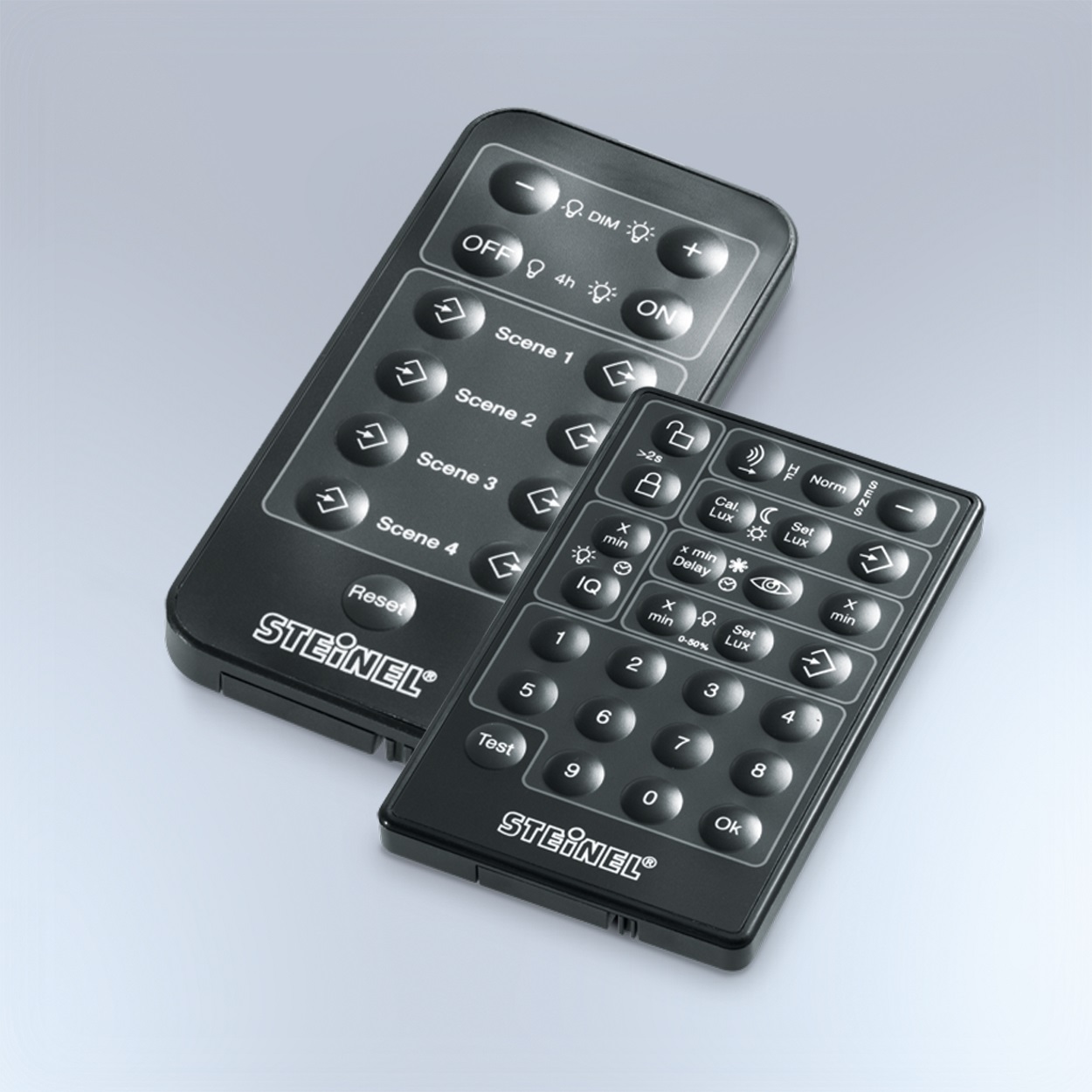

Settings via ETS software, Remote control, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Protection class II

Ambient temperature -25...+55 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, changing room, classroom, conference room / meeting room, duty room, high-bay warehouse, lecture hall, multi-storey / underground car park, open-plan office, production facilities, reception / lobby, recreation room, sports hall

Colour White

RAL colour 9010
