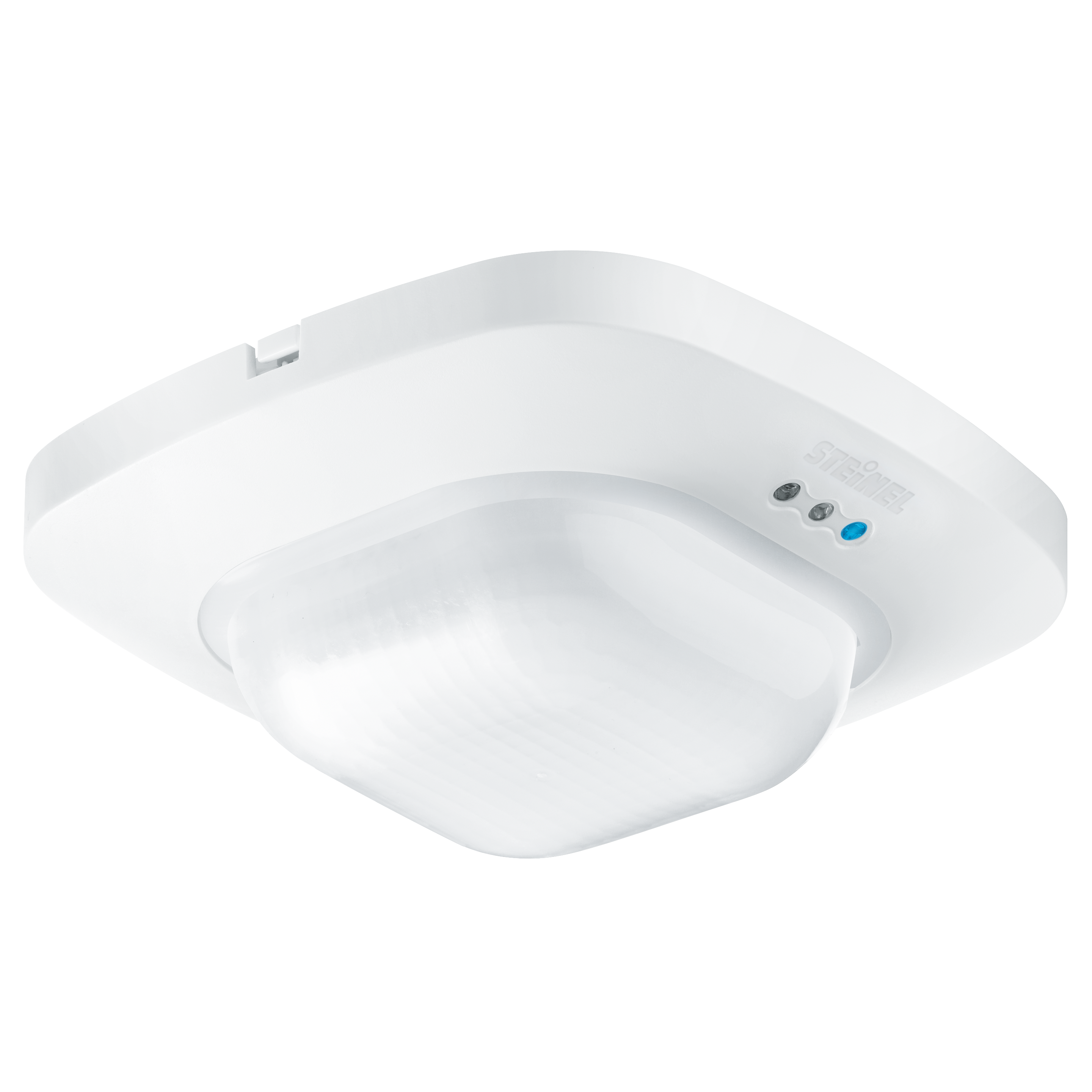

Steinel IR Quattro HD 24m KNX - in-ceiling installation, white

ELDAS® no. 535 934 908

EAN-No. 4007841 079383

When it's a matter of intelligent building automation, presence detectors with extremely good detection performance are a must. IR Quattro HD KNX leaves absolutely no questions unanswered: 4,800 switching zones in the square detection footprint of 64 m² – which is mechanically scalable without any loss of quality whatsoever – more or less completely rule out inadvertent triggering or blind spots. This is the ultimate in high-resolution quality and a dream come true for architects, properly owners and users alike.

Identification

Version Presence detector

Dimensions

Dimensions L × W × H 108 x 120 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 10,00 m

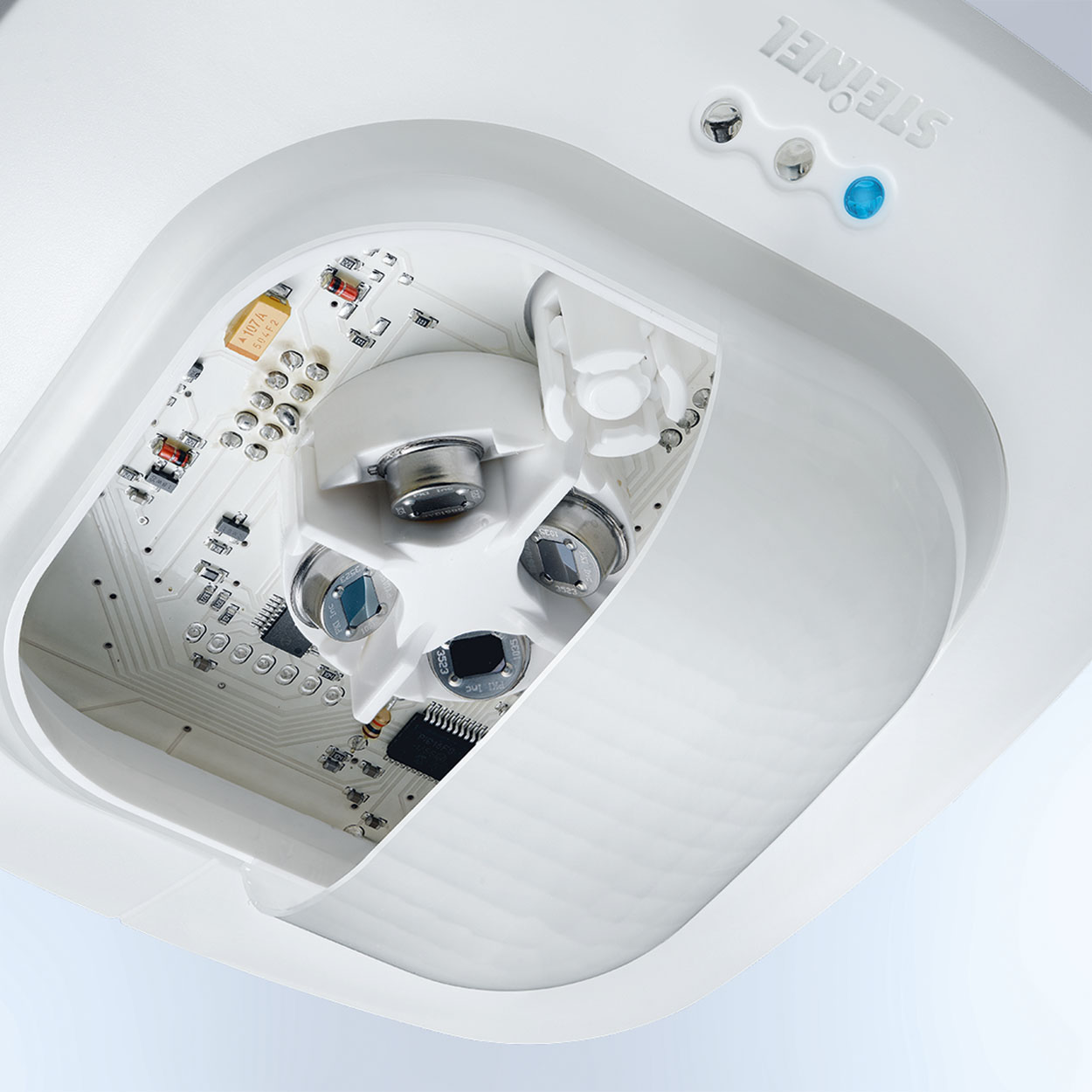

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

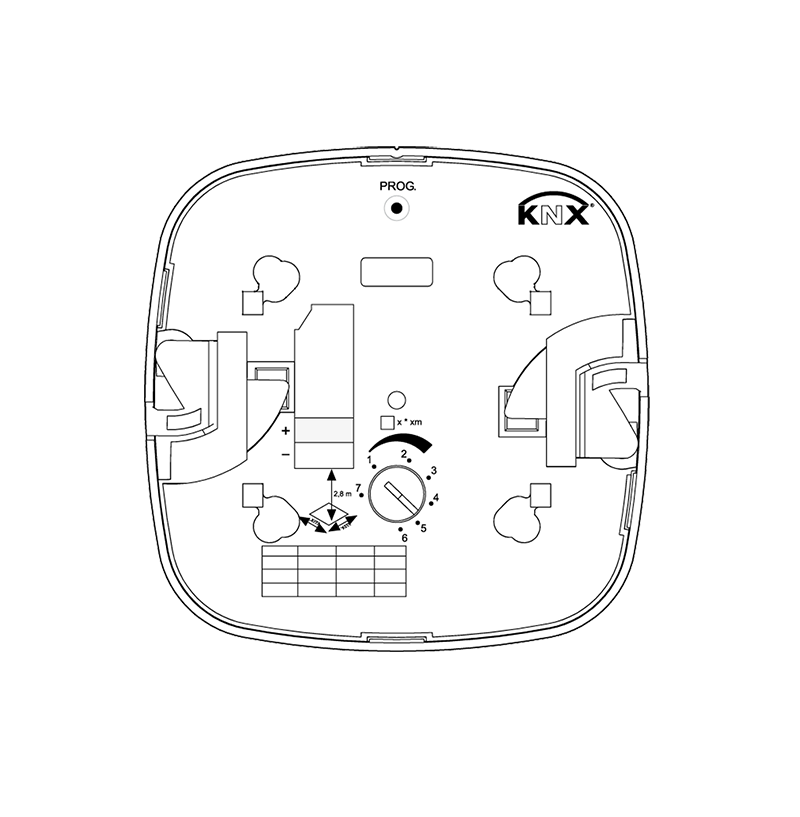

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Detection planes 13

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via KNX bus

KNX functions Photo-cell controller Basic light level function Light level HVAC output Constant-lighting control Light output 4x Presence output Day / night function Logic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 10 – 1000 lx

Time setting 0 s – 1092 Min.

Base light function Yes

Base light function time Permanently ON 1-255 min all night

Main light adjustable 0 - 100 %

Settings via ETS software Remote control Bus Smart Remote

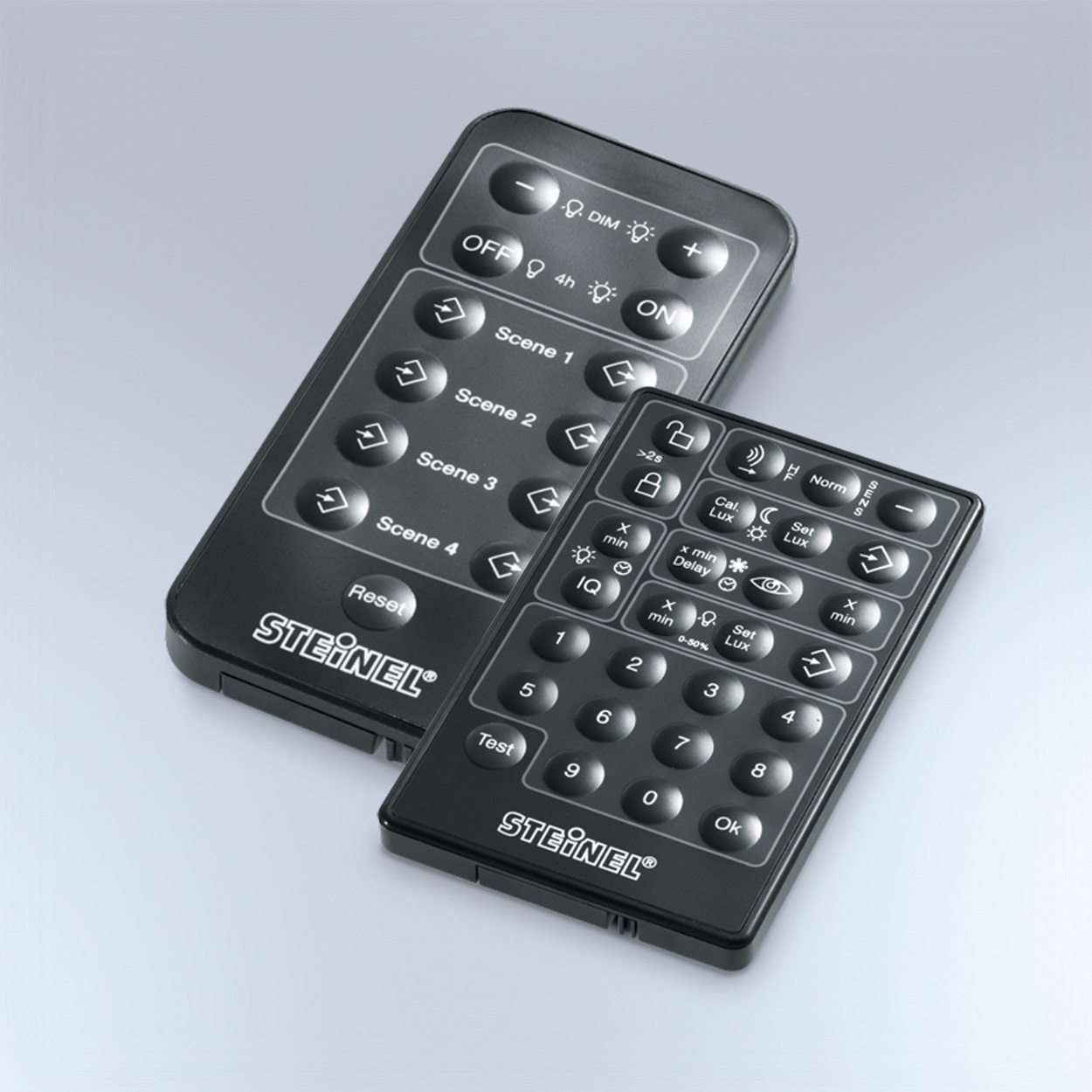

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Protection class II

Ambient temperature from -25 up to 55 °C

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors changing room classroom conference room / meeting room duty room high-bay warehouse lecture hall multi-storey / underground car park open-plan office production facilities reception / lobby recreation room sports hall

Colour white

RAL colour 9010
