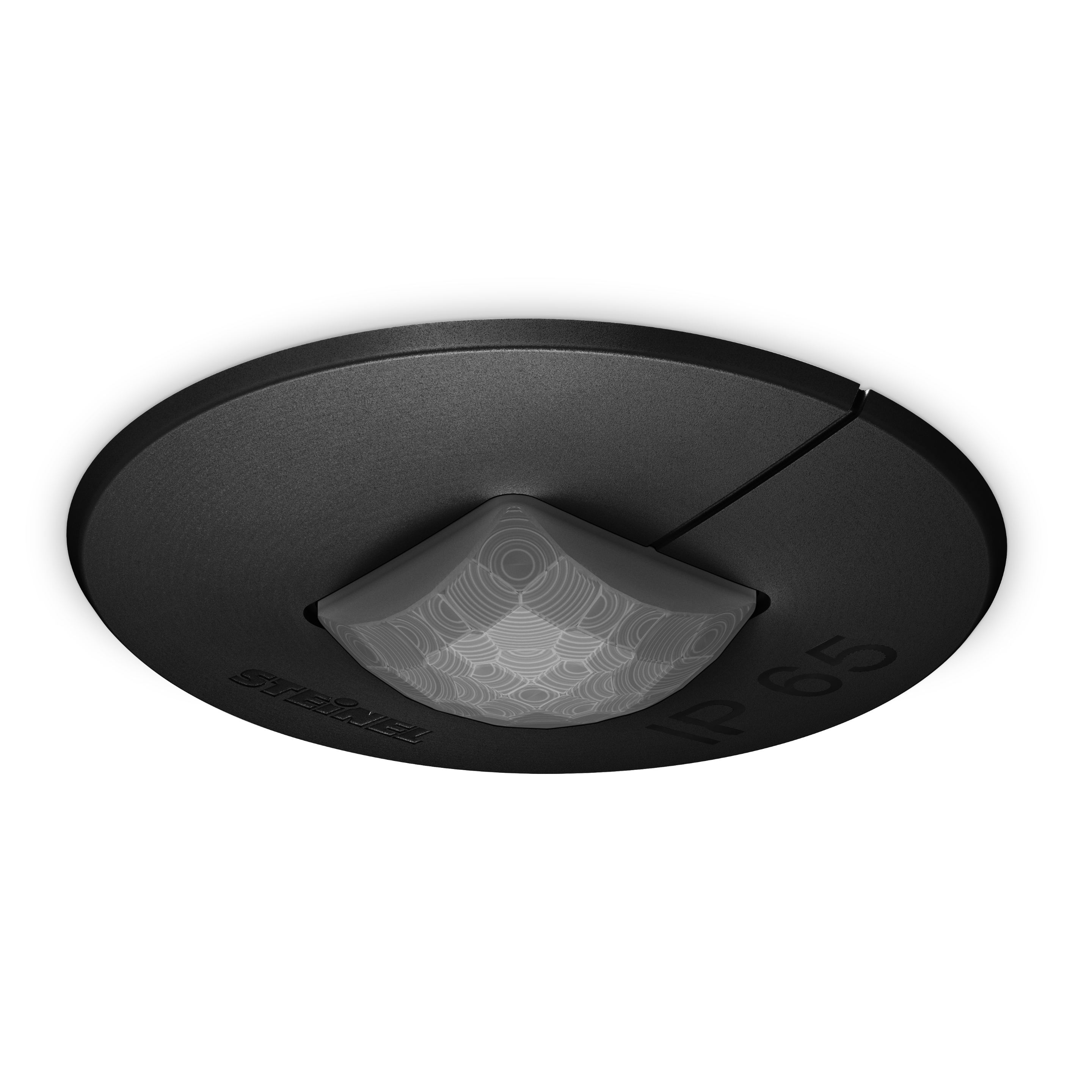

Steinel IR Quattro MICRO 6m COM1 - black

ELDAS® no. 535 918 125

EAN-No. 4007841 068639

Version

KNX 230V 1 channel DALI-2

Colour

White Black

Required by planners and architects, made by STEINEL. The IR Quattro MICRO fulfills many wishes. Its small size and the low profile design make it perfect for applications where disturbing installations on the ceiling are to be avoided. The micro-precision lens measures just 15 x 15 mm. Its performance is nevertheless stunning. The 360° infrared presence detector detects 36 m². And the IP65 classification lets you install it in rooms that are subject to moisture. The IR Quattro MICRO – our smallest unit with huge potential.

Identification

Version Presence detector

Dimensions

Dimensions Ø × H 43 x 75 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 500 W

Fluorescent lamps uncompensated 400 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Own consumption 0,5 W

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Switching output 1 potential-free No

Sensor technology

Max. mounting height 5,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Switching zones 168 switching zones

Mounting height 2,00 – 5,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master Master/slave

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Settings via Remote control Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP65

Ambient temperature from -25 up to 55 °C

Housing material Plastic

Cover material without cover

Mounting location ceiling

Application location Indoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors WC / washroom care room function room / ancillary room hotel room one-person office

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

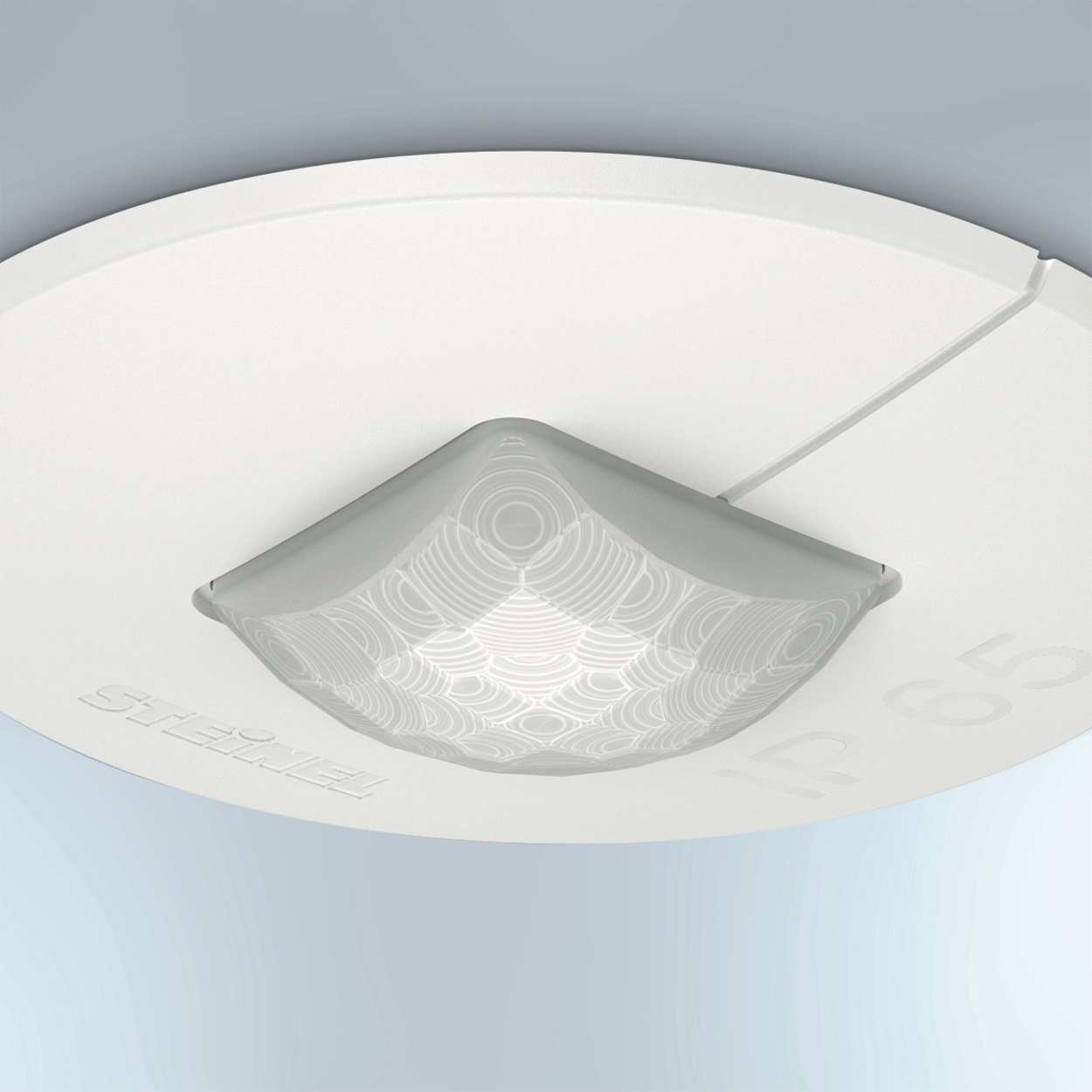

Miniature precision infrared lens

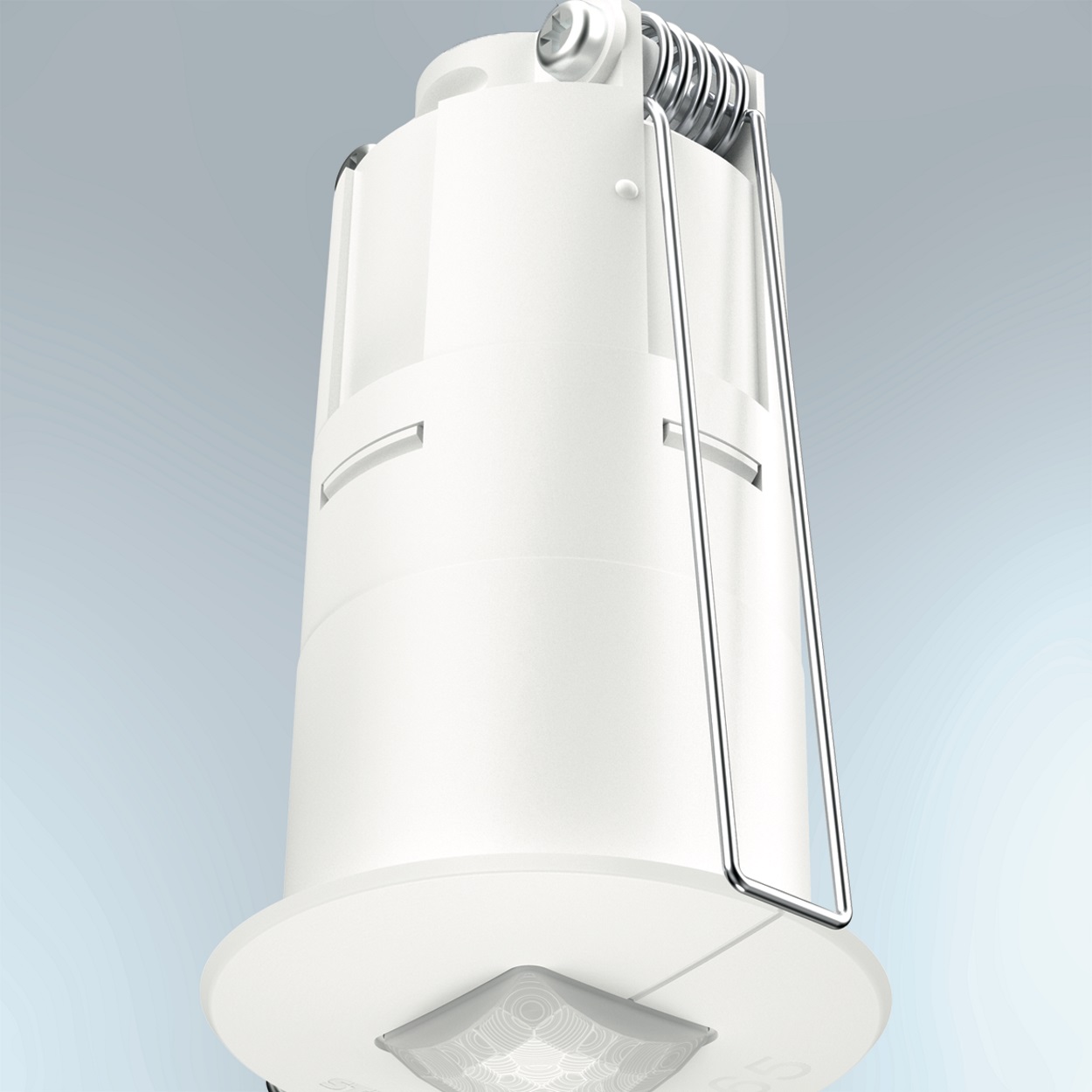

With spring clips

Can only be set using optional remote controls

Technical drawing

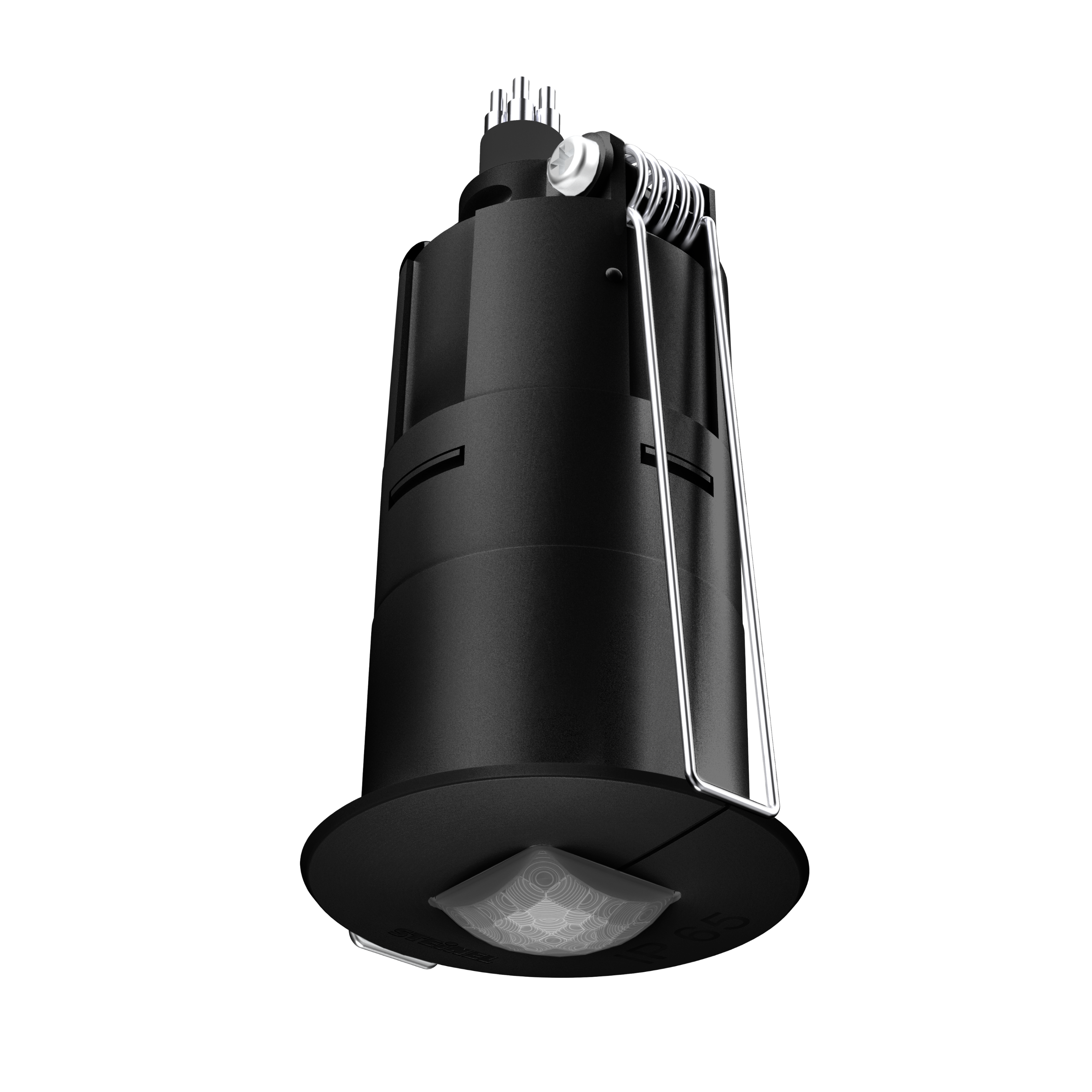

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity Product brochure

Remote control Smart Remote

Item no. 009151

User remote control RC5

Item no. 592806

Service remote control RC8

Item no. 559410
