Are you looking for an starter model? The IS 1 infrared motion detector comes with perfected technology in unadorned design with a new lens in housing colour. It is particularly reliable, can be mounted on the wall or ceiling and is the ideal solution for monitoring areas with precision targeting in front of buildings and on driveways. It also provides excellent quality of detection and can be tailored to the specific conditions on site. The detector is wired up so quickly and easily, there's enough time left for gardening.

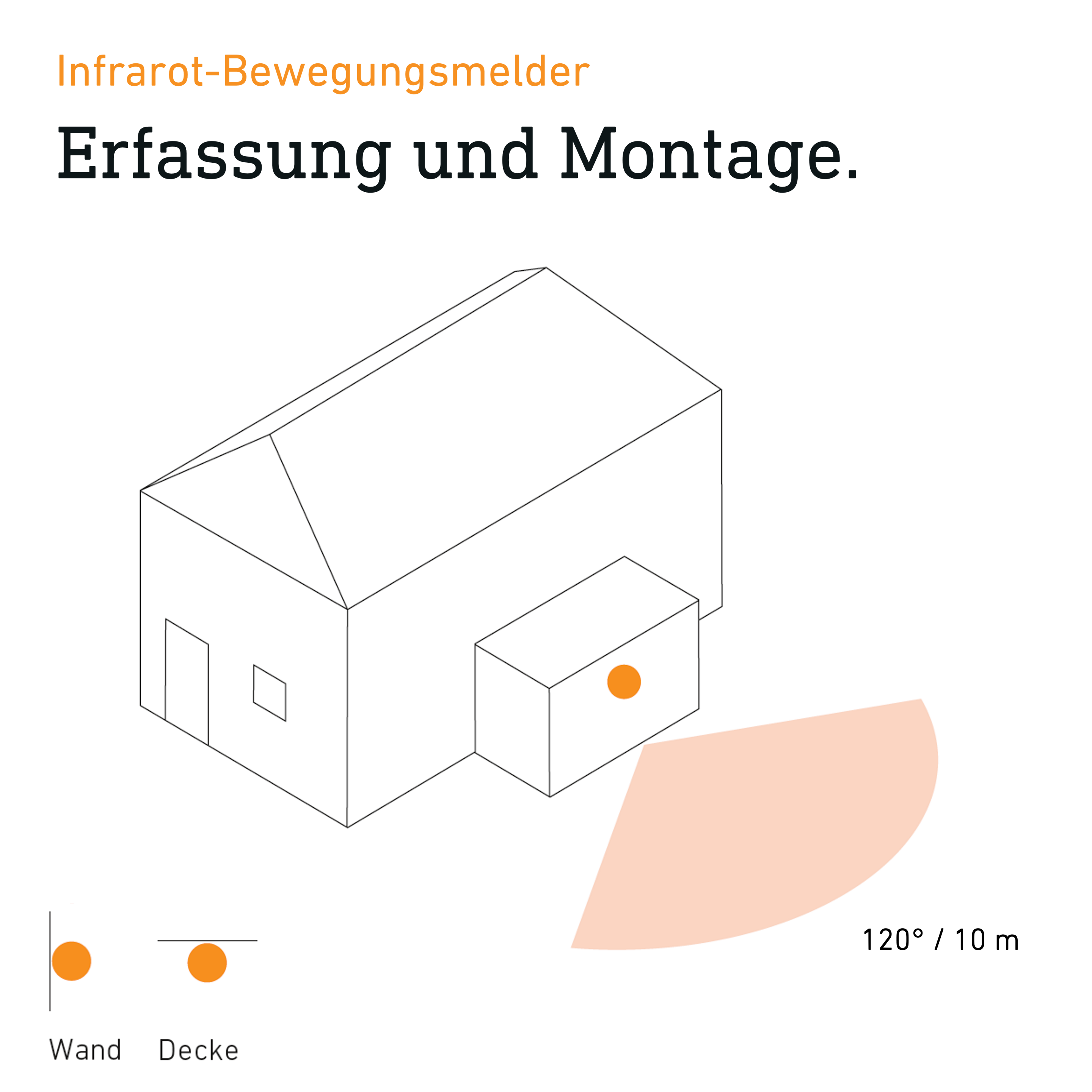

- Infrared motion detector with 120° detection angle and up to 10 m detection range
- For wall or ceiling mounting indoors and outdoors (IP 54), ideal for targeted detection of small areas
- Sensor lens in housing colour, made of UV-resistant plastic for a long service life
- Sensor can be swivelled horizontally by 60° and vertically by 180°, incl. cover panels for exact adjustment of the detection area
- Stepless adjustment of time (8 sec. - 35 min.) and switch-on brightness (2-2000 lux)
- Reliably switches any light source with a total of max. 500 W switching load (LED light sources max. 250 W/50 pcs.)
- Incl. mounting accessories - plastic-free packaging
Identification
Version
Motion detectors
Dimensions
Dimensions L × W × H
120 x 80 x 50 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
500 W
Switching output 1 resistive
500 W
Fluorescent lamps ECG
250 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
500 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
500 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
125 W
LED lamps > 8 W
250 W
Capacitive load in µF
88 µF
Sensor technology
Max. mounting height
3,00 m
Sensor technology
passive infrared
Detection angle
120 °
Opening angle
40 °
Sneak-under protection
No
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (9 m²)
Tangential range
r = 10 m (105 m²)
Switching zones
260 switching zones
Mounting height
1,80 – 3,00 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Protection class
II
Ambient temperature
from -20 up to 50 °C
Mounting location
ceiling
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
all round the building
courtyard & driveway
front door
outdoors
terrace / balcony
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
3 years
Corner wall bracket included
No

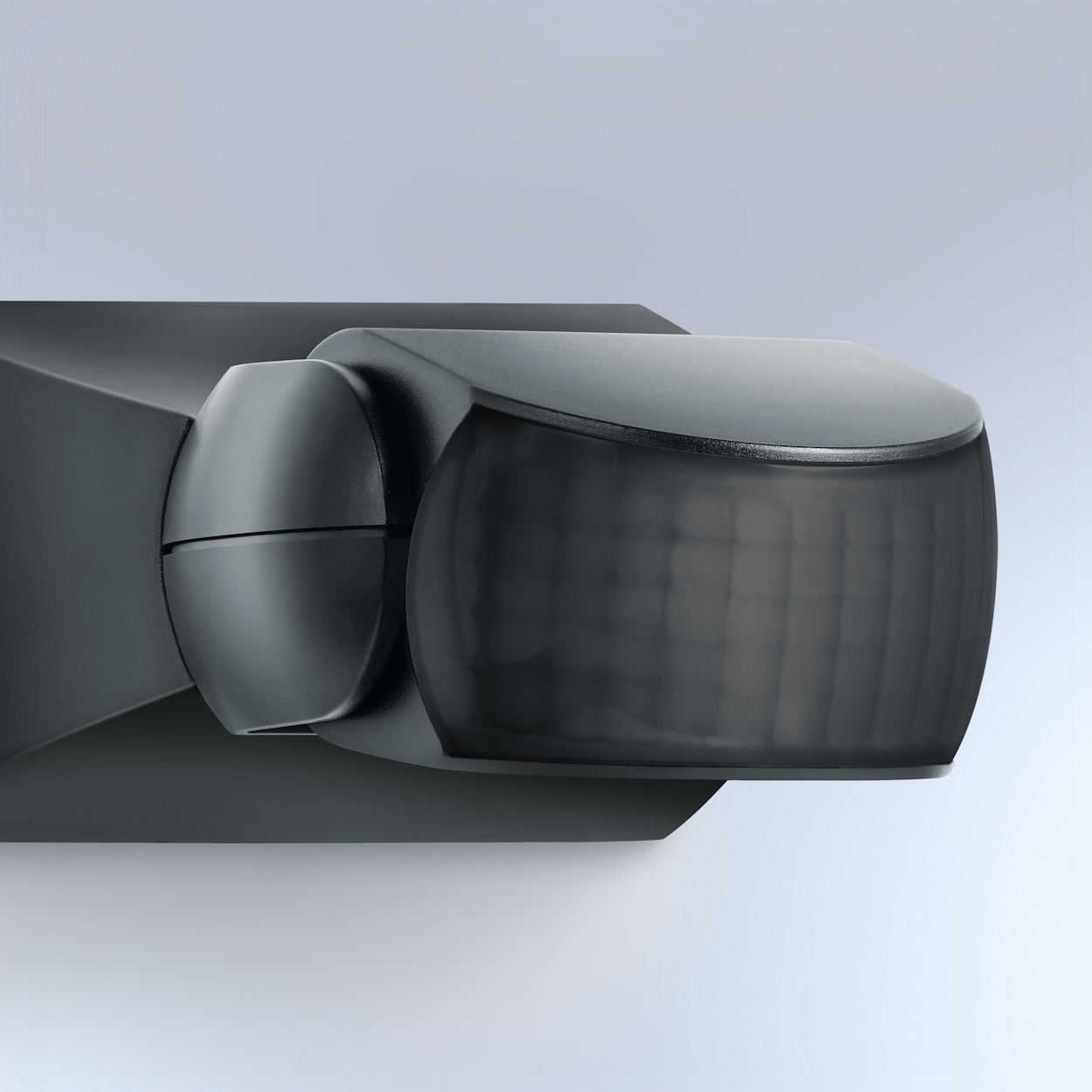

UV-resistant plastic

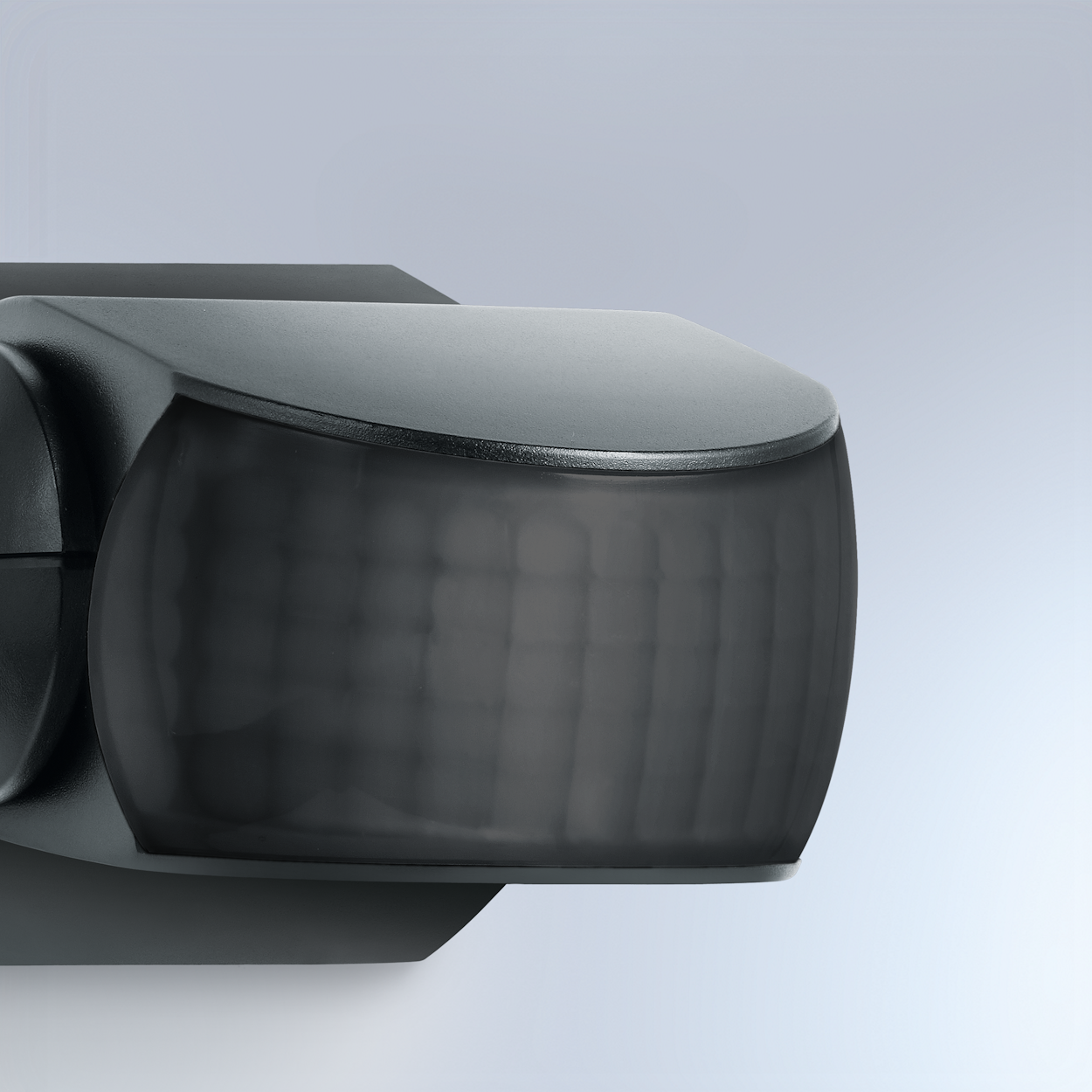

Lens in housing colour
Technical drawing

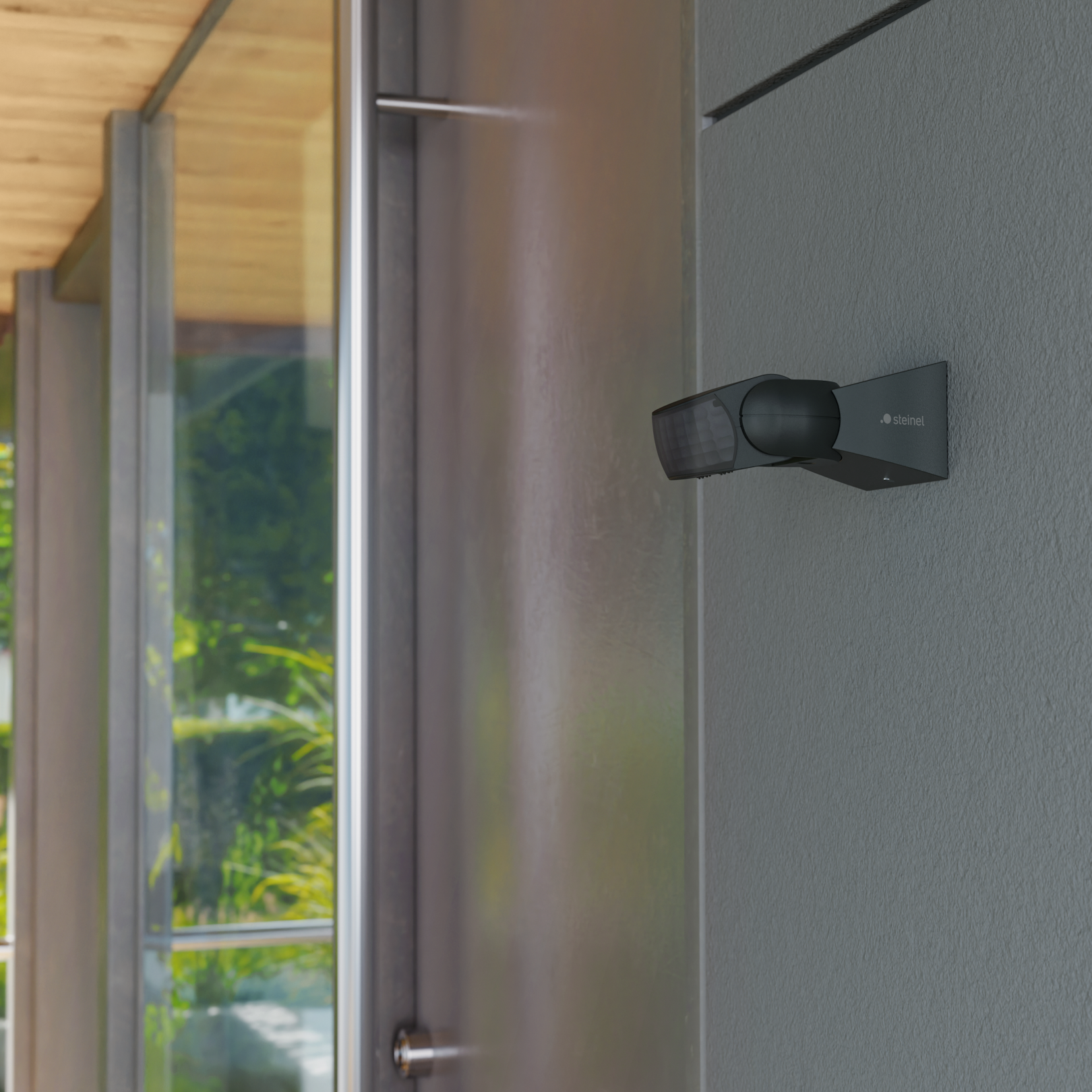

Sensor detection range
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
