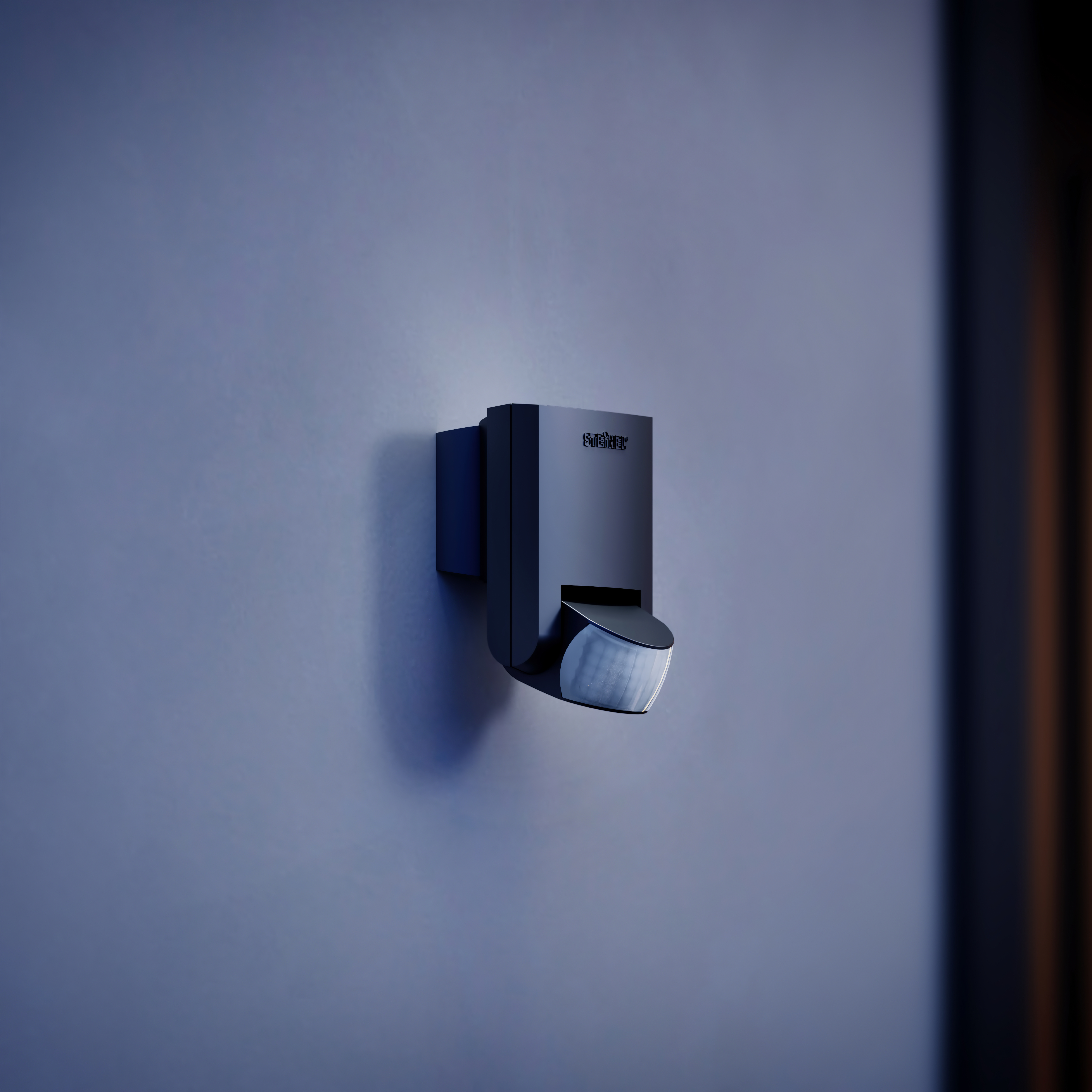

Steinel IS 130-2 black

ELDAS® no. 535 996 850

EAN-No. 4007841 660215

Are you looking for a way to enter the world of motion detectors? The IS 130-2 infrared motion detector is a STEINEL customer favourite of recent years, not meaning that we're resting on our laurels. We've continued to optimise both its design and technology. The sensor classic is the ideal solution for monitoring areas with precision targeting in front of buildings and on driveways. It also provides excellent quality of detection and can be tailored to the specific conditions on site. The motion detector is wired up so easily and quickly, your neighbour won't even notice you installing it.

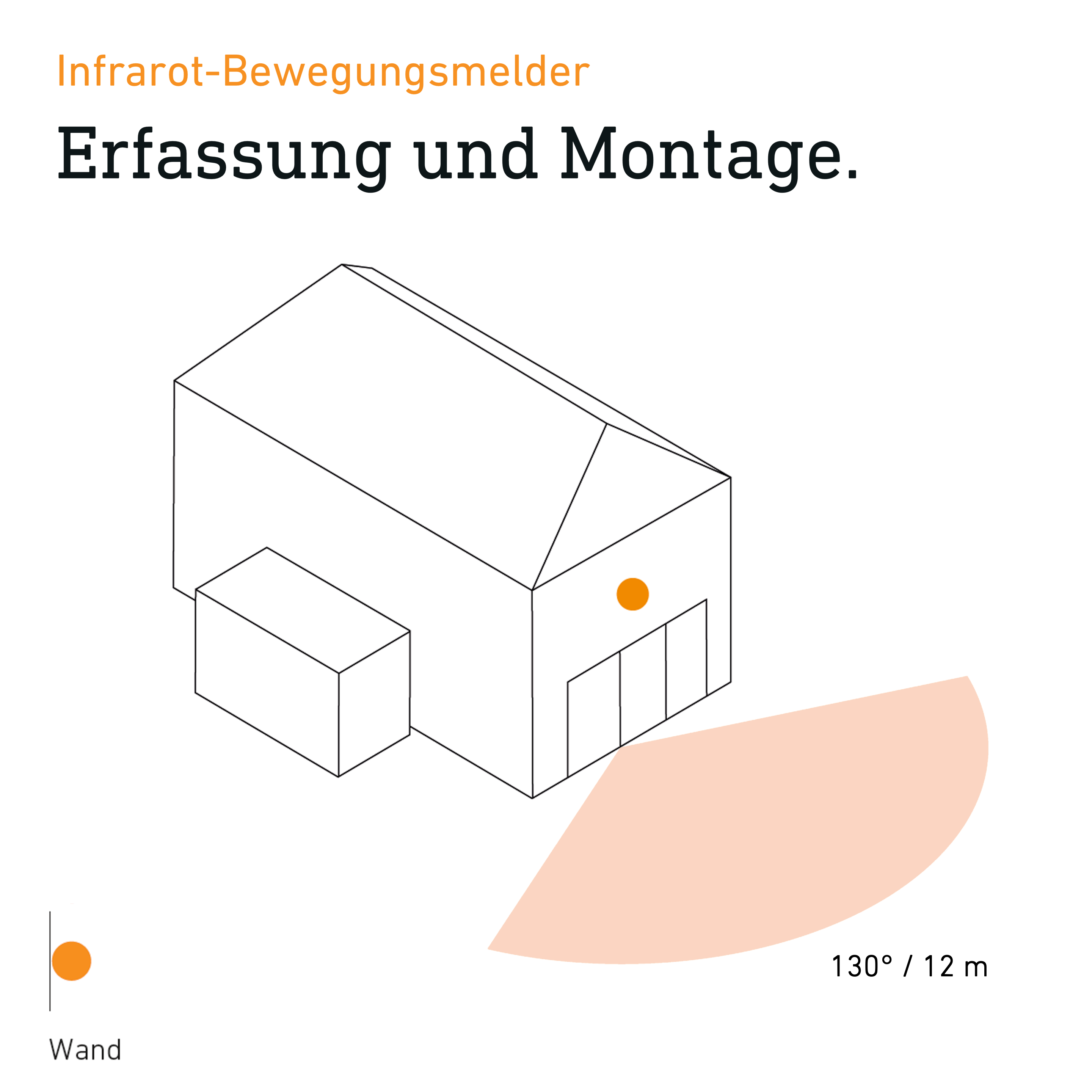

Infrared motion detector with 130° detection angle and up to 12 m detection range
For wall mounting indoors and outdoors (IP 54), ideal for targeted detection at the house
Made of UV-resistant plastic for a long service life
Sensor can be swivelled horizontally by 50° and vertically by 90°, incl. cover panels for exact adjustment of the detection area
Stepless adjustment of time (8 sec. - 35 min.) and switch-on brightness (2-2000 lux)
Reliably switches any light source with a total of max. 600 W switching load (LED light sources max. 250 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 87 x 78 x 110 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 600 W

Switching output 1 resistive 600 W

Fluorescent lamps ECG 250 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 500 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 500 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 125 W

LED lamps > 8 W 250 W

Capacitive load in µF 88 µF

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

Detection angle 130 °

Opening angle 40 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (10 m²)

Tangential range r = 12 m (163 m²)

Switching zones 260 switching zones

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

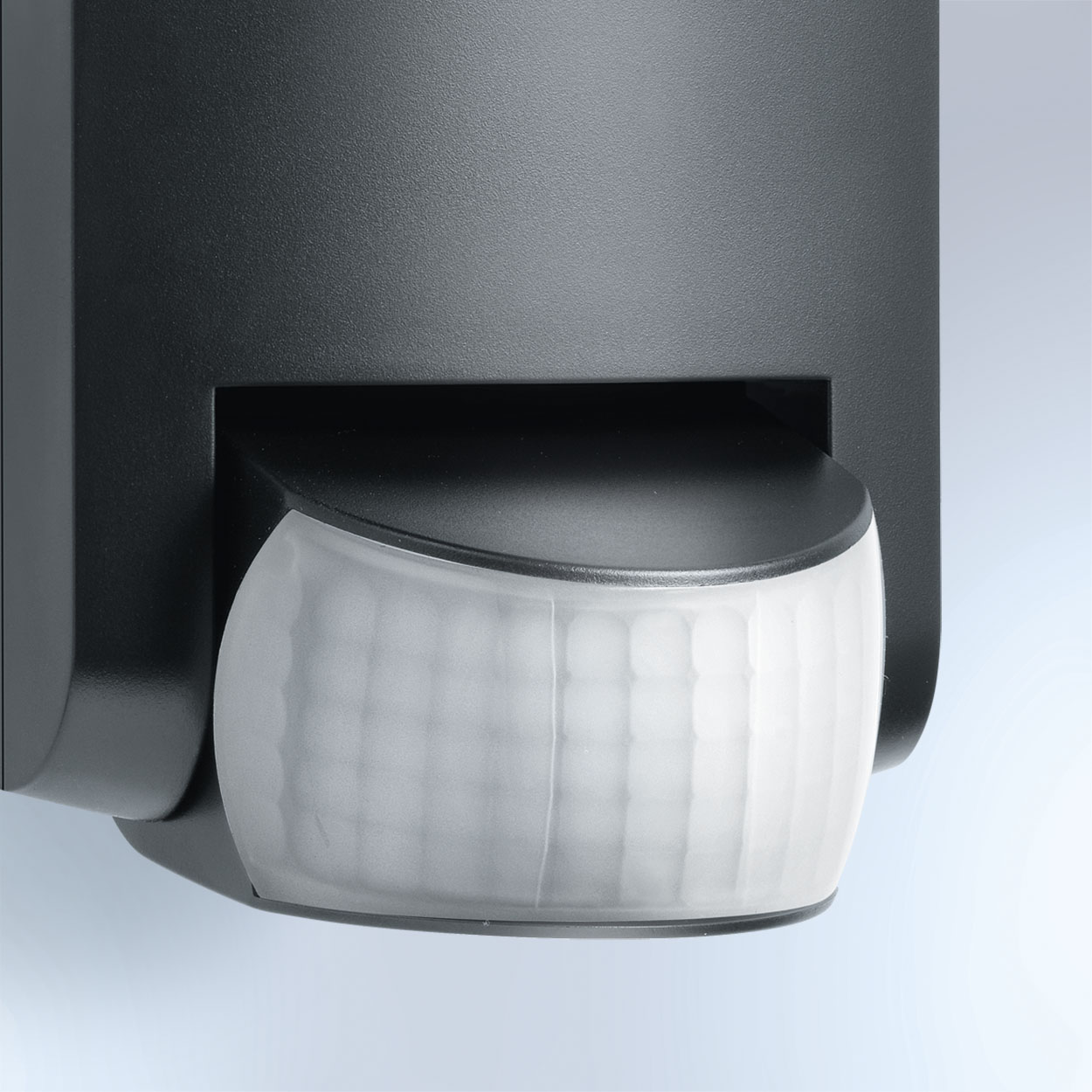

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor
