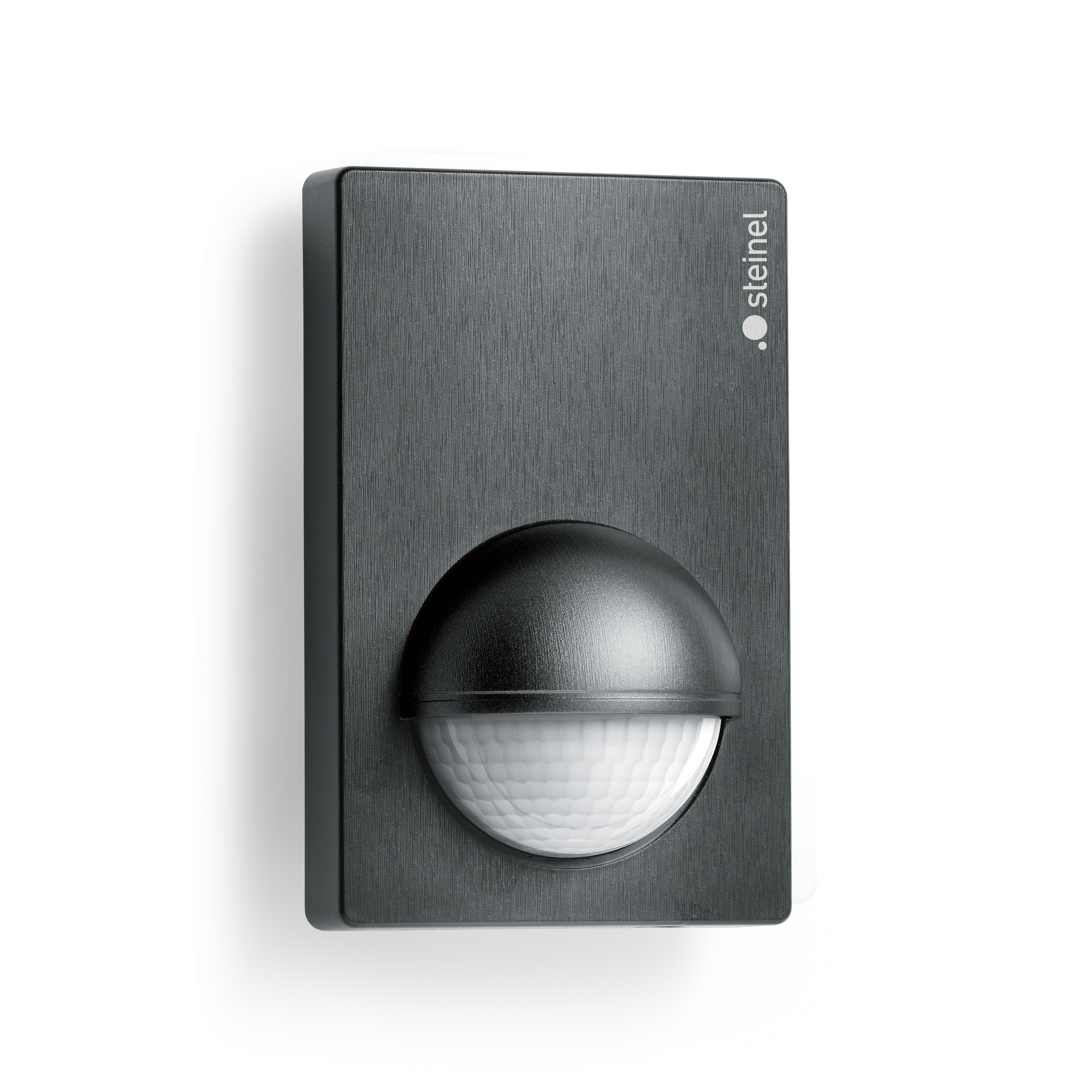

Steinel IS 180-2 black

ELDAS® no. 535 996 190

EAN-No. 4007841 603113

Running, hopping, romping around. Children will use any open space to play in and forget the world around them. The elegant wall-mounted IS 180-2 infrared motion sensor gives best protection against unintentional damage or accidentally being knocked off. Ideal for monitoring large properties and outdoor spaces, such as in front of the home, on driveways, in gardens or courtyards - and, being so slim, can also be mounted on non-concealed surfaces. A corner wall bracket for corner mounting inside and outside is available as an accessory. Joined with plenty of scope for creative play.

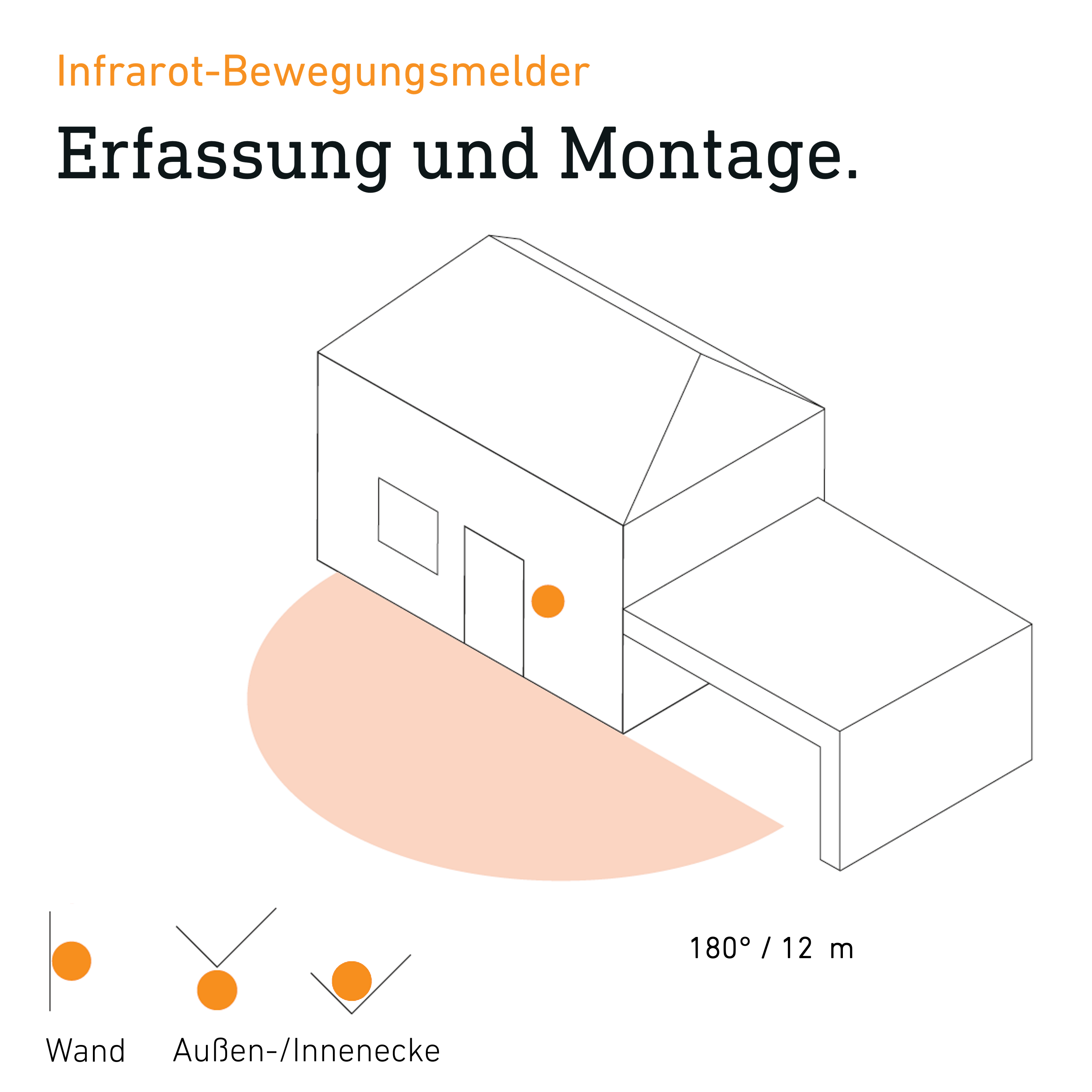

Infrared motion detector with 180° detection angle and up to 12 m detection range

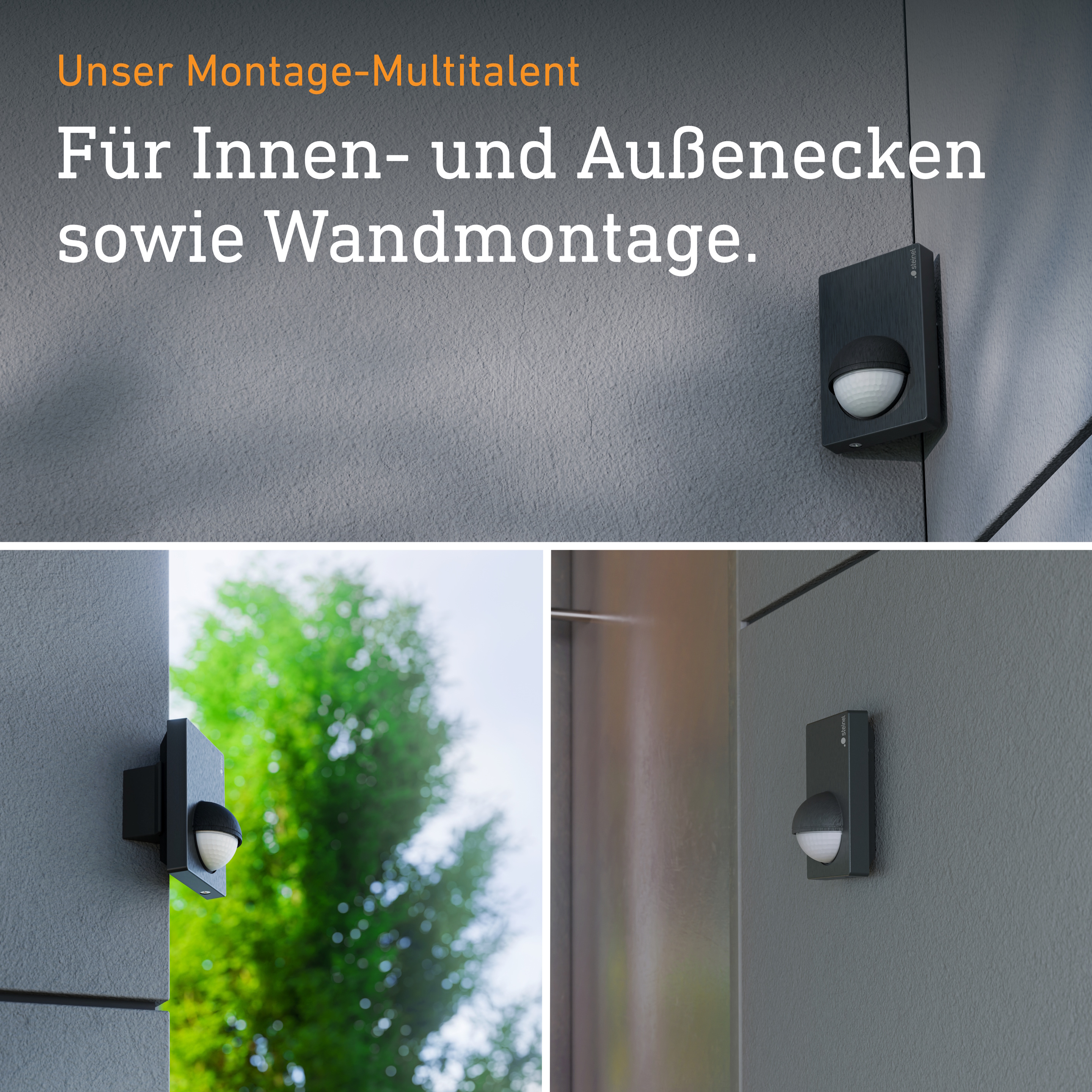

For wall or corner mounting (with optional corner wall bracket) indoors and outdoors (IP 54), ideal for monitoring large properties and outdoor areas, e.g. house fronts and driveways
Simple and flat design, made of UV-resistant plastic for a long service life
The range can be adjusted to max. 12 m or max. 5 m by turning the multi-lens, incl. cover panels for exact adjustment of the detection range
Stepless adjustment of time (5 sec. - 15 min.) and switch-on brightness (2-2000 lux)
Reliably switches any light source with a total of max. 1000 W switching load (LED light sources max. 350 W/50 pcs.)

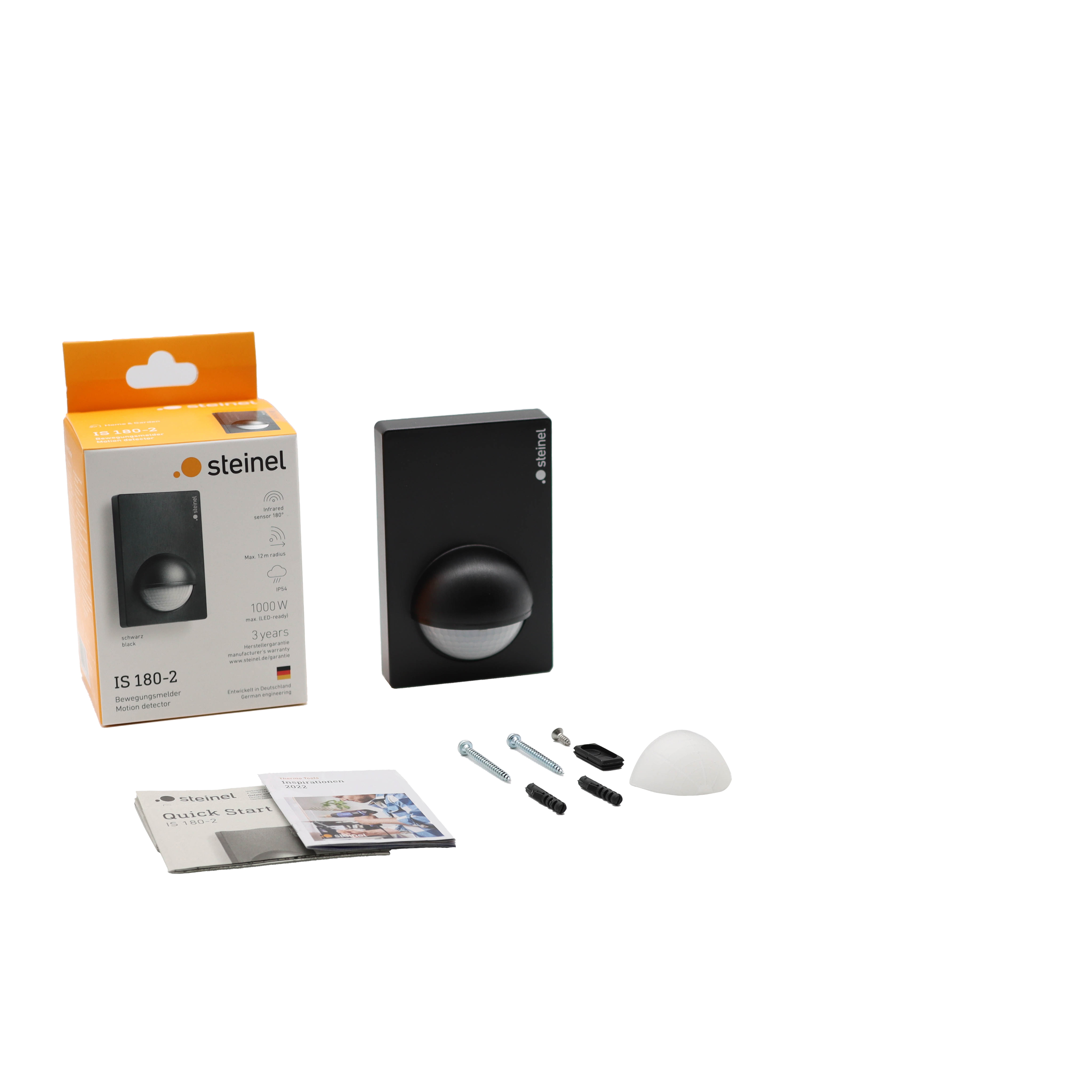

Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 56 x 76 x 120 mm

Electrical

Mains connection 230 V / 50 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 350 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 900 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 175 W

LED lamps > 8 W 350 W

Capacitive load in µF 132 µF

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 1.5 m (4 m²) / r = 3 m (14 m²)

Tangential range r = 5 m (39 m²) / r = 12 m (226 m²)

Switching zones 504 switching zones

Mounting height 1,80 – 4,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 50 °C

Mounting location corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

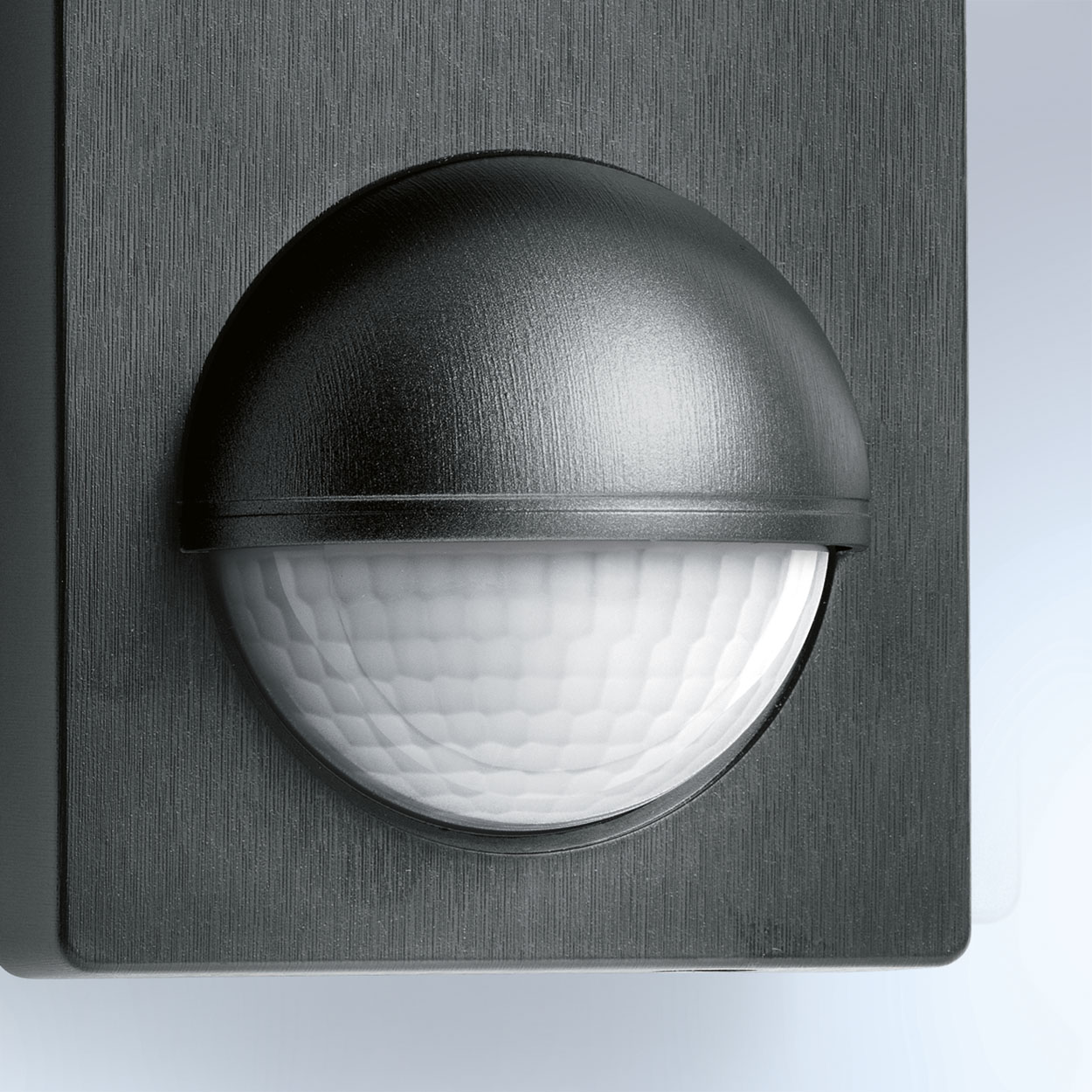

UV-resistant plastic

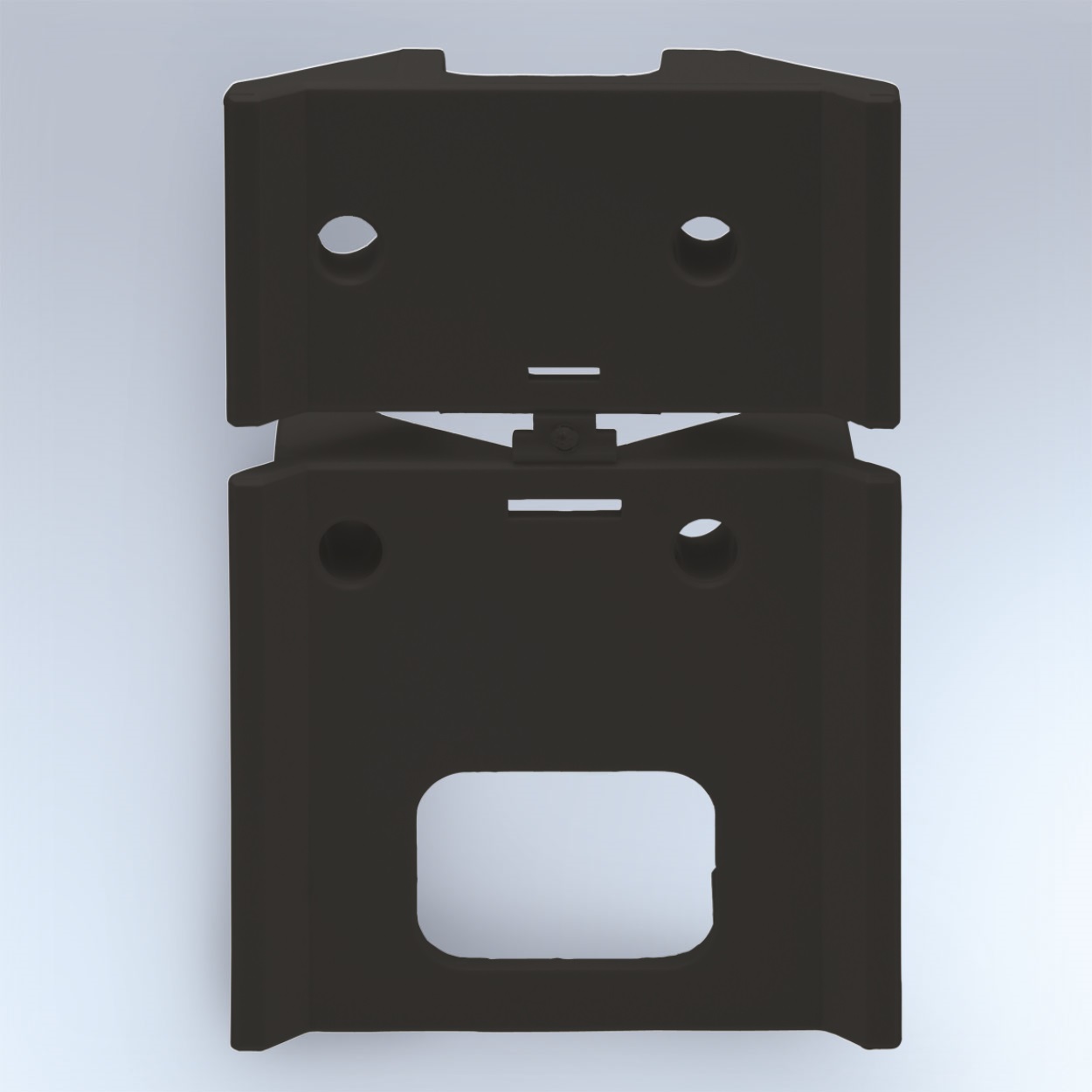

Optional corner wall mount bracket

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor

Data sheet User manual Declaration of conformity Drilling template

Corner wall mount for IS 180-2, IS 2180-2 and IS 2180 ECO white

Item no. 085148
