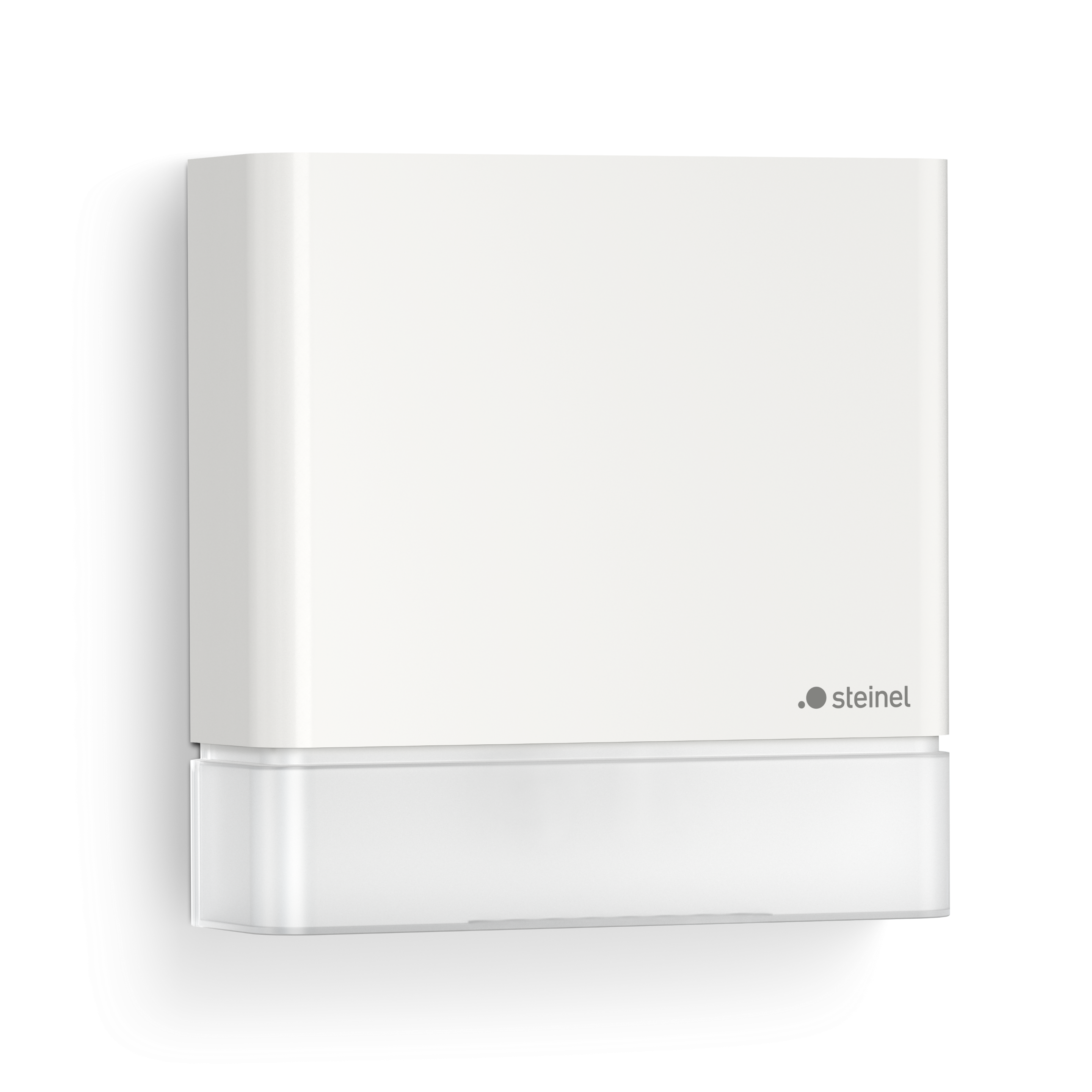

Steinel IS 180 digi white

EAN-No. 4007841 067281

Price: Please log in to see prices

The IS 180 digi presents itself in a flat, straight-lined design and impresses with its discreet lens optics. Thanks to the perfect integration of the lens into the housing, the IS 180 digi looks particularly elegant and inconspicuous compared to conventional infrared sensors - and thus always blends in perfectly with its surroundings. But the inner values are also convincing. With the IS 180 digi, we have achieved a real breakthrough in infrared sensor technology. Radial movements can now be detected much more precisely with the 180-degree sensor. And the previously very time-consuming delimitation of the sensor area is now much quicker and easier, simply digitally and zone by zone. The sensitivity is also digitally adjustable for each of the three zones. In combination with our newly developed mirror technology, the pyro sensors detect tangential as well as radial movements equally well. This means that the direction of movement within a radius of up to 8 m is irrelevant for the detection quality. Sensors and lights can be easily set, operated and networked via Bluetooth using the STEINEL Connect App.

  • Infrared motion detector with digitally adjustable 180° detection angle and up to 8 m detection range

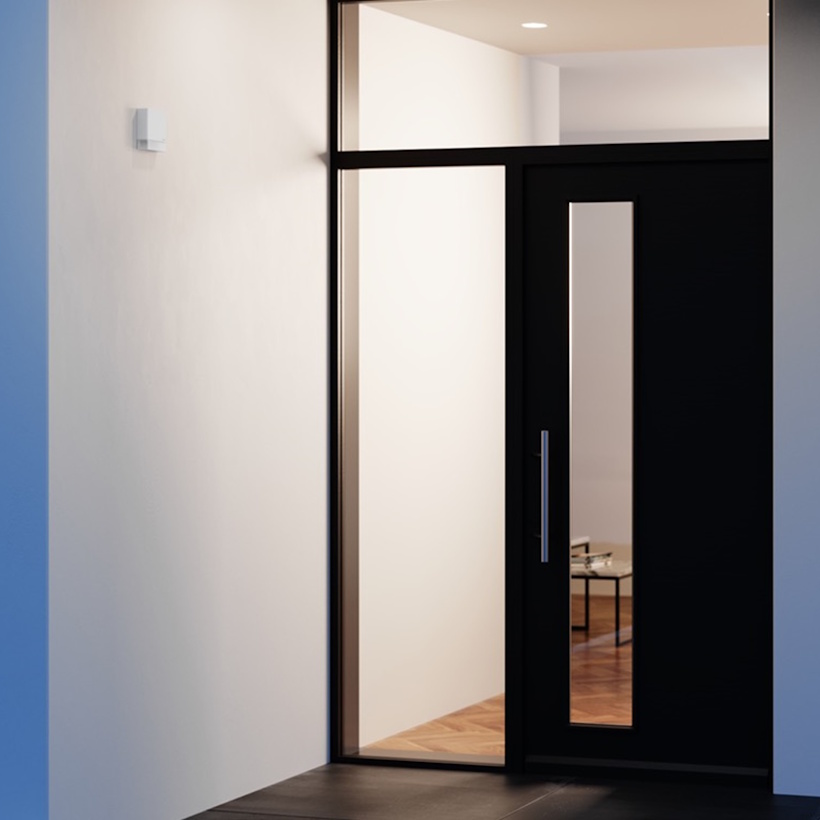

  • For wall mounting indoors and outdoors (IP54), ideal for targeted detection at the house, fits any type of house thanks to its simple and flat design and hidden sensor

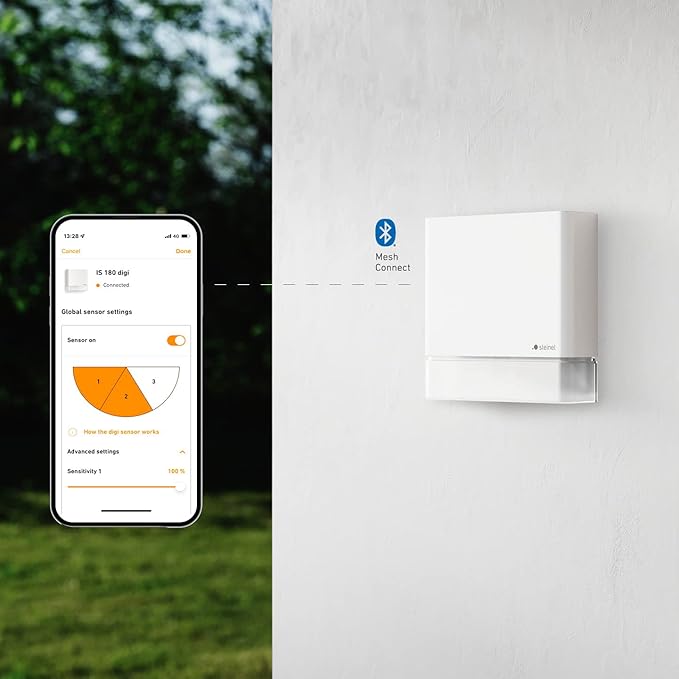

  • Wireless networking via Bluetooth Mesh and easy setting via STEINEL Connect App

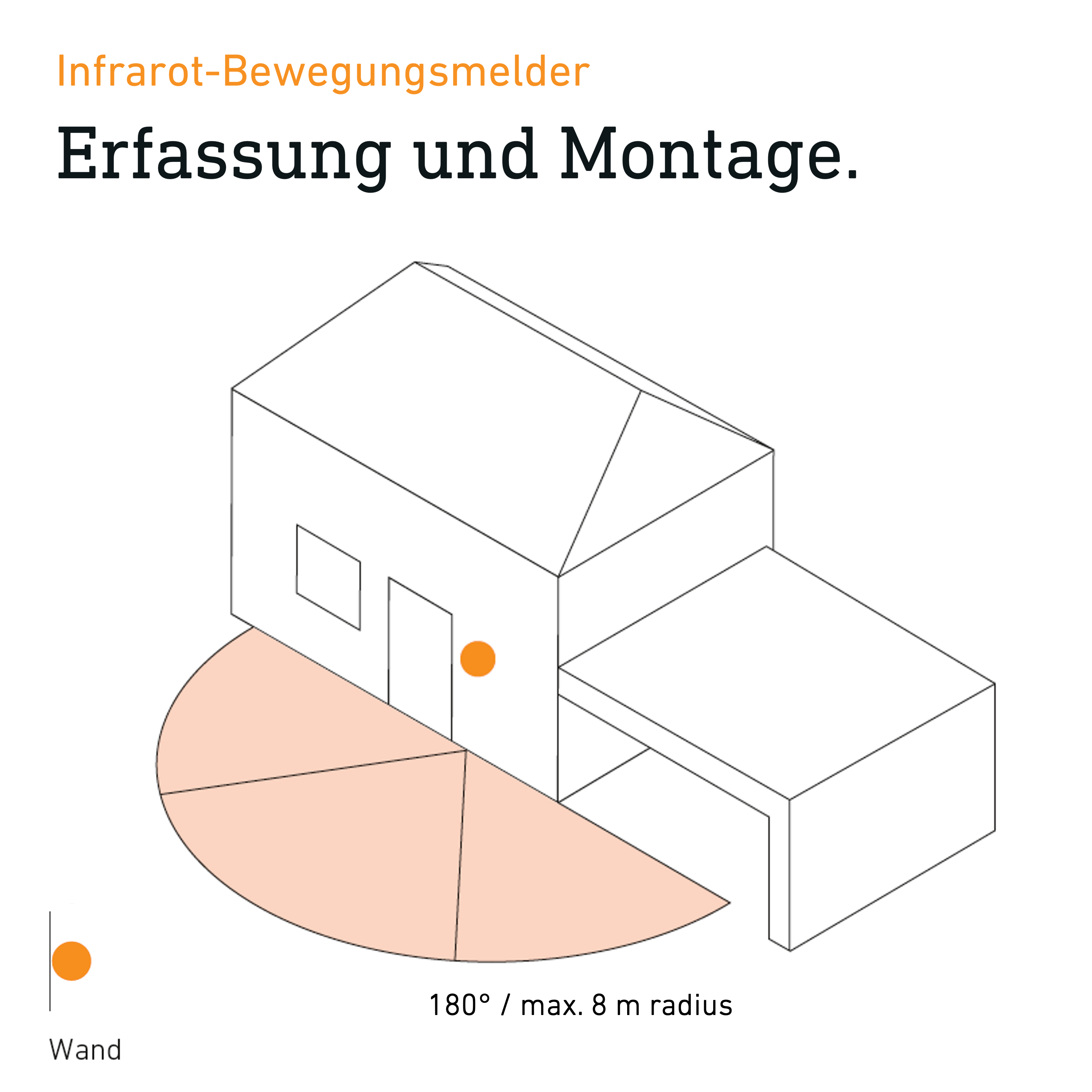

  • The detection area is divided into three zones, each of which can be digitally activated and deactivated individually and whose sensitivity can be adjusted. The detection quality is equally reliable regardless of the walking direction
  • Stepless adjustment of time (5 sec. - 60 min.) and switch-on brightness (2-1000 lux), adjustable continuous light
  • Reliably switches any light source with a total of max. 1000 W switching load (LED light sources max. 350 W/50 pcs.)
  • Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 42 x 116 x 116 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 1000 W
Switching output 1 resistive 1000 W
Fluorescent lamps ECG 430 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 400 VA
Fluorescent lamps parallel-compensated 400 VA
Switching output 1 low-voltage halogen lamps 1000 VA
LED lamps < 2 W 16 W
LED lamps > 2 W < 8 W 64 W
LED lamps > 8 W 64 W
Capacitive load in µF 88 µF
Own consumption 0,6 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Opening angle 90 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Radial range r = 6 m (57 m²)
Tangential range r = 8 m (101 m²)
Mounting height 1,80 – 2,5 m
Optimal mounting height 2 m

Connectivity

Networking via Bluetooth Mesh

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 5 s – 60 Min.
Base light function No
Main light adjustable No
Functions Motions sensor Adjustable fade time when switching on and off Capture zone definition Feedback indicator Night economy mode Normal / test mode Neighbouring group function Relay output Light sensor
Settings via Bluetooth Smartphone Tablet
With remote control No
Twilight setting teach Yes

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 40 °C
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Application room Indoors all round the building corridor / aisle courtyard & driveway front door garden outdoors terrace / balcony
Colour white
RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 3 years
Corner wall bracket included No

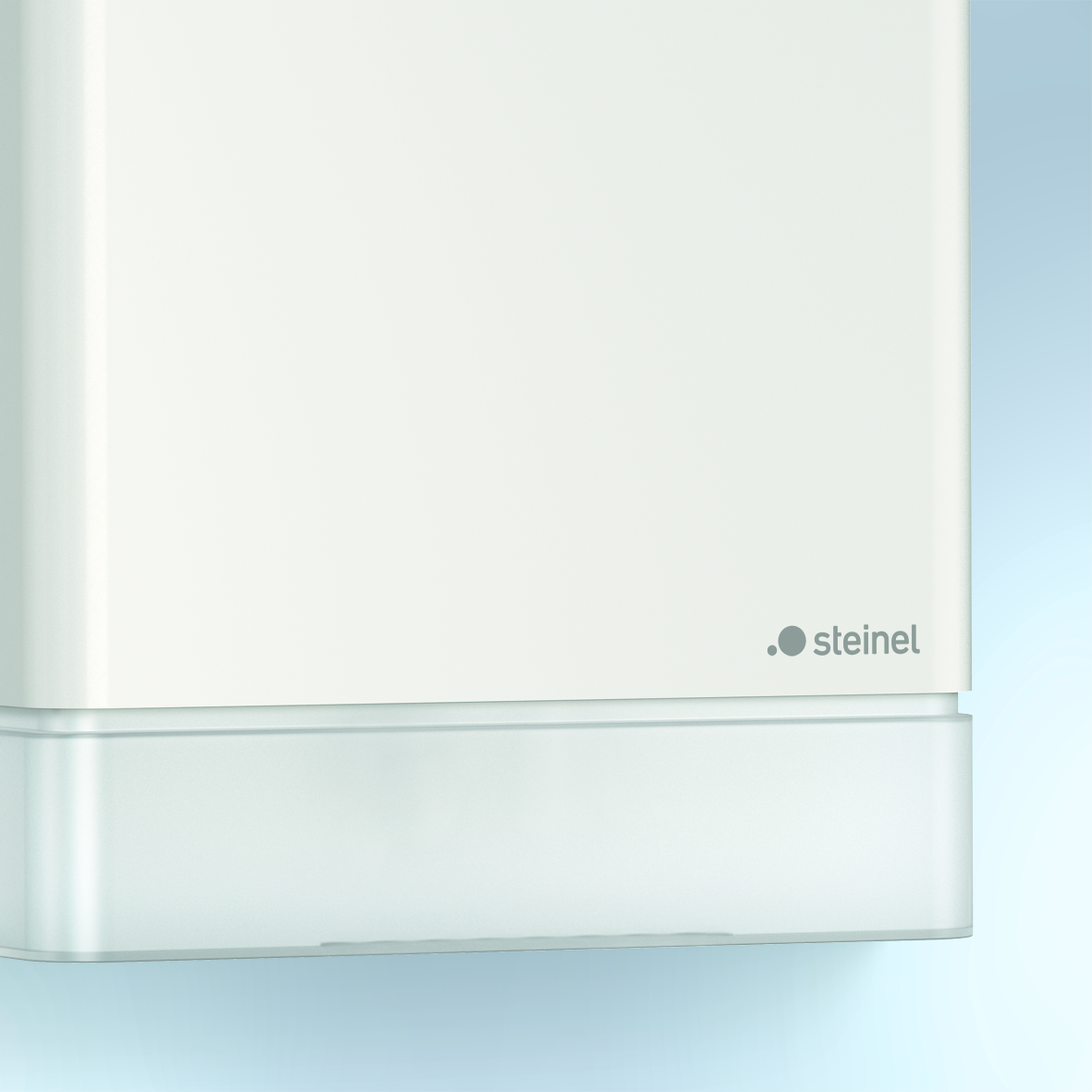

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram with switched luminaire
