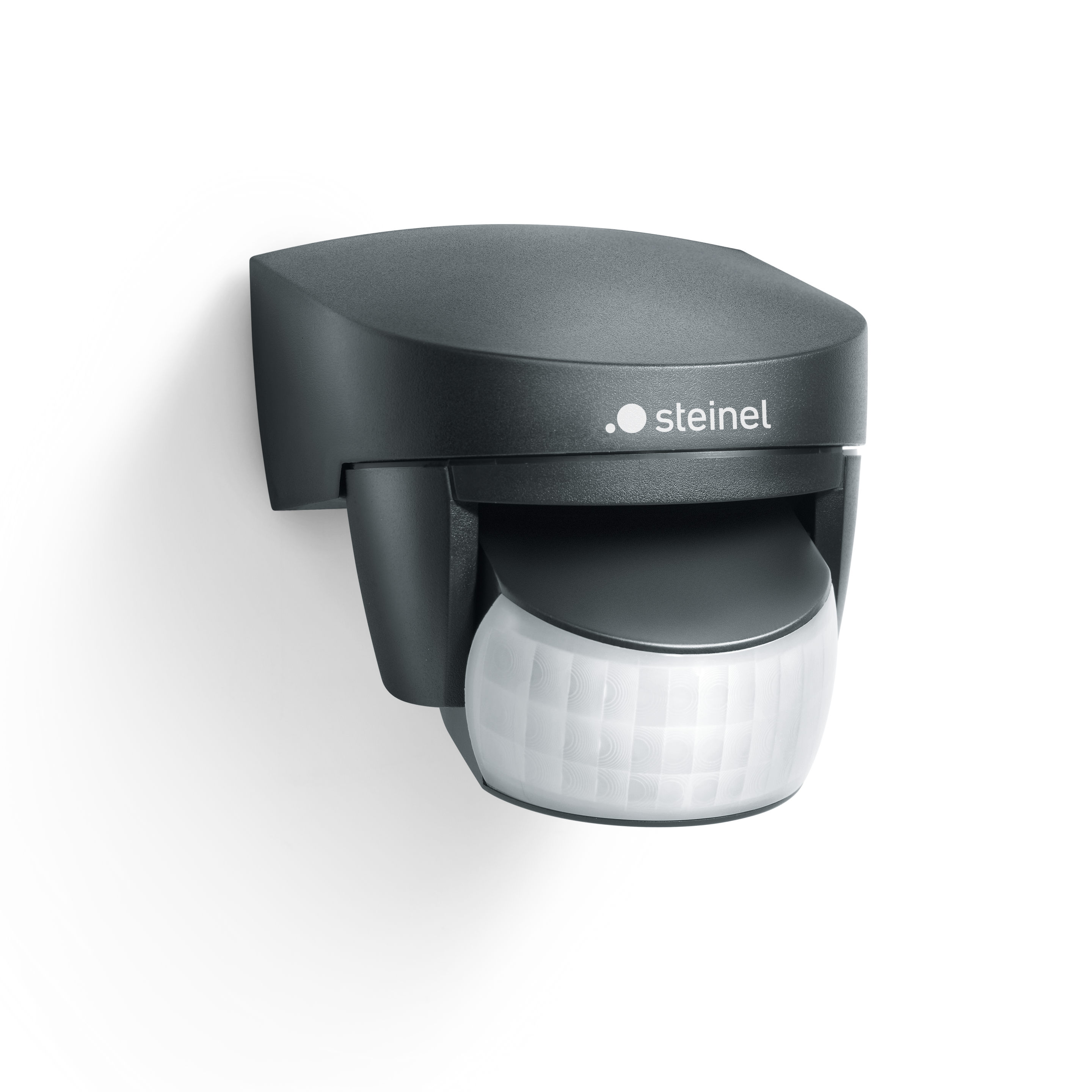

The classic one, now with even more class. Infrared motion detector IS 2140 ECO for indoors and out, ideal for targeted detection close to buildings, 140° angle of coverage, reach up to 14 m, selectable time and twilight threshold, sensor swivels through 180° and tilts through 90° for exact adjustment of the detection zone.
Identification
Version
Motion detectors
Dimensions
Dimensions L × W × H
83 x 99 x 86 mm
Electrical
Mains connection
230 – 240 V / 50 – 60 Hz
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
250 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
1000 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
125 W
LED lamps > 8 W
250 W
Sensor technology
Max. mounting height
3,00 m
Sensor technology
passive infrared
Detection angle
140 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (11 m²)
Tangential range
r = 14 m (239 m²)
Mounting height
1,80 – 3,00 m
Optimal mounting height
2 m
Lighting technology
Soft light start
No
Continuous light
selectable
Settings
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Mounting location
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
all round the building
courtyard & driveway
front door
outdoors
terrace / balcony
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
Certificates
VDE

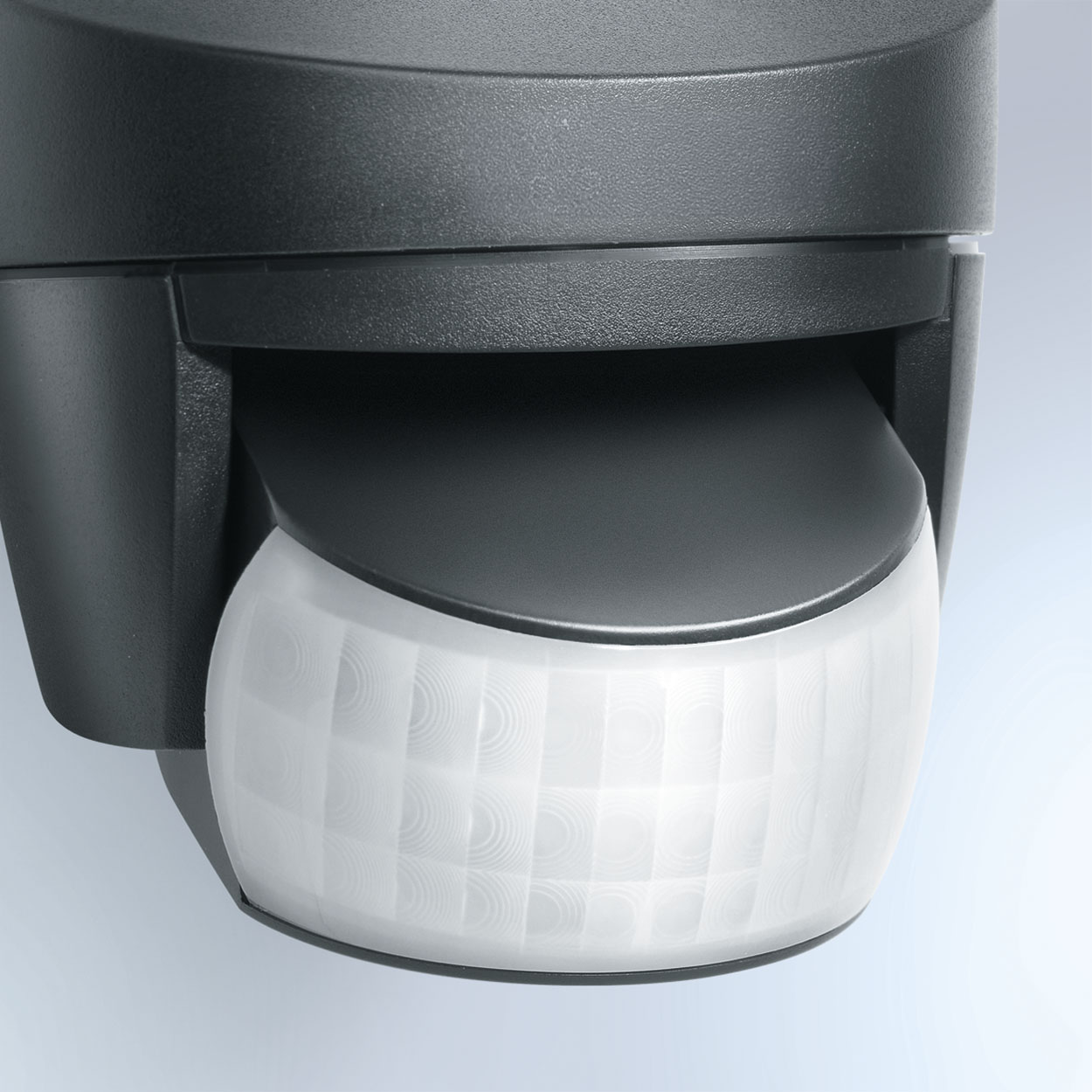

UV-resistant plastic

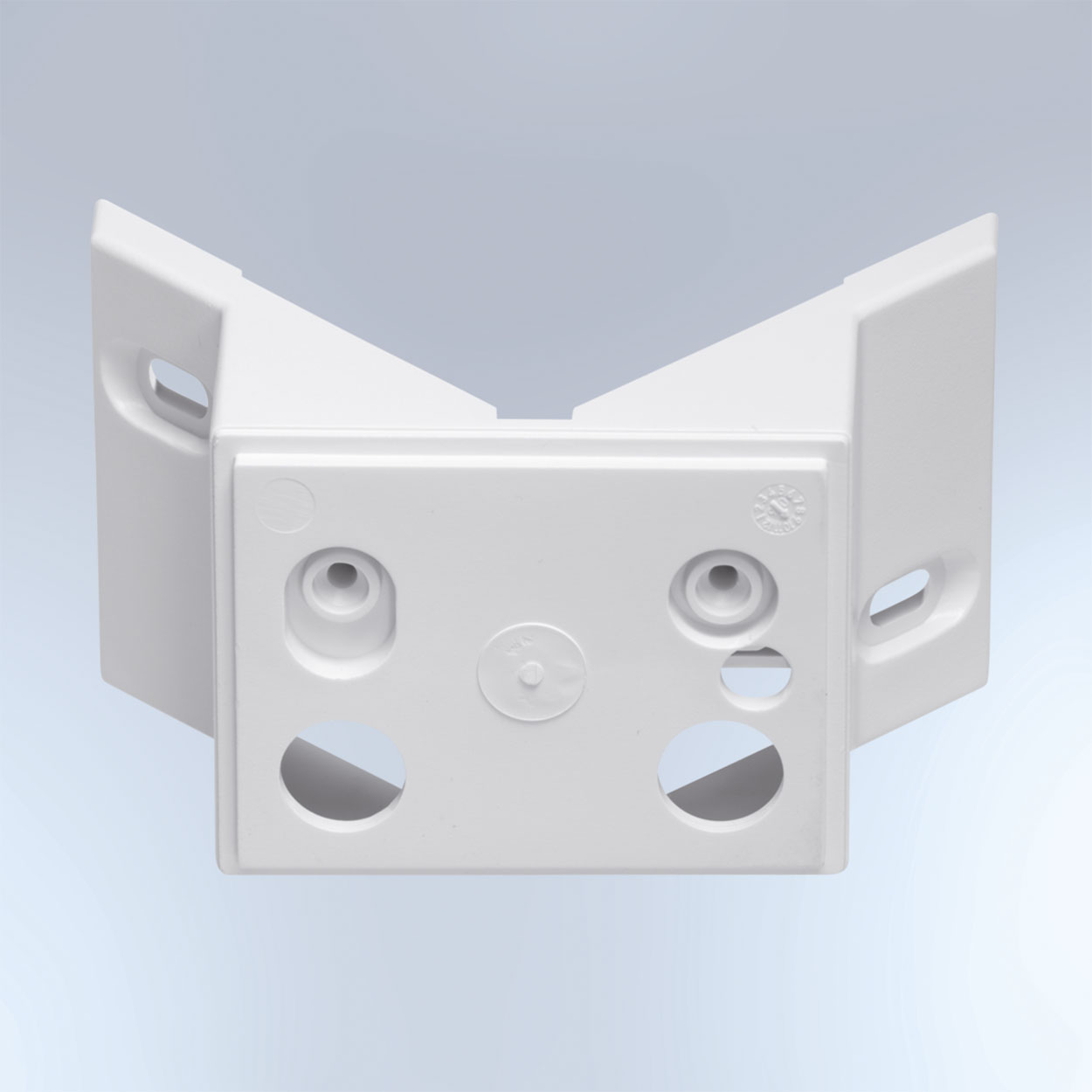

Optional corner wall mount bracket
Technical drawing
Sensor detection range
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
