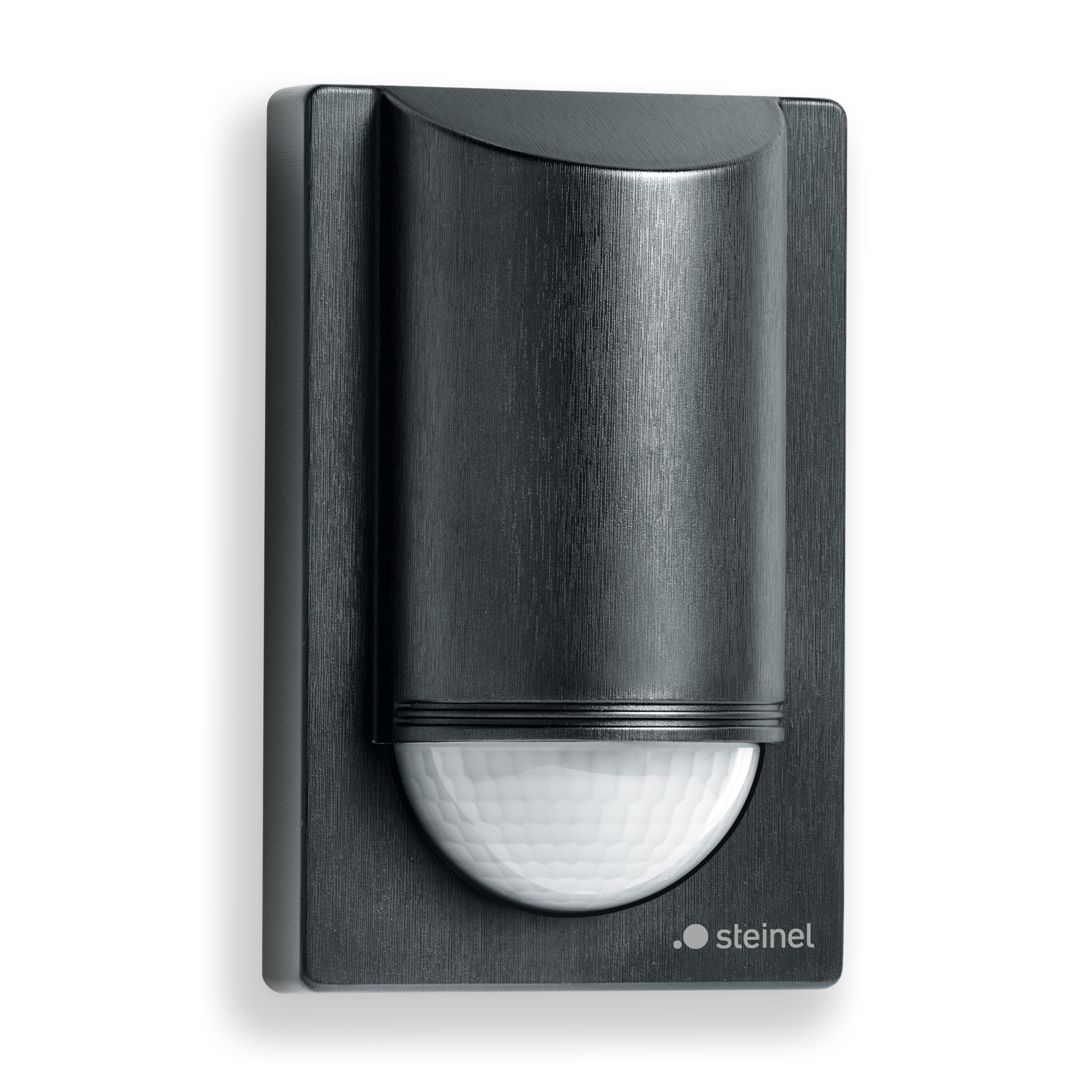

Steinel IS 2180-2 black

Motion detector for façades and grounds. Detects movement up to 12 m away.

ELDAS® no. 535 996 690

EAN-No. 4007841 603717

Colour

Black White

The IS 2180-5 infrared motion detector's small brother is the ideal choice for watching over areas of up to 200 m². Not only impressing with top-class sensor technology as well, this one also pleases the eye with its modern design that fits perfectly into the overall picture on contemporary architecture. No exception here either: flexibility in adjusting coverage angle and reach.

Identification

Version Motion detectors

Variants

Colour Black

Dimensions

Dimensions L × W × H 55 x 78 x 120 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 350 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 900 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 175 W

LED lamps > 8 W 350 W

Capacitive load in µF 132 µF

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 1.5 m (4 m²) / r = 3 m (14 m²)

Tangential range r = 5 m (39 m²) / r = 12 m (226 m²)

Detection planes 10

Switching zones 504 switching zones

Mounting height 1,8 – 4,0 m

Optimal mounting height 2,0 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 min

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Mounting location corner, wall

Application location Indoors, Outdoors

Mounting type Surface mounting

Material Plastic

Application room all round the building, courtyard & driveway, front door, outdoors, terrace / balcony

Colour Black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

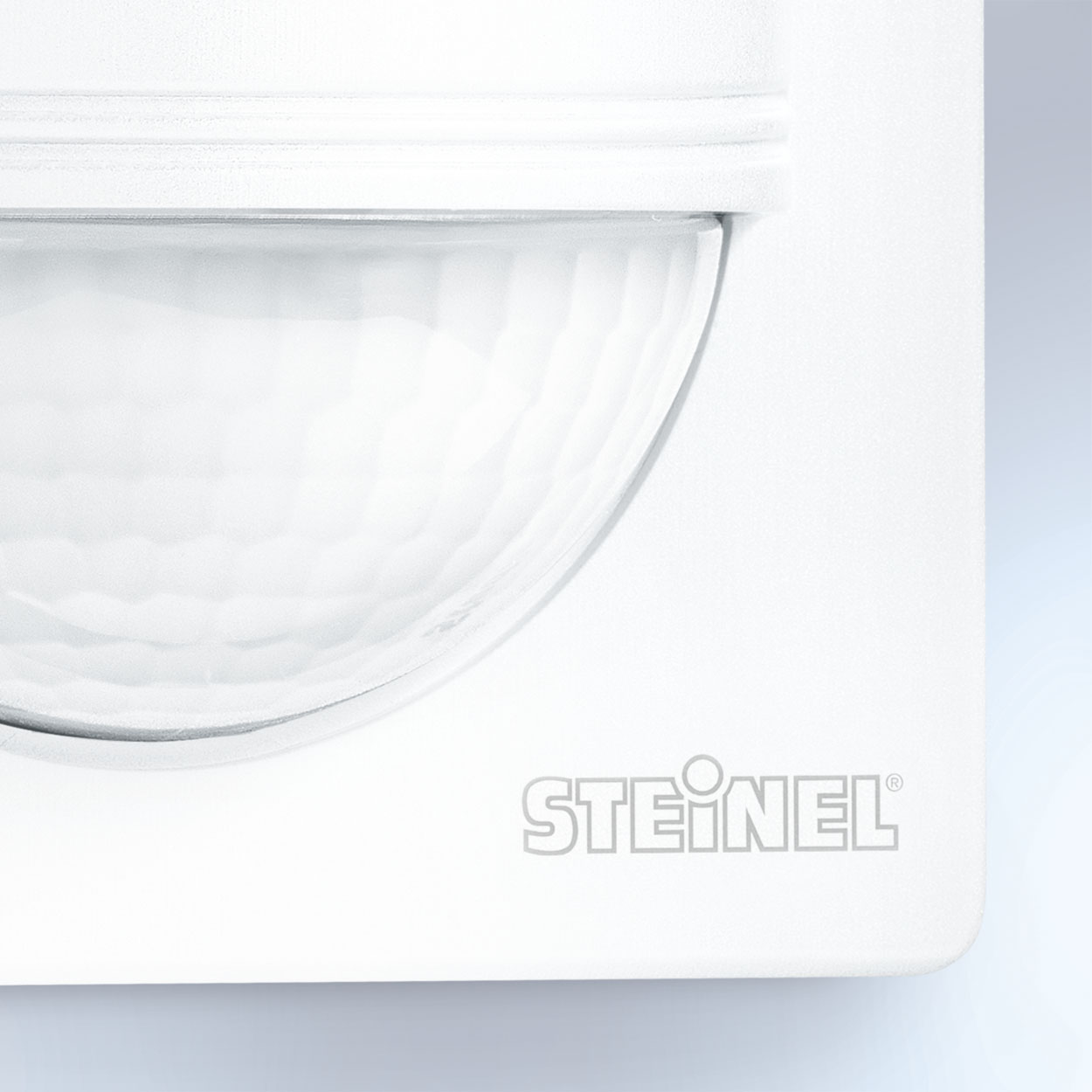

UV-resistant plastic

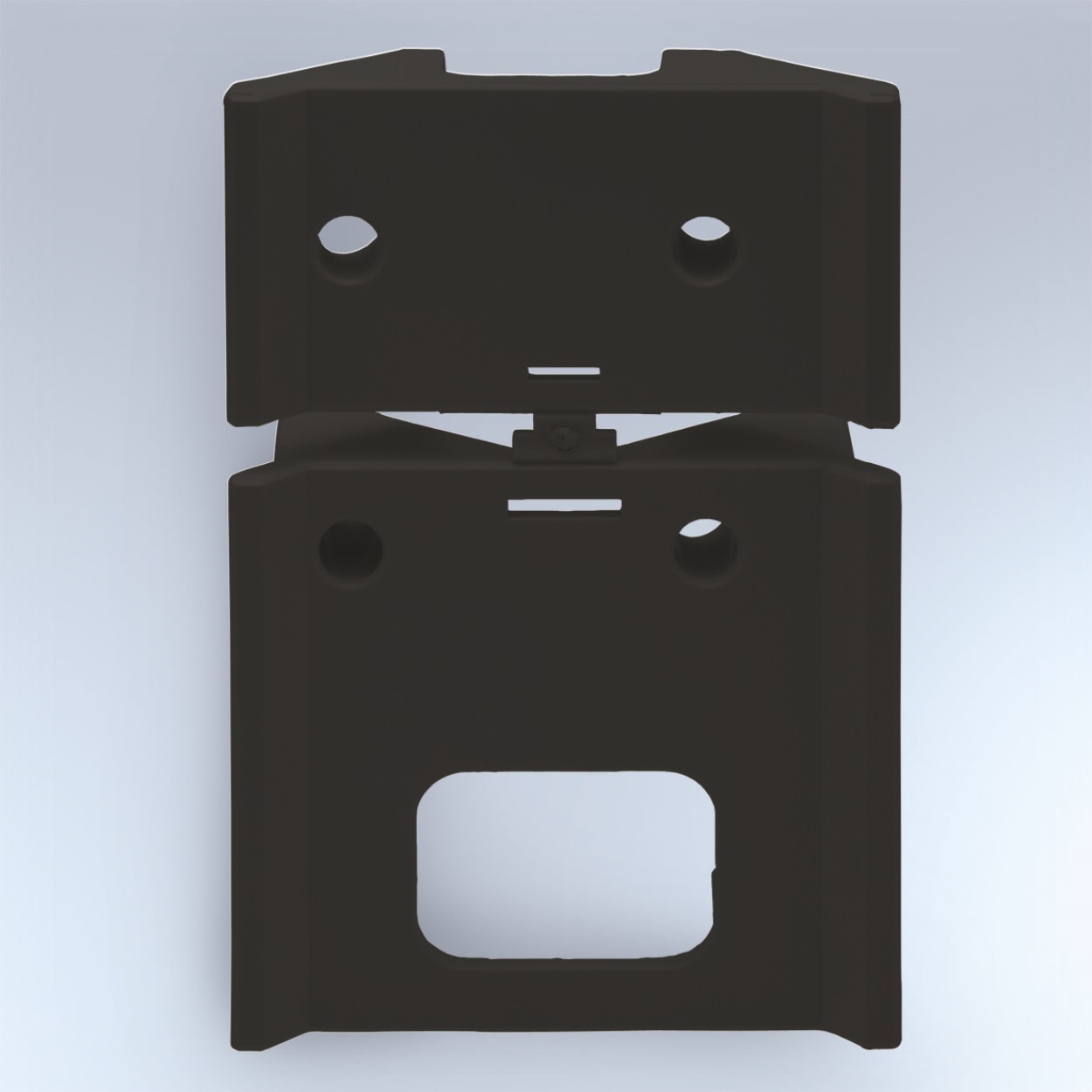

Optional corner wall mount bracket

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor
