Identification
Dimensions
Dimensions L × W × H
55 x 78 x 120 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
2000 W
Switching output 1 resistive
2000 W
Fluorescent lamps ECG
350 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
900 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
175 W
LED lamps > 8 W
350 W
Capacitive load in µF
132 µF
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 1.5 m (4 m²) / r = 3 m (14 m²)
Tangential range
r = 5 m (39 m²) / r = 12 m (226 m²)
Detection planes
10
Switching zones
504 switching zones
Mounting height
1,80 – 4,00 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
10 s – 15 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
from -20 up to 50 °C
Mounting location
corner
wall
Application location
Outdoors
Mounting type
Surface wiring

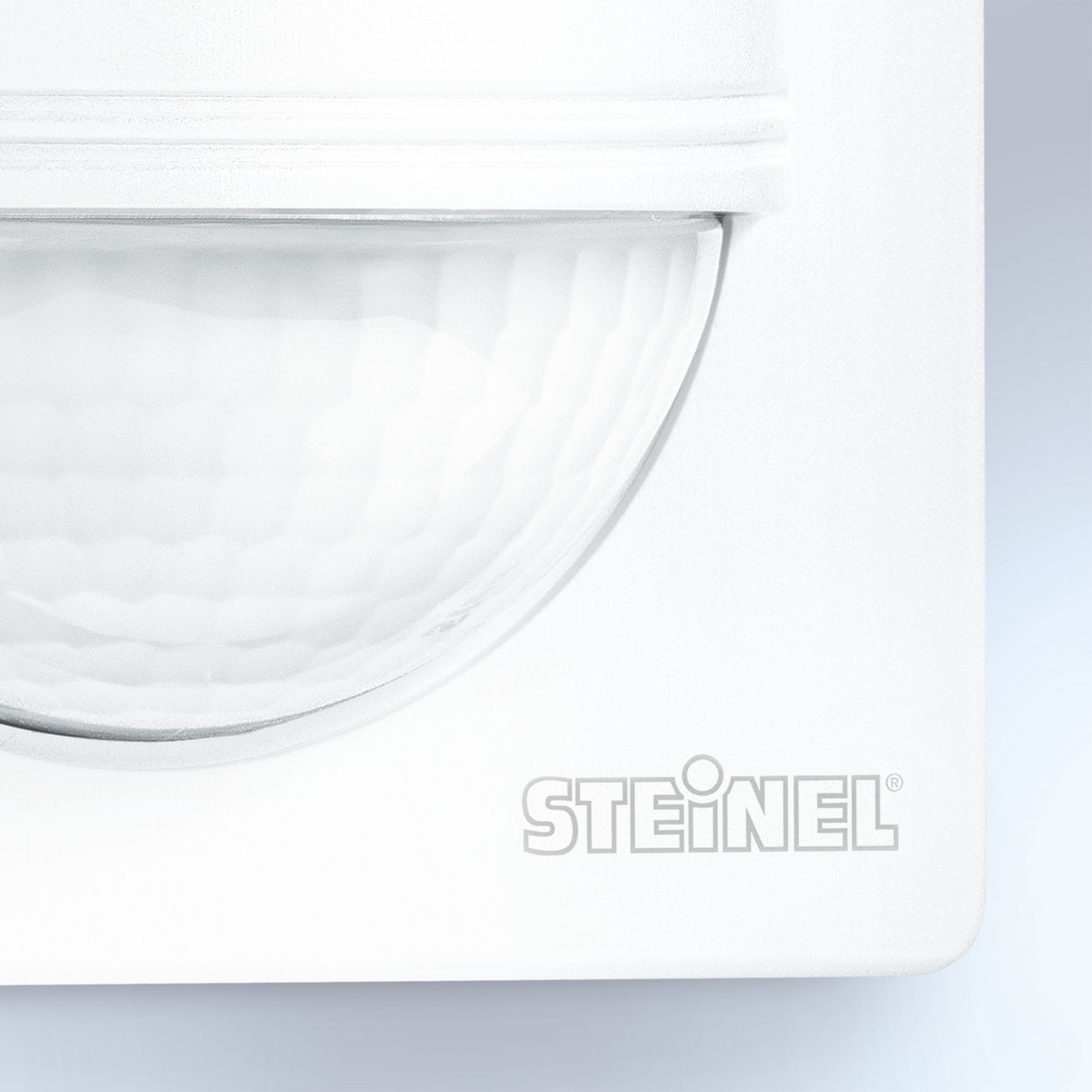

Material
Plastic
Application room
all round the building
courtyard & driveway
front door
outdoors
terrace / balcony
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years

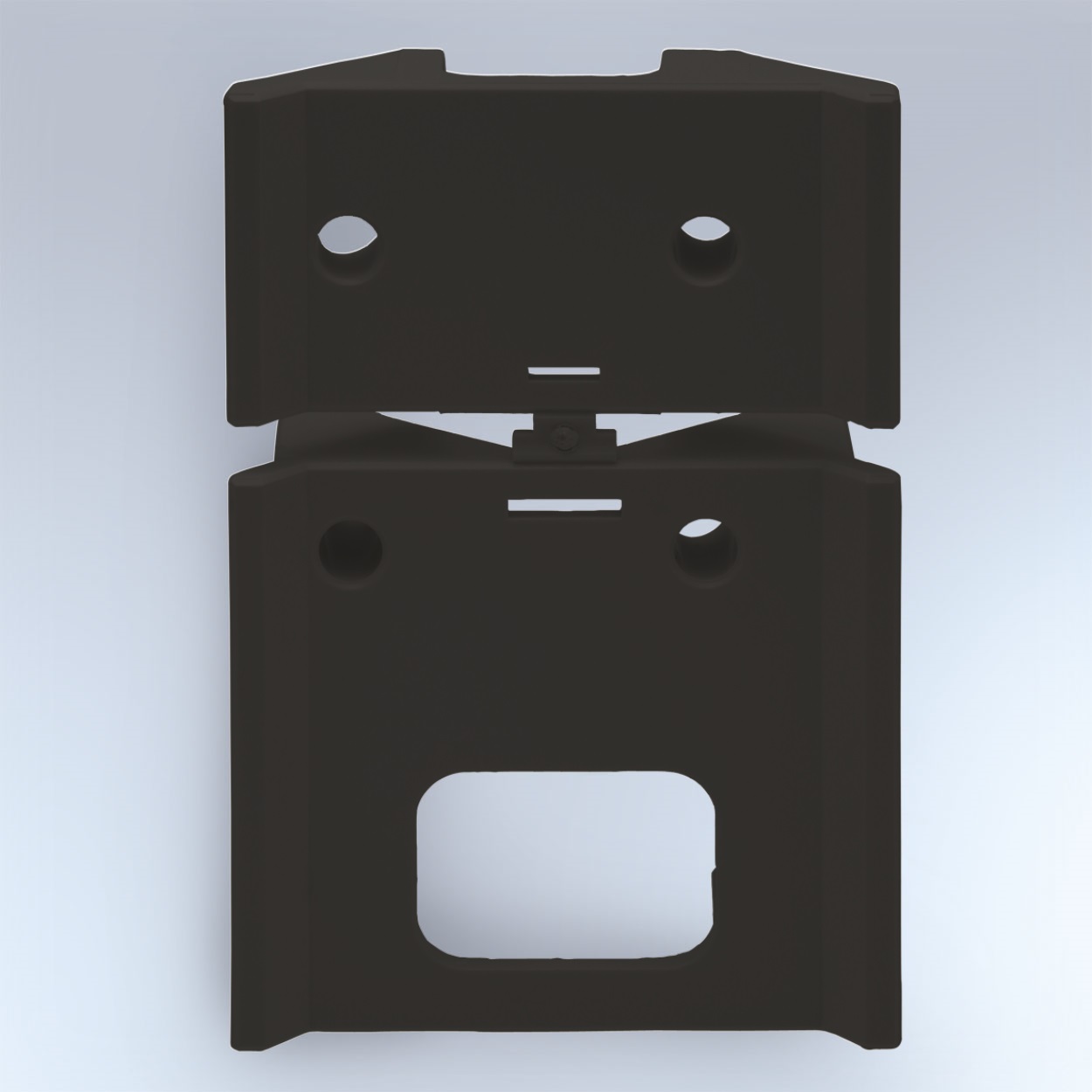

Corner wall bracket included
No
Certificates & EPREL
