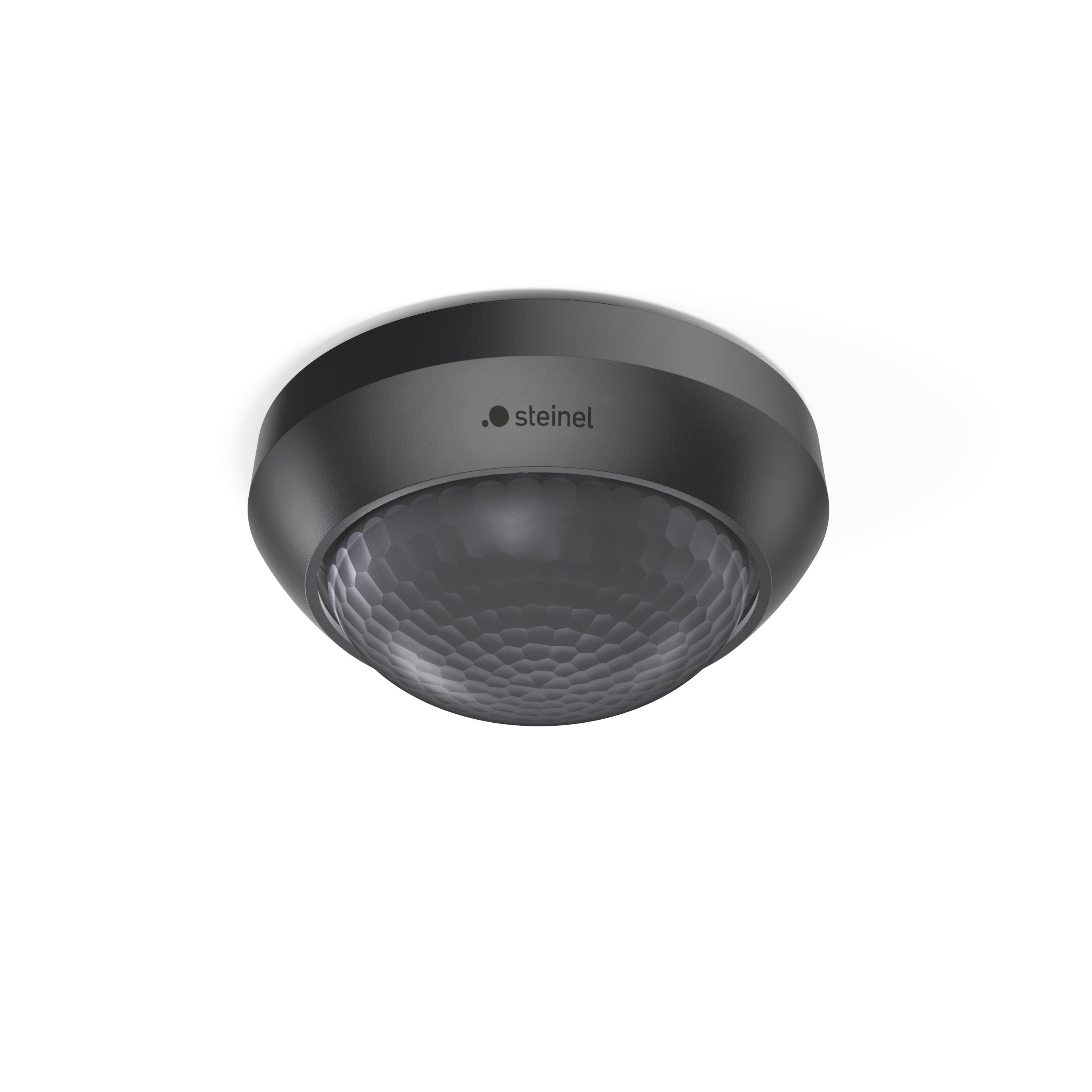

Steinel IS 2360-3 ECO 24m black

Ceiling motion detector for car parks, stores and corridors. All-round detection, indoors and out.

ELDAS® no. 535 940 508

EAN-No. 4007841 081706

Price: Please log in to see prices

Colour

Black White

Tangential range

Ø 24 m (452 m²)

The infrared ceiling sensor that satisfies all demands and is really simple to install. Simply genius: sophisticated technology that is installed and configured in just a few steps thanks to a clever installation concept. Thanks to its three pyro sensors, the infrared surface-mounted sensor has an impressive 360° angle of coverage and a range of up to 12 m. The detection zone can be set to any requirement by fitting shrouds.

Identification

Version Motion detectors

Variants

Colour Black

Dimensions

Dimensions Ø × H 121 x 57 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Switching output 1 resistive 2000 W
Fluorescent lamps ECG 500 W
Fluorescent lamps series-compensated 900 VA
Fluorescent lamps parallel-compensated 400 VA
Switching output 1 low-voltage halogen lamps 1000 VA
LED lamps < 2 W 100 W
LED lamps > 2 W < 8 W 250 W
LED lamps > 8 W 500 W
Capacitive load in µF 176 µF
Own consumption 0,56 W
Switching output 1 number of LED/fluorescent lamps 8 pcs.
Switching output 1 potential-free No

Sensor technology

Max. mounting height 6,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Opening angle 90 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range Ø 6 m (28 m²)
Switching zones 972 switching zones
Mounting height 2,5 – 6,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/Master
Networking quantity max. 5 sensors
Networking via Cable

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 1000 lx
Time setting 5 s – 15 min
Base light function No
Main light adjustable No
Settings via Potentiometers
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP54
Protection class II
Ambient temperature -20...+50 °C
Cover material (scope of delivery) Cover clips
Mounting location ceiling
Application location Indoors, Outdoors
Mounting type Surface mounting
Material Plastic
Application room Indoors, WC / washroom, changing room, corridor / aisle, function room / ancillary room, kitchenette, multi-storey / underground car park, outdoors, stairwell, warehouse
Colour Black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates VDE

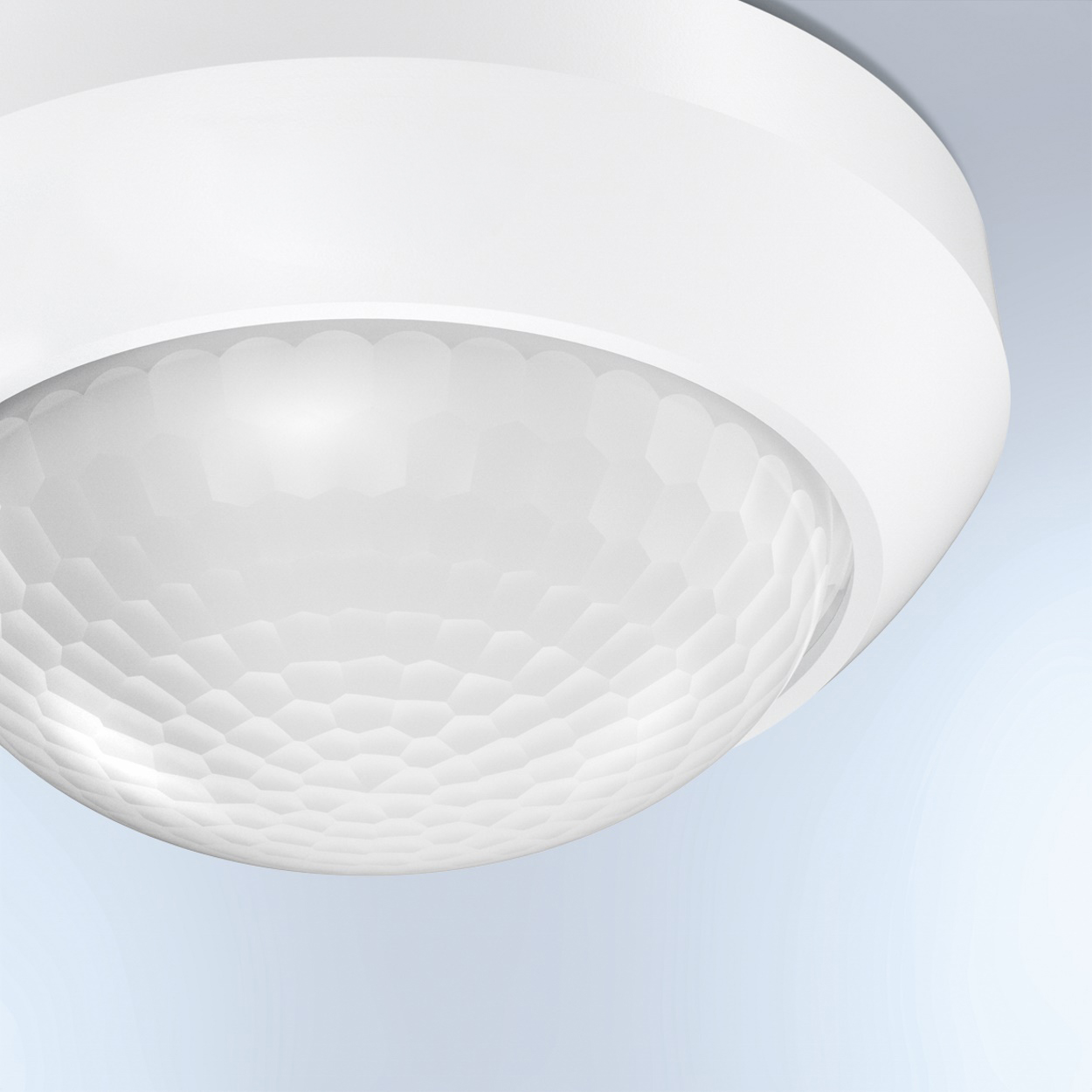

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
