Steinel IS 2360 ECO 7m white

Steinel IS 2360 ECO 7m white

ELDAS® no. 535 954 000 · EAN-No. 4007841 006556

Technical data Highlights Illustrations Wiring diagrams Downloads
Steinel

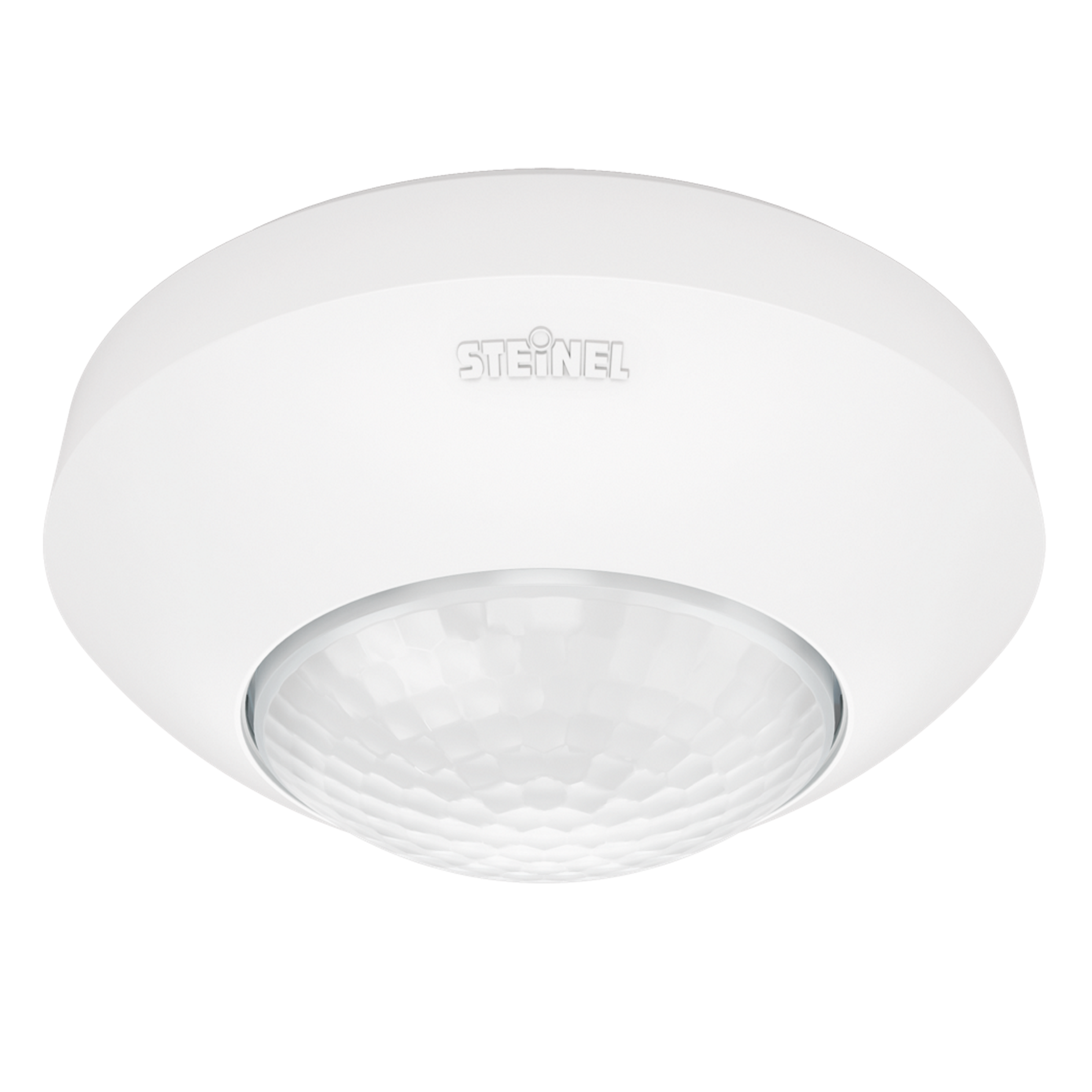

Steinel IS 2360 ECO 7m white

Ceiling motion detector for car parks, stores and corridors. All-round detection, indoors and out.

ELDAS® no. 535 954 000

EAN-No. 4007841 006556

Price: Please log in to see prices

Colour

White

Tangential range

Ø 7 m (38 m²) Ø 24 m (452 m²)

Stylish infrared ceiling sensor with an unobtrusive compact look. The surface-mounted IS 2360 motion detector with passive infrared sensor technology is the perfect choice for porches and small rooms. With a reach of 7 m and 360° detection zone, it reliably detects all movements with absolute precision. The precision IR sensor also impresses with its ease of installation.

Identification

Version Motion detectors

Variants

Colour White

Dimensions

Dimensions Ø × H 115 x 51 mm

Electrical

Mains connection 230 V / 50 – 60 Hz
Power 2000 W
Switching output 1 resistive 2000 W
Fluorescent lamps ECG 350 W
Fluorescent lamps uncompensated 500 VA
Fluorescent lamps series-compensated 500 VA
Fluorescent lamps parallel-compensated 500 VA
Switching output 1 low-voltage halogen lamps 1000 VA
LED lamps < 2 W 100 W
LED lamps > 2 W < 8 W 175 W
LED lamps > 8 W 350 W
Capacitive load in µF 132 µF
Switching output 1 number of LED/fluorescent lamps 50 pcs.

Sensor technology

Max. mounting height 4,00 m
Sensor technology passive infrared
Detection angle 360 °
Opening angle 180 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range Ø 3 m (7 m²)
Switching zones 664 switching zones
Mounting height 2,0 – 4,0 m
Optimal mounting height 2,8 m

Connectivity

Networking Yes
Type of networking Master/Master
Networking quantity max. 5 sensors
Networking via Cable

Lighting technology

Soft light start No
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 8 s – 35 min
Base light function No
Main light adjustable No
Settings via Potentiometers
With remote control No
Twilight setting teach No

Housing & material

Protection class (IP) IP54
Ambient temperature -20...+50 °C
Mounting location ceiling
Application location Indoors, Outdoors
Mounting type Surface mounting
Material Plastic
Application room Indoors, WC / washroom, changing room, corridor / aisle, function room / ancillary room, kitchenette, multi-storey / underground car park, outdoors, stairwell, warehouse
Colour White
RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Certificates & EPREL

Certificates VDE

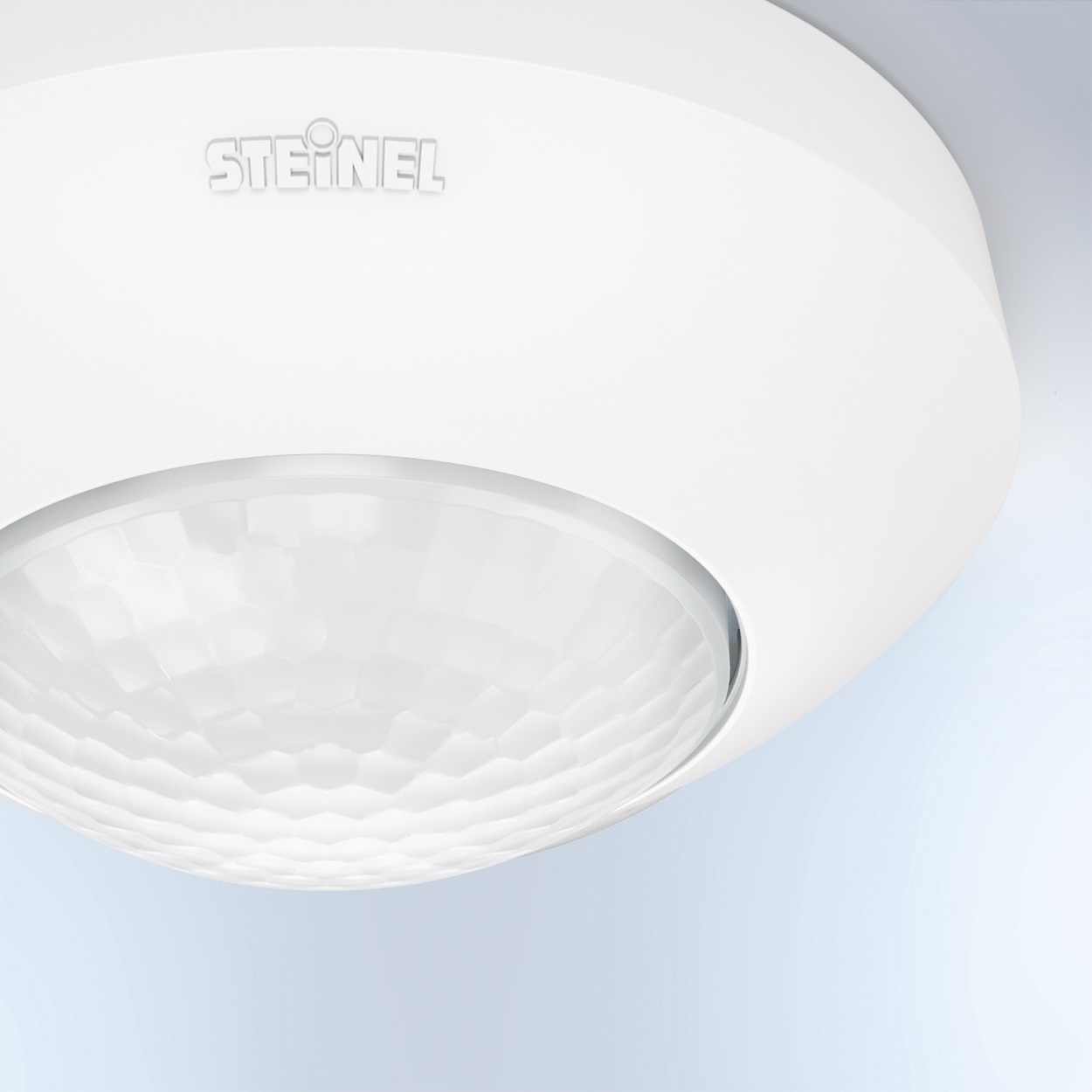

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
