Steinel IS 240 DUO black

ELDAS® no. 535 997 050

EAN-No. 4007841 602710

At night or when it's getting dark, you can rely in full on the IS 240 DUO. We have fitted the motion detector with two highly sensitive infrared detectors so it can monitor large areas for you. Mounting the detector on an outside corner gives you an added advantage: reliable, uninterrupted coverage of an area in front of two building walls. Why install two sensors if the job can be done by one? The corner wall mount bracket is included.

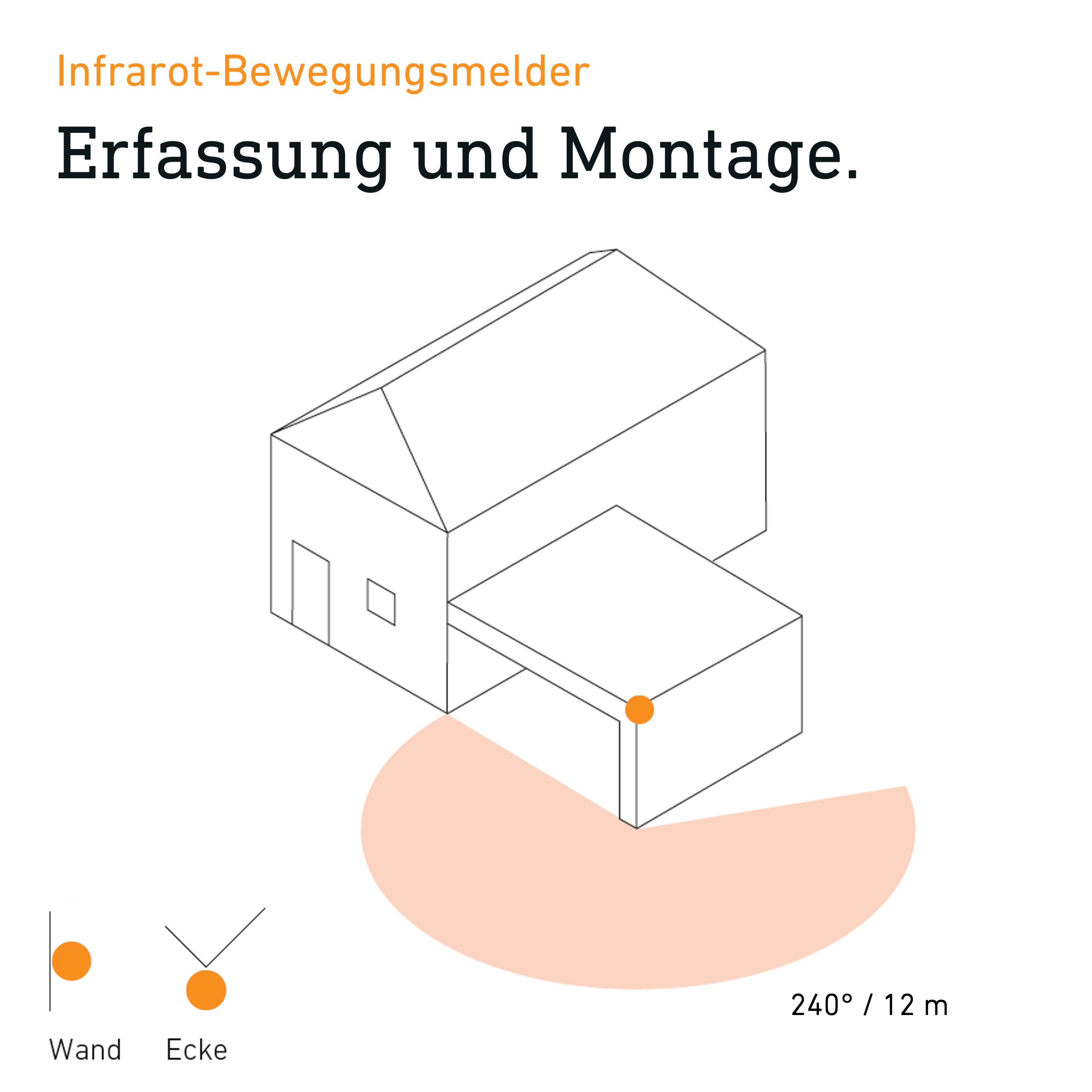

Infrared motion detector with 240° detection angle and up to 12 m detection range

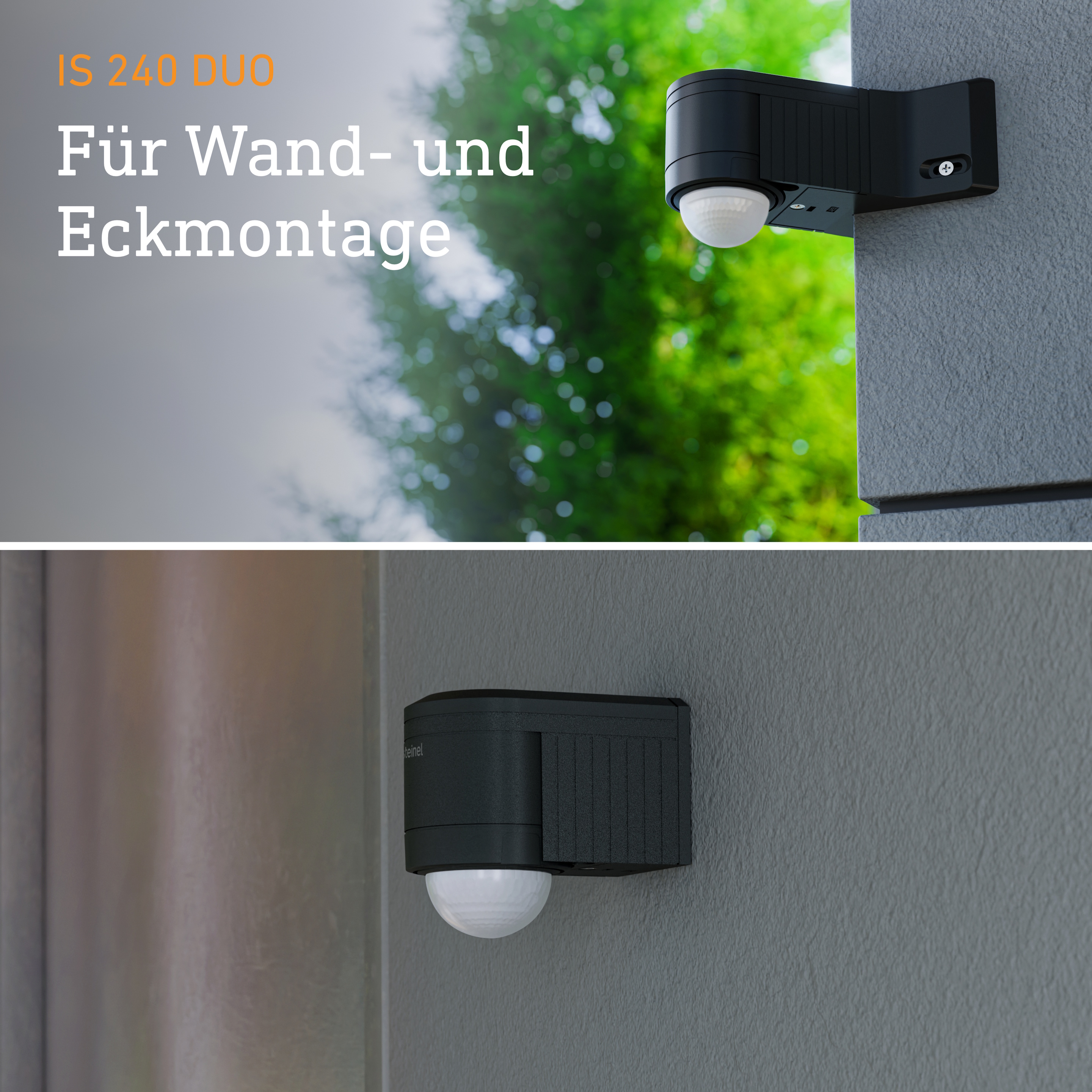

For wall or corner mounting (incl. corner wall bracket) indoors and outdoors (IP 54), for reliable and uninterrupted surveillance of an area in front of two house walls
Made of UV-resistant plastic for a long service life
Sensor can be swivelled horizontally by 160°, incl. cover plates for exact adjustment of the detection area
Stepless adjustment of time (10 sec. - 15 min.) and switch-on brightness (2-2000 lux)
Reliably switches any light source with a total of max. 1000 W switching load (LED light sources max. 350 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 100 x 60 x 90 mm

Electrical

Mains connection 230 V / 50 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 350 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 500 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 175 W

LED lamps > 8 W 350 W

Capacitive load in µF 132 µF

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 240 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 5 m (52 m²)

Tangential range r = 12 m (302 m²)

Switching zones 276 switching zones

Mounting height 1,80 – 4,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 10 s – 15 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 50 °C

Mounting location corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included Yes

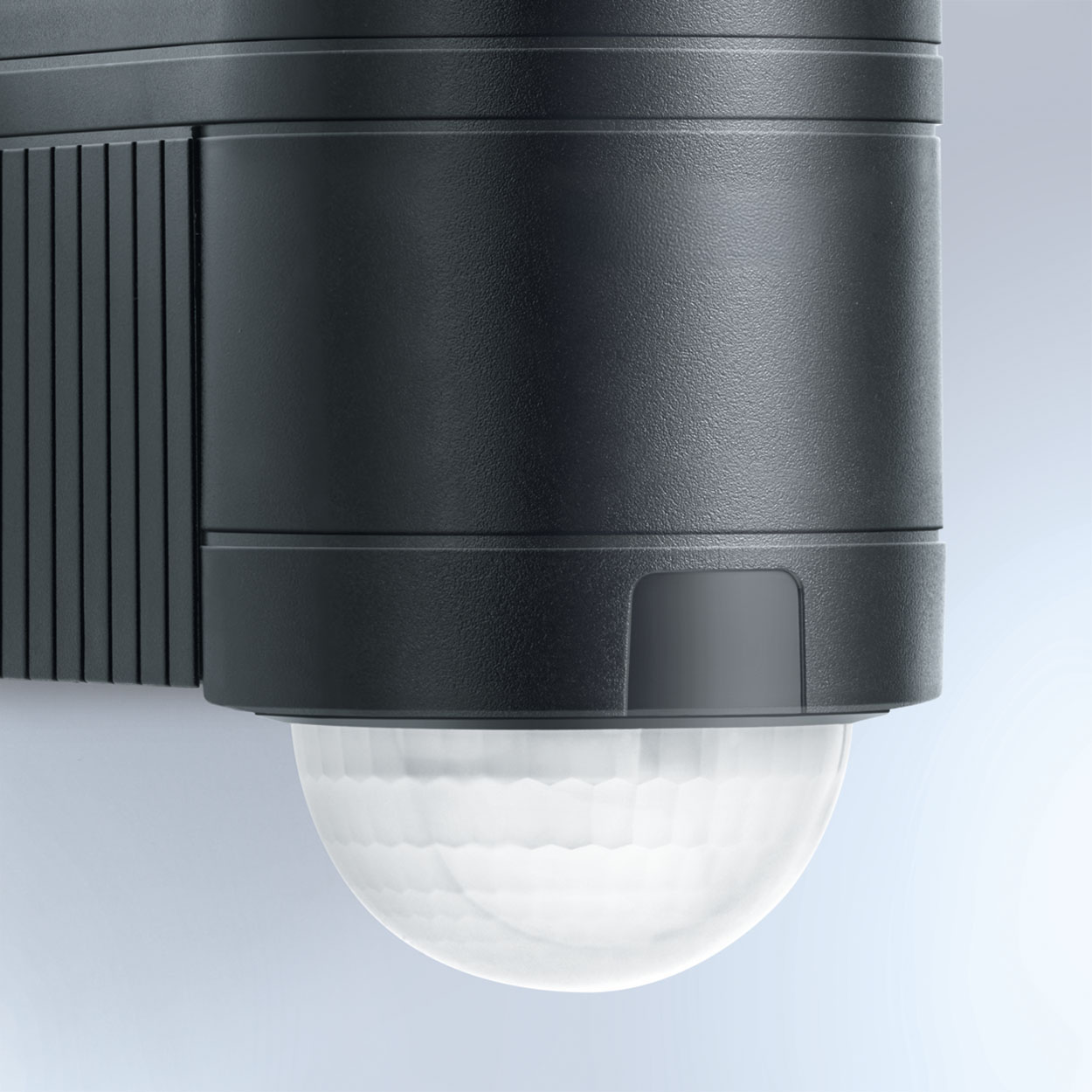

UV-resistant plastic

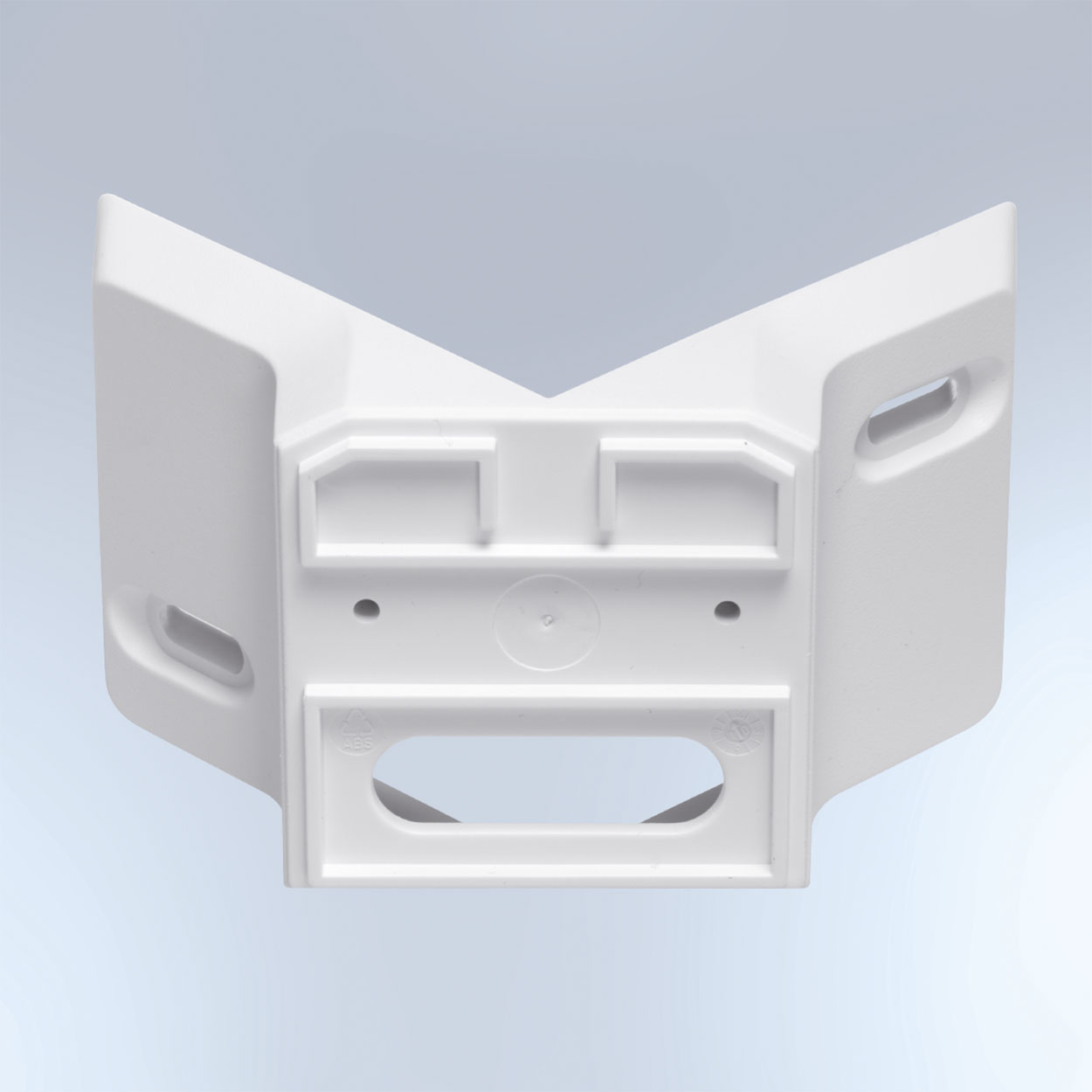

Including corner wall mount

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor
