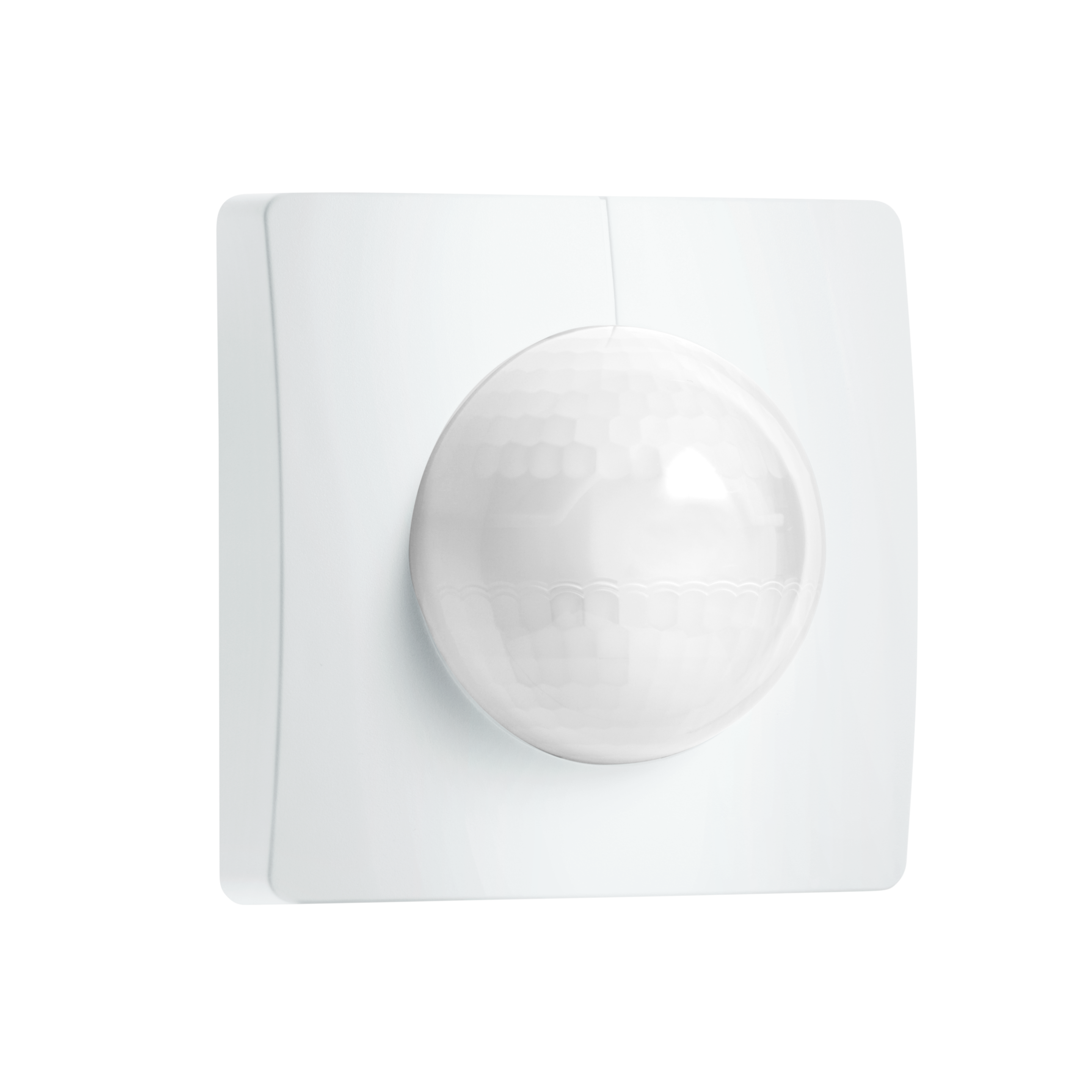

Steinel IS 3180 DALI-2 APC - concealed, sq.

ELDAS® no. 535 942 508

EAN-No. 4007841 055738

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

These sensors are the perfect choice when it comes to protecting industrial and business premises and making them secure. It is important to have far-sighted guards that instantly respond to any movement. The IS 3180 is made for the job. Featuring top-calibre components, such as two precision modular pyro sensors and a multi-lens, it watches over almost every last inch of areas measuring a good 500 m². The sensor that combines everything that's important to electrical fitters and security personnel. (IP20)

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²) / r = 4 m (25 m²)

Tangential range r = 6 m (57 m²) / r = 20 m (628 m²)

Switching zones 448 switching zones

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable, 4h

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 1-30 min all night

Main light adjustable 50 - 100 %

Functions Normal / test mode Manual ON / ON-OFF Constant-lighting control ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location corner wall

Application location Indoors Outdoors

Mounting type Concealed wiring

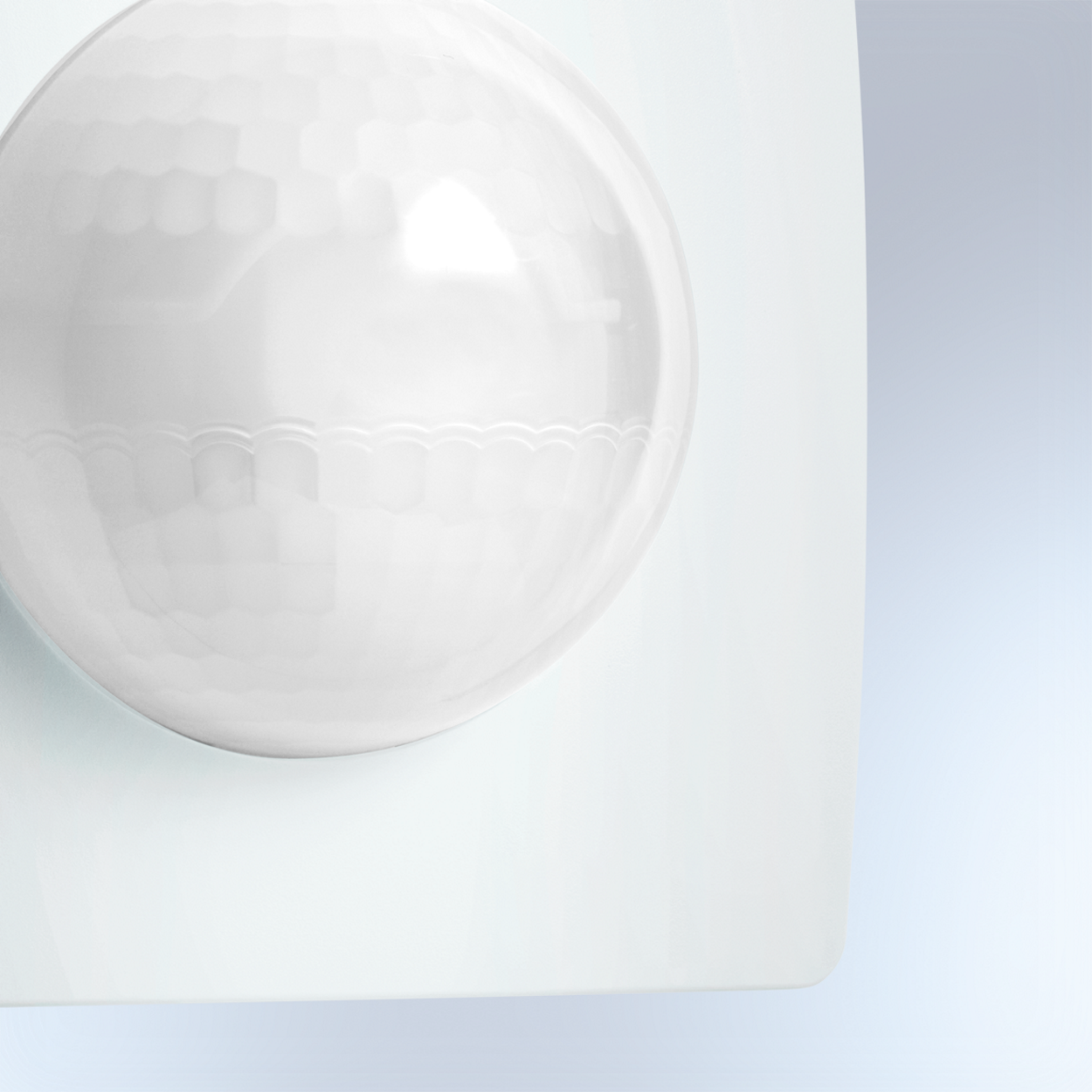

Material Plastic

Application room Indoors all round the building corridor / aisle courtyard & driveway function room / ancillary room multi-storey / underground car park outdoors stairwell

Colour white

RAL colour 9003
