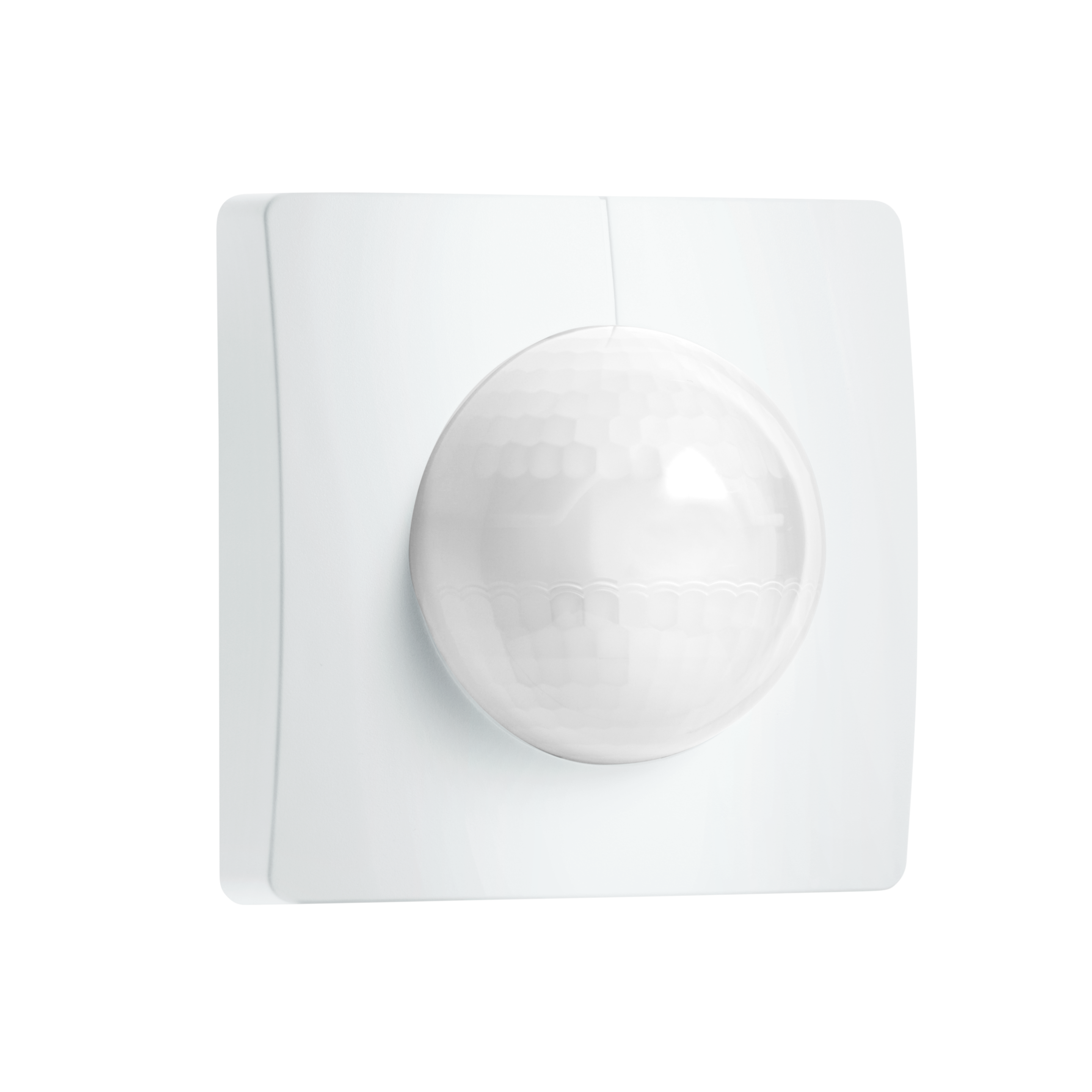

Steinel IS 3180 DALI-2 Input Device - concealed, sq.

ELDAS® no. 535 942 505

EAN-No. 4007841 057367

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

These sensors are the perfect choice when it comes to protecting industrial and business premises and making them secure. It is important to have far-sighted guards that instantly respond to any movement. The IS 3180 is made for the job. Featuring top-calibre components, such as two precision modular pyro sensors and a multi-lens, it watches over almost every last inch of areas measuring a good 500 m². The sensor that combines everything that's important to electrical fitters and security personnel. (IP20)

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 78 x 94 x 94 mm

Electrical

Mains connection 12 – 22,5 V / 50 – 60 Hz

Supply voltage detail DALI bus

Switching output 1 potential-free No

Control output DALI Addressable/slave

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 4 m (25 m²)

Tangential range r = 20 m (628 m²)

Switching zones 448 switching zones

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 3

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location corner wall

Application location Indoors Outdoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors all round the building corridor / aisle courtyard & driveway function room / ancillary room multi-storey / underground car park outdoors stairwell

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

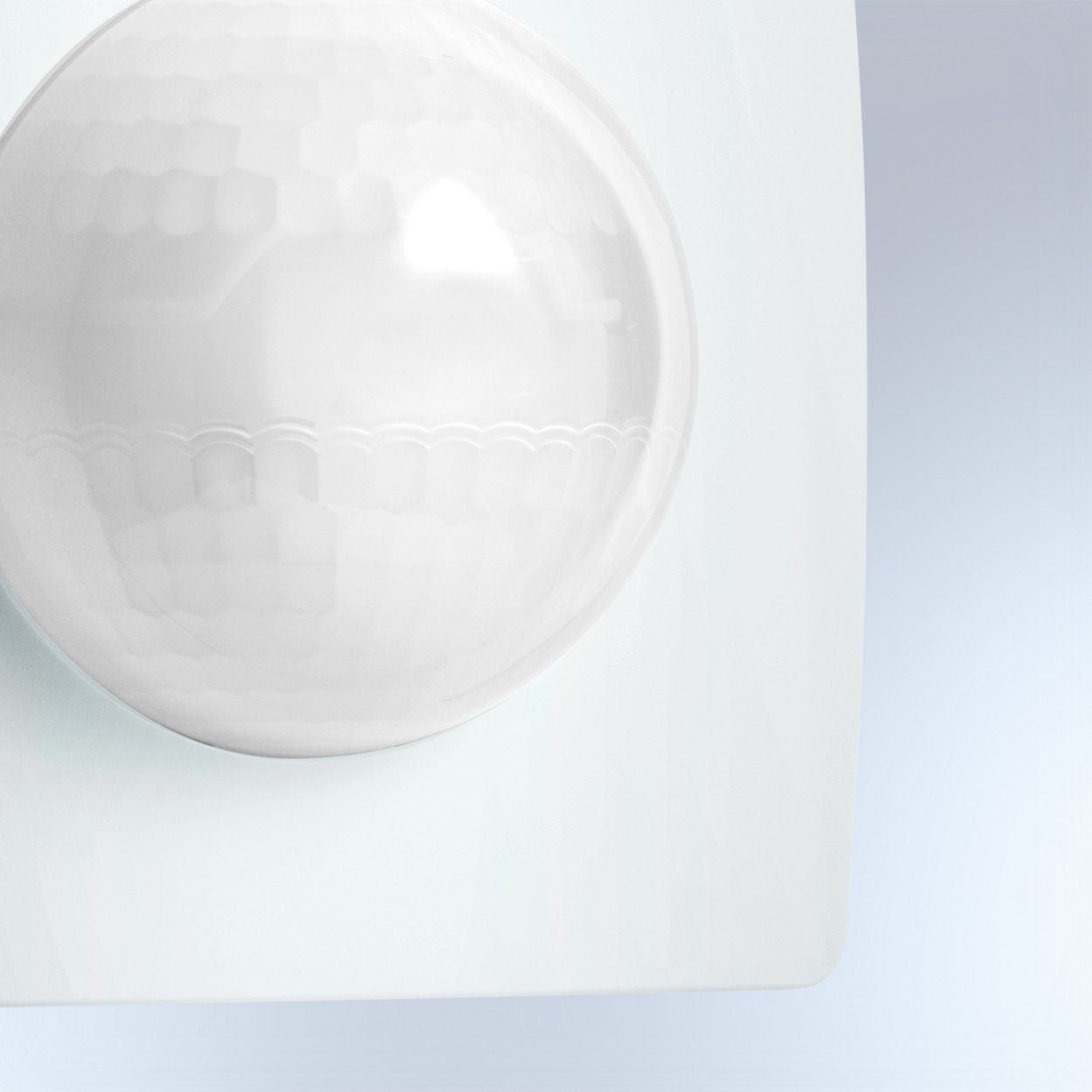

UV-resistant plastic

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Black cover for IR-sensors concealed, sq.

Item no. 056728
