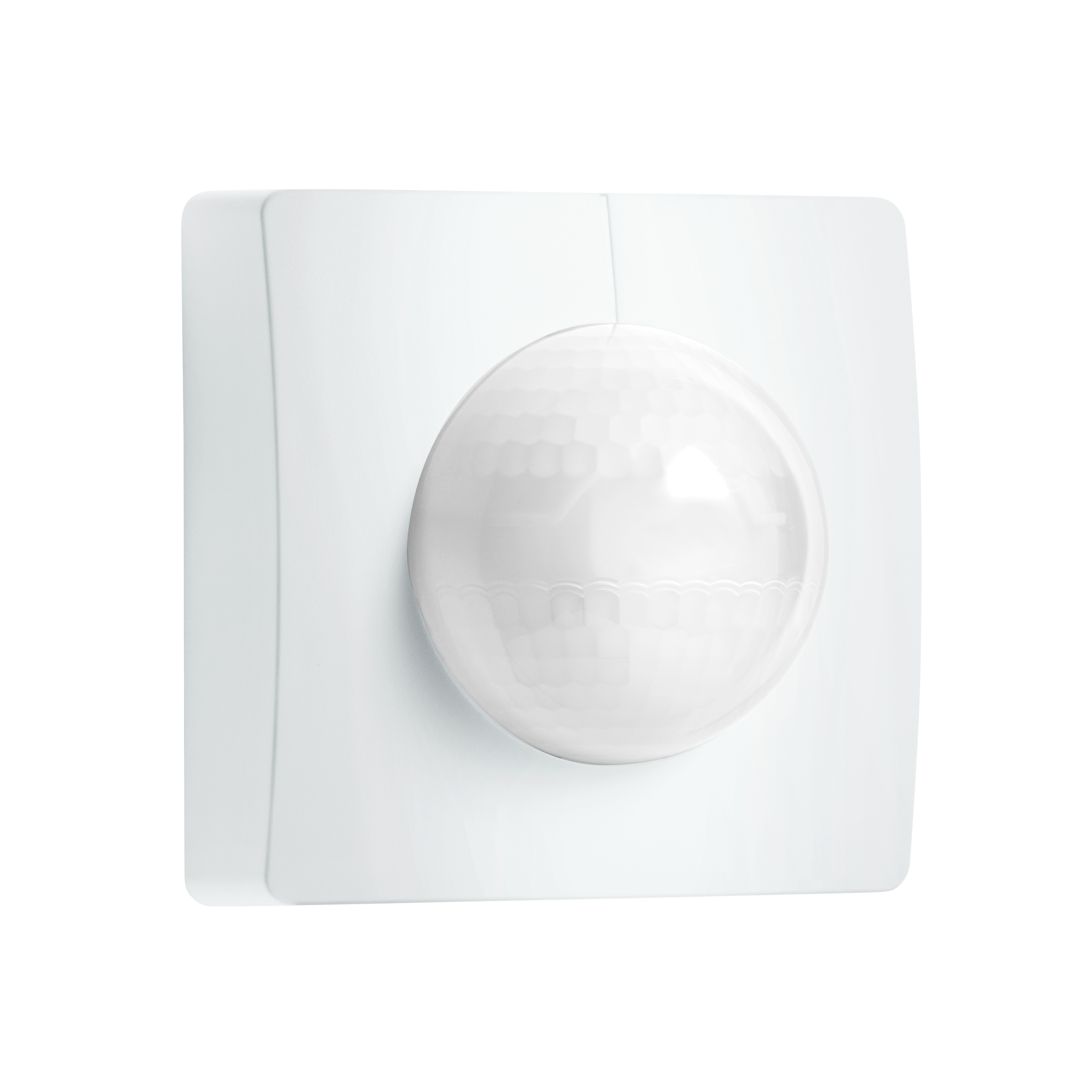

Steinel IS 3180 PF - surface, sq.

ELDAS® no. 535 940 867

EAN-No. 4007841 010508

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

These sensors are the perfect choice when it comes to protecting industrial and business premises and making them secure. So it is important to have far-sighted guards that instantly respond to any movement. The IS 3180 is made for the job. The IP 54 rating reliably protects its inner values: featuring top-calibre components such as two precision modular pyro sensors and multi-lens, it watches over almost every last inch of areas measuring a good 500 m². The concealed installation sensor that combines everything that's important to electrical fitters and security personnel.

Identification

Version Motion detectors

Variants

Version PF (Potential Free)

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Own consumption 0,3 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (14 m²) / r = 4 m (25 m²)

Tangential range r = 6 m (57 m²) / r = 20 m (628 m²)

Switching zones 448 switching zones

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode Manual ON / ON-OFF

Settings via Remote control Potentiometers Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Cover material (scope of delivery) shrouds

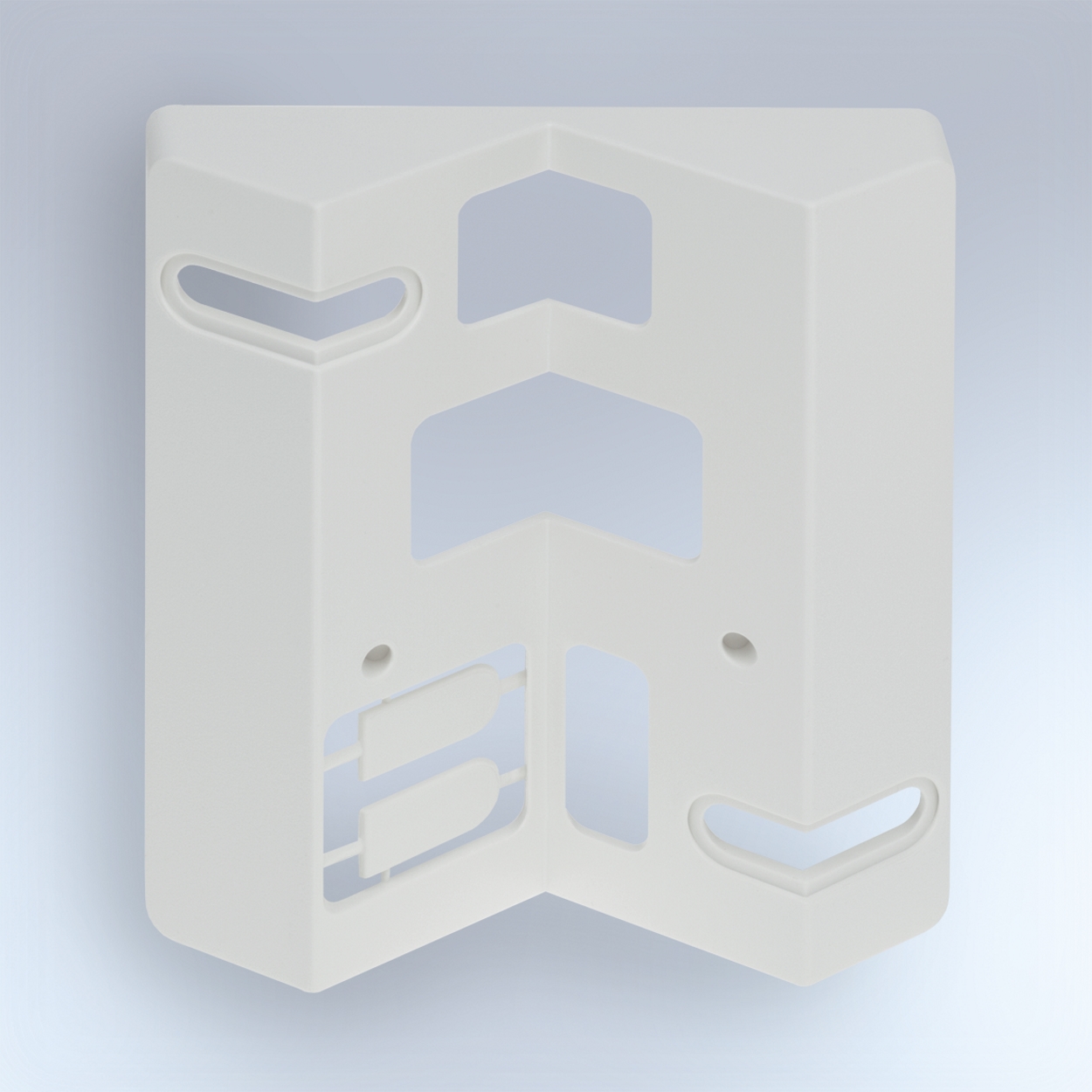

Mounting location corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

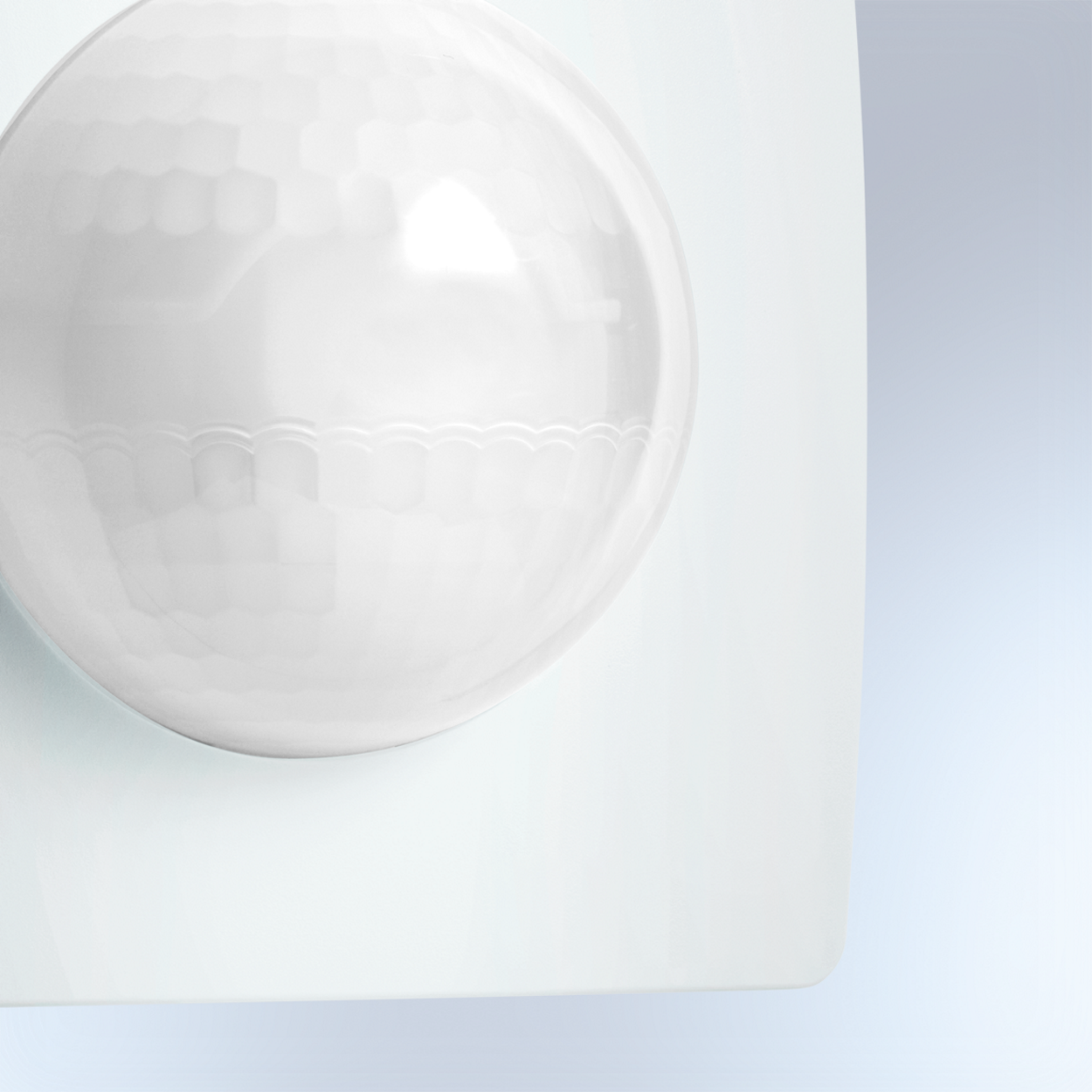

Material Plastic

Application room Indoors all round the building corridor / aisle courtyard & driveway function room / ancillary room multi-storey / underground car park outdoors stairwell

Colour white

RAL colour 9003
