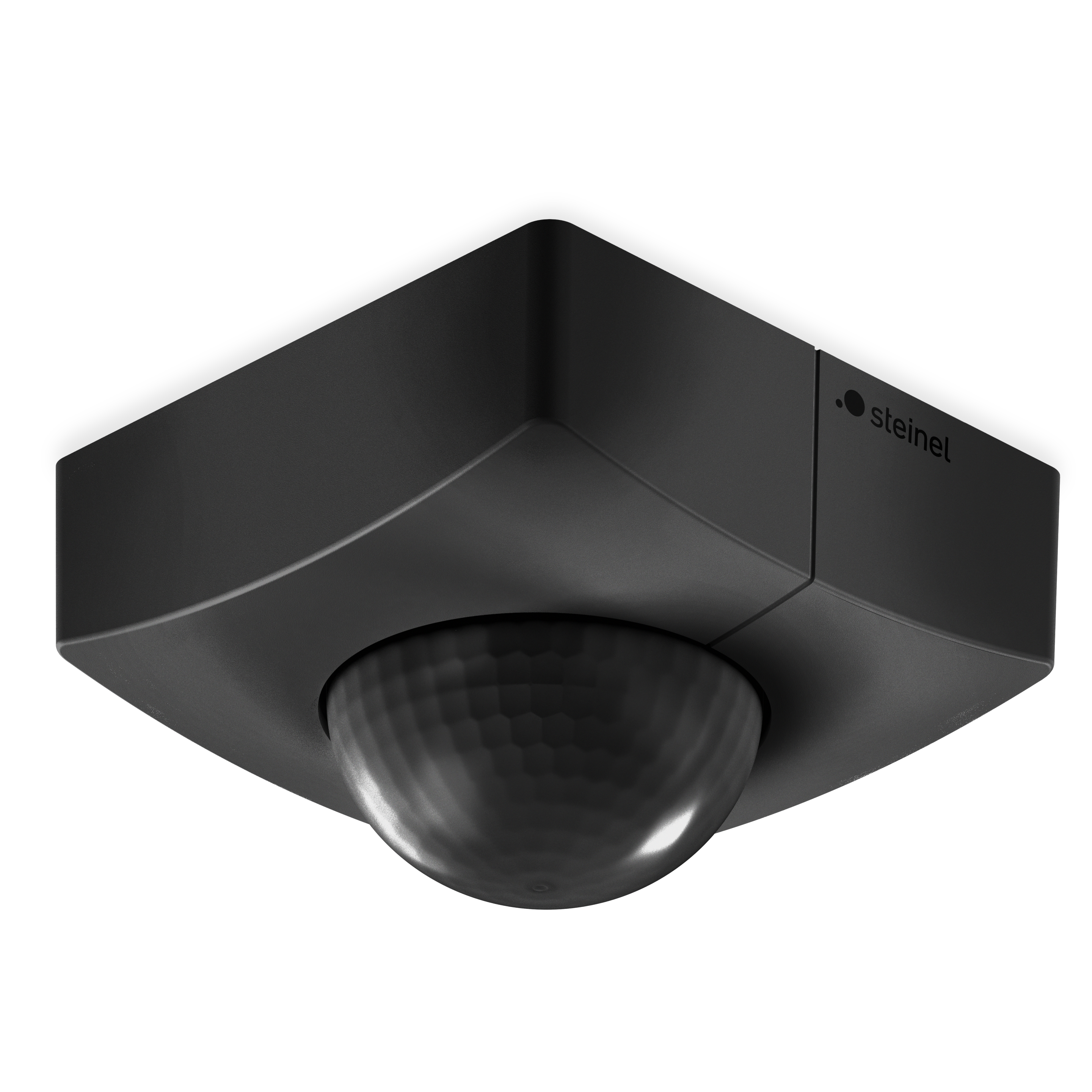

Steinel IS 3360 40m COM1 - surface, sq. black

Presence detector for warehouses, car parks and production. All-round, also for high ceilings.

ELDAS® no. 535 918 115

EAN-No. 4007841 068523

Price: Please log in to see prices

Mounting type

Concealed mounting Surface mounting

Colour

Black White

Variant

230V, 1 channel KNX KNX - white

Max. mounting height

4,00 m

Version

Motion and Presence Detector

Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for presence detector with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.

Variants

Version COM1

Colour Black

Mounting type Surface mounted

Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 65 x 95 x 95 mm

Electrical

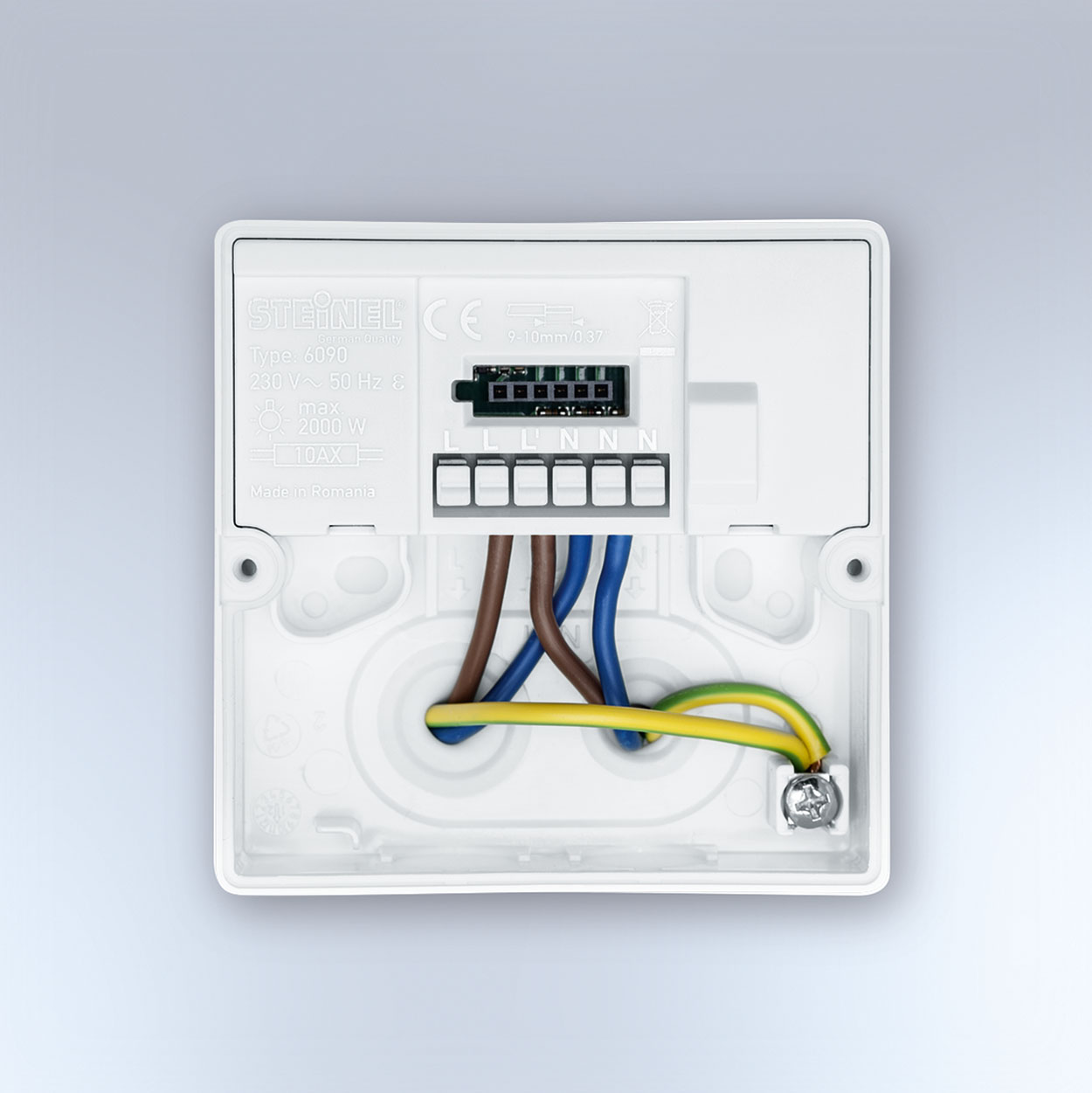

Mains connection 230 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 40 m (1257 m²)

Switching zones 1416 switching zones

Mounting height 2,5 – 4,0 m

Presence range Ø 3 m (7 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Master

Networking quantity max. 10 sensors

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function No

Main light adjustable No

Functions Normal / test mode, Manual ON / ON-OFF

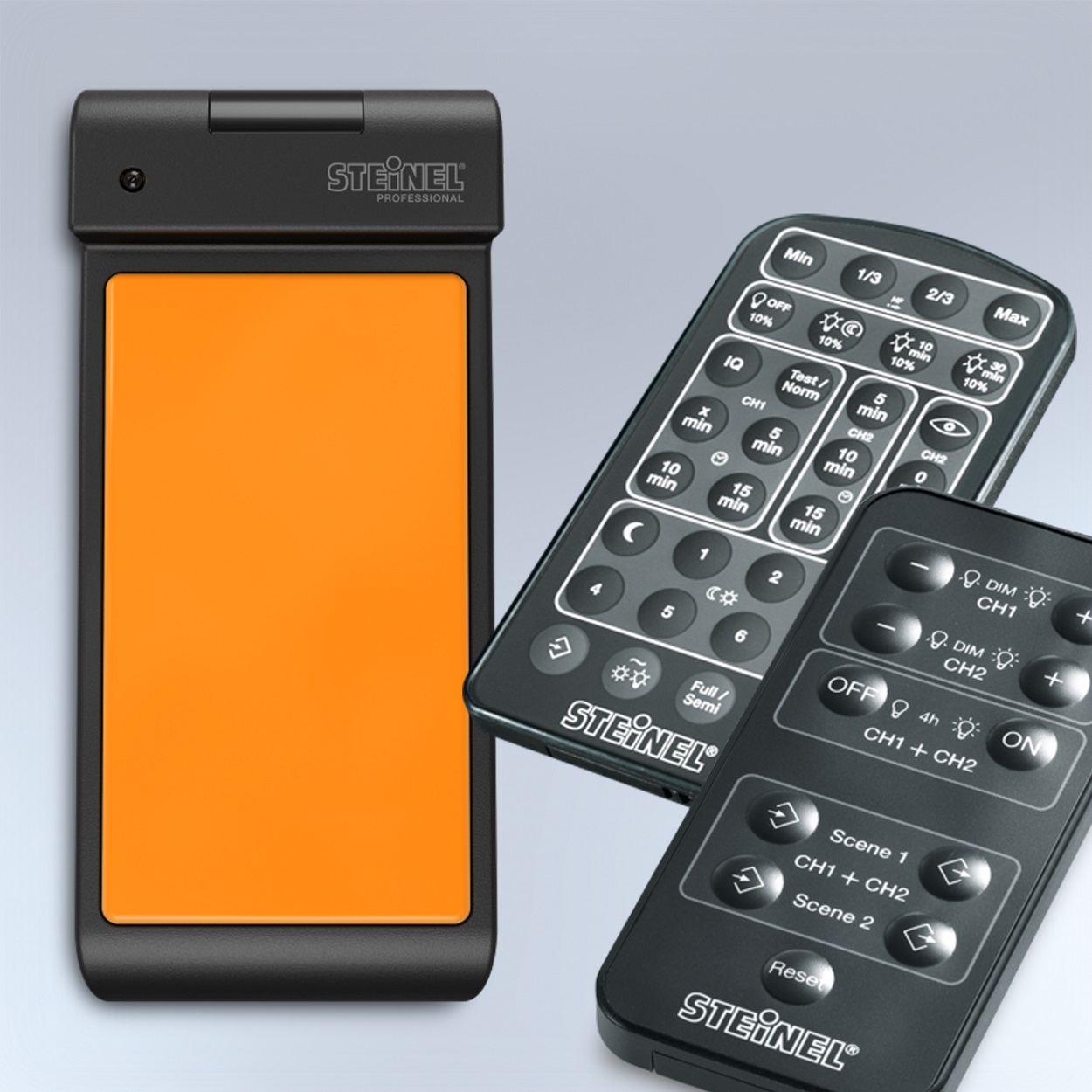

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors, Outdoors

Material Plastic

Application room Indoors, WC / washroom, changing room, function room / ancillary room, multi-storey / underground car park, outdoors, production facilities, reception / lobby, recreation room, sports hall, stairwell, warehouse

Colour Black

RAL colour 9005
