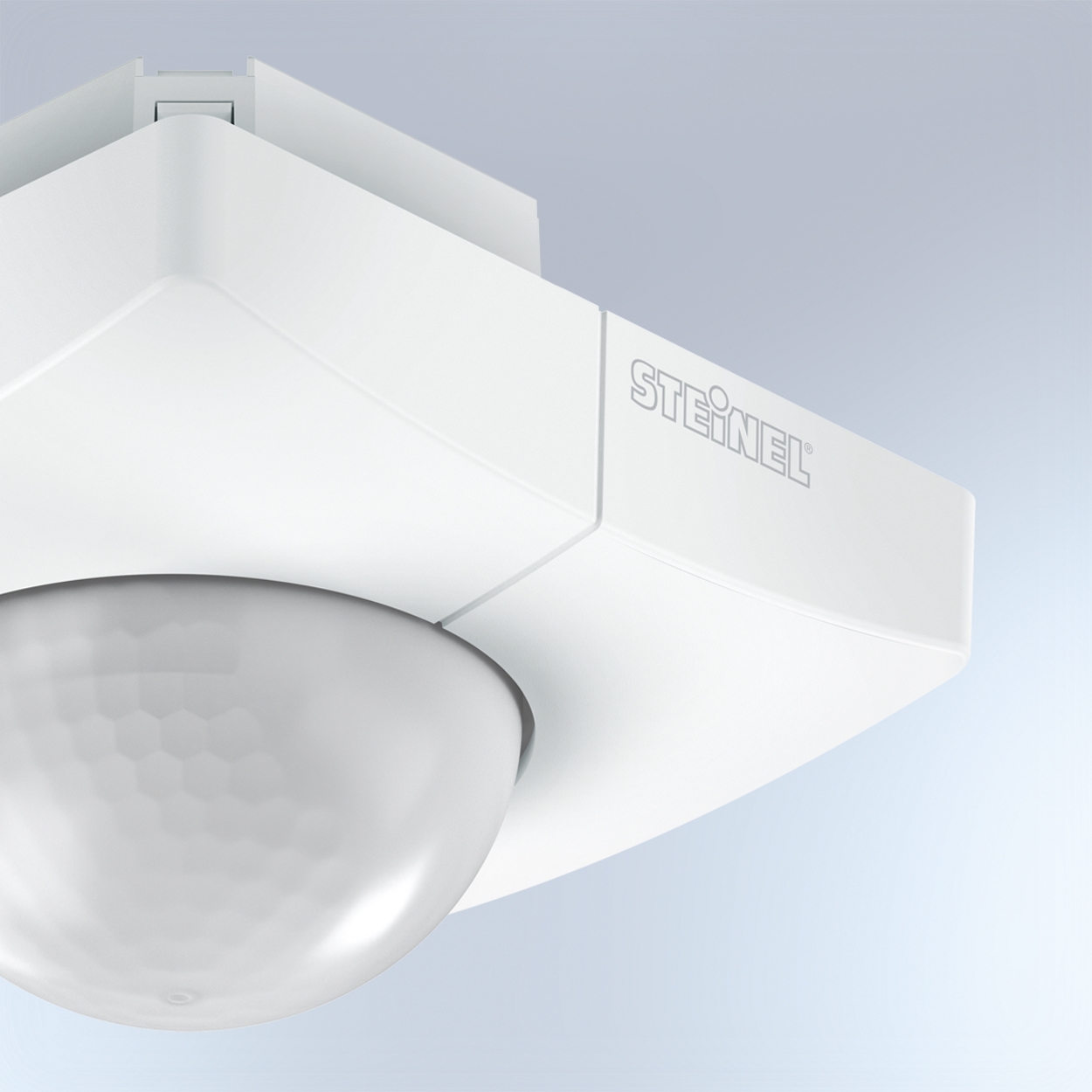

Steinel IS 3360 DALI-2 APC - in-ceiling installation, sq.

Presence detector for warehouses, car parks and production. All-round, also for high ceilings.

ELDAS® no. 535 918 106

EAN-No. 4007841 080624

Price: Please log in to see prices

Mounting type

Concealed mounting Recessed ceiling Surface mounting

Colour

White

Variant

230V, 1 channel DALI-2 Application Controller KNX

Max. mounting height

4,00 m

Version

Motion and Presence Detector

Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for presence detectors with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.

Variants

Version DALI-2 Application Controller

Colour White

Mounting type Recessed ceiling

Mounting height Mounting height 2.5 to 4 metres

Dimensions

Dimensions L × W × H 121 x 94 x 94 mm

Electrical

Mains connection 230 V / 50 – 60 Hz

Control output DALI Broadcast 1x30 electronic ballasts

Sensor technology

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 40 m (1257 m²)

Switching zones 1416 switching zones

Mounting height 2,5 – 4,0 m

Presence range Ø 3 m (7 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/Slave

Networking via Cable

Lighting technology

Soft light start Yes

Continuous light selectable, 4h

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 min

Base light function Yes

Base light function time 1-30 min, all night

Main light adjustable 50 - 100 %

Functions Normal / test mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF

Settings via Remote control, Potentiometers, Smart Remote

With remote control No

Twilight setting teach Yes

Base light function in percent 10 – 50 %

Base light function percent from 10 %

Housing & material

Protection class (IP) IP20

Ambient temperature -20...+50 °C

Mounting location ceiling

Application location Indoors

Material Plastic

Application room Indoors, WC / washroom, changing room, function room / ancillary room, multi-storey / underground car park, production facilities, reception / lobby, recreation room, sports hall, stairwell, warehouse

Colour White

RAL colour 9003
