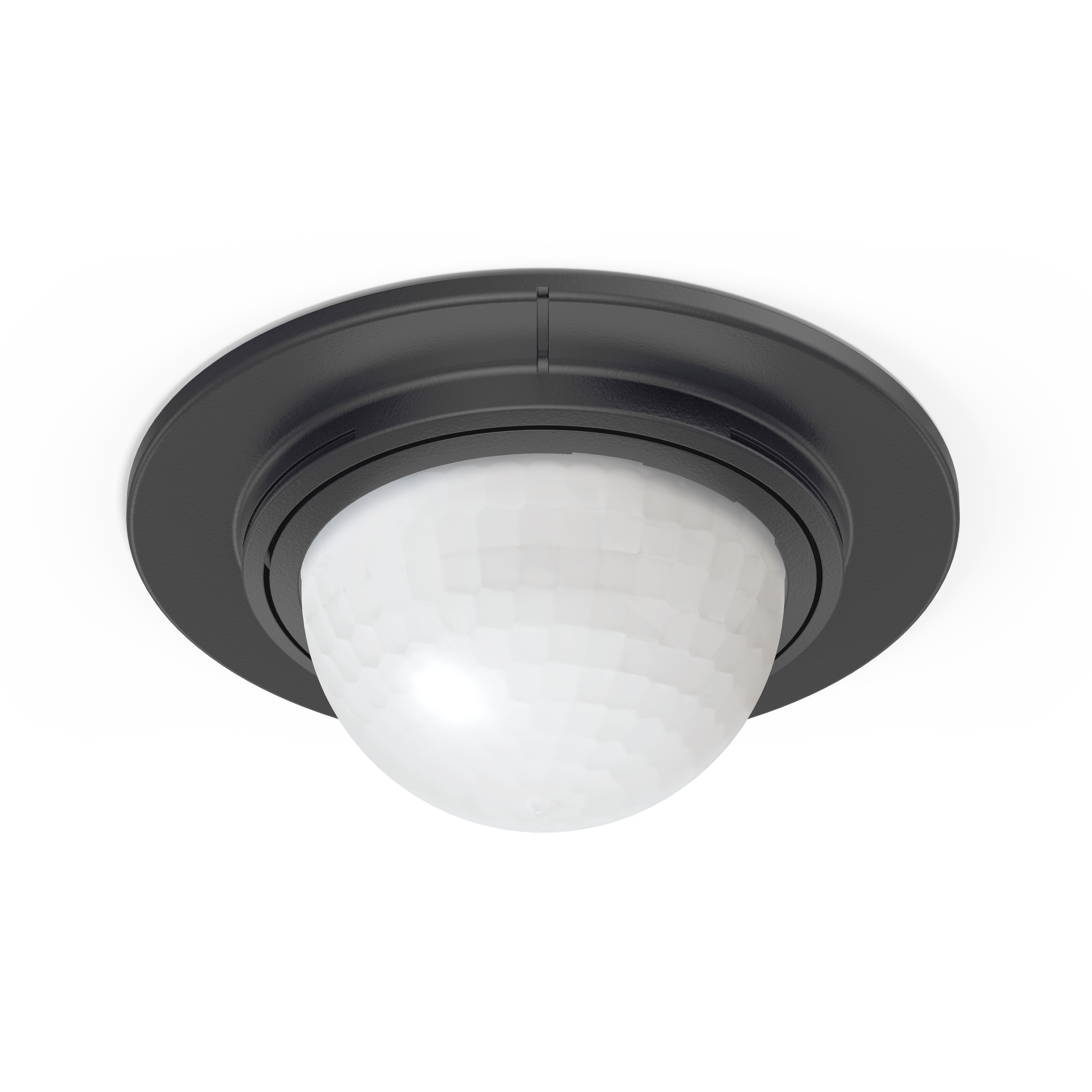

Steinel IS 360-1 DE black

ELDAS® no. 535 942 740

EAN-No. 4007841 032852

The perfect infrared sensor for installing in projecting roofs and suspended ceilings. The IS 360-1 DE has a reach of up to 4 metres and an impressive 360° angle of coverage. The detection zone can be adjusted where necessary by using shrouds. The IS 360-1 DE is available in black and white.

Infrared motion detector with 360° detection angle and up to Ø 8 m detection range
For flush-mounted ceiling installation in canopies and suspended ceilings indoors and outdoors (IP 54)
Made of UV-resistant plastic for a long service life
Incl. cover panels for exact adjustment of the detection range
Stepless adjustment of time (8 sec. - 35 min.) and switch-on brightness (2-2000 lux)
Reliably switches any light source with a total of max. 1000 W switching load (LED light sources max. 350 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Identification

Version Motion detectors

Dimensions

Dimensions Ø × H 78 x 89 mm

Electrical

Mains connection 230 – 240 V / 50 – 60 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 350 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 500 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 175 W

LED lamps > 8 W 350 W

Capacitive load in µF 132 µF

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range Ø 4 m (13 m²)

Tangential range Ø 8 m (50 m²)

Switching zones 304 switching zones

Mounting height 2,50 – 4,00 m

Optimal mounting height 2,5 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 8 s – 35 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Protection class II

Ambient temperature from -20 up to 40 °C

Mounting location ceiling

Application location Indoors Outdoors

Mounting type In-ceiling installation

Material Plastic

Application room Indoors all round the building front door outdoors terrace / balcony

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

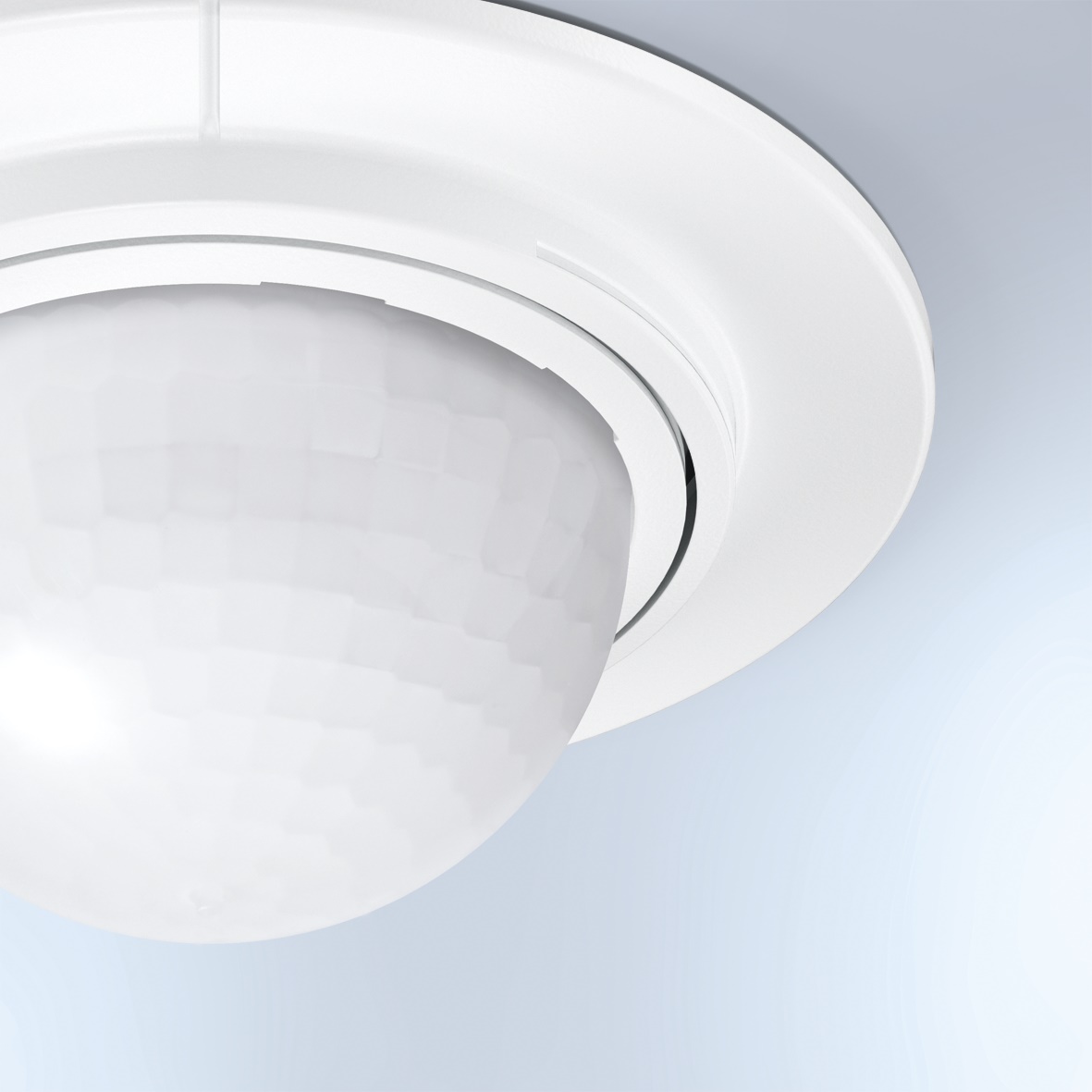

UV-resistant plastic

Technical drawing

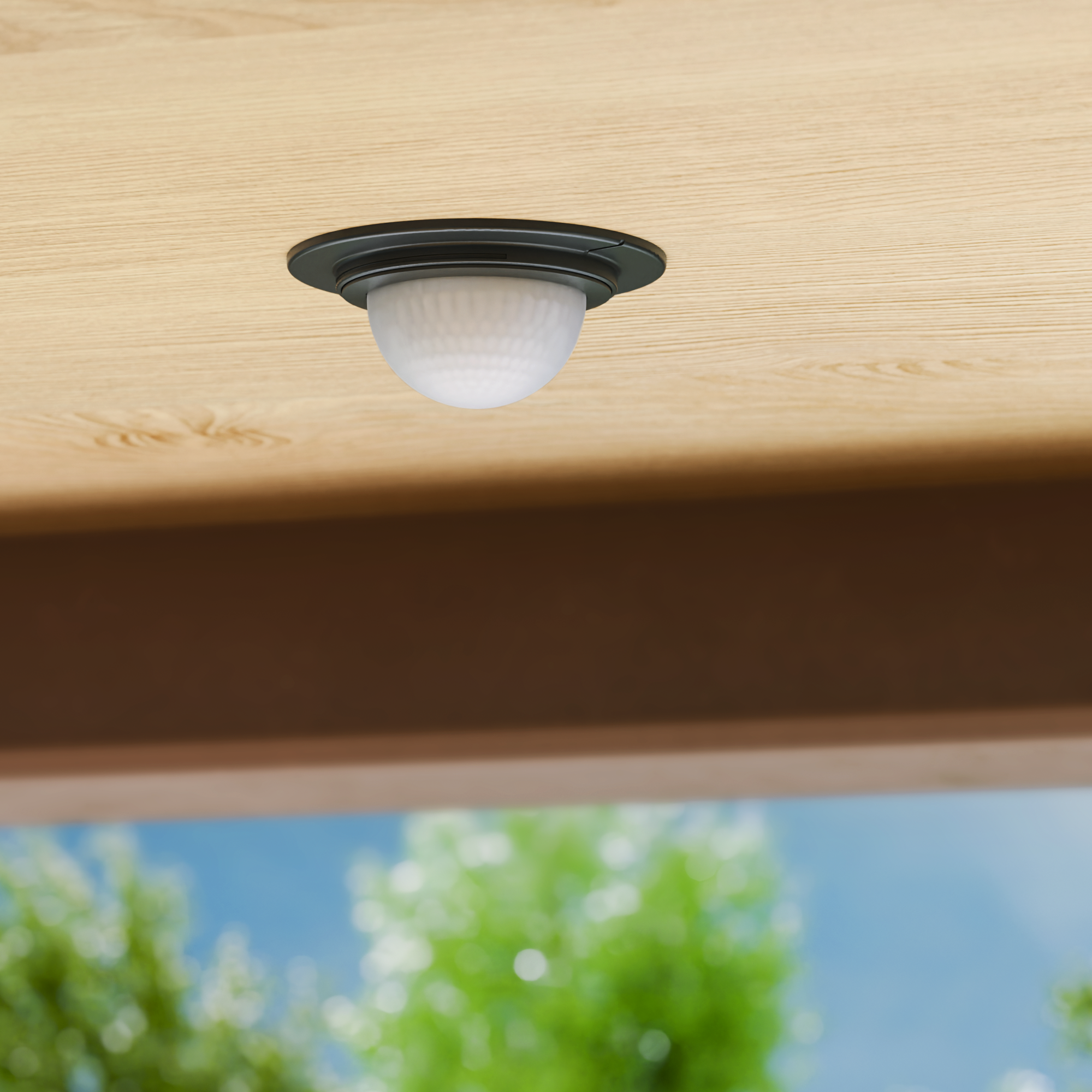

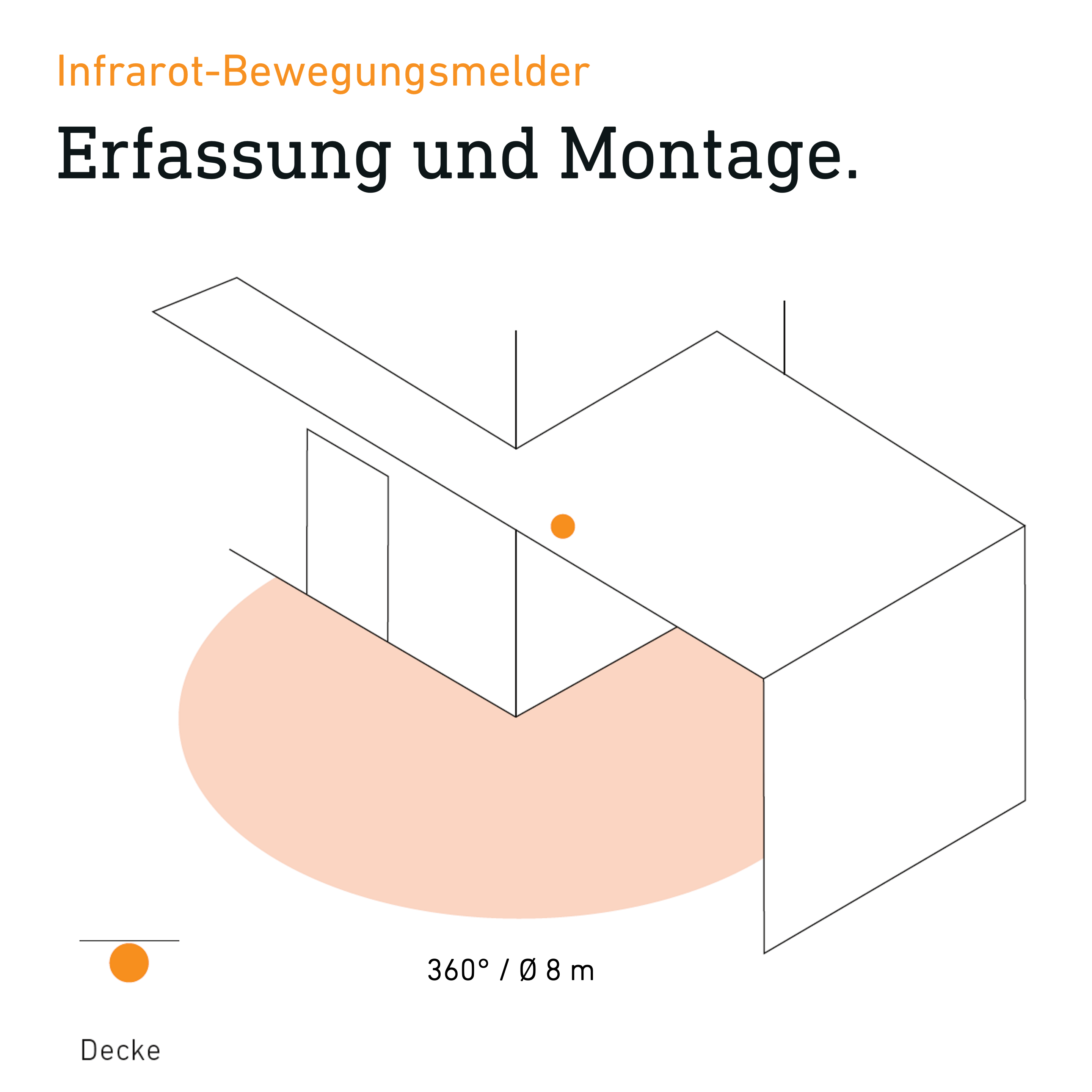

Sensor detection range

Wiring diagram 1

Light without neutral conductor

Wiring diagram 2

Light with neutral conductor
