Steinel L 1 S black

Steinel L 1 S black

ELDAS® no. 924 323 009 · EAN-No. 4007841 650612

Technical data Highlights Illustrations Wiring diagrams Downloads Videos
Steinel

Steinel L 1 S black

ELDAS® no. 924 323 009

EAN-No. 4007841 650612

Price: Please log in to see prices

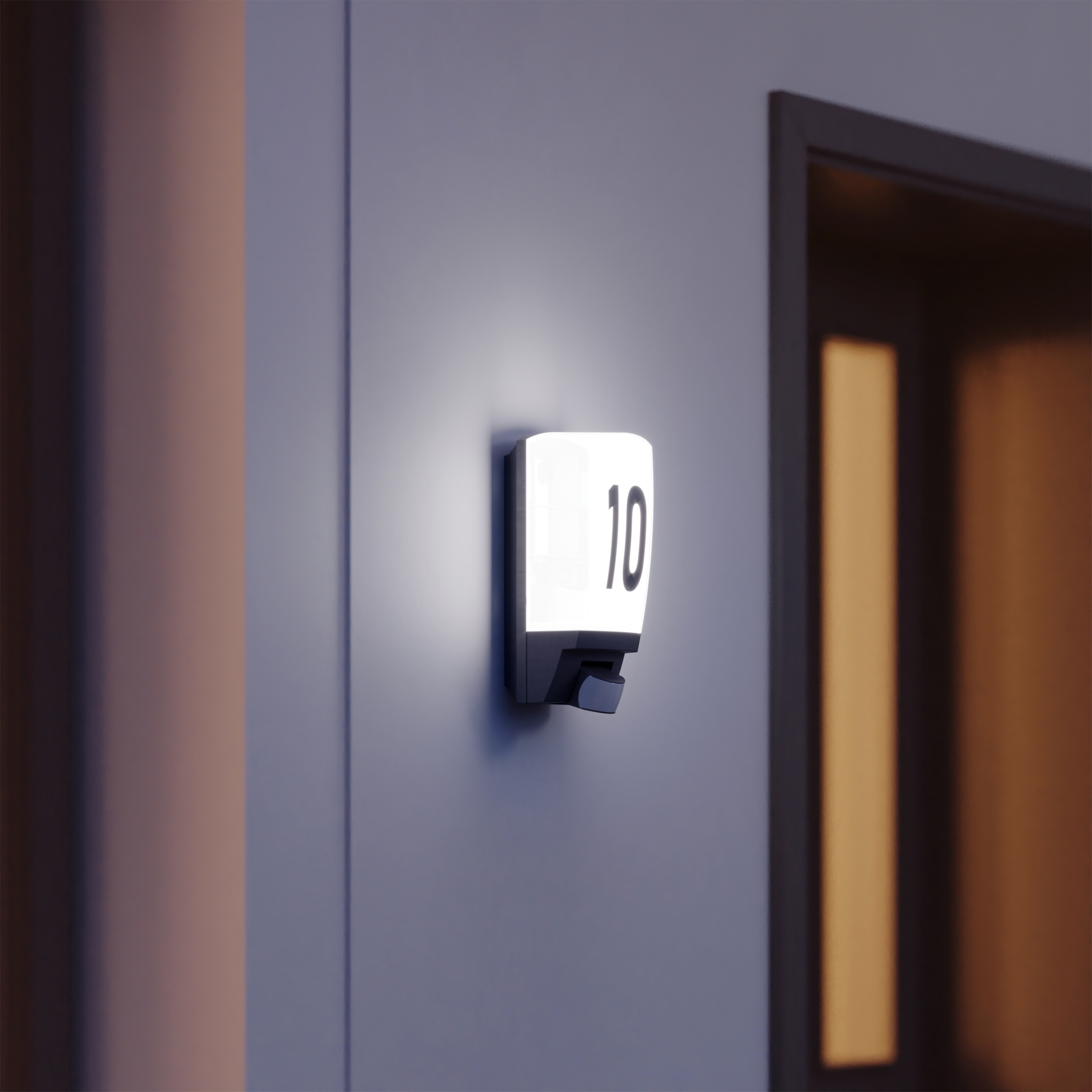

Centre pass, shoot, goal! Kids are playing football in the front garden and the ball smashes into the house wall. Your L 1 S outdoor SensorLight looks on completely unruffled. The impact-resistant material provides the best protection against accidental damage. Light's only provided when it's actually needed. The built-in sensor can tell whether you are there, with the light providing even illumination that's full of atmosphere. Reliably night after night.

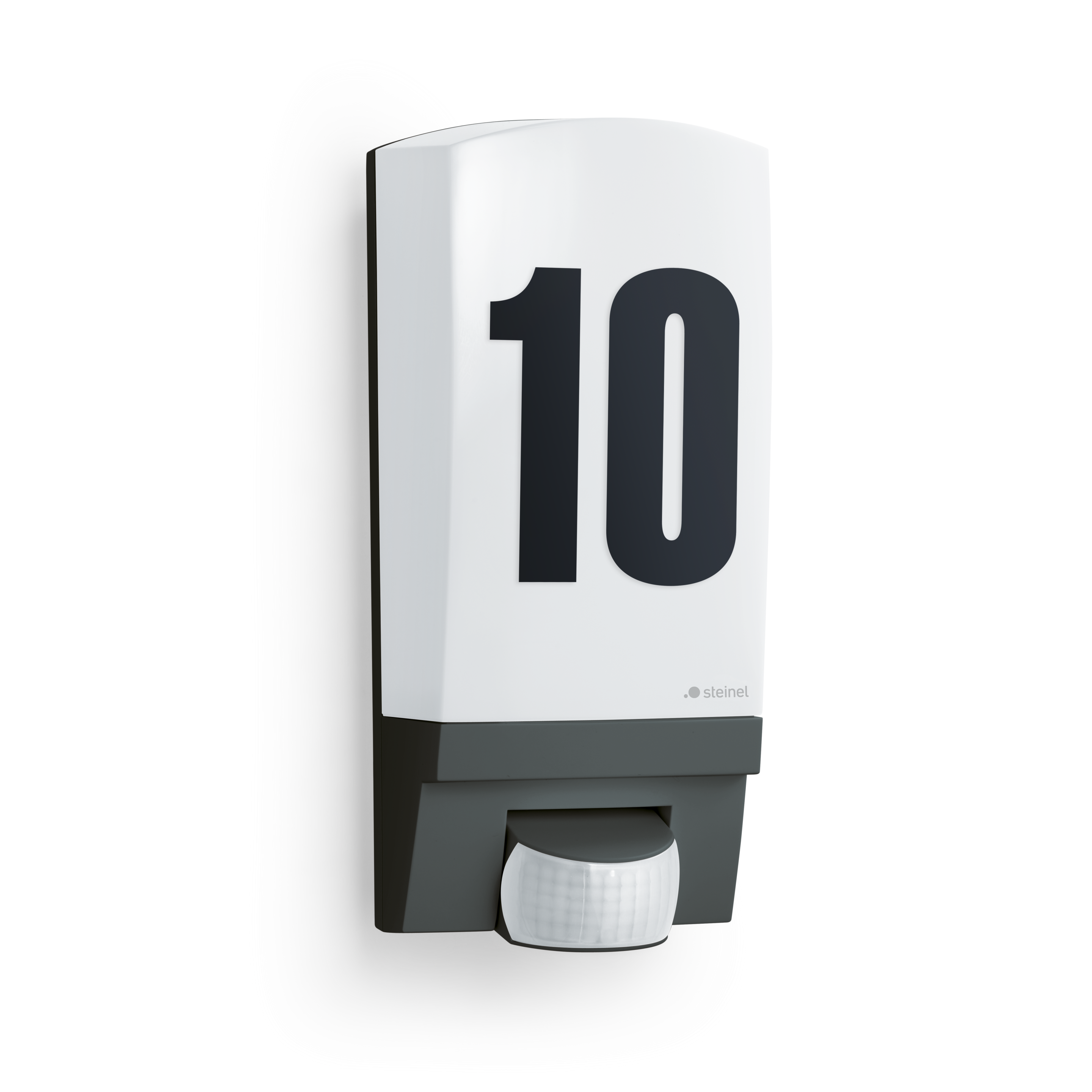

  • Outdoor light with motion detector and house number sticker
  • Made of UV-resistant, impact-resistant material according to IK07 for a long service life

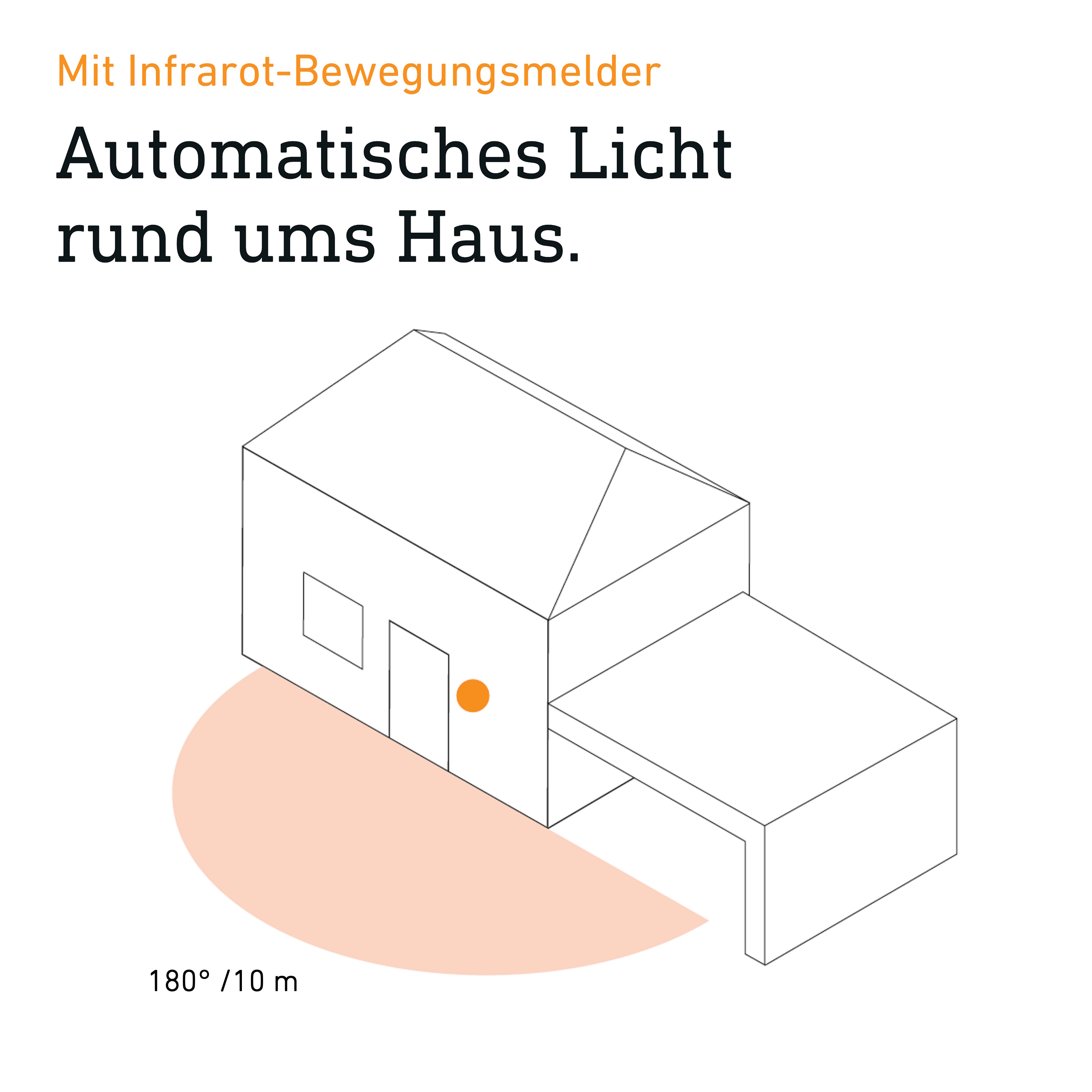

  • Automatic light thanks to 180 ° Infrared sensor with up to 10 m detection of movement
  • Detection area and range can be individually limited using the cover stickers supplied and the swivelling sensor (90° vertical)
  • With E27 socket for incandescent lamps with max. 60 W as well as for energy-saving lamps or LED bulbs with max. 20 W (not included in the scope of delivery)
  • Incl. house number arch and mounting accessories - plastic-free packaging

Dimensions

Dimensions L × W × H 120 x 110 x 255 mm

Electrical

Mains connection 230 – 240 V / 50 Hz
Power 60 W
Own consumption 0,55 W

Sensor technology

Max. mounting height 3,00 m
Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 3 m (14 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 3,00 m
Optimal mounting height 2 m

Connectivity

Networking No
Slave mode adjustable No

Lighting technology

With illuminant No
Illuminant All-purpose lamp
Base E27
Soft light start No

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 8 s – 35 Min.
Base light function No
Settings via Potentiometers
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP44
Protection class II
Ambient temperature from -20 up to 40 °C
Housing material Plastic
Cover material Plastic, opal
Cover material (scope of delivery) sticker
Mounting location wall
Application location Outdoors
Mounting type Surface wiring

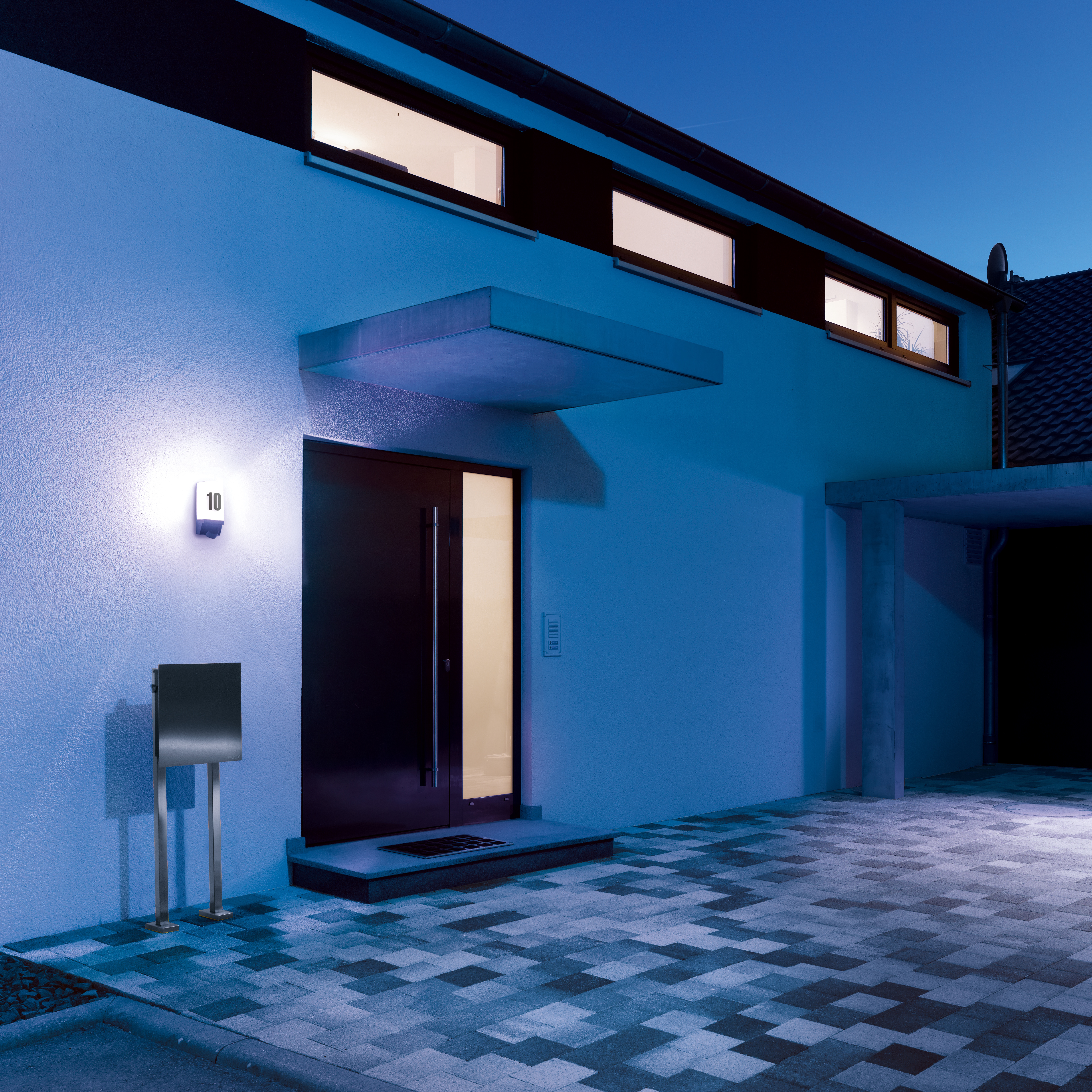

Application room all round the building courtyard & driveway front door outdoors
Colour black

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included Yes

Certificates & EPREL

EPREL category Surrounded product with separate light source (e.g. E27)

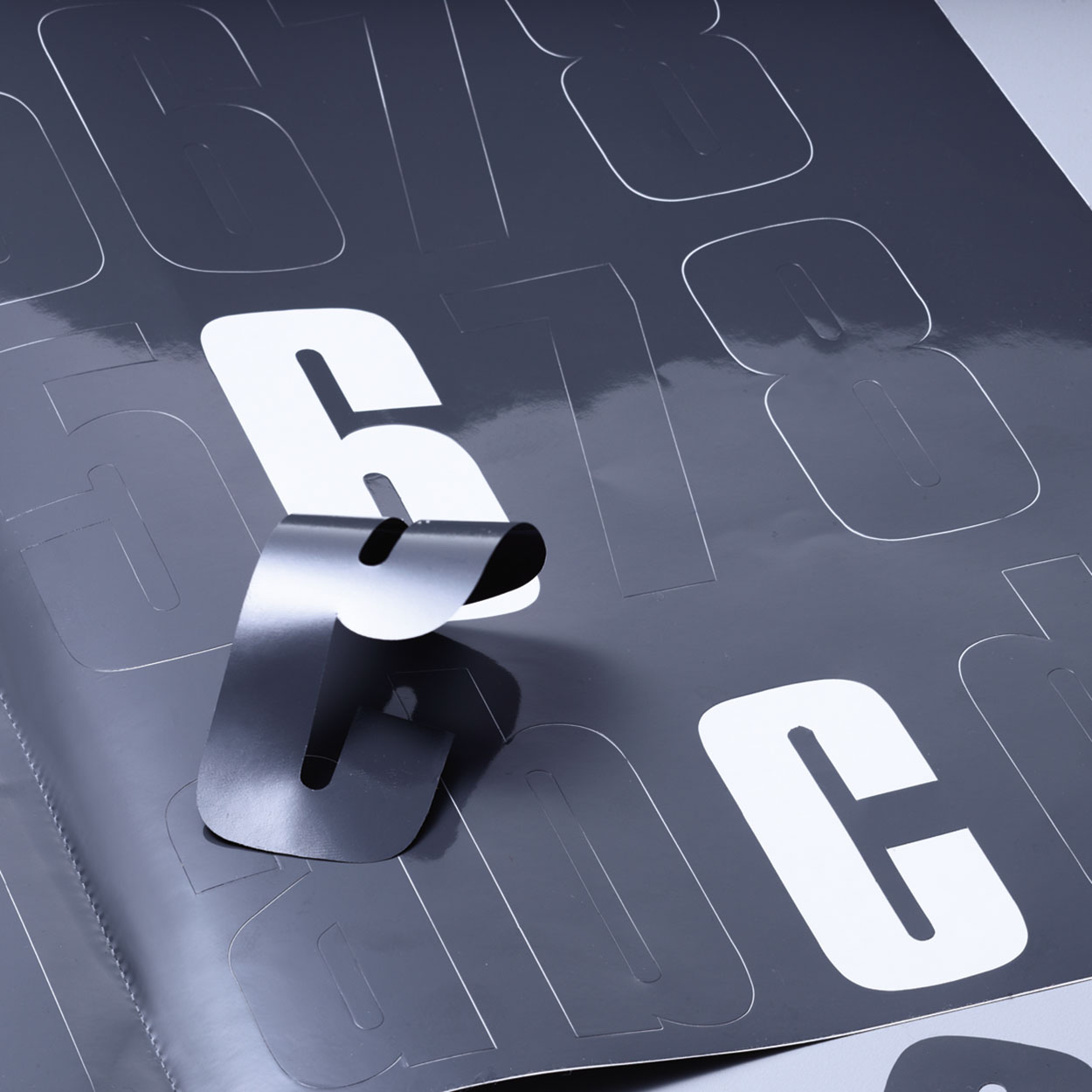

Including sheet of self-adhesive house numbers

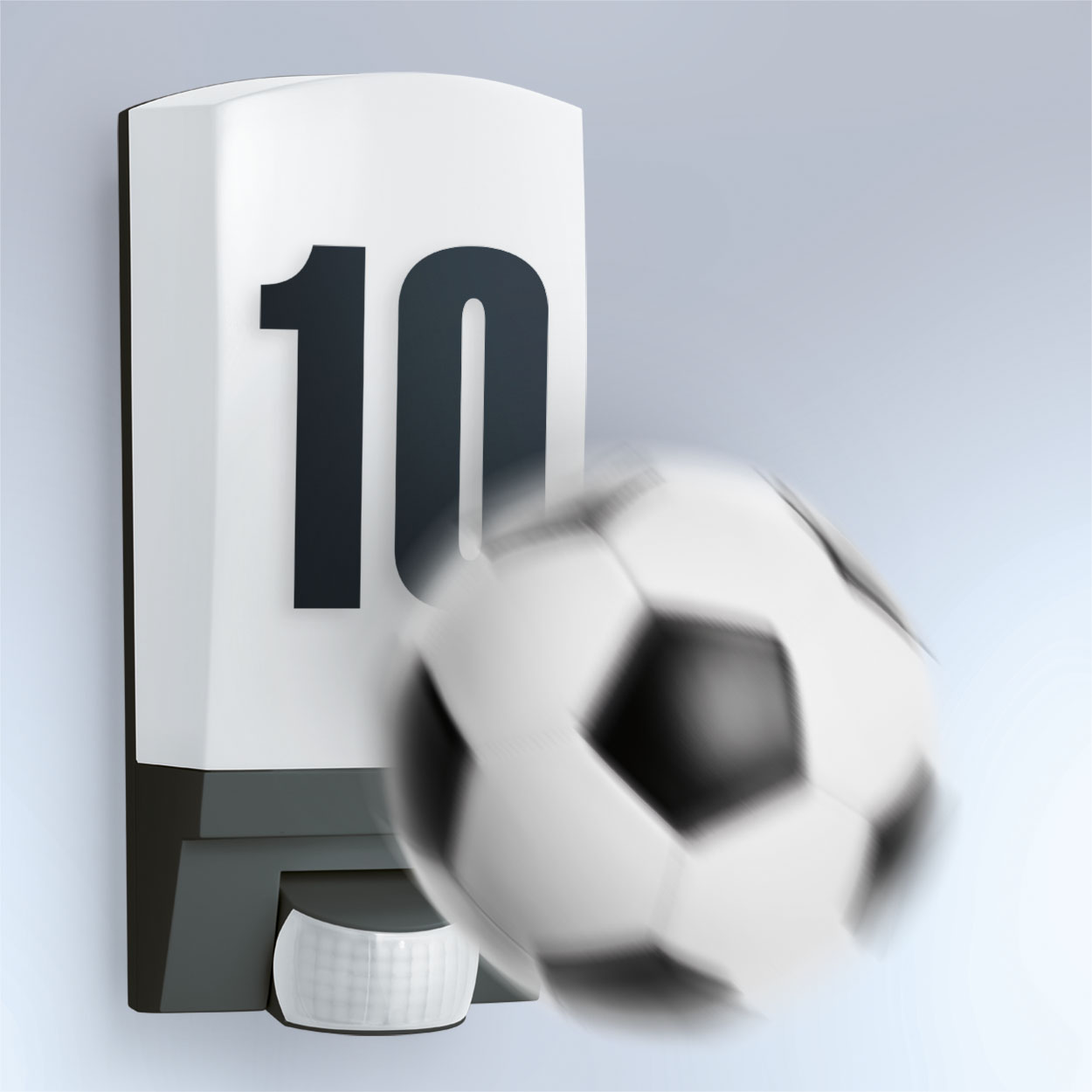

Impact-resistant material rated to IK07

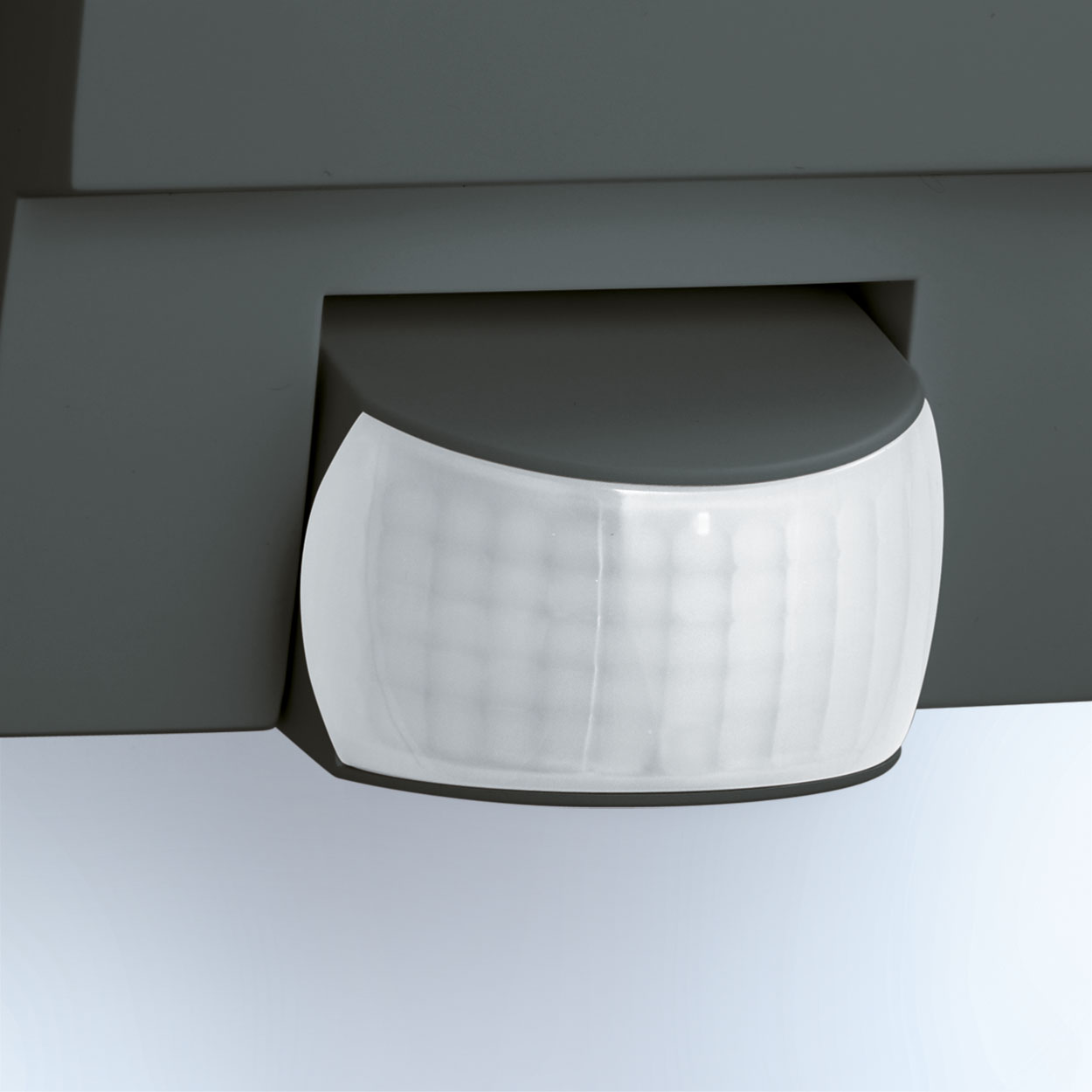

UV-resistant plastic

Technical drawing

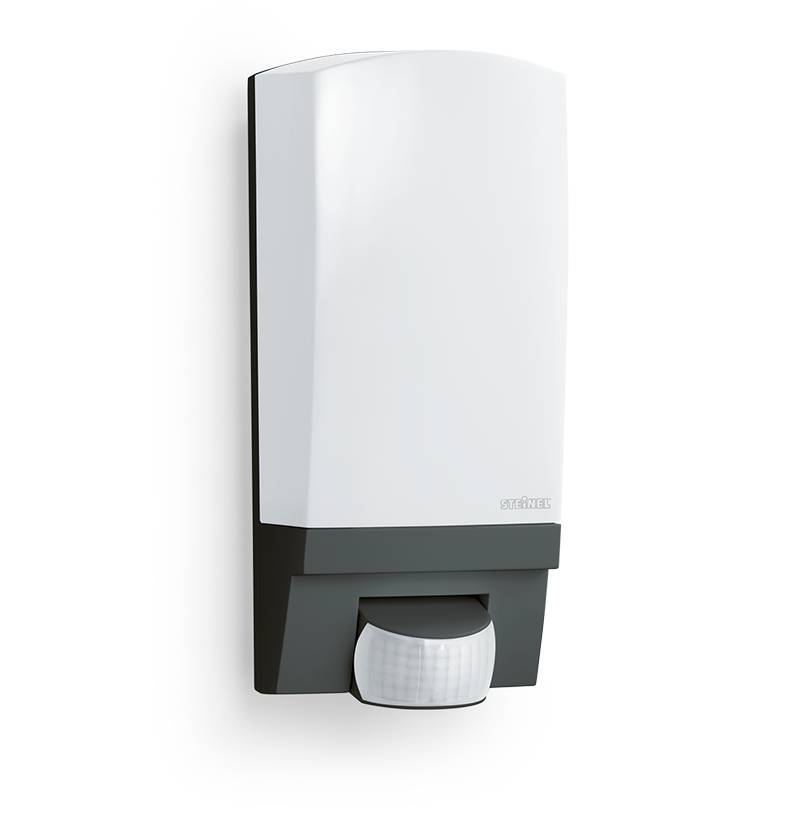

Sensor detection range

Wiring diagram 1

Circuit diagram
